6 Pin Connector Board to Board Type For 12mm RGBCCT LED Strip

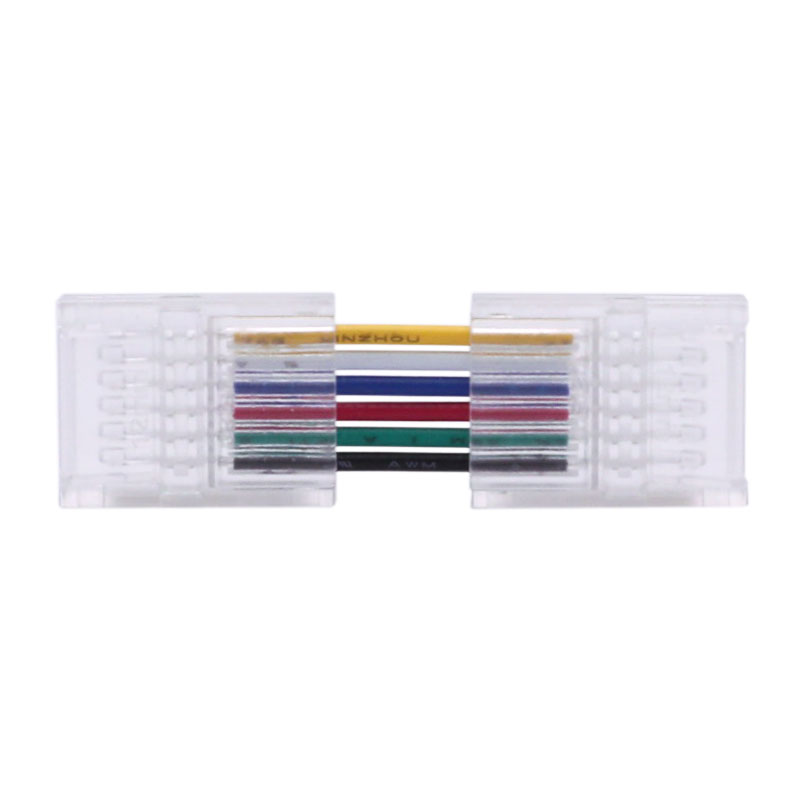

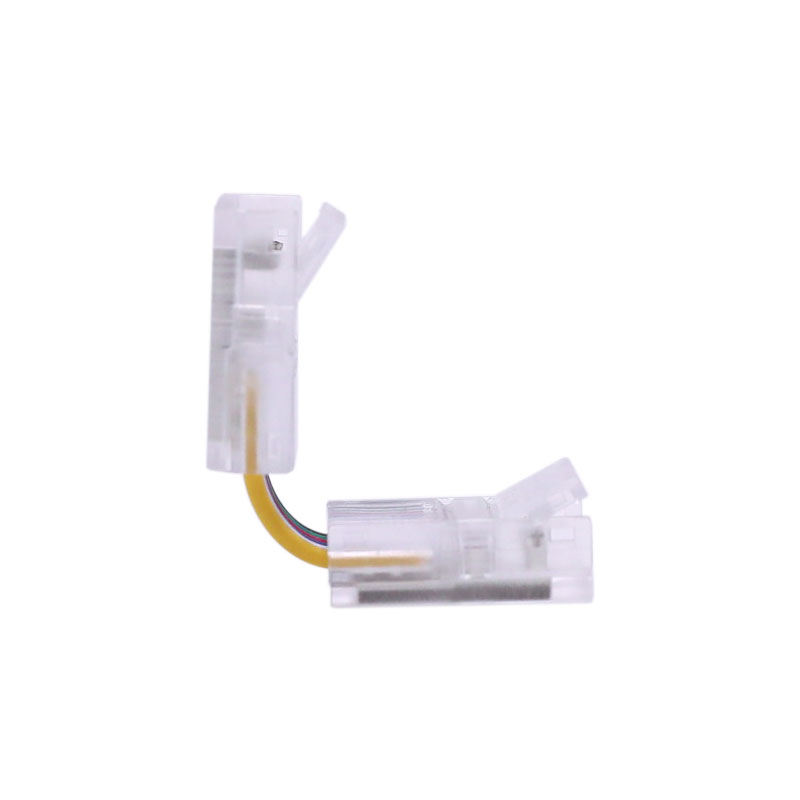

This is a 6-pin LED connector for 12mm wide RGB CCT color changing LED strip lights, used to connect two sections of light strips. It's 2 inches in length, and 0.64 inches wide. It can be stright connected or L-shape connected.
The role of each wire is determined by your RGBCCT led strip.
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
