Product Information

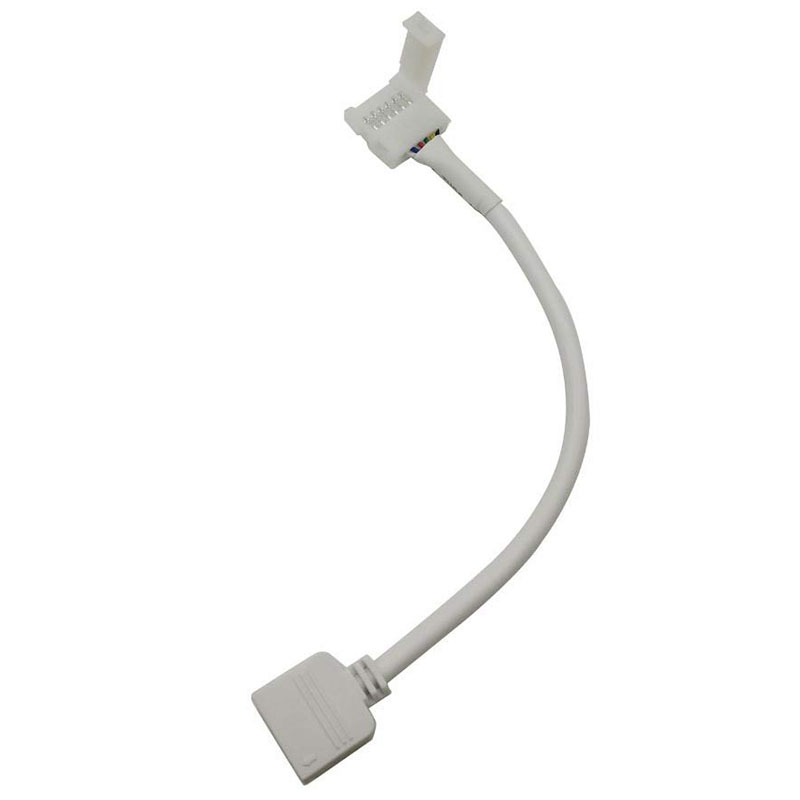

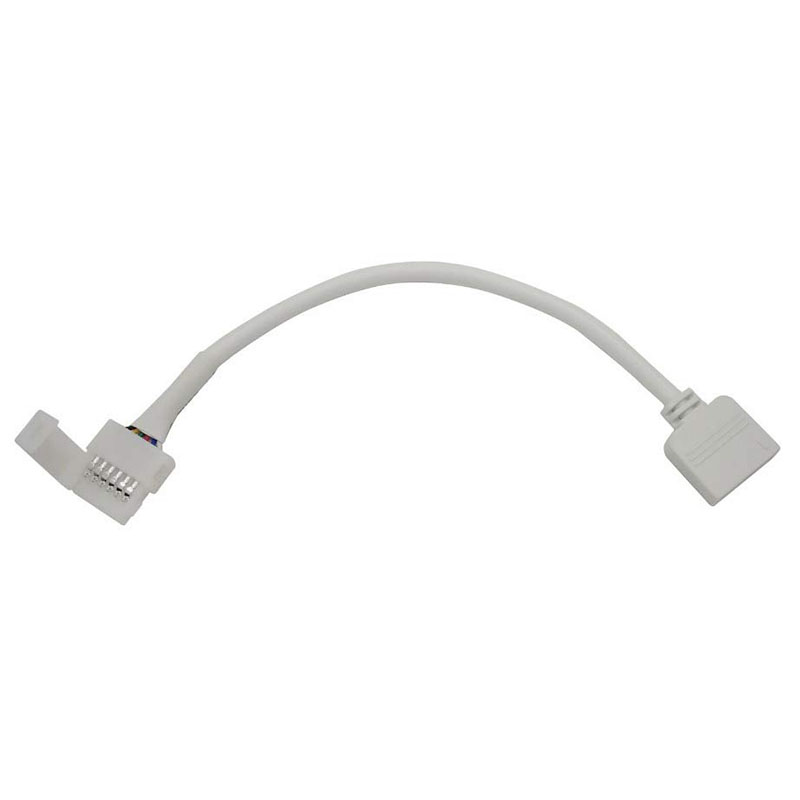

Eliminate the hassle of soldering with the 12mm 6-Pin Strip-to-Controller Solderless LED Connector. This essential accessory is expertly designed to create a secure bridge between the end of your 12mm wide RGB+CCT LED strips and your controller. Featuring a convenient, pre-attached 13cm (5.1-inch) color-coded cable, this solderless led strip connector allows for a quick and effortless installation. Simply open the clasp, insert your strip, and connect the wires to your RGB+CCT controller's terminals. It's the ideal solution for DIY enthusiasts and professionals seeking a reliable, tool-free method to power and control their advanced multi-color lighting setups, ensuring a clean and stable connection every time.
Key Features
Completely Solderless Connection
Features a robust clamp-down mechanism that pierces the strip's contacts, creating a secure electrical link without any soldering.
Strip-to-Controller Design
Specifically engineered to connect the start of an LED strip run directly to a controller's input terminals.
Pre-Wired for Convenience
Includes an integrated 13cm (5.1") 6-conductor cable, saving you time and effort in preparing wires for your controller.
Precise Compatibility
Designed exclusively for 6-pin, 12mm wide RGB+CCT (RGB + Tunable White) flexible LED strips.
Reliable & Reusable
The strong clasp ensures a firm grip on the strip for a stable connection, and can be opened and reused if needed.
Technical Highlights
- Ensures proper alignment and contact for all six channels of RGBCCT lighting.
- Color-coded wires match standard RGBCCT controller inputs for intuitive wiring.
- Compact connector body minimizes visual intrusion in your lighting installation.
Product Specifications
| Parameter | Details |
|---|---|
| Product Name | 12mm 6 pin Strip To Controller Solderless Easy LED Connector with 13cm Cable |
| Model | RGB/CCT-ACCESSORIE-9 |
| Connector Type | Strip to Controller Pigtail |
| Connection Method | Solderless, Clamp-down |
| Strip Compatibility | RGB+CCT LED Strips |
| Supported PCB Width | 12mm |
| Number of Pins | 6 |
| Attached Cable Length | 13 cm / ~5.1 inches |
| Material | Plastic, Copper |
| IP Rating | IP20 (Indoor use only) |
Application Scenarios
How to Use This Solderless Connector
- Step 1: Turn off all power to your lighting system before installation.
- Step 2: Open the white hinged clasp on the top of the connector.

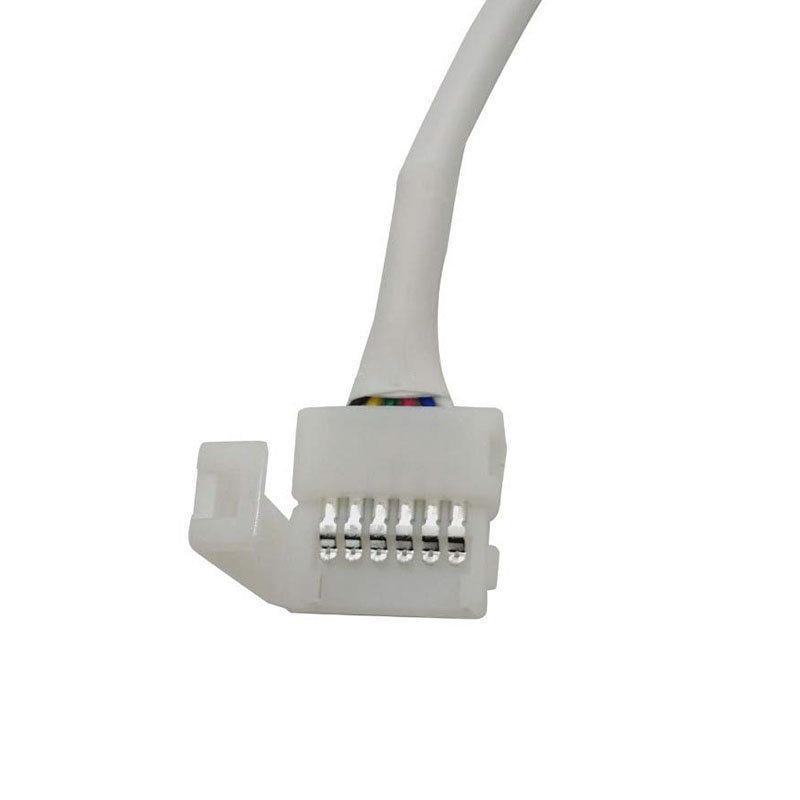

- Step 3: Carefully slide your 12mm RGB+CCT LED strip into the connector, ensuring the six copper pads on the strip align directly under the six metal pins inside the connector.
- Step 4: Press the clasp down firmly until you hear it click shut. This action pierces the strip's contacts to create a secure connection.

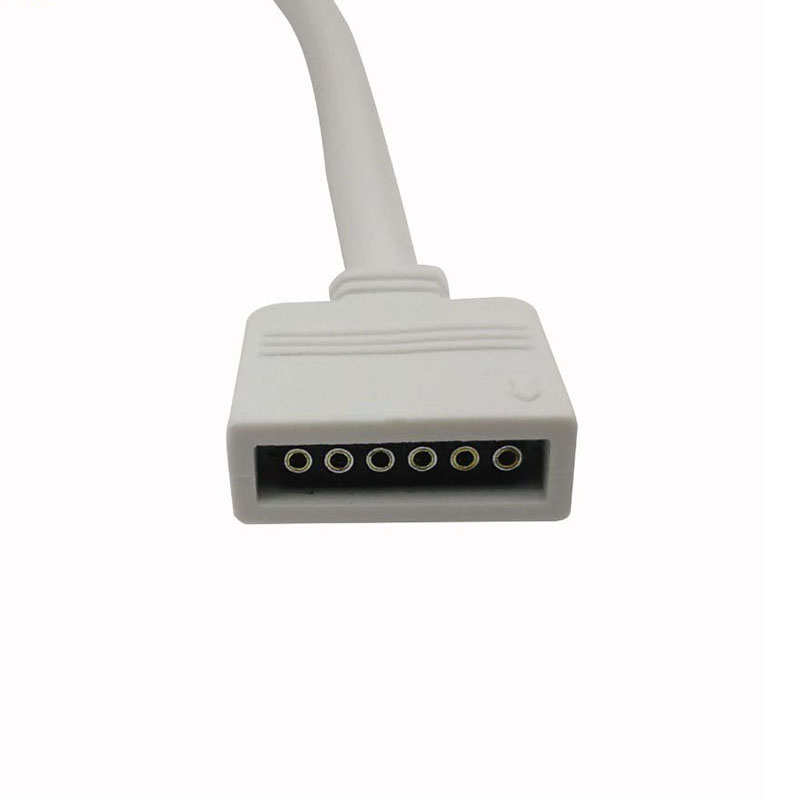

- Step 5: Connect the six color-coded wires from the 13cm cable to the corresponding screw terminals on your RGB+CCT controller (e.g., R, G, B, WW, CW, V+).
- Step 6: Restore power to your system and test all colors and functions to confirm a successful connection.
- This connector is designed ONLY for 12mm wide, 6-pin RGB+CCT LED strips. It will not work with other widths or pin configurations.
- Ensure the polarity and wire order match between the strip, the connector, and your controller. Incorrect wiring can prevent the strip from lighting up correctly.
- This is a non-waterproof (IP20) connector. It must be used in dry, indoor locations only.
- Do not pull on the cable forcefully, as this may damage the connection points inside the housing.
What's in the Box
- ✓1 x 12mm 6-pin Strip-to-Controller Solderless Connector with 13cm Cable
Frequently Asked Questions
Q: Do I need to solder anything to use this connector?
A:No, this is a completely solderless connector. It uses a clamp mechanism to create a secure connection to the LED strip.
Q: Will this work for my 10mm 4-pin RGB strip?
A:No, this connector is specifically designed for 12mm wide, 6-pin RGB+CCT LED strips and is not compatible with other sizes or pin counts.
Q: What is the 13cm cable for?
A:The pre-attached 13cm cable serves as a pigtail, allowing you to easily connect the wires directly into the screw terminals of an RGB+CCT controller without needing to solder wires onto the connector yourself.
Q: Can I use this to connect two LED strips together?
A:This model is intended to connect a single LED strip to a controller. For connecting two strips end-to-end, you would need a strip-to-strip connector.
Q: Are the wires on the cable color-coded?
A:Yes, the six wires are color-coded to simplify the process of matching them to the correct terminals on your controller.
Q: Is this connector waterproof for outdoor use?
A:No, this is an IP20-rated connector and is not waterproof. It should only be used in dry, indoor environments.
