WS2811 DC12V 2835SMD 120LEDs/M White Indoor Constant Voltage Programmable LED Strip Lights, 5M/16.4ft Per Reel By Sale
This programmable led strip is an intelligent control LED light source that the control circuit and RGB chip are integrated into a package of 5050 components. It internal include intelligent digital port data latch and signal reshaping amplification drive circuit. Also include a precision internal oscillator and a DC12V voltage programmable constant current control part, effectively ensuring the pixel point light color height consistent.
1. With two data lines, the transmission speed is 800k bps
2. 4-pin JST SM male connector on both ends
3. Pure copper bracket and pure gold wire for 2835 SMD led,
4. 2unce PCB board with a double copper layer
5. doublesides membrane covers the PCB board. make sure the copper no drop from the PCB board
6. One IC control four SMD2835 LEDs,
7. 12V low voltage inputted.The 12VDC operation, Low carbon, no radiation, no flicker, and no pollution to human and environment, Safe and stable.
8. Controller System：SD controller, DMX controller, Artnet, and so on. (SPI protocol)
9. Installing screw+silicon clip and 3M adhesive on backside for sticky
Standards and Certifications
LED Strip Type: SMD2835
LED Chip: WS2811 IC super brights Chip
Working Temperature: -4°F (-20°C) ~ 122°F (50°C)
Storage Temperature: -40°F (-40°C) ~ 176°F (80°C)

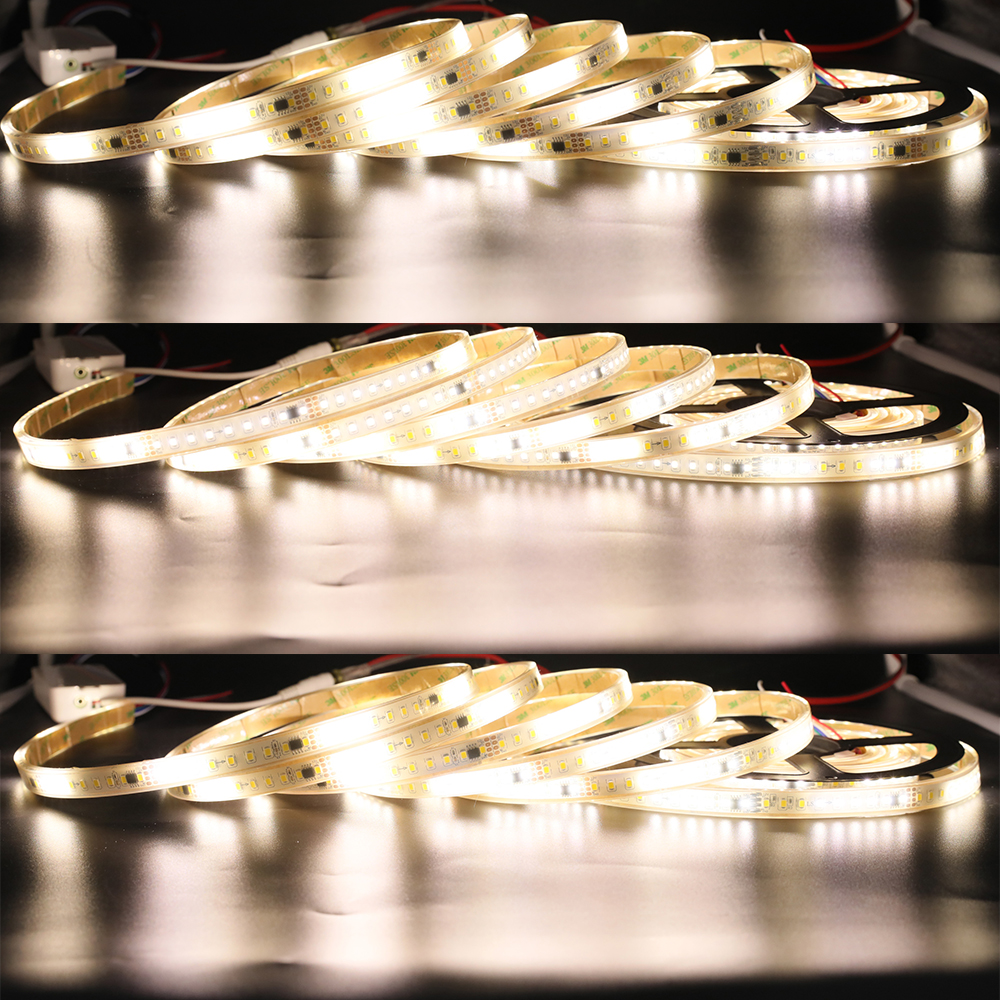

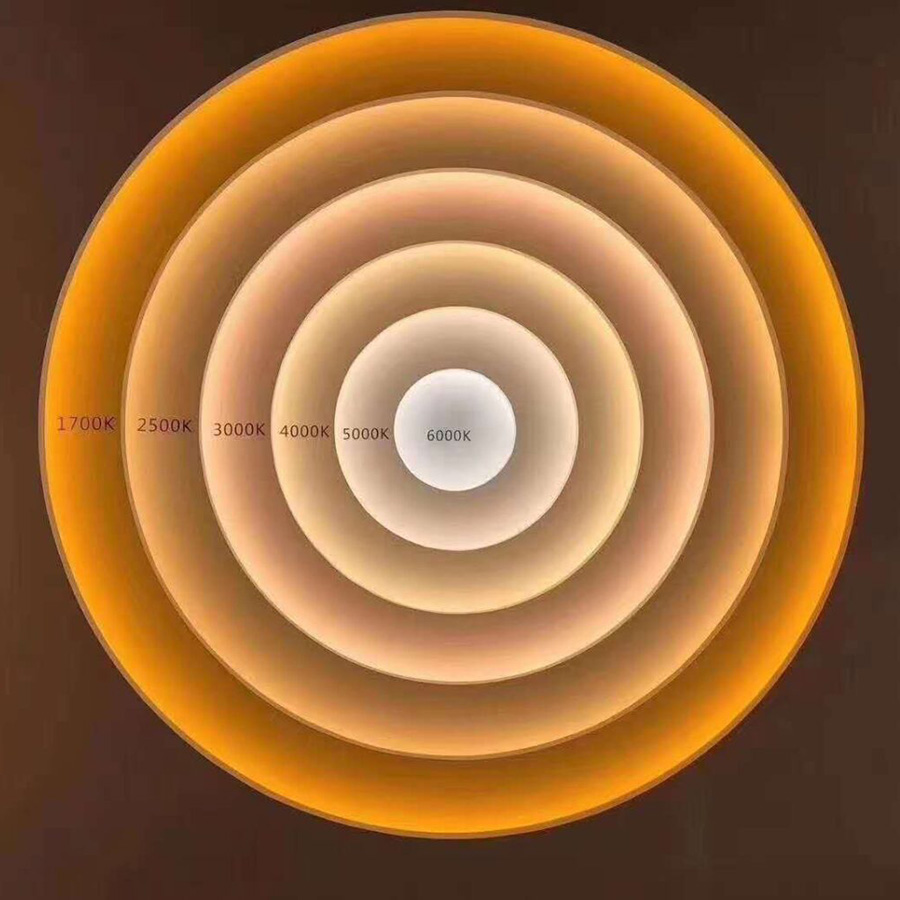

Color: White (2000k–6500K optional)
LED Quantity: 120 LEDs/M, 600LEDs/Roll
View Angle: 120°
Working Power: 17W/m. 85W/roll
Working Voltage: DC12V
Drive Mode: Constant Voltage
Pixel Quantity: 30pixels/M

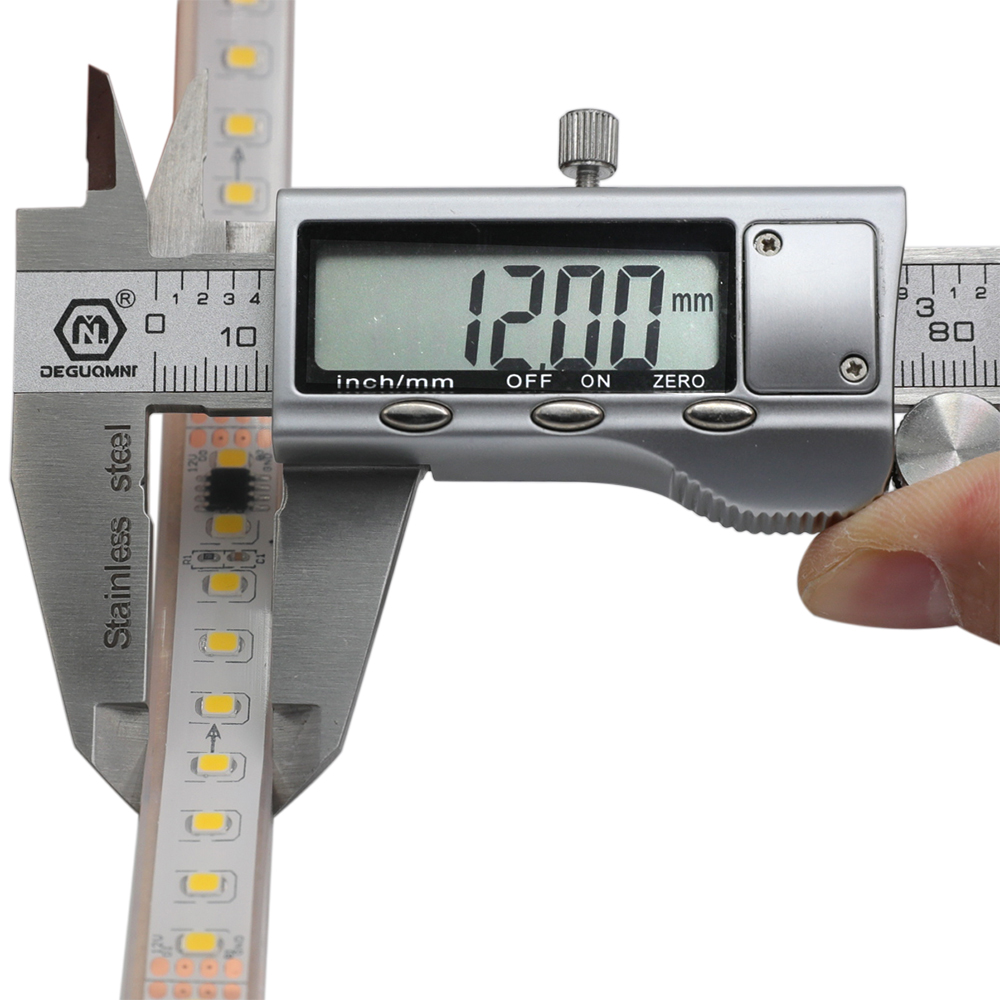

PCB Width: 10mm/0.39in

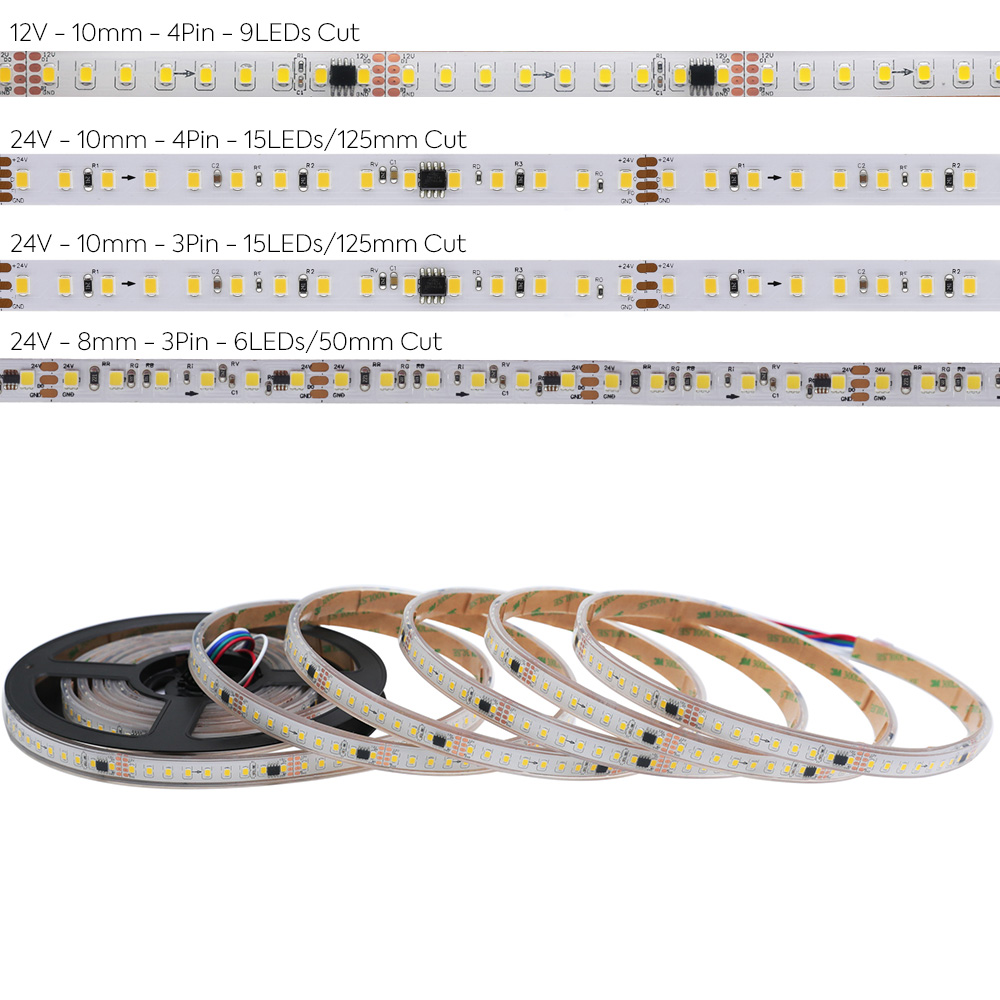

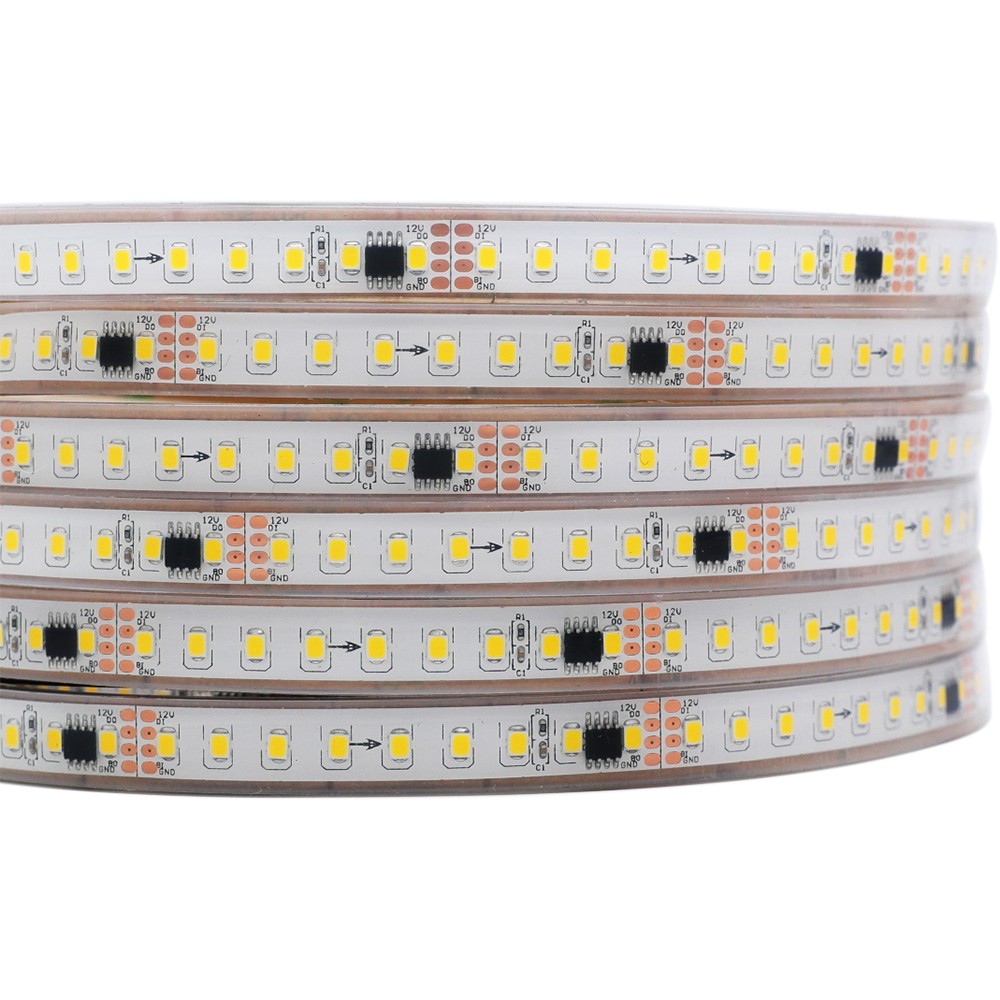

One WS2811 IC control 4 pcs SMD 2835 LEDs
Water Proof: Non-Waterproof/IP65/IP67
1*5M led strip light
LED programmable digital display
Hotels decoration use
Concealed lighting, Cove decoration
Theaters, clubs, shopping malls lighting
Architectural decorative lighting
Boutique atmosphere lighting
Auditorium walk stairway lighting
Hidden groove, Wine cabinet decoration
Show exhibition decoration
Waterproof Level Description
IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);
IP65 Waterproof (Epoxy cover waterproof, Epoxy Resin, PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, For Outdoor & Indoor) ;
IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);
IP68 Waterproof (Fully waterproof plastic irrigation, PCB both surface and back are encapsulated with plastic Gel, with a plastic fastener, the top level of waterproof, For Outdoor);

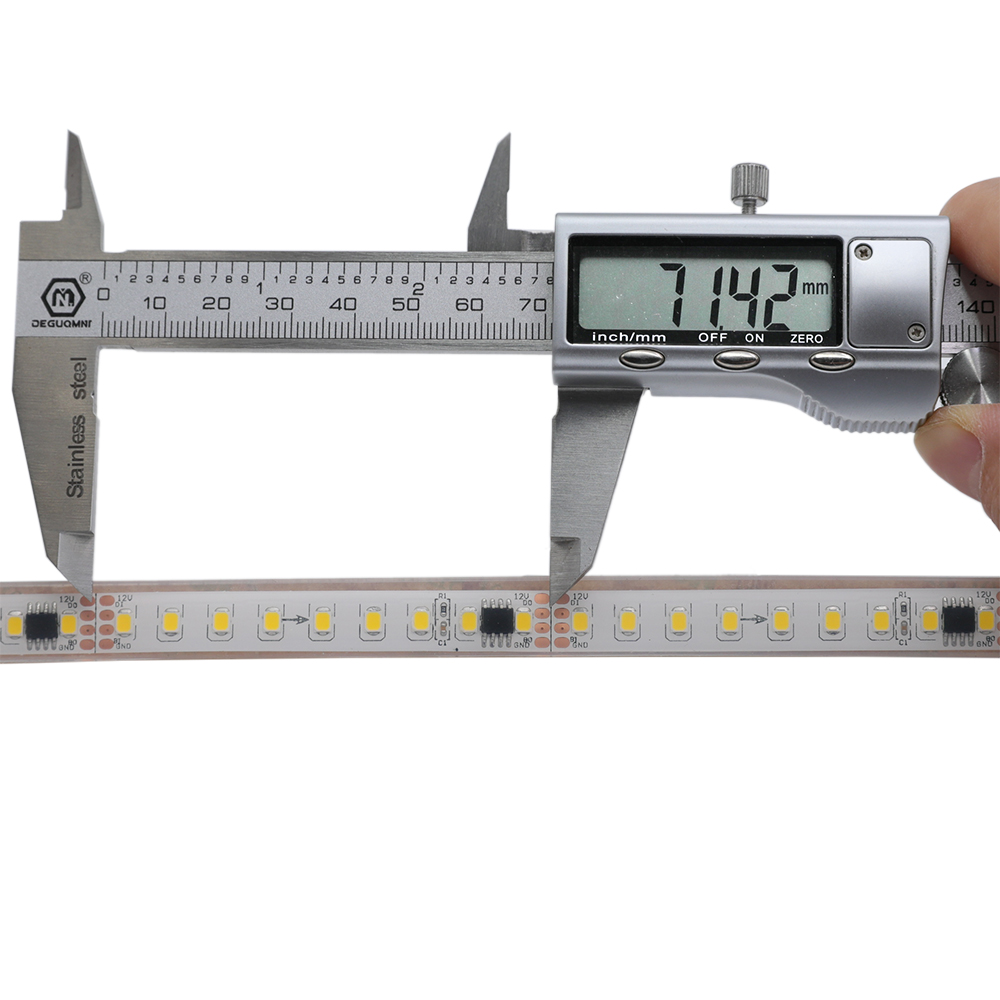

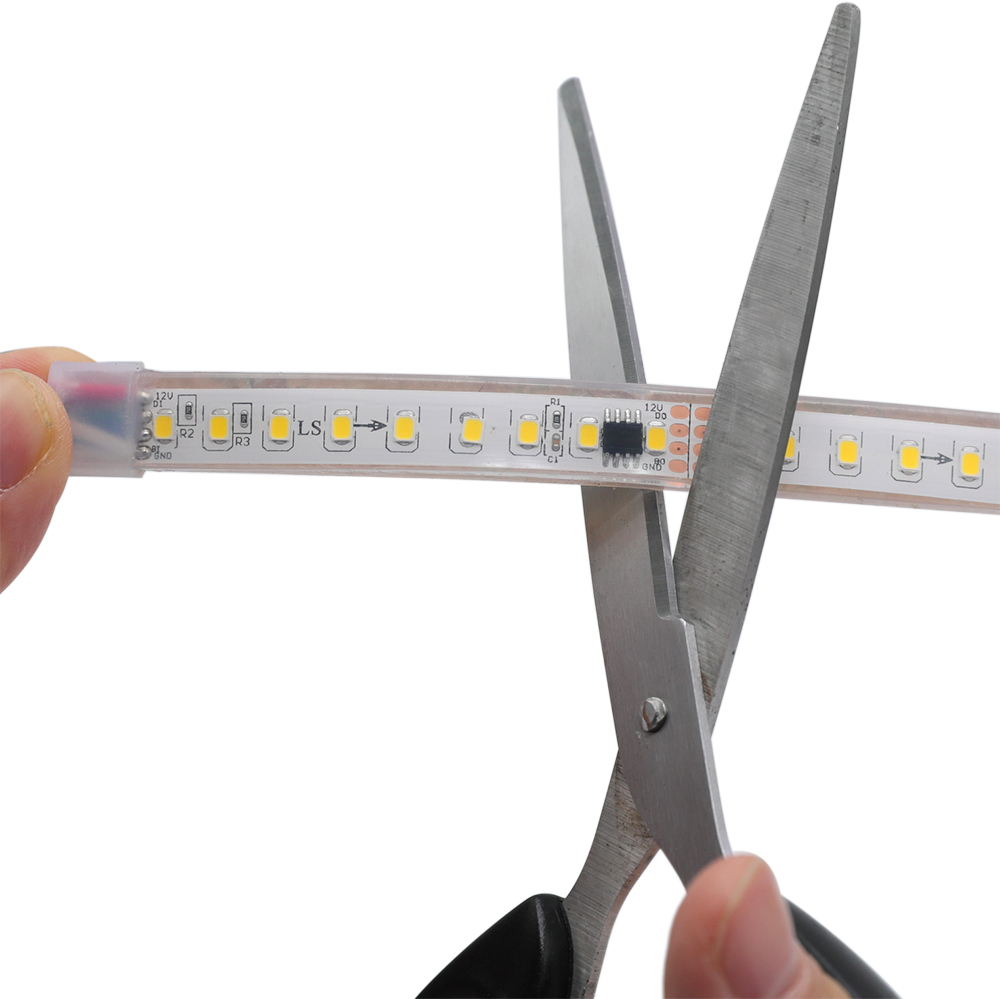

You can cut the strip every few inches, The back of the strip is fitted with a strong IP67/IP68 type which will come with

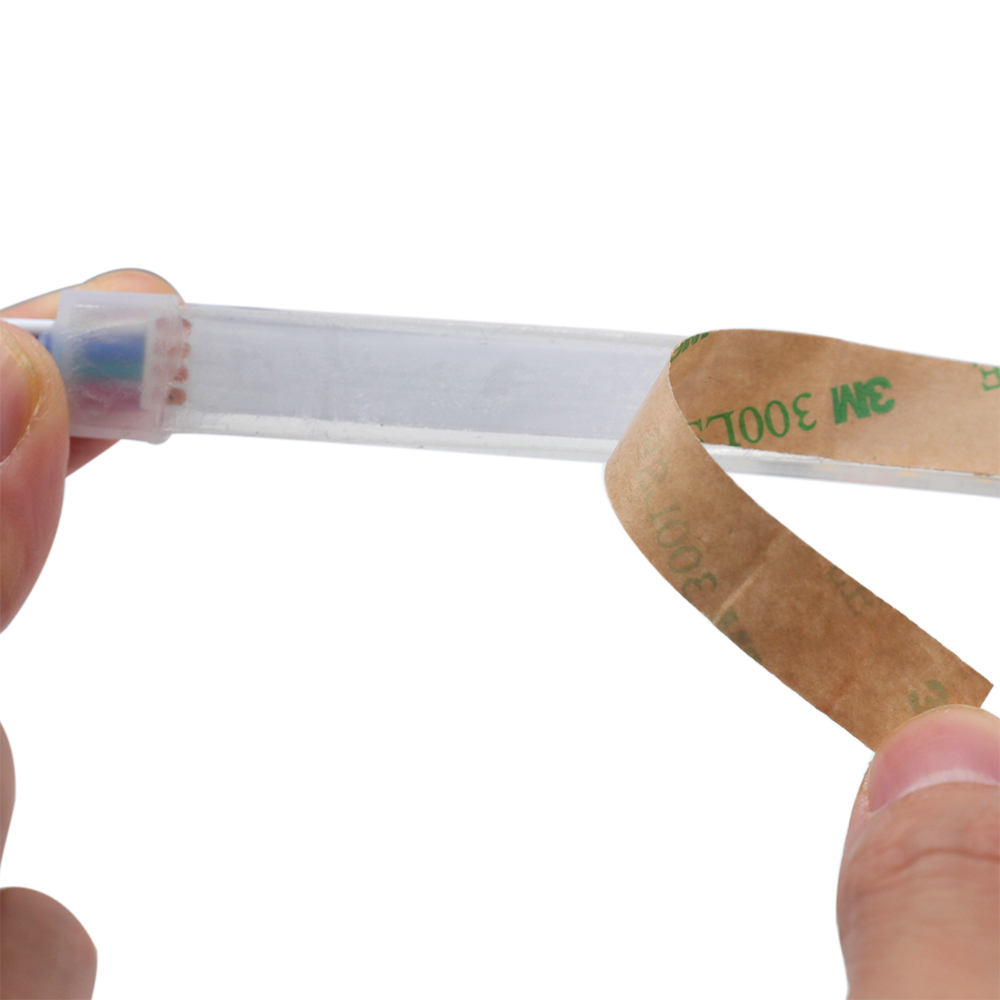

allowing you to freely design your project 3M tape, allowing you to peel and stick lights mounting brackets
without worrying about space requirements
to many different surfaces.
