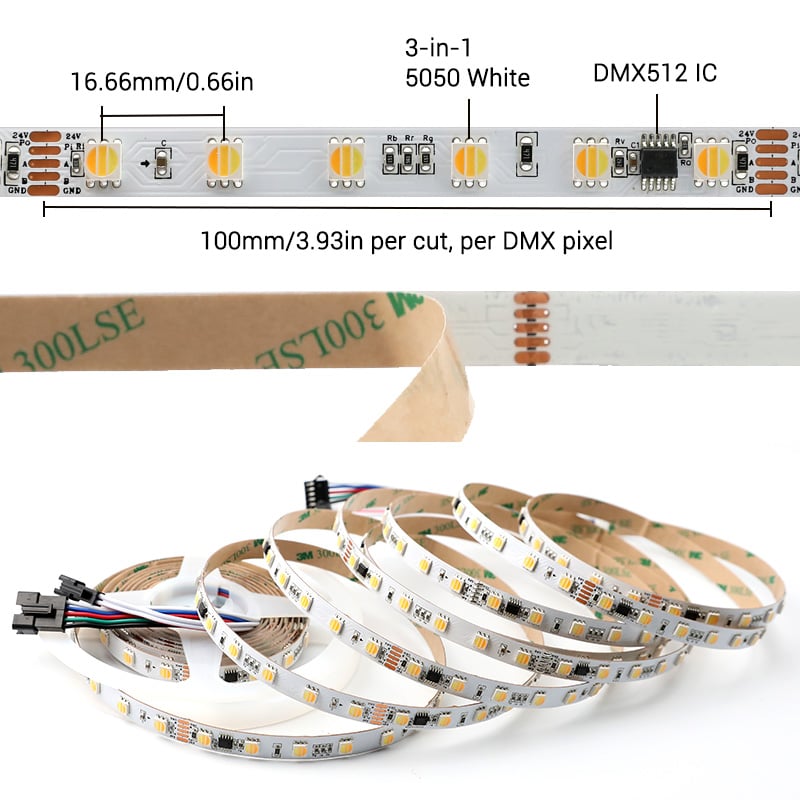

This DMX tunable white LED strip combines 3000K warm white, 4500K neutral white, and 6500K daylight white diodes into each 5050 SMD package for smooth dynamic white LED effects. Operating on DC24V with an output of 16W/m, this DMX512 LED strip provides 60 LEDs/m with addressable control over every group of 6 LEDs (100mm per pixel). It integrates direct differential parallel DMX512 communication via TM512AD or UCS512H4LB driver ICs, eliminating separate decoders in standard DMX architectural control setups. Designed with 5 solder terminals (24V+, A, B, P, GND) and pre-terminated 5-pin and 2-pin JST-SM connectors, this DMX tunable white LED strip lighting system handles linear pixel mapping, circadian rhythm pacing, and smooth chasing transitions.
Key Features

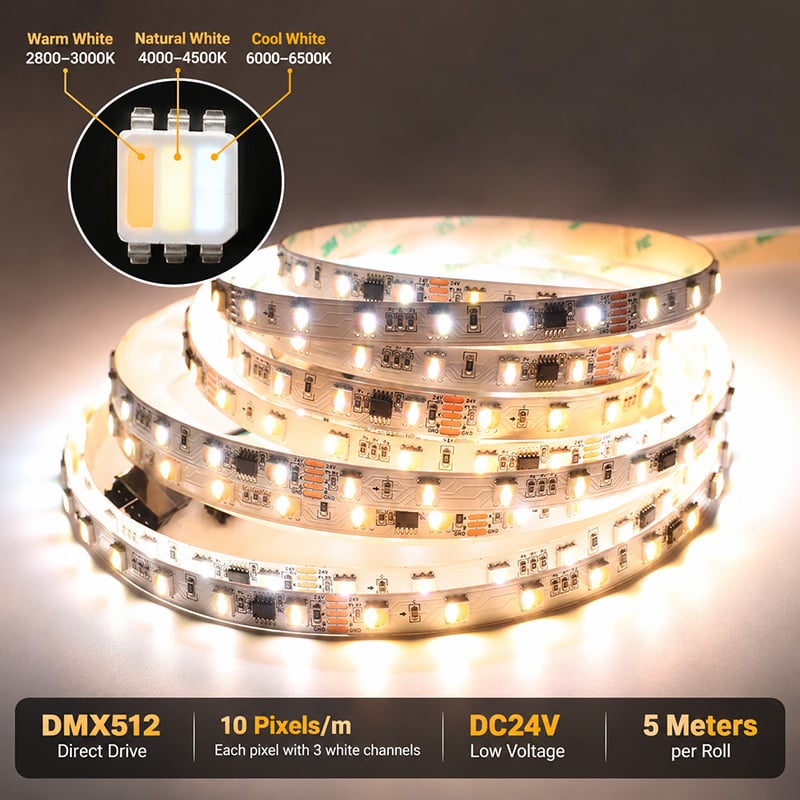

3-in-1 CCT Diode Integration
Each 5050 SMD package houses 3000K warm white, 4500K neutral white, and 6500K cool white emitters on a single die, providing seamless tunable white color blending without alternating phosphor artifacts.
Direct DMX512 Protocol Support
Driven by external TM512AD or UCS512H4LB ICs with differential parallel signal architecture, avoiding single-point cascade data failures across multi-fixture installations.
24V Power & 100mm Pixel Resolution
Engineered with 60 LEDs/m and grouped into 10 pixels per meter (6 LEDs per IC), allowing precise trimming every 100mm (3.94in) at dedicated copper solder pads.
Multiple Ingress Protection Options
Available in 4 protection grades ranging from IP20 dry indoor tape to IP65 surface glued, IP67 silicone tube, and IP68 solid silicone encapsulation for wet locations.
Technical Highlights
- External TM512AD or UCS512H4LB control IC decodes differential DMX512 data at rates between 200 kbps and 750 kbps.
- Color temperature spans 3000K, 4500K, and 6500K with color rendering index Ra>85 to reproduce accurate, natural whites.
- Differential parallel wiring prevents an individual damaged chip from interrupting signal distribution to subsequent downstream sections.
- Designed to accept direct DMX programming via 3 white lighting channels per pixel block (DMX footprint: 30 DMX addresses per 5-meter reel).
Product Specifications
| Parameter | Details |
|---|---|
| Product Model | FSLDMX-3CCT-5050X60 |
| Input Voltage | DC24V |
| Power Consumption | 16W/m (80W per 5m reel) |
| LED Type | SMD 5050 3-in-1 CCT |
| LED Density | 60 LEDs/m (300 LEDs total) |
| Pixel Resolution | 10 pixels/m (6 LEDs per IC pixel) |
| Cutting Pitch | 100mm (3.94in) |
| Color Temperature | 3000K + 4500K + 6500K |
| Color Rendering Index (CRI) | Ra>85 |
| Beam Angle | 120° |
| PCB Width | 10mm (0.39in) |
| Strip Length | 5 meters (16.4ft) |
| Driver IC Options | TM512AD / UCS512H4LB |
| Signal Protocol | DMX512 (USITT DMX512/1990 compatible) |
| Solder Terminal Configuration | 5 Pads: 24V+, A (Data+), B (Data-), P (Write Address), GND |
| Connector Type | 5-pin JST-SM signal + 2-pin JST-SM power injection at both ends |
| Waterproof Options | IP20 non-waterproof, IP65 surface glued, IP67 silicone tube, IP68 solid resin |
| Operating Temperature | -20℃ to +45℃ |
| Dimming Grayscale | 256 to 65536 levels (IC dependent) |
Application Scenarios
How to Install & Wire This LED Strip
- Select an adequate DC24V power supply that delivers at least 96W of capacity per 5m reel to accommodate the 80W full-load rating with a 20% operating safety margin.
- Connect the 5-pin JST-SM harness to your DMX distribution line: connect 24V+ to power positive, GND to common ground, A to DMX Data+, B to DMX Data-, and P to the address programmer line when writing DMX addresses.
- Inject secondary DC24V power via the 2-pin JST-SM connector every 5 meters to prevent voltage drop and maintain balanced lumen output across extended linear runs.
- If cutting is necessary, cut only along the marked 100mm cut lines across the 5 copper pads, and reseal all exposed ends with neutral silicone sealant when working with IP65, IP67, or IP68 waterproof ratings.
What's in the Box
- ✓1 × 5m (16.4ft) Roll DC24V DMX Tunable White 5050 3-in-1 LED Strip
⇩ Downloads & Documents
Frequently Asked Questions
Q: How many DMX channels does a 5-meter reel consume?
A:With 10 pixels per meter and 3 white channels per pixel (3000K, 4500K, 6500K), each meter consumes 30 DMX channels, requiring a total of 150 DMX channels per full 5-meter (16.4ft) reel.
Q: Can this LED strip be cut and reconnected?
A:Yes, the LED strip can be cut at every 100mm interval across the designated 5 copper solder pads (24V+, A, B, P, GND) using standard shears.
Q: What is the difference between TM512AD and UCS512H4LB IC options?
A:Both chips support standard DMX512 differential parallel communication, but the UCS512H4LB provides enhanced PWM refresh rates up to 32K and adaptive grayscale smoothing for flicker-free camera recording.
