24V 12V UCS2903 Addressable Double Row RGB LED Strip 120 LEDs Per Meter

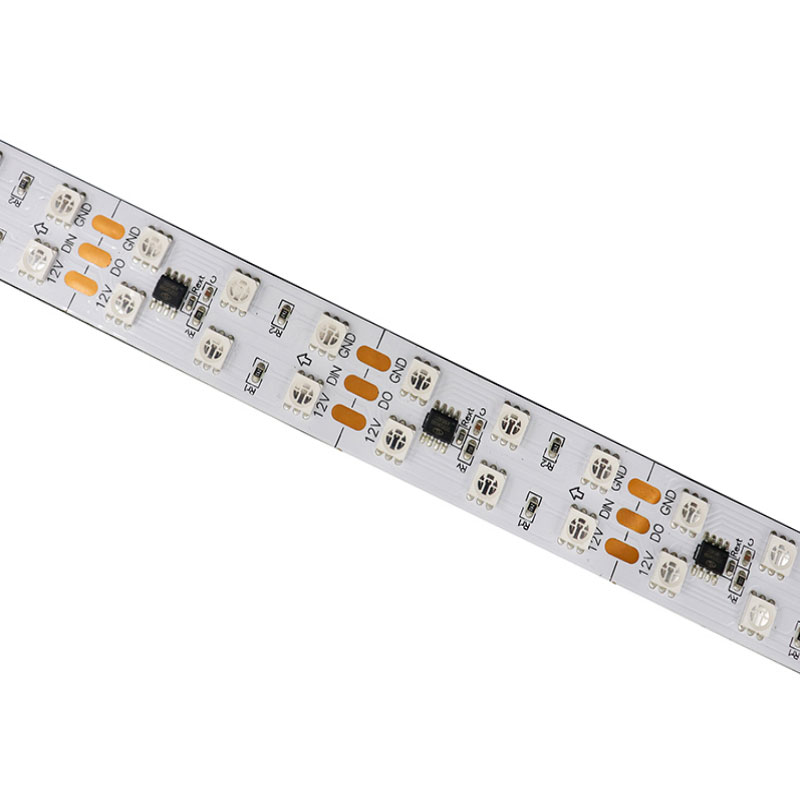

Check our UCS2903 double row SMD 5050 addressable RGB led strip with 120 LEDs per meter, 20mm PCB wide, available in 24VDC and 12VDC input. This double row RGB led strip is a similar version of the FSLDR-WS2811-5050RGB-120X20 and DCFLS-12V-TM1812X600, but utilizes the UCS2903 IC and is available in voltages up to 24V, allowing for very long run distances. The addressable UCS2903 3 wire double row rgb led strip has more LED diodes on the same 5m length, which allows it to provide a stronger illumination, and more even and brighter light.
24V UCS2903 vs 12V UCS2903

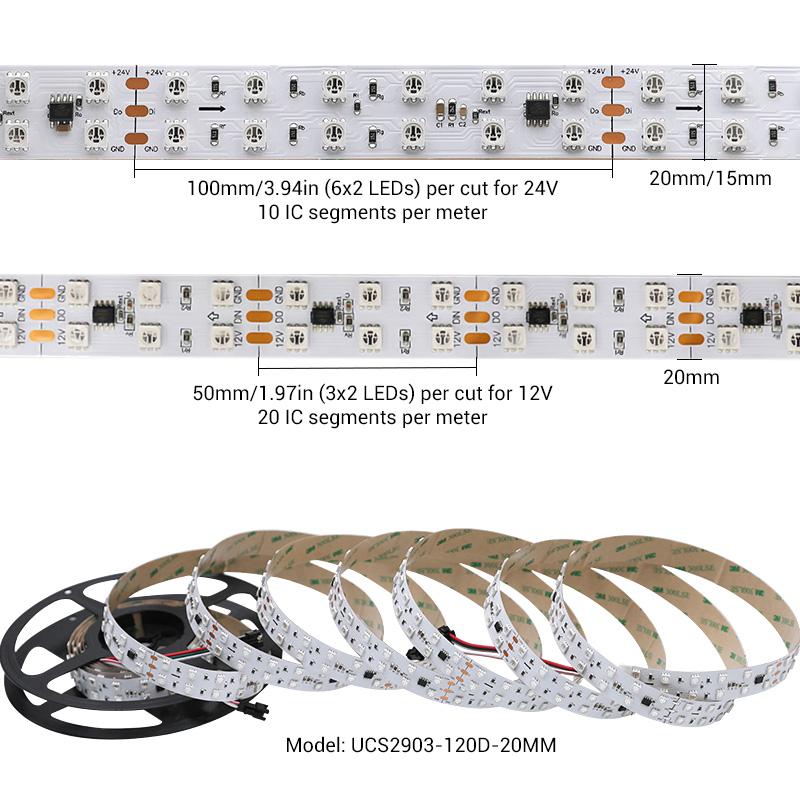

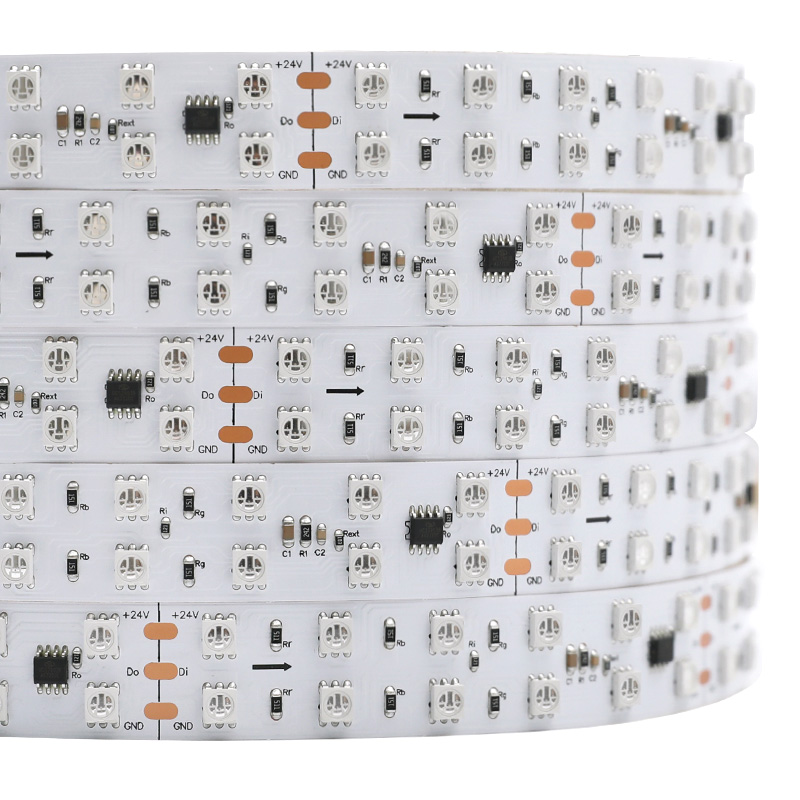

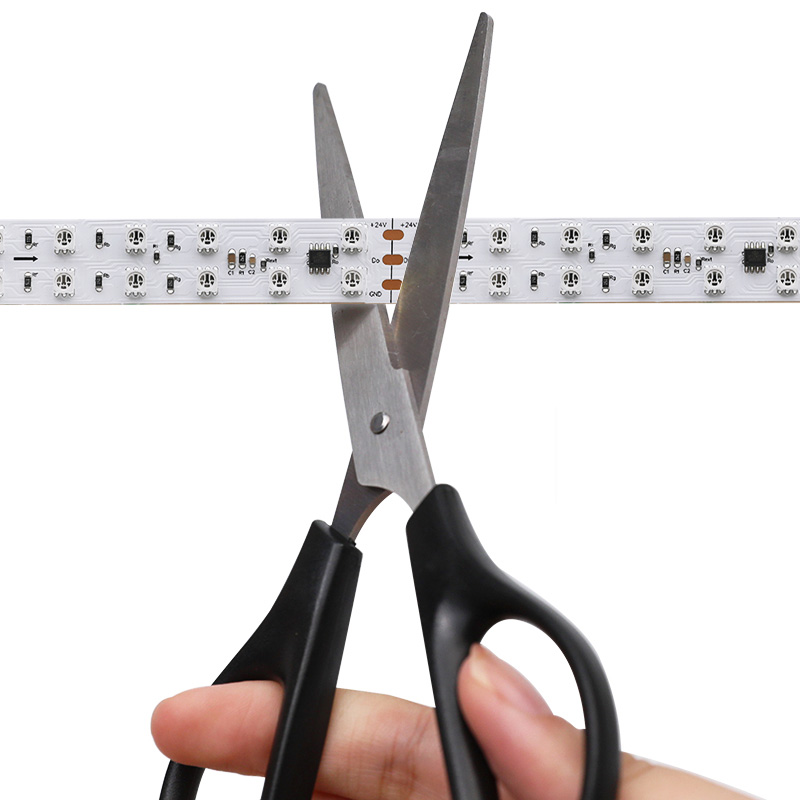

24V 120LEDs/m Double Row UCS2903: 10 pixels per meter, 12 LEDs can be cut (100mm/4in cut segment);
12V 120LEDs/m Double Row UCS2903: 20 pixels per meter, 6 LEDs can be cut (50mm/2in cut segment).
Controller and power supply in the kit:
CONFULL-SP107E Bluetooth SPI controller, LRS-150-24 or LRS-150-12 Mean well power supply.
|Item Type:||UCS2903 Addressable Double Row RGB LED Strip|
|LED Chip:||UCS2903 + SMD5050|
|LED Color Temperature:||Addressable RGB|
|LED Quantity:||120LEDs/m, 600LEDs/Roll|
|Waterproof Rating:||Non-waterproof IP20 / Waterproof IP65 IP67 IP68|
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
