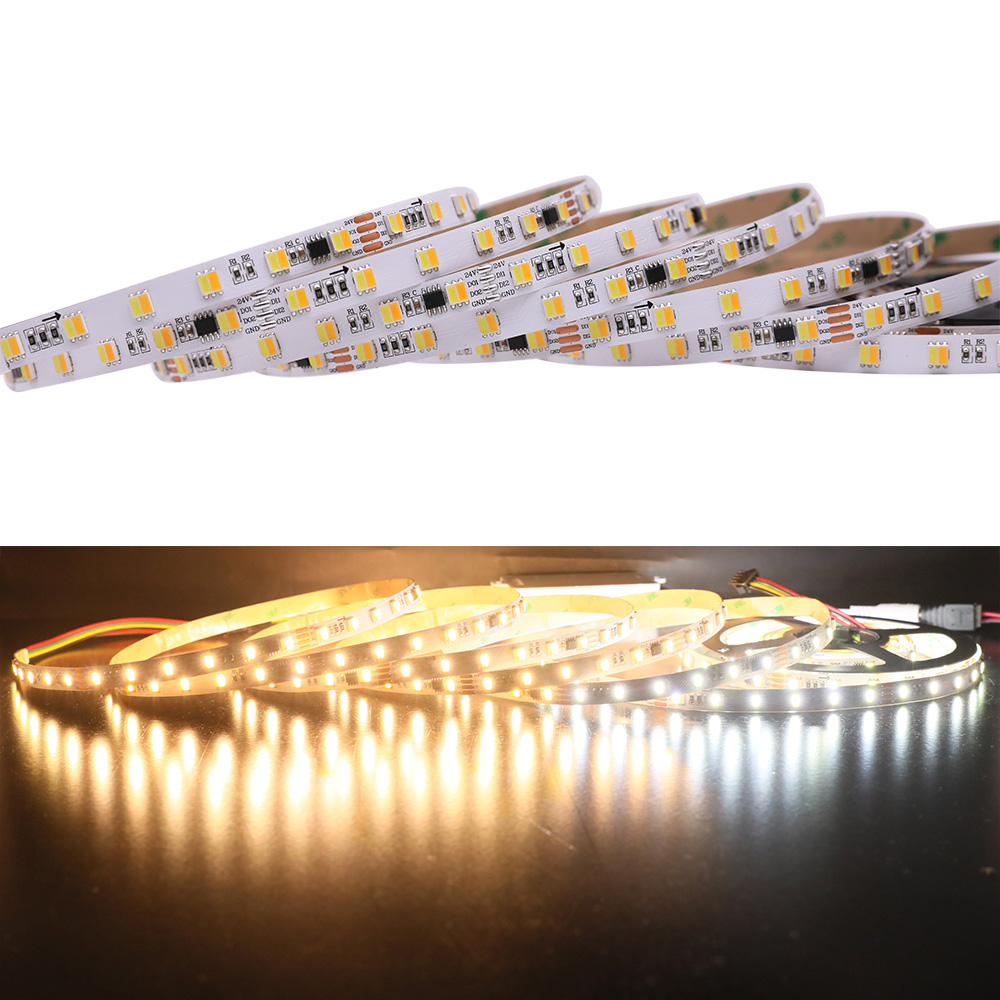

DMX512 CCT 2 in 1 DC24V 360LEDs Addressable Flexible LED Strip Lights, 16.4Ft/roll
1. Using FPC with better flexibility as the base material, FPC has good electrical conductivity, fast heat dissipation, bending resistance, and can be bent into any shape at will,

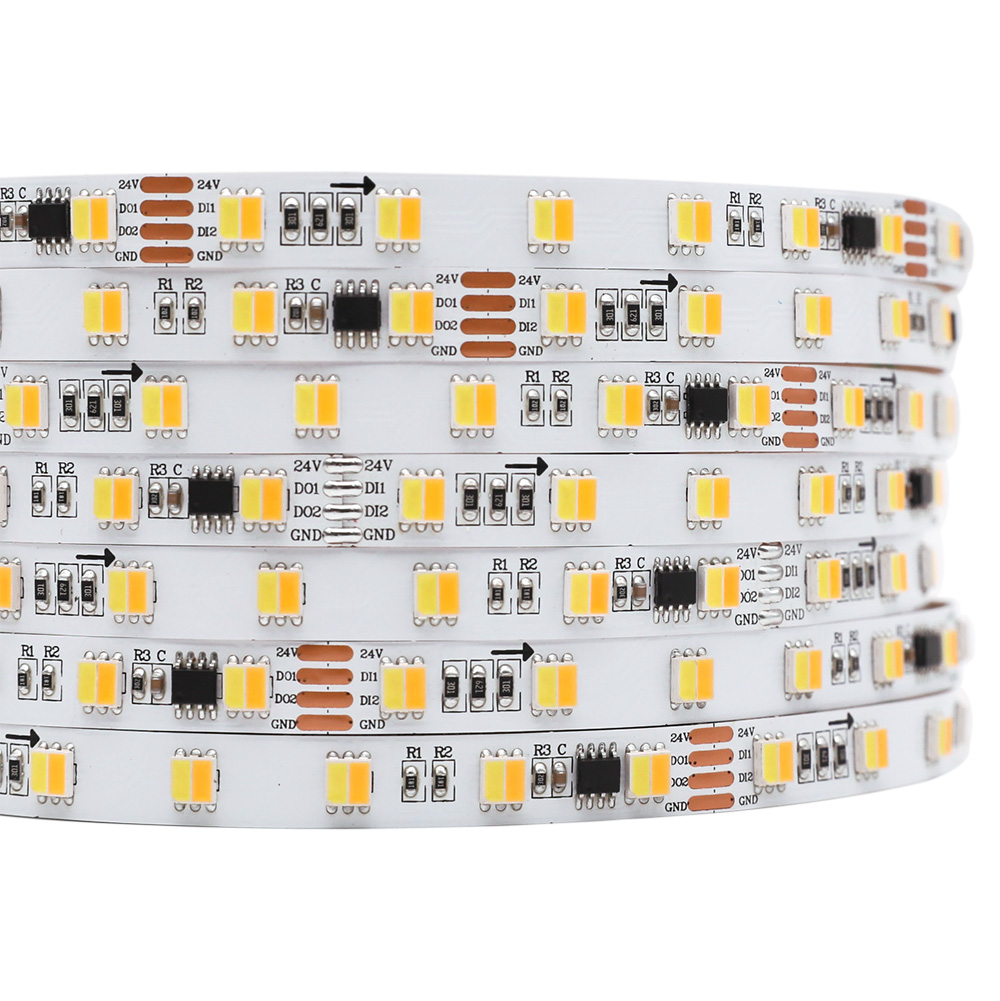

2. Adopt SMD5050RGB lamp beads with high brightness and quality and use external driver chip DMX512 to realize the addressable and programmable digital light strip,
3. Compatible and extended DMX512 (1990) signal protocol, the control method is the differential parallel connection, built-in 485 decoding module, strong anti-interference ability,
4. Support the operation mode of the first installation and then writing code, and any animation effect of the product can be realized through controller programming,
5. Using low voltage DC24V power supply, users are safer when using, avoiding voltage drop,
6. It can be made into a variety of waterproof ratings, waterproof IP65/67/68.
Standards and Certifications
LED Chip: DMX512 SMD5050 IC super brights Chip
Working Temperature: -4°F (-20°C) ~ 122°F (50°C)
Storage Temperature: -40°F (-40°C) ~ 176°F (80°C)

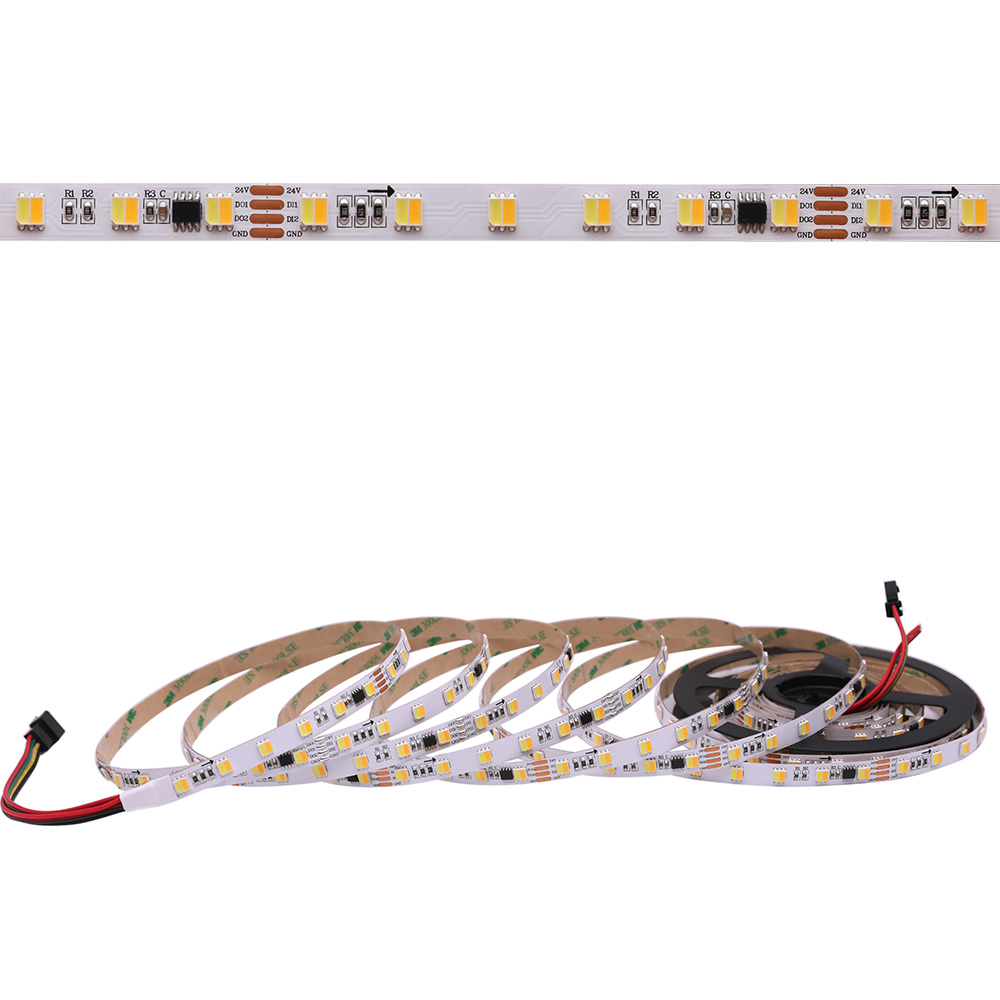

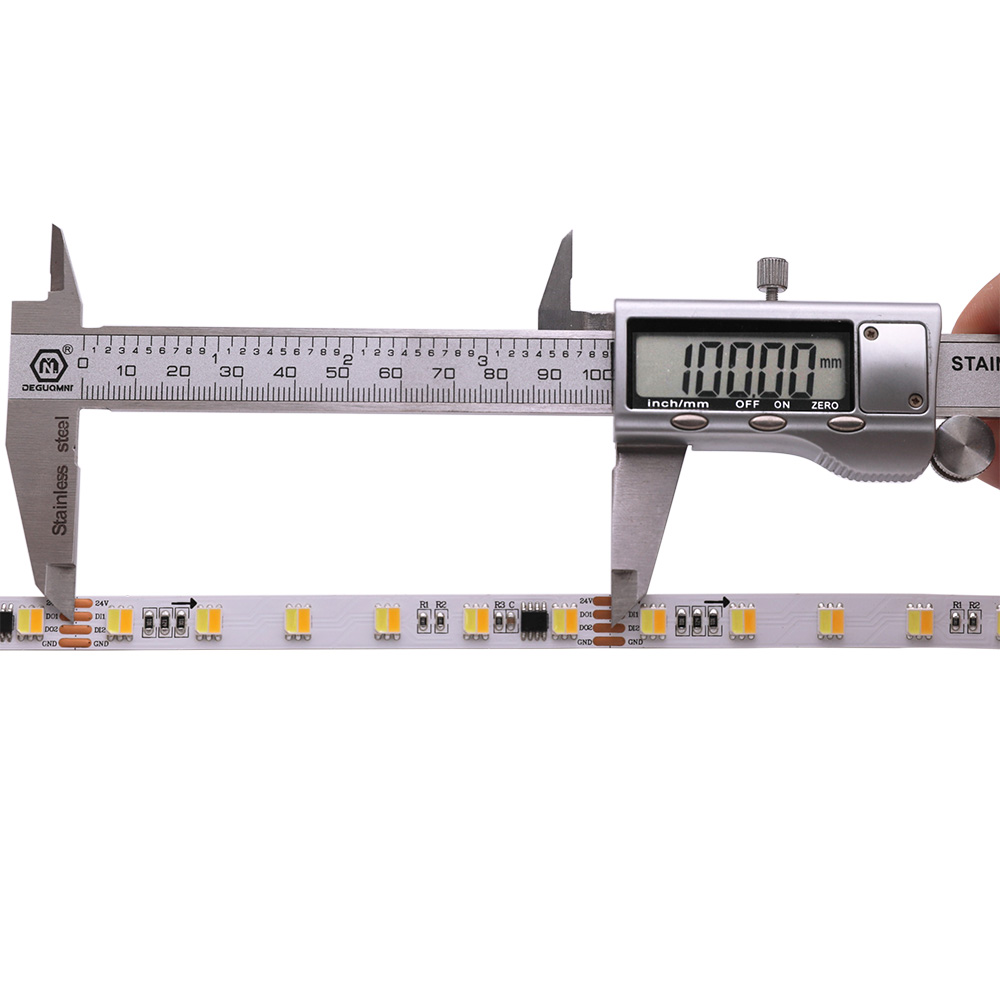

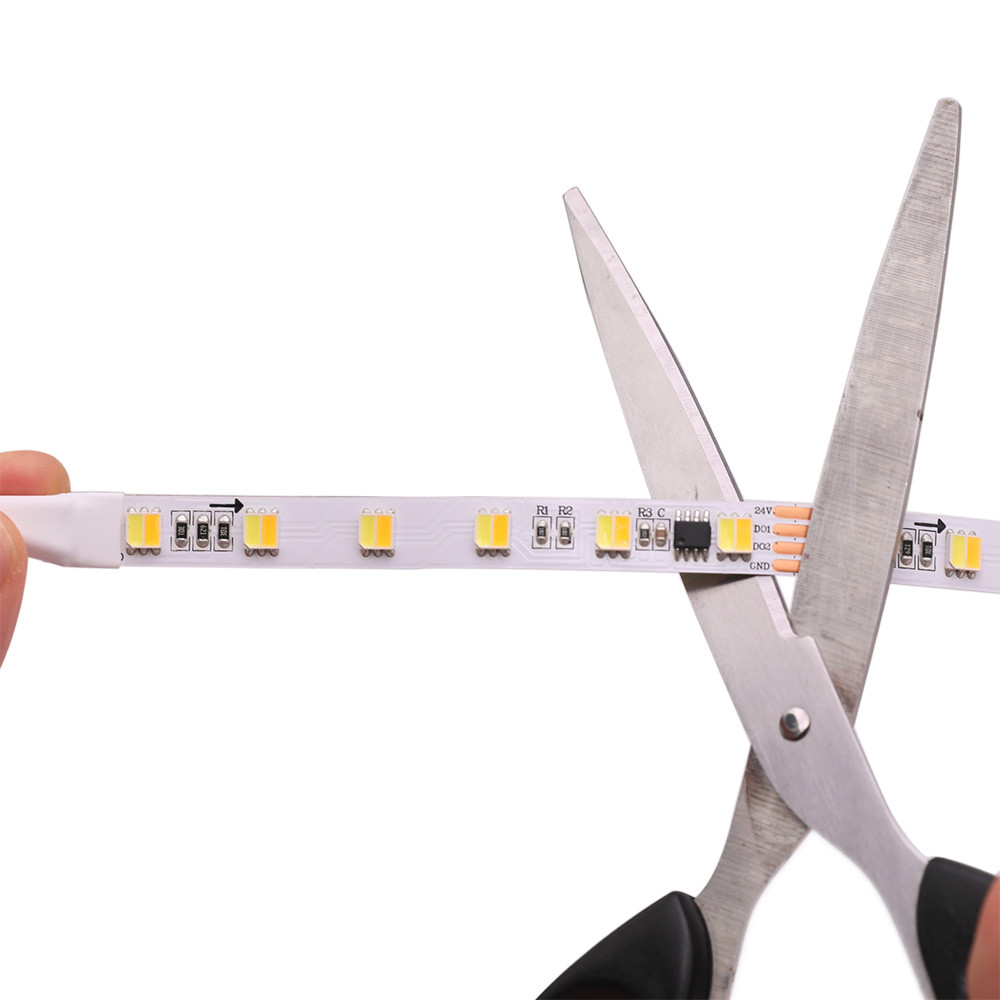

Dimension: 16.4ft/roll, six LEDs can be cut
LED Quantity: 72 LEDs per 1meter (3.28 ft)
IC Quantity: 12 ICs per 1meter (3.28 ft)

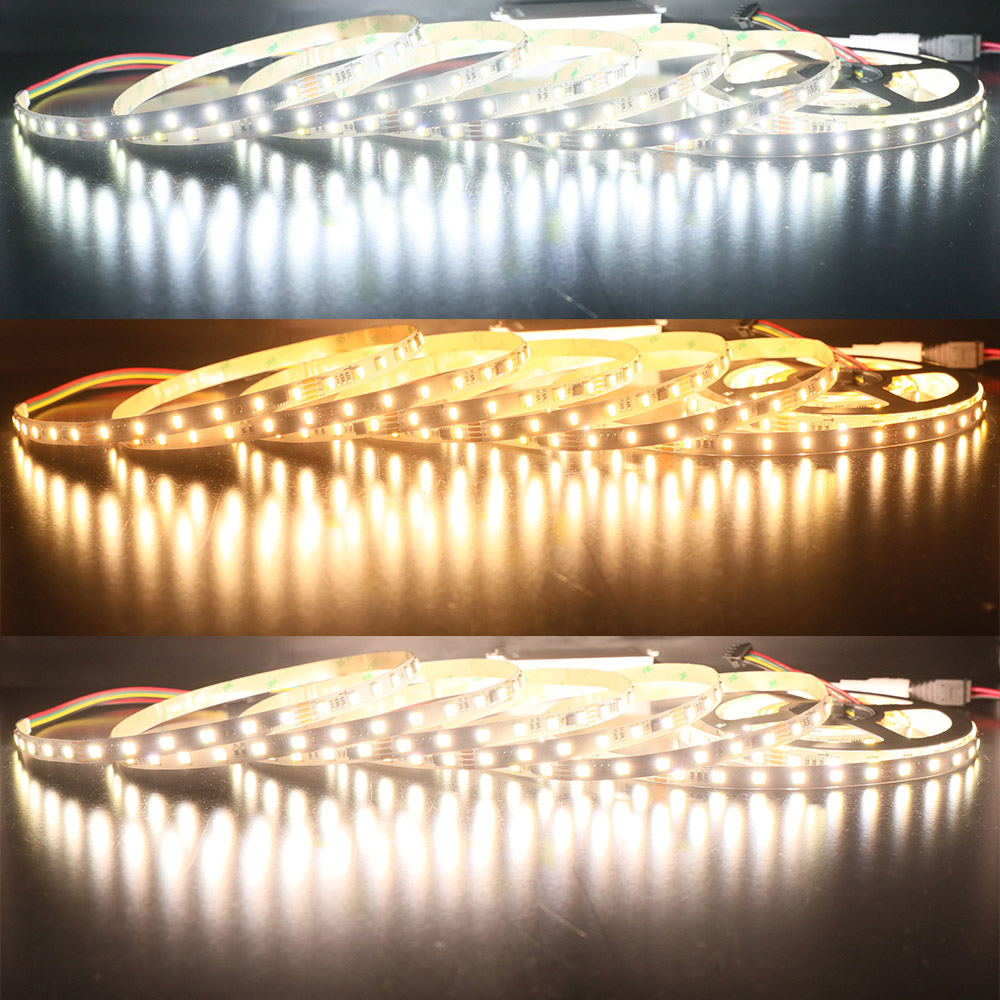

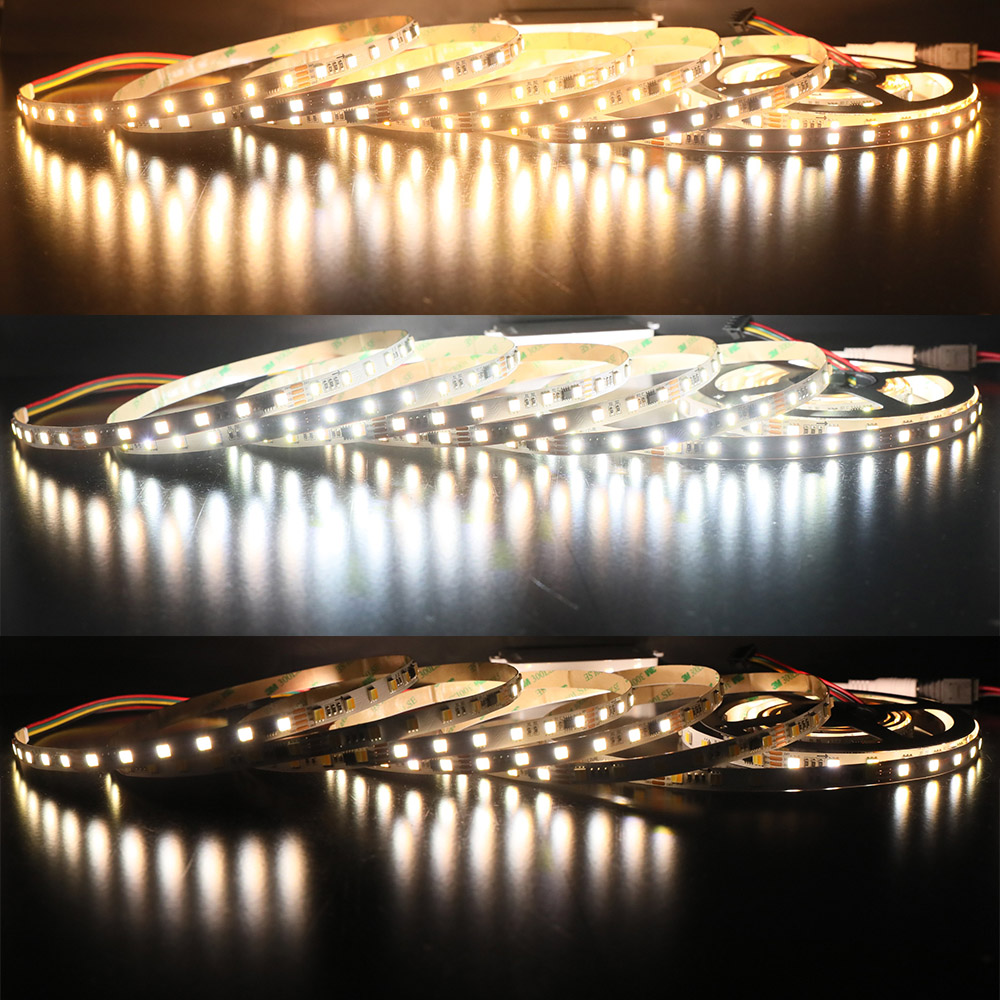

LED Color: CCT 2 in 1(warm white+daylight white)
PCB Width: 10mm/ 0.39in
Warantty: 3 years
Input Voltage(V): 24VDC
Working Power: 18W/m, 90W/16.4ft Max
Beam Pattern: 180 degrees
Water Proof: Waterproof IP20/IP65/IP67/IP68
Certification: 3C, CE
1*5M DMX512 LED strip light
IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);

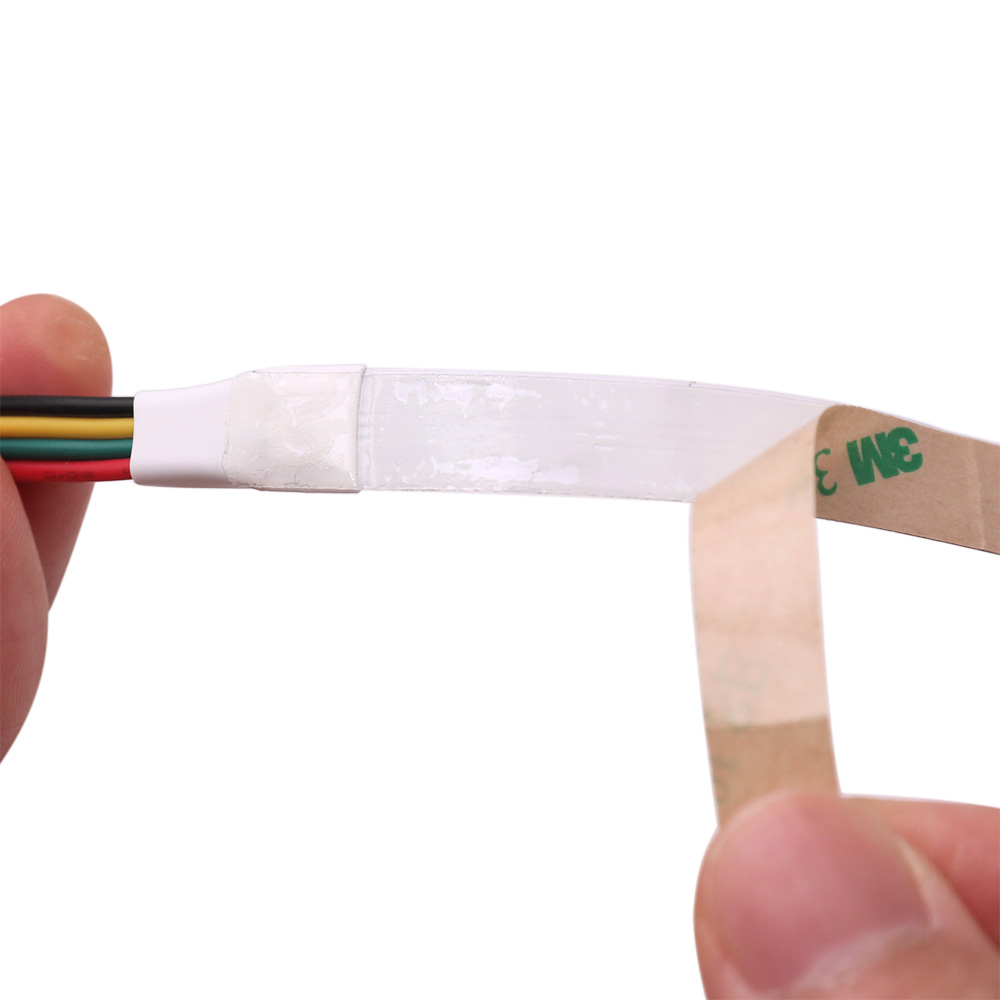

IP65 Waterproof (Epoxy cover waterproof, Epoxy Resin, PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, For Outdoor & Indoor) ;
IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);
IP68 Waterproof (Fully waterproof plastic irrigation, PCB both surface and back are encapsulated with plastic Gel, with a plastic fastener, the top level of waterproof, For Outdoor);
LED programmable digital screen
Hotels decoration lighting
Concealed lighting, Cove decoration
led wall, advertising board
Outdoor advertising signs,
Hotel, KTV, bars,
Wedding party lighting,
DMX512 Console Connection diagram:
