Product Information
This strip light adds a DMX512 IC to each LED unit, one IC controls 6/12 lights per time, you can use it to create any color effects with an DMX led controller like K1000C.
RGB color mix with white color temperatures to produce new colors, so this dmx light strip is available with static and dynamic RGB color, static and dynamic CCT/WWA color, and dynamic RGB plus warm white or cool white color.
This dmx led strip is suitable for many purposes, entertainment, atmosphere, leisure, etc. Multifunctional. Versatile for residential and commercial lighting projects like cabinets, coves, shelves, and more.
Comes with 5pin JST connector and 2pin V+/V- power wire at both ends, connect the light strip according to the Arrow direction of the data singal.

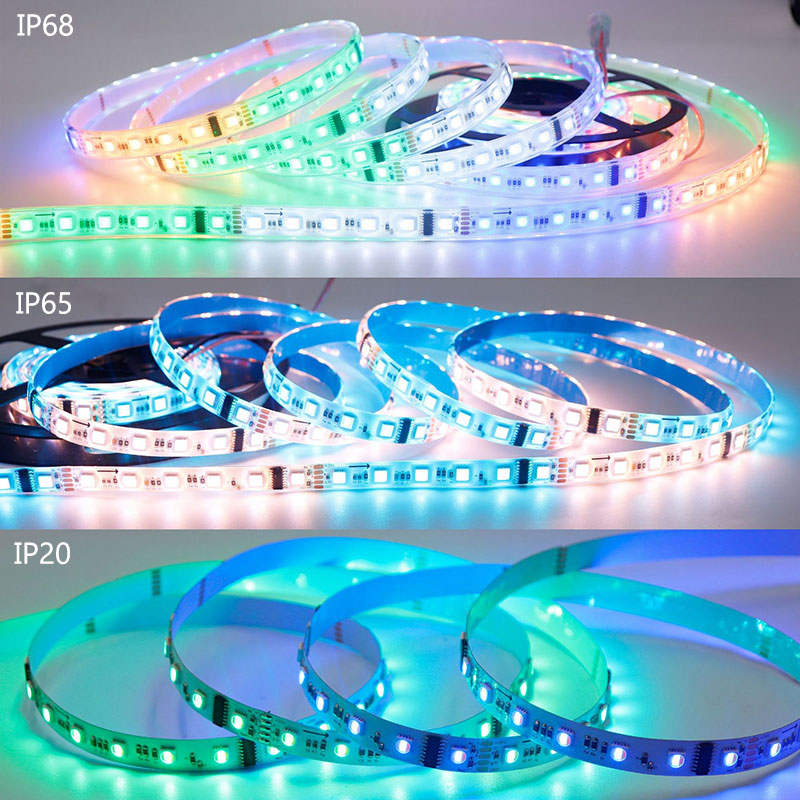

IP65, IP67, and IP68 rated strips are optional for your waterproof and outdoor projects. IP20 and IP65 led strips with adhesive tape backing, IP67 and IP68 strips none.
For indoor dmx lighting decorations, install the strips into aluminum channels for better heat dissipation. For outdoor decorations, try to apply silicone diffuser tubes to your strips.
-
5pin DMX led strip light, dual data signal transmission
-
Adatpt SMD5050 5in1 RGB+Warm white+Pure white LED, various color possibility
-
Please equip a dmx controller and a 24VDC power supply for this digital strip.
Standards and Certifications
Product Specification
| Light Strip Type: | DMX Addressable RGB+CCT LED Strip |
| LED Chip: | 5in1 SMD5050 LED + DMX512 External IC |
|
Input Voltage:
|
DC24V
|
| Power: | 23W/m for 60 LEDs/m; 18W/m for 84 LEDs/m |
| LED Color: | RGB+CCT Full Color Tuning |

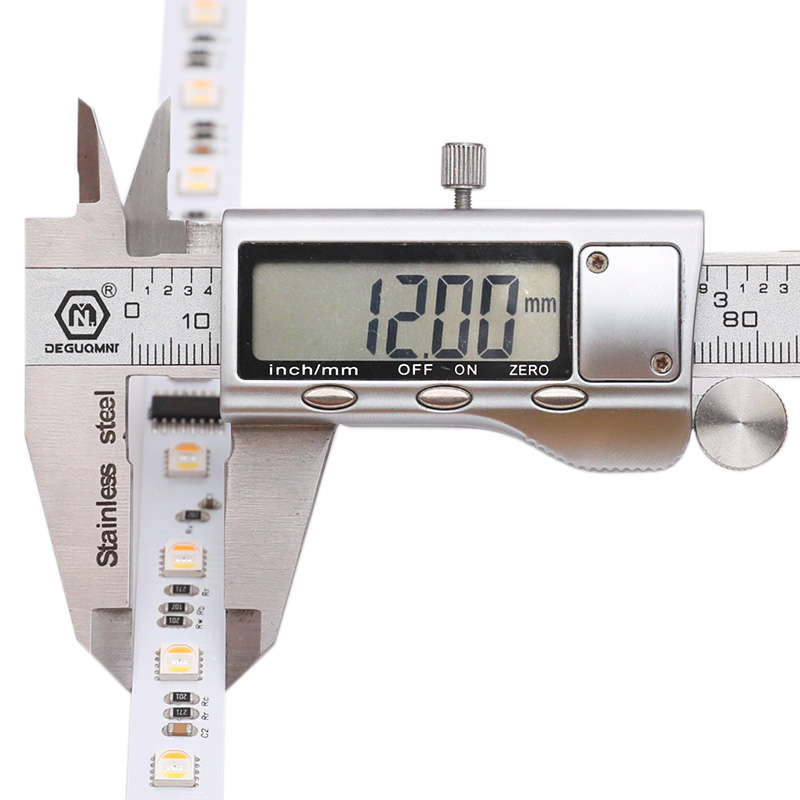

| PCB Width: | 12mm/0.47" |
| LED Quantity: | 60 LEDs/m / 84 LEDs/m / 96LEDs/m |
| IC Quantity: |
60LEDs/m - 10 ICs per meter, 50 per roll 84LEDs/m - 6 ICs per meter, 30 per roll 96LEDs/m - 8 ICs per meter, 40 per roll |

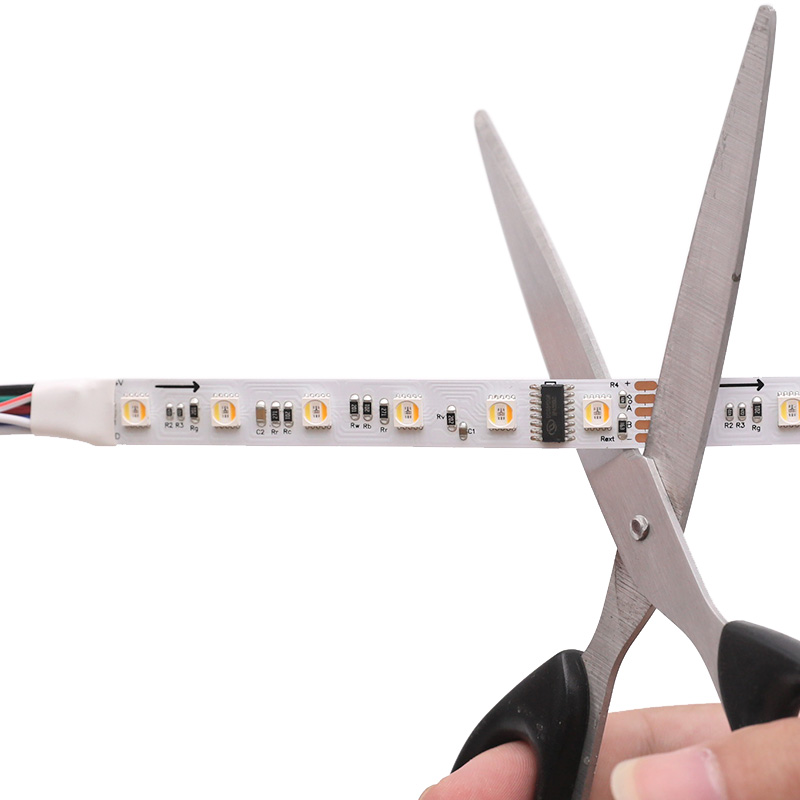

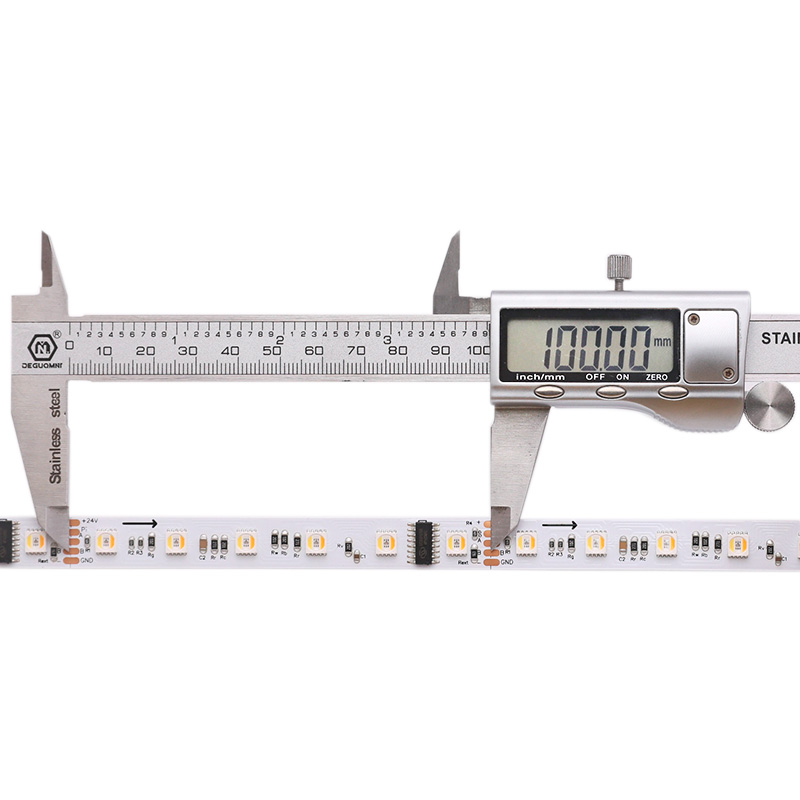

| Cut Unit: |

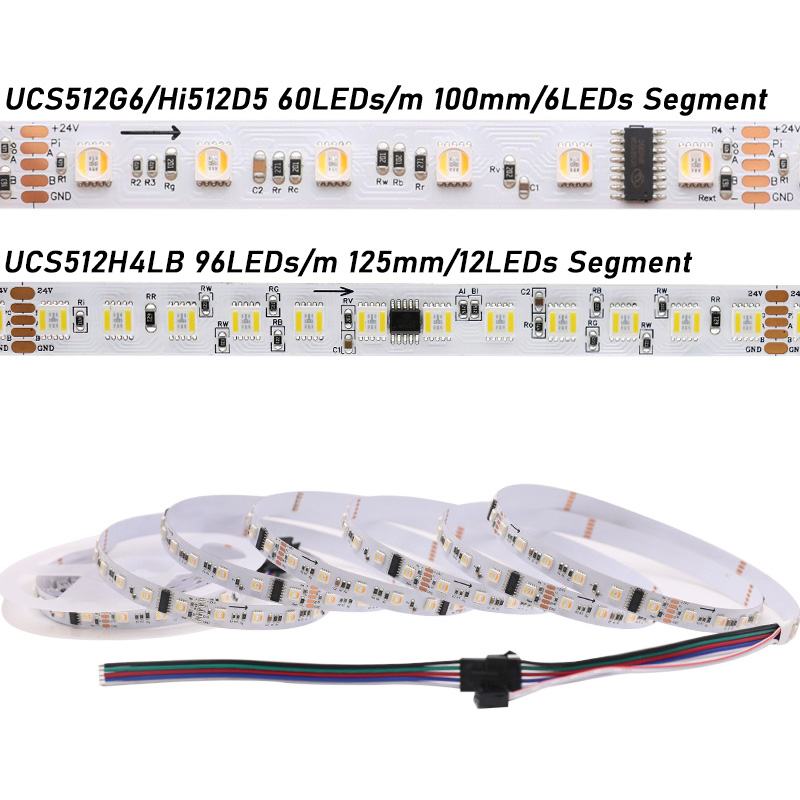

60LEDs/m - 100mm/4", 6 LEDs per cut 84LEDs/m - 166.67mm/6.56", 14 LEDs per cut 96LEDs/m - 125mm/5", 12 LEDs per cut |
| Waterproof Rating: | Non-waterproof IP20, Indoor waterproof IP65, Indoor & outdoor watrproof IP67 IP68 |
| Strip Length: | 5m/16.4ft |
| Beam Angle: | 120° |
| Lumen: | 22 lm/LED, 6600lm/16.4ft |
How To Wire DMX LED Light Strips?
This dmx strip with 5 wires, one V+, one GND(V-), one P/ADD(address), one A(data), one B(data):

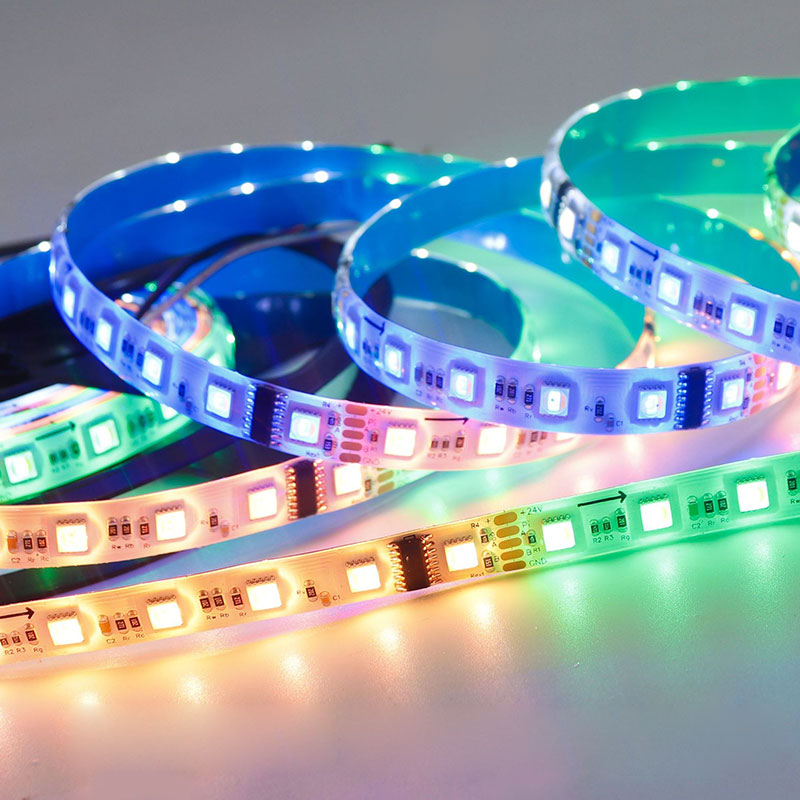

Addressable RGB+CCT Color Effects:
