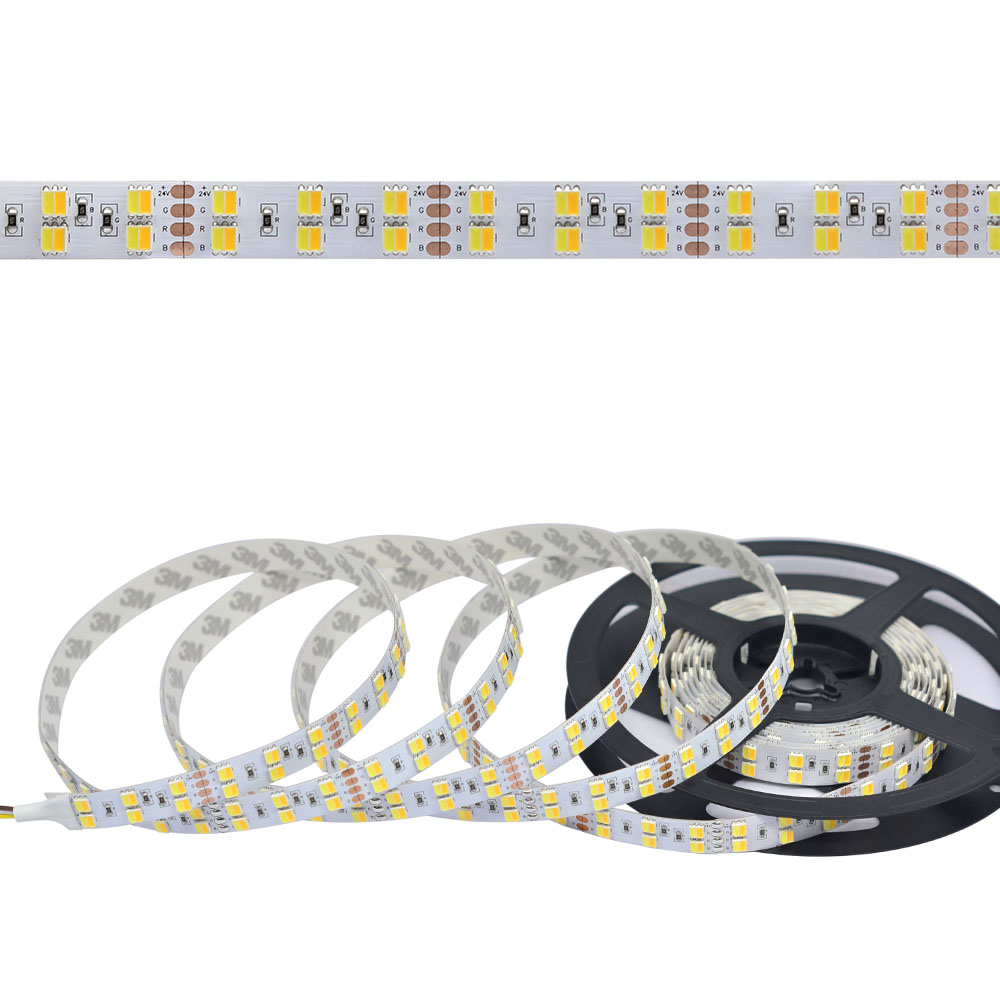

Double Row DC12/24V 5050SMD 600LEDs 2in1 Flexible CCT LED Tape Lights - Pure White+Warm White
What is tunable white light?
Different color temperatures in one white light LED strip, usually are warm white LED lights and daylight/pure white LED lights. With tunable white led strip lights(CCT led strips), you can adjust the LED white light from 2700K warm white to 6000K cool white with a tunable white led controller (sold separately), enjoying the whole white light.

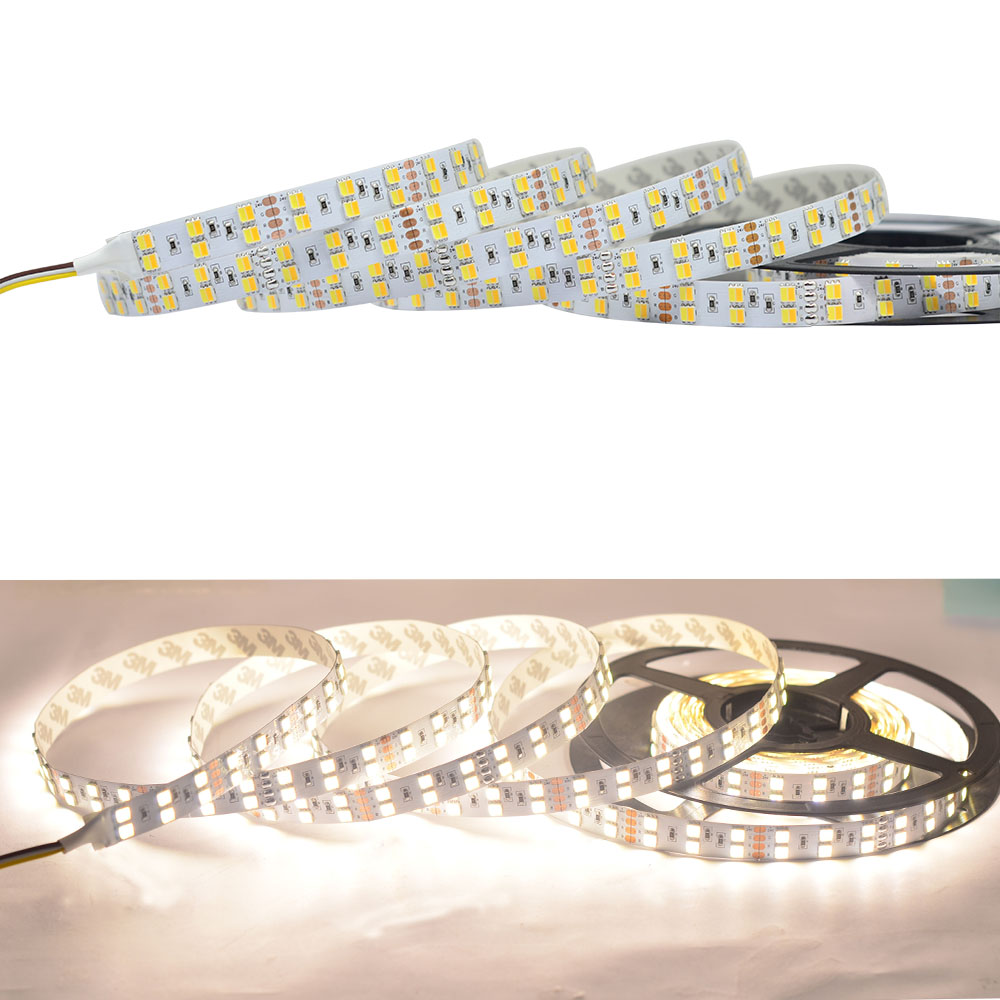

►This CCT bright white led strip uses SMD 5050 2 in 1 white LED, warm white light and pure white light are in one LED, high brightness.
►Universal dual white color temperature super bright Waterproof optional 5050 LED high power flexible led strip. Our brightest white led super flexible LED dual white color light Strips are soft and easy bent for installation. Available in 5 meters (197 in) flexible light strips with adhesive backing and can be stuck just about anywhere.
►12Volt CCT LED strips and 24V tunable white LED strip lights optional: 12V vs 24V LED strip lights (main difference in led strip lighting running length - led voltage drop, and led light strip cutting length).

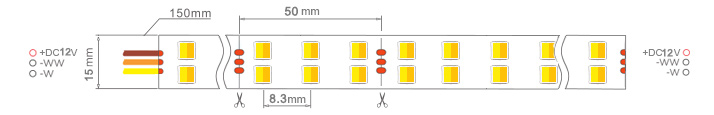

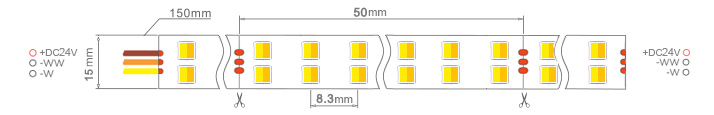

The CCT tunable white light led strips of 12V DC can be cut into 6-LED segments, the white led strip lights of 24V DC CCT LED can be cut into 12-LED segments, so you could cut a different strip length for your led strip lighting project and request.
►This CCT tunable white LED Light strip is perfect for retail shops, supermarkets, museums, galleries, photography or any indoor applications where presentation, appearance, and depth of color are critical, Suitable for the average home lighting as well as lighting professionals. High color rendering index (+95 CRI) enhances vibrant colors more than traditional LEDs nearly matching the color quality of incandescents. 12V/24V DC operation.
►This tunable white led lighting is waterproof optional, available in indoor and outdoor installation - IP20 vs IP65 vs IP67 vs IP68 waterproof LED strip.
►Before buying CCT tunable LED strip lights, the following LED strip knowledge you need to know:
Standards and Certifications
LED Strip Type: SMD 5050 2in1
LED Chip: Super bright Chip
Working Temperature: -4°F (-20°C) ~ 122°F (50°C)
Storage Temperature: -40°F (-40°C) ~ 176°F (80°C)

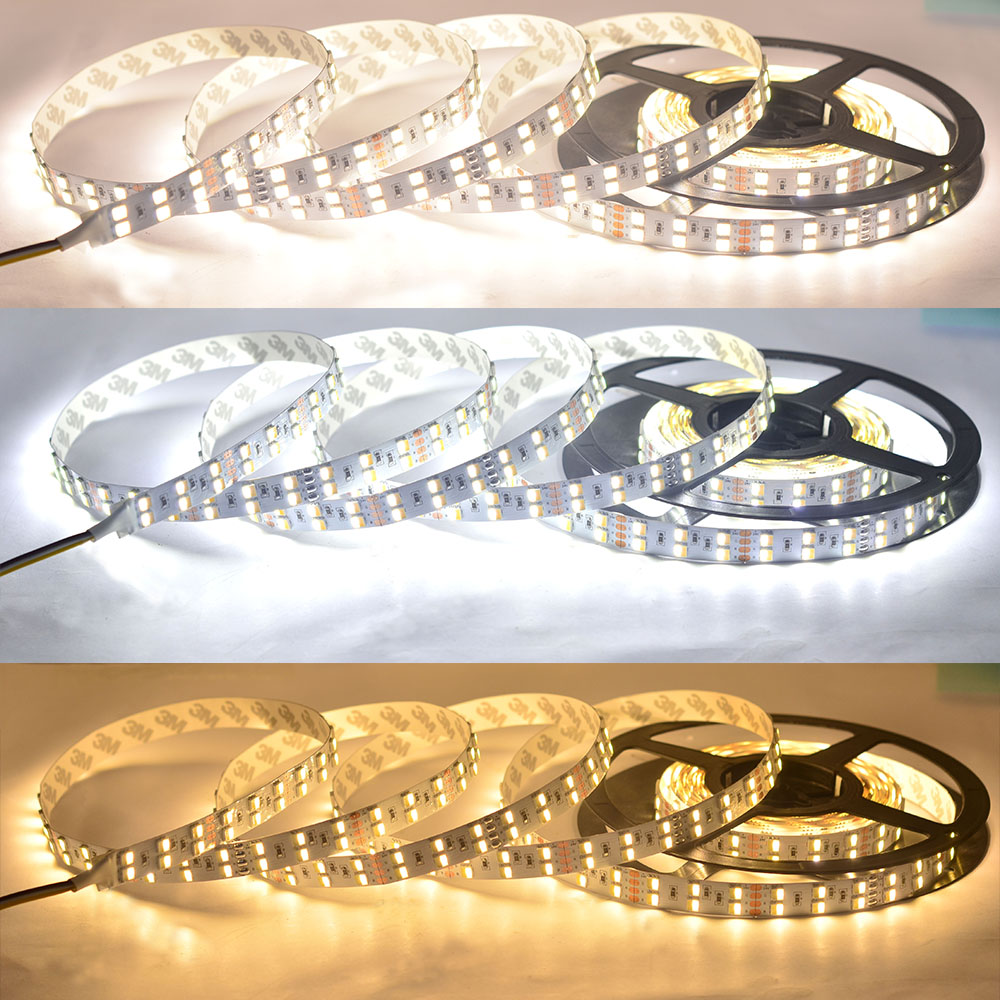

Light Color: Warm White+Daylight White
Dimension: 16.4ft/roll, every 6 PCS LED can be cut(12VDC)/ every 12 PCS LED can be cut(24VDC)
LED Quantity: 600 LEDs per 5meter (16.4 ft) [600 daylight white leds + 600 warm white leds]
Warantty: 3 years
Dimensions: L500cm(196.8 in ) x W1.5cm(0.59 in ) x H0.25cm(0.10 in )
Input Voltage(V): 12/24V DC
Working Power: 6A 144W /16.4ft Max
Lamp Luminous Flux(lm): 22-24lm/LEDs 13800lm/16.4ft 841lm/ft 95.8lm/w
Color Temperature CCT(White): Warm White(2800-3500k), Daylight White(5000-6500k)
Beam Pattern: 120 degree
Water Proof: Non-waterproof; Waterproof IP65; Waterproof IP67; Waterproof IP68 Optional
CRI (Ra>): 95
Waterproof Level Description - IP20 vs IP65 vs IP67 vs IP68 waterproof LED strip
IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);
IP65 Waterproof (Epoxy cover waterproof, Epoxy Resin, PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, For Outdoor & Indoor) ;
IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);
IP68 Waterproof (Fully waterproof plastic irrigation, PCB both surface and back are encapsulated with plastic Gel, with a plastic fastener, the top level of waterproof, For Outdoor);
The waterproof grade of IP65, IP67, and IP68 will affect the color temperature due to the material problem, resulting in an increase of about 1000K. If you want to purchase the waterproof LED strips and have requirements on the color temperature, please note when placing the order.
The basics are all the similar. You will need a led strip light, a power supply(Please use a DC24V 200Watt power supply or a DC12V 200Watt power supply), and a way to attach the two to make your lights turn on. The size and type of power supply unit will depend on the type of LED strip light, the length required, and dimming option required. We are always here to assist in your selection. You can also purchase a complete kit here. If you have any question, please let me know: firstname.lastname@example.org

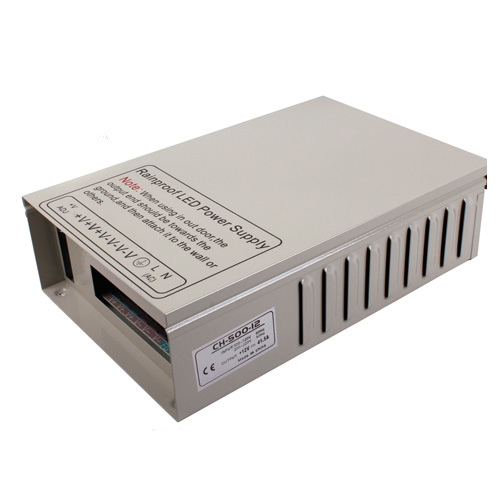

This is only the CCT tunable white light led strip product, you need a CCT led strip light controller and an led strip power supply to operate the CCT led strip. Choose a correct led strip lighting controller and an led strip light power supply for this tunable white led strip:
►16.4/32.8 feet (5/10meter) Connection diagram
►65 feet (50meter) Connection diagram

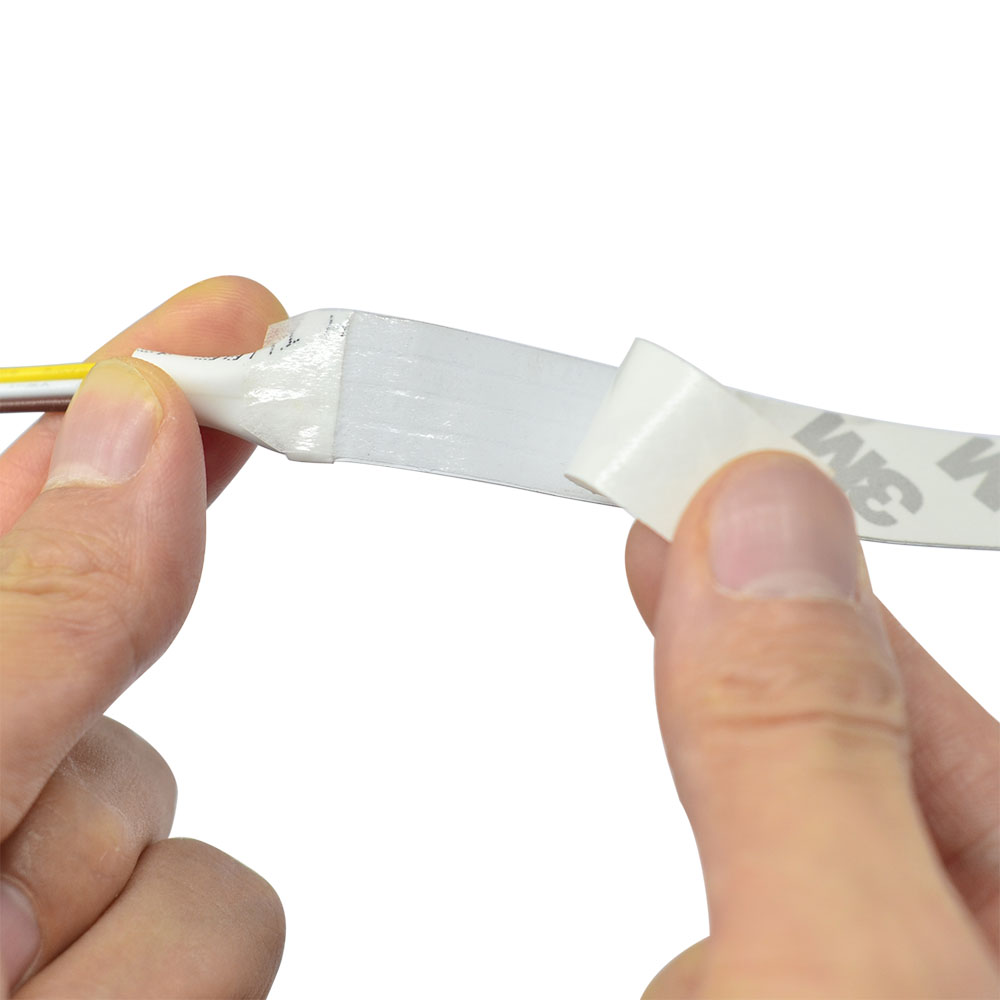

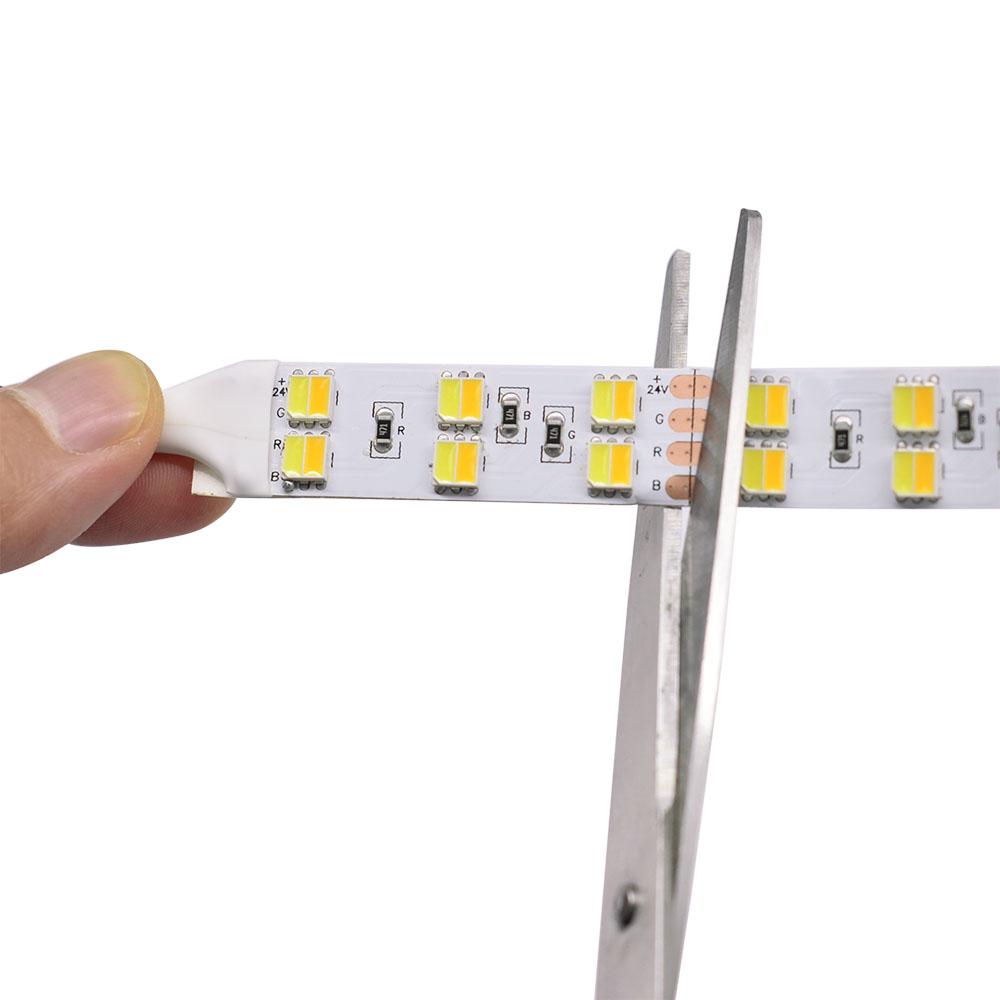

|You can cut the white strip every few inches, allowing you to freely design your lighting project without worrying about space requirements to many different surfaces.||The back of the CCT led strip is fitted with a strong 3M tape, allowing you to peel and stick LED lights.||IP67/IP68 waterproof type which will come with mounting brackets.|
►Can you cut LED strip lights and how to reconnect:

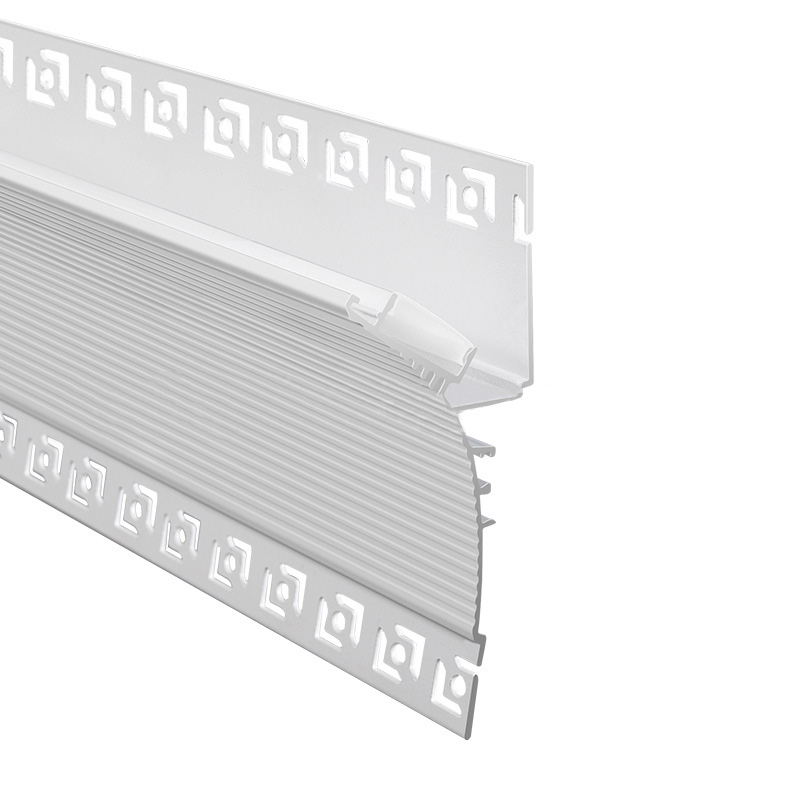

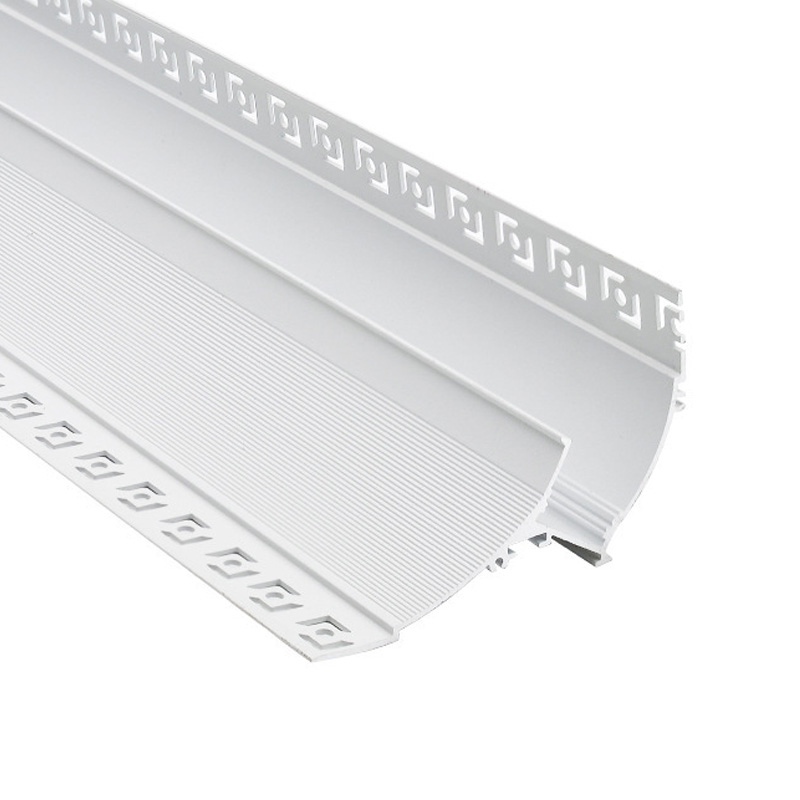

Aluminum profiles and LED flex neon tubes can be used as CCT tunable white light strip accessories. Dual color temperature LED lights with LED aliuminum channel and flex LED neon tube can get an uniform, soft, and no LED lighting sopt effect.
►Knowledge about LED aluminum profile and LED neon lights:
