DC12/24V 6Ax2CH, LED 6 Ampere 3 Channel RGB Amplifier Iron shell Amplifier For Color Temperature LED Light Strips , CCT LED Lighting
This LED 6 Ampere 3 Channel CCT color temperature Amplifier For Color Changing LED Lighting. Auto adaptation of 12~24V DC working voltage and with input polarity protection function. The newest PWM control technology , delicate light performance , no flicker. High power dimmer control MOS tube with stable and reliable performance , strong power-drive ability with max 18A. The input brightness remains the same as the output brightness. The input and output signal of power amplifier is equipped with photoelectric isolation of 5 KV safety protection function.
Type: CCT color temperature Amplifier
Standards And Certifications: CE/FCC/ROHS Compliant
Warranty: 3 years
Craft materials: Ironclad
Operating Temperature: -20~+60°C
Input voltage: DC12/24V
Output power: 216W(DC12V)/432W(DC24V)
Great for: LED 3528 5050 CCT color temperature led strips

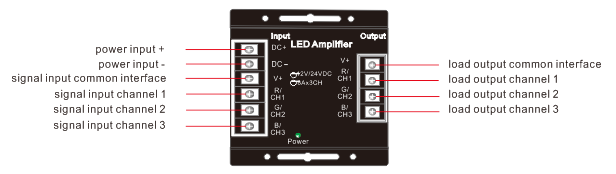

Mode of connection
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
