RGBW Color Changing LED Strip Lights - 24V 120LEDs/m High Density LED Strip - Dual Row
Universal RGBW color changing LED lights strip adapts RGB lights and white lights to mix to produce a wide variety of colors, suitable for mood lighting and task lighting. Use the RGBW controller to change the LED color, light brightness, and color mode. Provide warm white 3000K, natural white 4000K, and daylight white 6000K led color temperatures to choose from.
The use of the best flexibility FPC as a substrate, FPC has good electrical conductivity, heat fast, resistant to bending.
Using SMD 5050 RGBW lamp beads, 5050RGB +Warm White/White color.
Through the RGBW Remote controller programming to achieve any of Flashing effects.
The use of low-voltage DC24V power supply, the user is more secure when used.
Can be made of the waterproof level of diversification, Glue Cover waterproof (IP65), all-inclusive casing waterproof (IP67), casing injection (IP68), as well as the latest process extrusion (IP68).
Standards and Certifications
|LED Strip Type:||SMD 5050 4in1 RGBW 600LEDs/16.4ft|
|LED Chip:||Epistar Chip|
|Working Temperature:||-4°F (-20°C) ~ 122°F (50°C)|
|Storage Temperature:||-40°F (-40°C) ~ 176°F (80°C)|
|Light Color:||RGB+W3000K, RGB+W4000K, RGB+W6000K|
|Dimension:||16.4ft/roll, every 6 PCS LED can be cut|
|LED Quantity:||120 LEDs per 1meter (3.28 ft)|

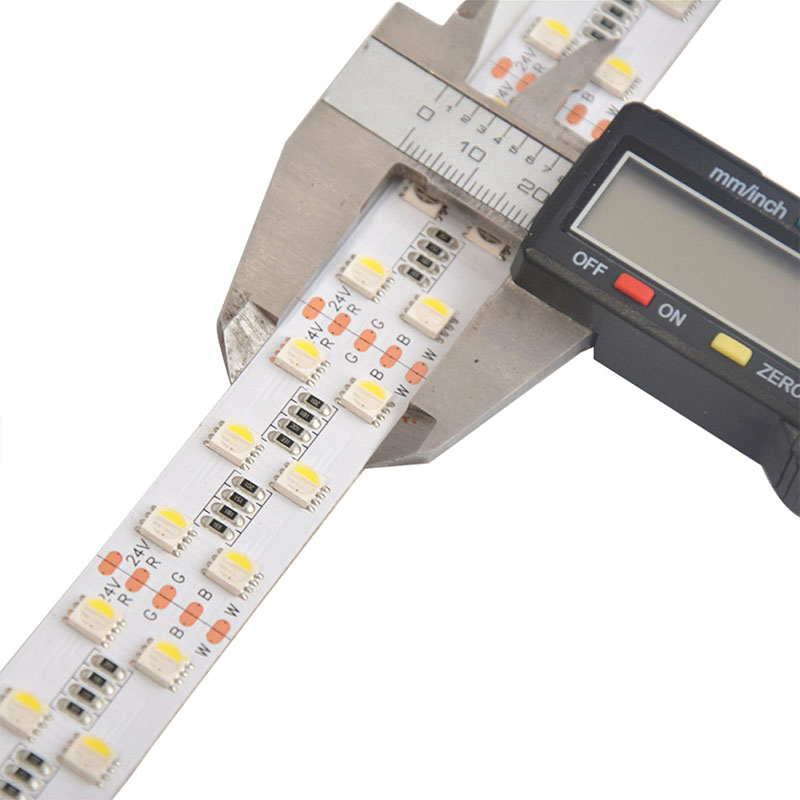

|Strip Width:||20mm (0.78in)|
|Input Voltage(V):||24 VDC|
|Working Power:||192W /16.4ft Max → Informations About LED Power Supply|
|Lamp Luminous Flux(lm):||20-22Lumen 9240lm Max /16.4ft 563lm/feet 69lm/watt|
|Beam Pattern:||120 degree|
|Waterproof Rating:||Non-waterproof IP20, waterproof IP65 IP67 IP68|
1. RGBW LED strip wiring diagram:

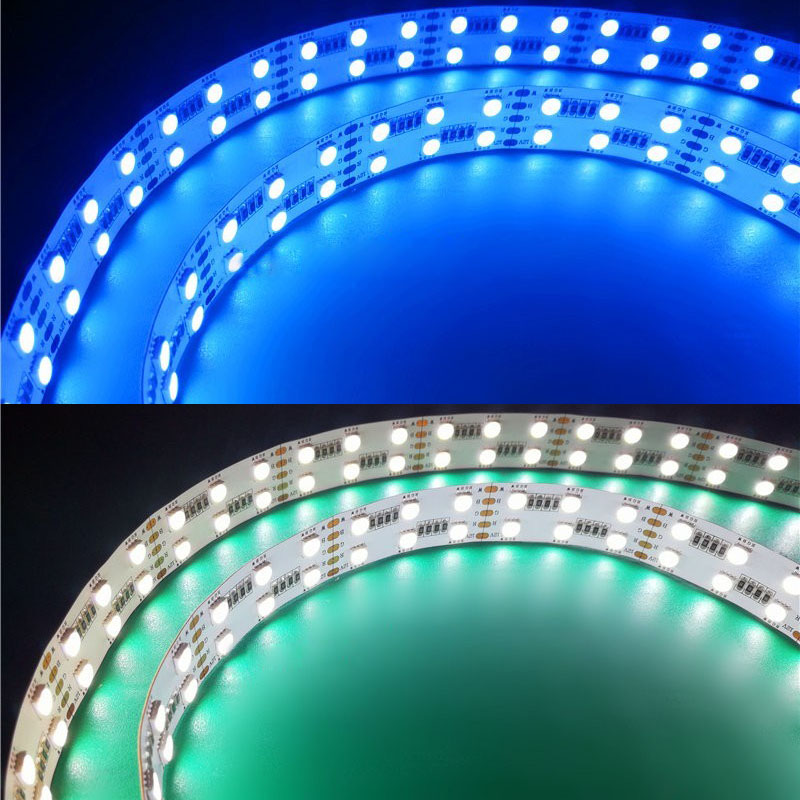

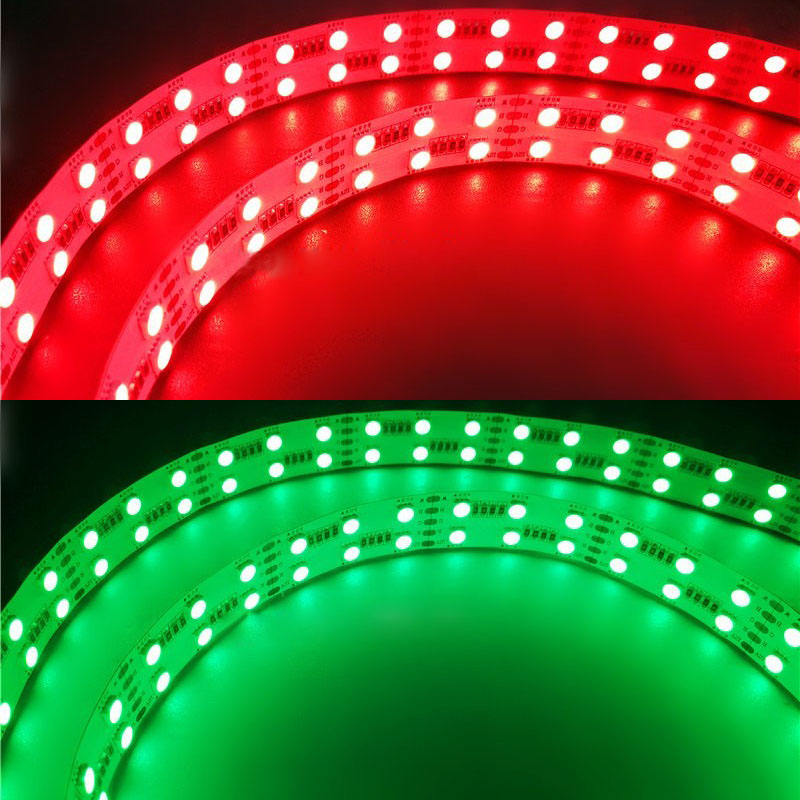

3. RGBW LED strip light effects:
