Product Information

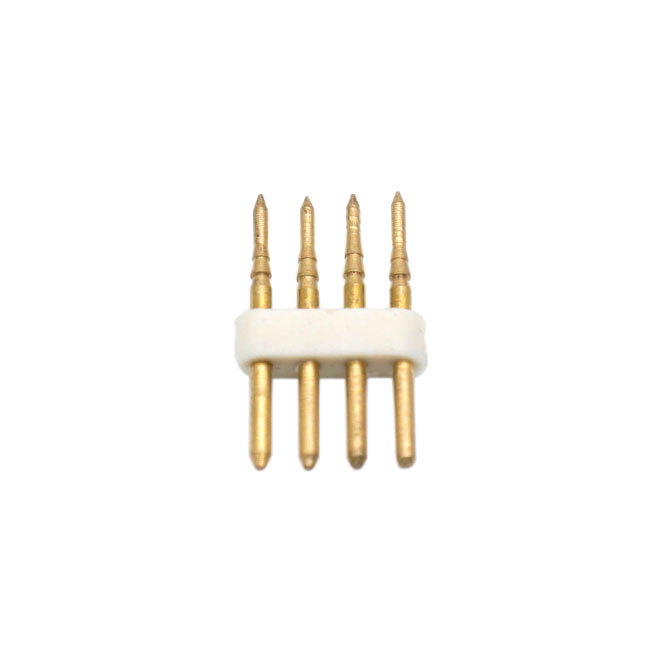

Establish a secure and reliable power connection for your high-voltage lighting projects with the HV-ACCESSORIE-003 Fast Bare Connector. Unlike middle-connectors designed to join two strips, this essential component is specifically engineered to link the start of your AC 110V/220V LED strip to its power source or a compatible high voltage LED controller. Its simple yet robust pin-through design creates a solid, solderless connection, ensuring consistent power delivery for long runs of single color or RGB strip lighting. Available in both 2-pin and 4-pin configurations, it's the professional's choice for initiating clean and durable high-voltage installations for architectural accents, commercial signage, and large-scale decorative lighting.
Key Features
Versatile Pin Options
Available in a 2-pin model for single color strips and a 4-pin model for RGB color-changing strips.
High Voltage Compatibility
Engineered specifically for AC 110V and AC 220V LED strip lights and neon flex lights, not for low-voltage systems.
Solderless 'Fast' Connection
Features sharp piercing pins that create a secure electrical contact without the need for soldering, saving time and effort.
Power & Controller Link
Designed to create the initial connection between the LED strip and a power cord or controller, making it a crucial starting component.
Technical Highlights
- Robust pin design ensures a stable, long-lasting connection by piercing the strip's PCB.
- Durable insulated housing for enhanced safety in high-voltage applications.
- Compact form factor allows for clean installations, even in tight spaces.
Product Specifications
| Parameter | Details |
|---|---|
| Model | HV-ACCESSORIE-003 |
| Product Type | High Voltage Strip-to-Power Bare Connector |
| Input Voltage | AC 110V / 220V |
| Pin Configuration | 2-Pin (for Single Color), 4-Pin (for RGB) |
| Compatible Lights | High Voltage AC110/220V LED Strip Lights, High Voltage LED Neon Lights |
| Connection Method | Solderless Pin-to-Strip |
Application Scenarios
How to Use This Connector
- Turn off the main power supply before starting the installation.
- Select the correct connector type: 2-pin for single color strips, 4-pin for RGB strips.
- Carefully align the sharp pins of the connector with the copper conductors at the cut end of your high-voltage LED strip.
- Press down firmly and evenly until the pins fully pierce through the strip's PCB, establishing a secure connection.
- Connect the bare wires from your power cord or controller to the other end of the connector.
- For safety and longevity, especially in damp environments, thoroughly insulate the entire connection point with silicone sealant and heat-shrink tubing.
- This product is designed exclusively for high-voltage AC 110V/220V LED strips. DO NOT use with low-voltage DC 12V or 24V systems.
- Always double-check the polarity and pin alignment before making connections to prevent damage to your lights.
- High voltage electricity can be dangerous. If you are unsure about the installation process, please consult a qualified electrician.
- The connector itself is not waterproof. Proper sealing is required for all outdoor or wet location applications.
What's in the Box
- ✓1 x High Voltage LED Strip Fast Bare Connector (2-Pin or 4-Pin as selected)
Frequently Asked Questions
Q: What is the difference between this bare connector and a middle-connector?
A:This bare connector is used to connect the very beginning of an LED strip to its power source or controller. A middle-connector is used to join two separate sections of LED strips together in the middle of a run.
Q: Is this connector waterproof for outdoor use?
A:No, the connector itself is not waterproof. For outdoor or damp applications, you must seal the connection point with silicone glue and heat-shrink tubing to protect it from moisture.
Q: Can I use this for my 24V RGB LED strip?
A:Absolutely not. This connector is specifically designed for high-voltage AC 110V/220V systems. Using it with low-voltage DC strips is unsafe and will not work.
Q: How do I know which version I need?
A:Choose the 2-pin version for single color high voltage LED strips and the 4-pin version for high voltage RGB LED strips.
Q: Do I need to solder the wires?
A:No, this is a solderless connector. The pins pierce the strip for one connection, and the other end is typically designed for bare wire insertion.
Q: Are the pins included with the connector?
A:Yes, the connector comes as a complete unit with the piercing pins integrated into the housing, ready for installation.
