Product Information

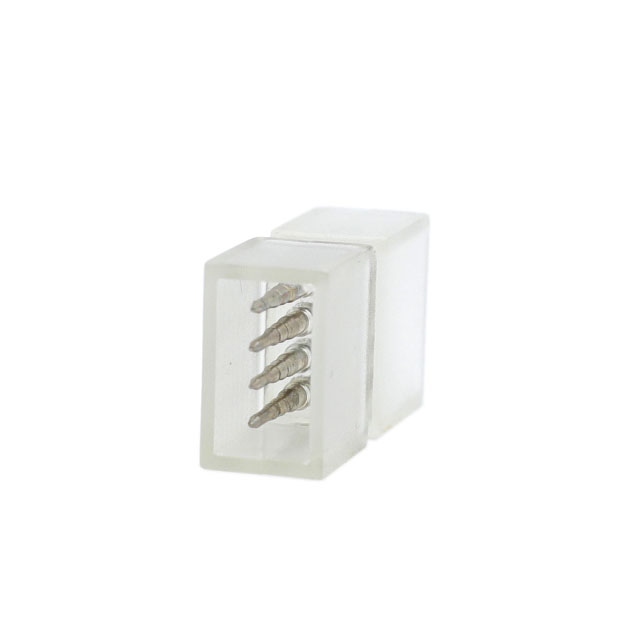

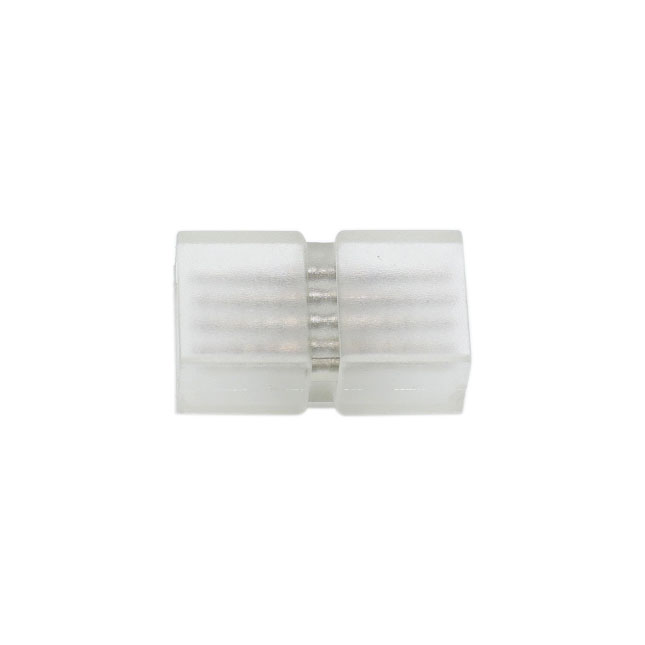

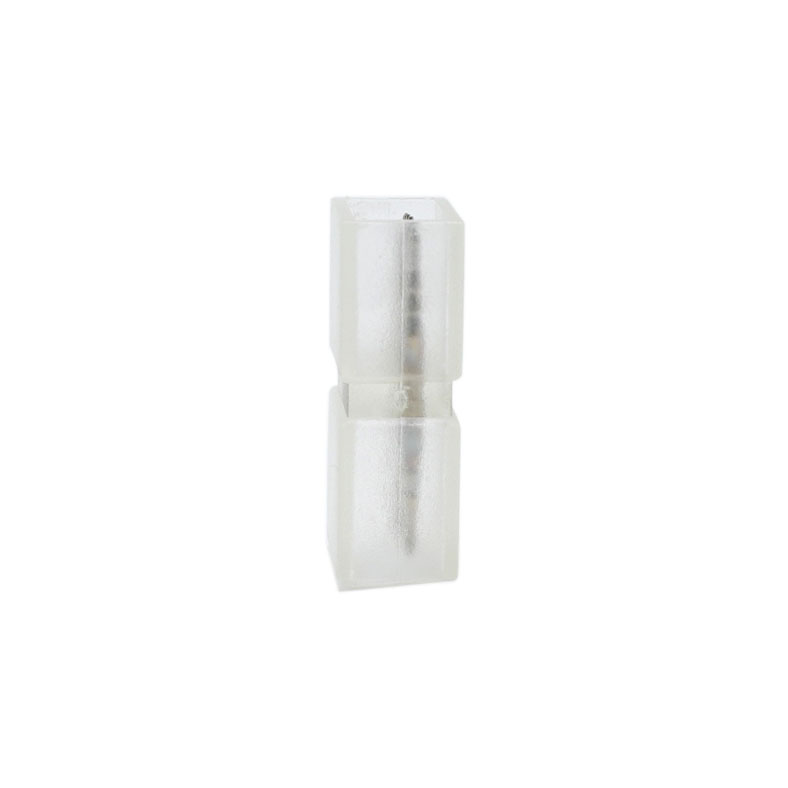

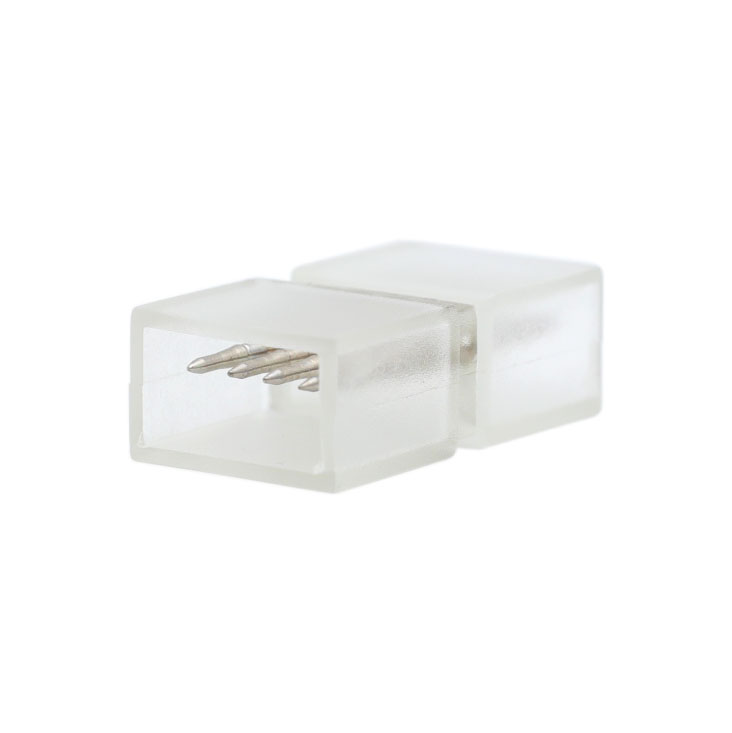

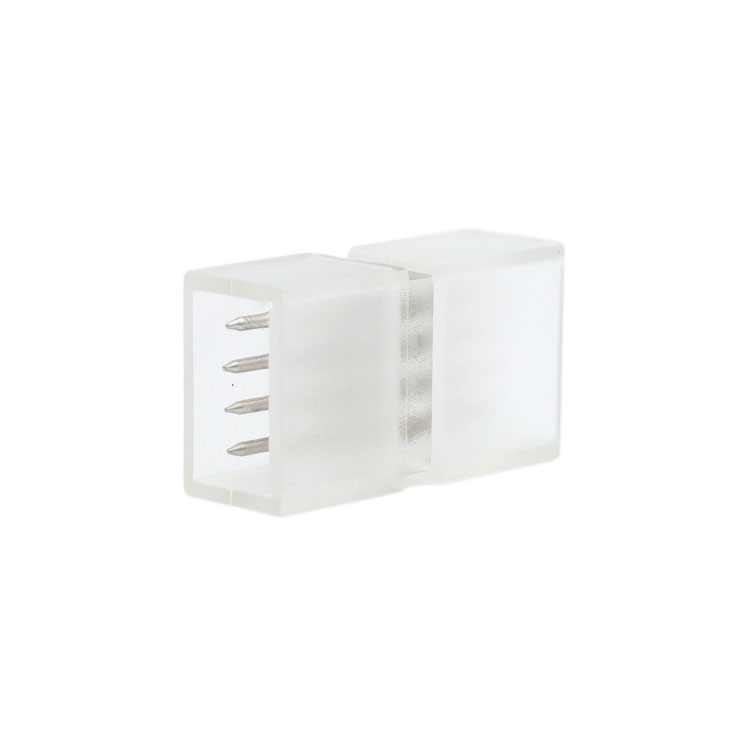

Restore seamless lighting runs with the HV-ACCESSORIE-002 High Voltage Mini Quick Middle-Connector. Specifically designed for reconnecting cut sections of 110V/220V LED tape, this compact connector makes repairing or customizing lengths simple and secure. After cutting your LED tape light, use this solderless splice to join the segments back together. Its miniature profile allows the connection to be neatly tucked away inside the strip's protective casing, ensuring a professional, clean finish without bulky interruptions. It's the ideal solution for custom architectural lighting projects requiring precise lengths and invisible connections.
Key Features
Versatile Compatibility
Available in 2-pin, 3-pin, and 4-pin configurations to perfectly match your High Voltage Single Color, CCT, or RGB LED strips.
Solderless Quick Connection
Features a simple clamp-down design that creates a secure electrical connection in seconds, eliminating the need for soldering.
In-Casing Design
Its minimal size is engineered to fit directly within the original protective casing of the LED strip, maintaining a clean, continuous look.
Reliable High Voltage Performance
Engineered exclusively for use with high-voltage AC110V/220V LED strip lighting systems, ensuring a safe and stable connection.
Product Specifications
| Parameter | Details |
|---|---|
| Model | HV-ACCESSORIE-002 |
| Product Type | Middle Connector / Splice Connector |
| Operating Voltage | High Voltage (AC 110V-240V) |
| Pin Options | 2-Pin, 3-Pin, 4-Pin |
| 2-Pin Compatibility | High Voltage Single Color LED Strips |
| 3-Pin Compatibility | High Voltage CCT (Tunable White) LED Strips |
| 4-Pin Compatibility | High Voltage RGB LED Strips |
| Connection Method | Solderless, Clamp-down |
| Primary Use | Reconnecting two cut sections of high-voltage LED strip |
| Material | High-temperature resistant plastic |
Application Scenarios
How to Use This Mini Middle-Connector
- Safety First: Disconnect the high-voltage LED strip from the power source completely before cutting or handling.
- Prepare the Strip: Make a clean, straight cut on the designated cutting mark of the LED strip.
- Open the Connector: Unlatch the transparent cover on both sides of the mini connector.
- Insert Strips: Carefully slide the cut ends of the two LED strip sections into each side of the connector. Ensure the copper pads on the strips align perfectly with the metal pins inside the connector.
- Secure the Connection: Press down firmly on the transparent covers until they snap shut, piercing the strip's contacts and locking it in place.
- Finalize Installation: Gently tuck the connector and the reconnected section back into the strip's flexible casing for a protected and seamless appearance.
- Test: Reconnect the power source to test the light and ensure a solid connection has been made.
- This connector is designed exclusively for high-voltage AC LED strips. Do NOT use with low-voltage DC12V or DC24V strips.
- Ensure the pin configuration (2, 3, or 4-pin) matches your specific LED strip type.
- This connector is intended for indoor or dry locations. For outdoor use, additional waterproofing measures are required.
- Always verify the polarity and alignment of the strips before closing the connector.
What's in the Box
- ✓1 x High Voltage Mini Quick Middle-Connector (2, 3, or 4-pin as selected)
Frequently Asked Questions
Q: Can I use this 2 pin LED strip connector for my 12V single color strip?
A:No, this connector is specifically engineered for high-voltage (110V/220V) LED strips and is not compatible with low-voltage systems.
Q: Is soldering required to use this connector?
A:No, this is a completely solderless quick connector. It uses a clamp mechanism to create a secure connection, making it ideal for fast installations and repairs.
Q: Will this connector be visible after installation?
A:It is designed as a mini connector that can fit inside the protective plastic or silicone casing of most high-voltage strips, making it virtually invisible.
Q: How do I choose the correct pin version for my lights?
A:Select the 2-pin version for single color strips, the 3-pin version for CCT (tunable white) strips, and the 4-pin version for RGB color-changing strips. Match the pin count to your strip.
Q: What is the main purpose of a 'middle-connector'?
A:Its purpose is to join two cut ends of an LED strip back together, creating a continuous run. It is not used for connecting to a power source or a controller.
Q: Is this connector reusable?
A:Yes, you can carefully open the clasps to remove the strip and reuse the connector, though it's recommended to ensure a firm connection on the first use for maximum reliability.
