Product Information
Brightest double row 15 wide super dense 288 lights per meter 5630 led strip, the brightest 2-row led strip, three white light color temperatures available, powered by low voltage 24 volts, 1440 SMD 5630 LEDs on one roll of 5-meter strip length.
5630 led lights are already known for their high brightness, with the addition of the high density double row 144 lights per row LED design, the brightness and lumen output go to the next level, easily for task lighting and ambient lighting.
The high brightness 5630 LED chip and high density LED arrangement makes this led 5630 strip have a high power output, one meter consumes 28 watts, and a roll of 5 meters requires a 200 watt 7 amp led power supply like LRS-200-24 and dimmer like V1-K in the kit to work properly.
-
The brightest 5630 white light strip
-
Double density 288 LEDs per meter
-
High power, high brightness, high lumen output
-
IP67 waterproof version available
Product Specification
| Product Type: | Brightest Double Density 5630 LED Strip |
| Power: | 28W/m, 140W/16.4ft Roll |
| Input Voltage: | DC24V |

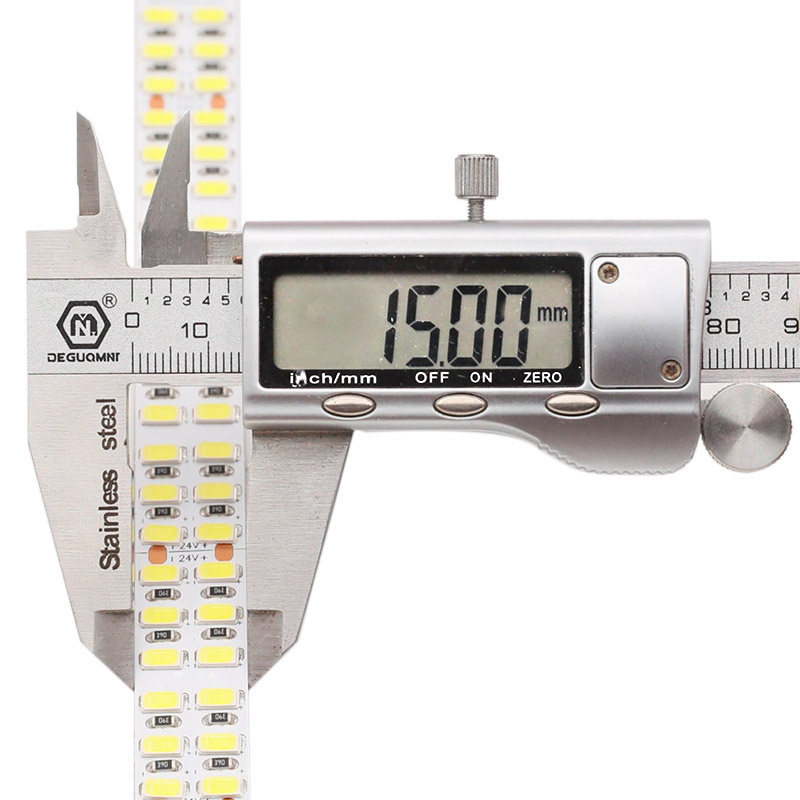

| Dimensions: | L5,000mm*W15mm*H1.5mm |
| LED Quantity: | 288LEDs/m, 87/ft |

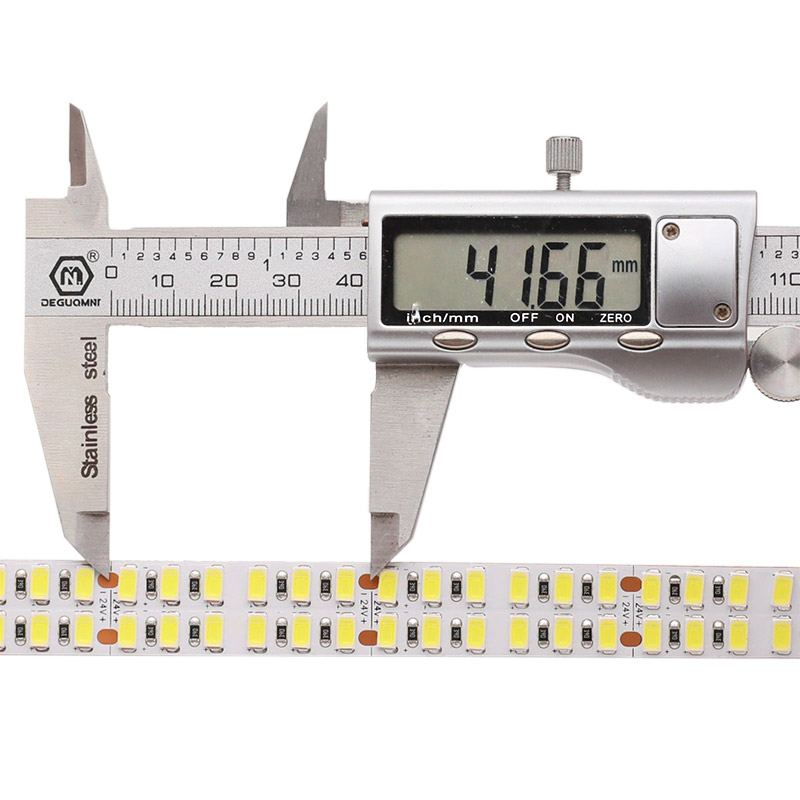

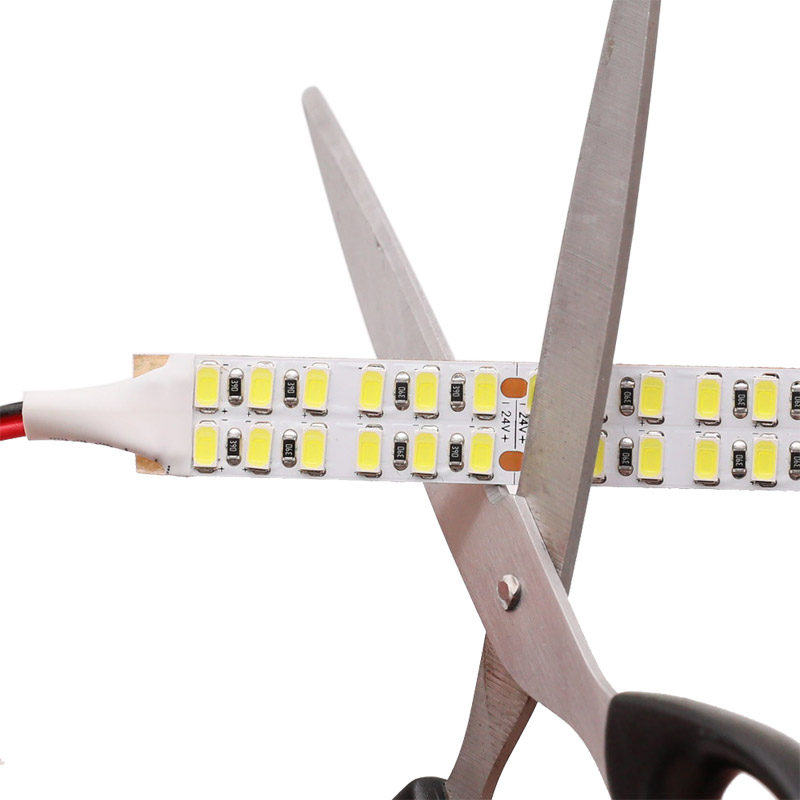

| Cut Segment: | 41.66mm/1.64" |
| LED Color: | 3000K warm white, 4000K natural white, 6500K daylight, 10000K cool white |
| Beam Angle: | 120° |
| Waterproof Rating: | Non-waterproof IP20 / Silicon tubing waterproof IP67 |
| Lumen: | 18-20lm/LED, 1580-1756lm/ft |
| CRI: | 90 |
| Lifespan: | 50,000 hours + |
