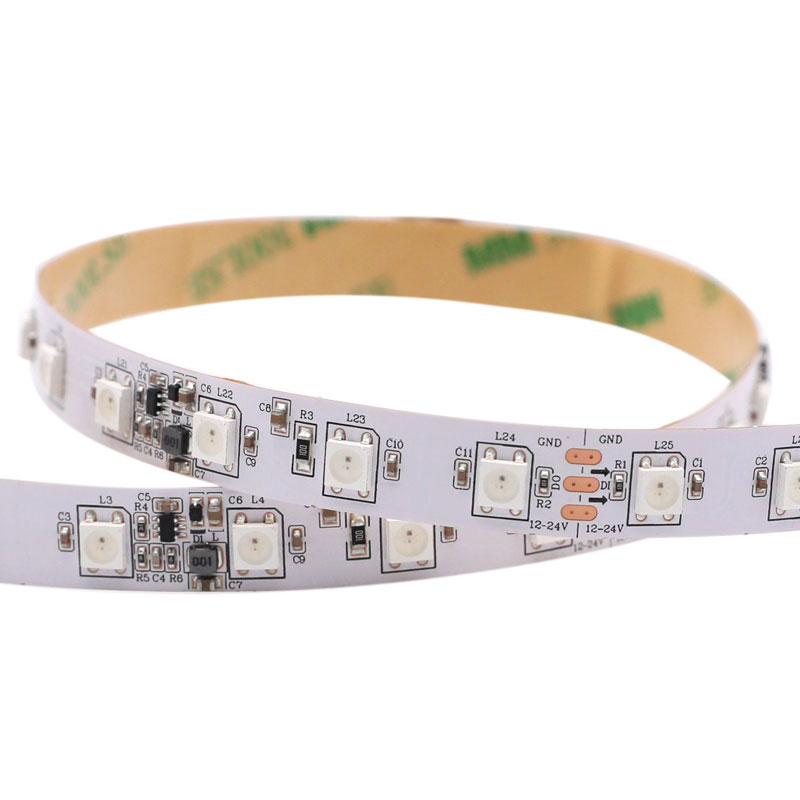

DC12-24V Individually Programmable SK6812 RGB LED Strip 60LEDs/m, 10m/33ft No Voltage Drop, 3.28ft-65.6ft

Name: DC12-24V Individually Programmable SK6812 RGB LED Strip 60LEDs/m, 10m/33ft No Voltage Drop, 3.28ft-65.6ft
Brand: SuperLightingLED
SKU: 1224V-SK6812-RGB
Price: 22.98 EUR
Availability: InStock

Model: 12/24V-SK6812-RGB Review stars

0.0 (0 Reviews) Various options in stock

Starting at: €22.94 €20.2912% off

Qty Discounts Off Price
1-19 €20.29	20-29 €19.89	30-49 €19.48	50+ €18.67
* Discounts may vary based on options below

Select Specifications:

Select PCB Color :

Select Length:

Select Waterproof Rating:

Qty: -+

Free shipping over $299Ships via DHL / UPSWarranty covered

Accept the project customization, please contact us for commercial offers and technical support.

Product Information

Check this unique individually addressable SK6812 addressable RGB LED strip (ARGB LED strip) with DC12-24V, DC5-40V, and DC6-36V wide voltage input, the special design makes it perfect for commercial and engineering lighting projects. And each SMD5050 LED is individually programmable. So you can make rich dynamic effects by controlling these LEDs with an SK6812 addressable controller.

DC12-24V SK6812 60LEDs/m type (this product): Built-in SK6812 RGB IC. 300LEDs per roll, each LED is a pixel. 6 LEDs (100mm/4in) can be cut. 10m/32.8ft long running length without voltage drop. 12mm

DC5-40V SM16703 30LEDs/m type: Built-in SM16703 RGB IC. 150LEDs per roll, each LED is a pixel. 50mm/2in can be cut. Black PCB. 12mm.

DC6-36V TM1936 60LEDs/m type: External TM1936 RGB IC. 300LEDs per roll, each LED is a pixel. 50mm/2in can be cut. White PCB. 10mm.

They are all individually addressable.

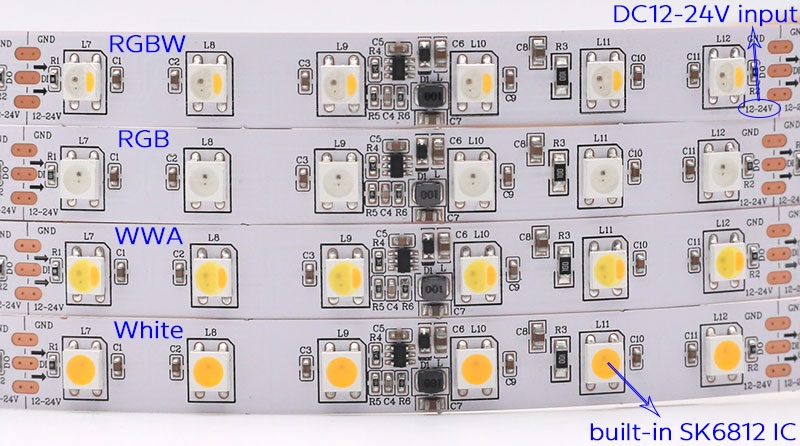

SC,CCT,RGB,RGBW SK6812 Commercial LED Strip Lights

SK6812 Datasheet Download

Specification

12-24VDC

LED Strip Type:	12-24V Wide Voltage Input Individually Addressable SK6812 RGB LED Strip
LED Chip:	SK6812 built-in IC + 5050SMD
Input Voltage:	DC12V-DC24V
Power:	14.4W/m, 72W/16.4ft
Working Temperature:	-20℃~+45℃
Storage Temperature:	-20℃~+60℃

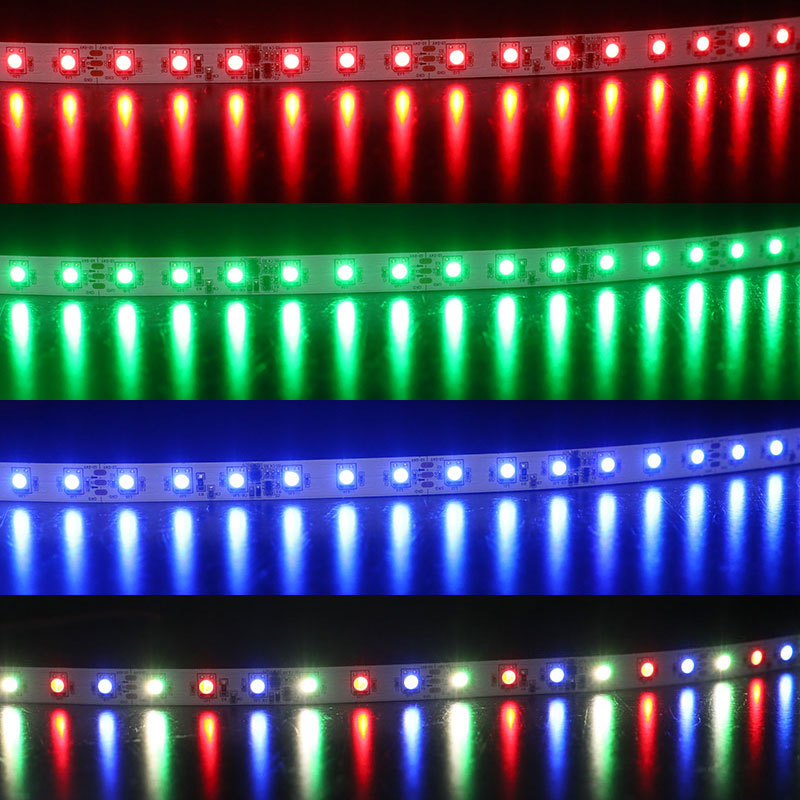

LED Color:	ARGB

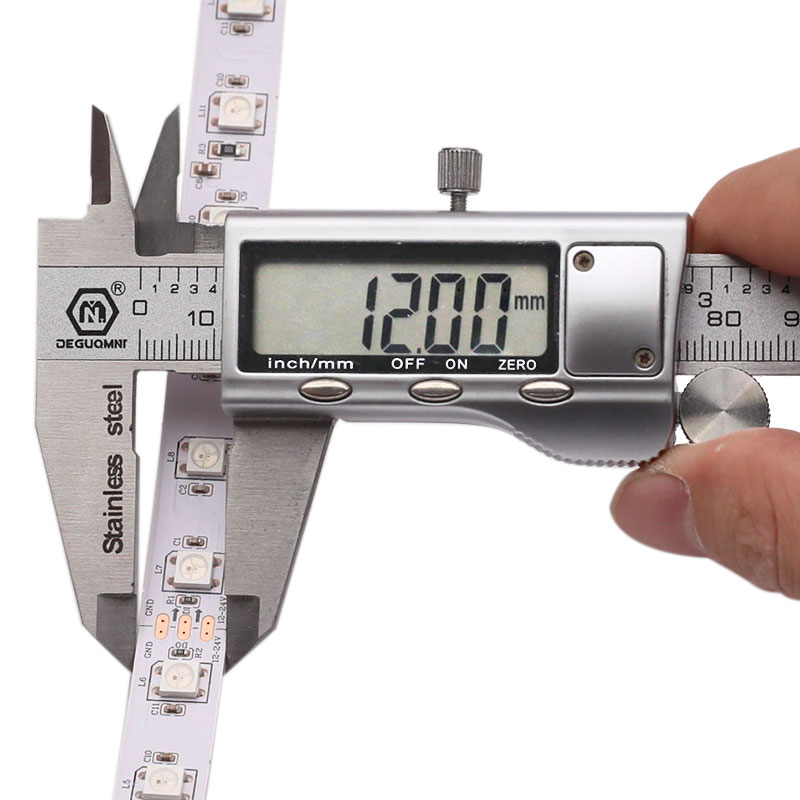

PCB Width:	12mm/0.47"
LED Quantity:	60LEDs/m, 300LEDs 16.4ft
IC Quantity:	300 ICs/roll (1 IC drives 1 LED)

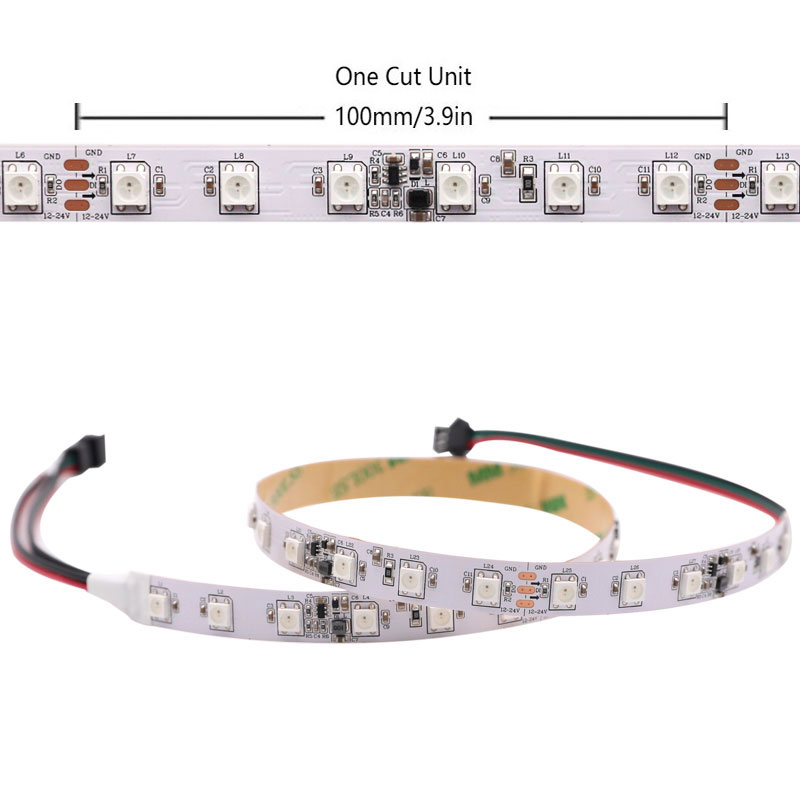

Cuttable:	6-LED, 100mm/3.93"
Waterproof Rating:	Non-waterproof IP20 / Indoor waterproof IP65 / Outdoor Waterproof IP67 / Outdoor Waterproof IP68
Strip Length:	5m/16.4ft
Beam Angle:	120°
Lumen:	20-22 lm/LED

SK6812 3-Wire Wiring Diagram:

addressable led strip wiring diagram

DC12-24V Individually Programmable SK6812 RGB LED Strip 60LEDs/m, 10m/33ft No Voltage Drop, 3.28ft-65.6ft

Reviews

Customer Experience

Your feedback is important to us! Share your thoughts and photos with other customers.

Write a Review & Upload Photos

Downloads

Files for 12/24V-SK6812-RGB

PDF12/24V-SK6812-RGB product data sheetFull specifications, dimensions, cut points, wiring and IP options — the same details shown on this page, laid out for printing and engineering review.PDF · generated from the current product page · opens in a new tabOpen PDF

Need this page for a project file or an engineering check? Click Open PDF, then save or print it from your browser. For CAD drawings, IES files or a signed test report, contact our engineers and quote the model number.

Images

These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!

LED Strip Light Guide

Common questions about this type of product, answered against this model’s own options. For full figures see the specification above or the spec sheet for this model.

Which controller does this LED strip light need?

Addressable LED strip lights take a data signal, so they need an SPI (pixel) controller that supports this IC — an ordinary RGB controller will not drive them. Data flows one way: connect the controller to the input end marked with the arrow. Wiring addressable LED strip lights

Do I need power injection?

5 V addressable LED strip lights lose voltage fastest, so longer runs need power fed in at both ends and at intervals along the run; 12 V and 24 V versions carry further. Keep the data line short between controller and first pixel. Choosing an addressable LED strip light

Which waterproof rating should I choose?

Available on this model: Underwater IP68 - Adhesive Back · Outdoor Silicone Tube IP67 - With Brackets · Outdoor Silicone Tube IP67 - Adhesive Back · Surface Glued IP65 - Adhesive Back · Non-Waterproof IP20 - Adhesive Back. IP20 is for dry indoor use, IP65 handles splashes, IP67 suits outdoor and wet areas, IP68 is for continuous submersion. Choosing a waterproof rating

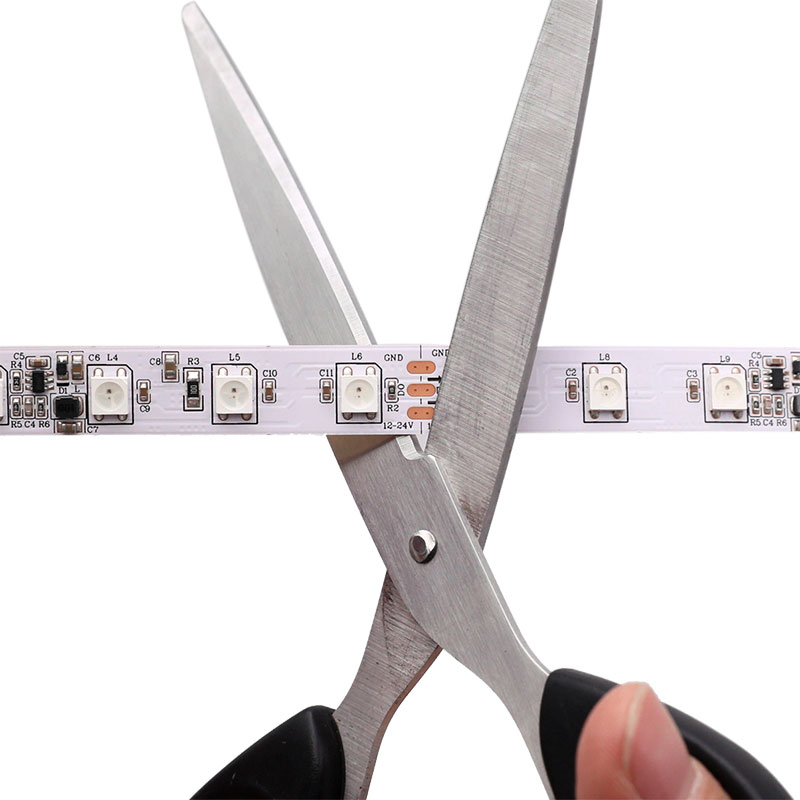

Can I cut it to length?

Yes. Cut only on the marked cut lines between the copper pads — the cut interval for this model is on its spec sheet. Rejoin with solder or a solderless connector. Cutting LED strip lights · we can also cut to length and fit your connector before shipping: custom LED strip light assembly.

What size power supply do I need?

Take the watts per metre from the specification above, multiply by the length you are running, then add about 25% headroom. Power calculation guide · Choosing a power supply
