24V to 5V SK6812 Individual Addressable 5050 RGB / RGBW LED Strips, 60/84 LEDs/m

Name: 24V to 5V SK6812 Individual Addressable 5050 RGB / RGBW LED Strips, 60/84 LEDs/m
Brand: SuperLightingLED
SKU: SK6812-RGBRGBW-24-5V
Price: 57.98 GBP
Availability: InStock

Model: SK6812-RGB/RGBW-24-5V Review stars

0.0 (0 Reviews) Various options in stock

Starting at: £44.00

Qty Discounts Off Price
1-19 £44.00	20-29 £43.12	30-49 £42.24	50+ £40.48
* Discounts may vary based on options below

Select Specifications:

Select Light Color :

Select Length:

16.4ft (5 meters)

Select Waterproof Rating:

Select LED Quantity:

Qty: -+

Free shipping over $299Ships via DHL / UPSWarranty covered

Accept the project customization, please contact us for commercial offers and technical support.

Product Information

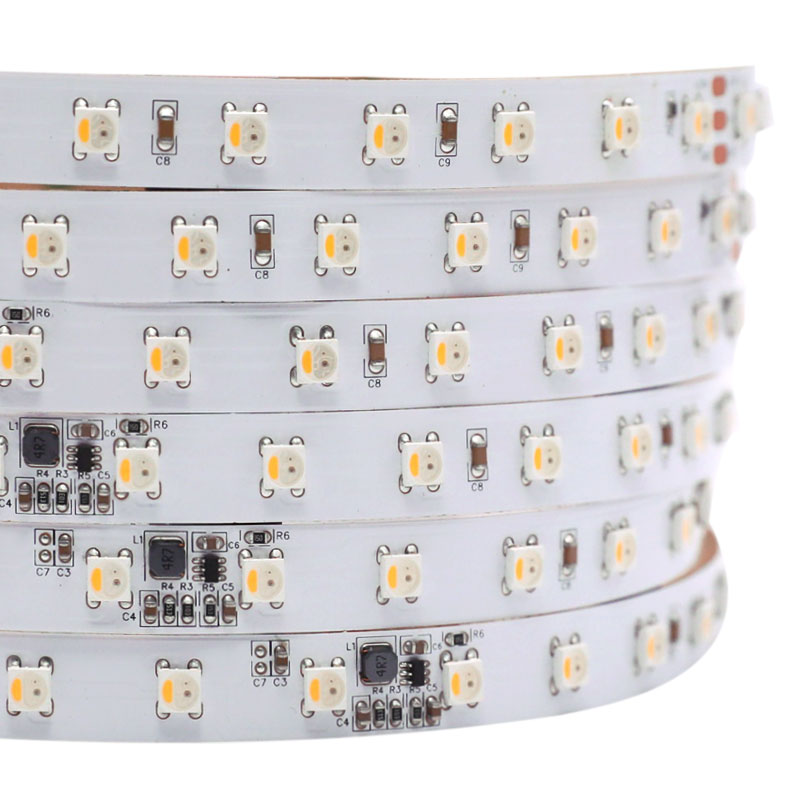

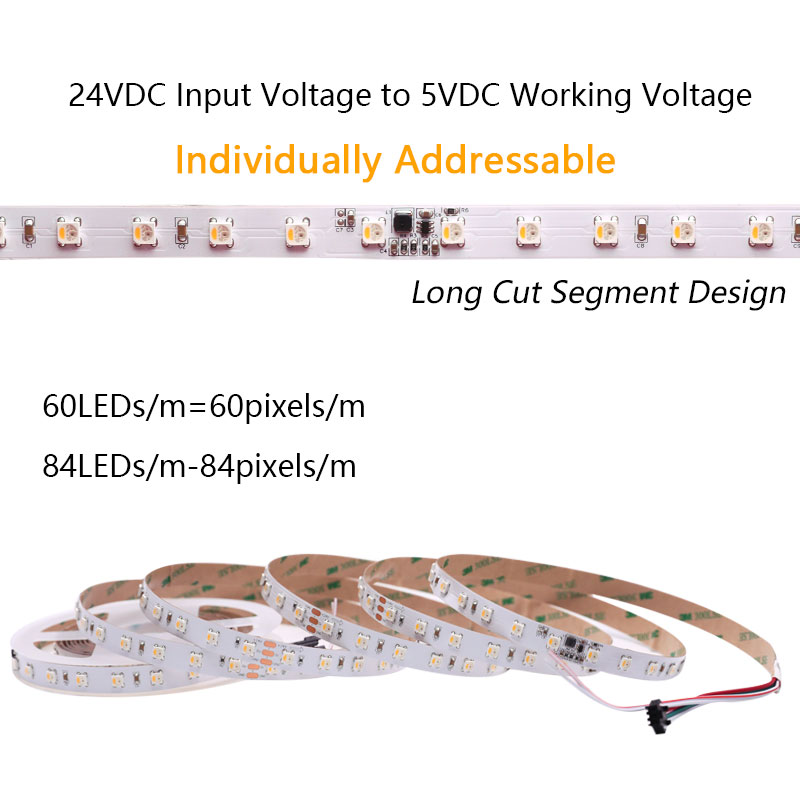

This special SK6812 RGB and RGBW LED strip works with 24VDC, but LEDs work under 5VDC. The input voltage 24VDC is converted to 5VDC when powering the strip. With this design, you can get an individually addressable LED strip light with 24VDC input.

This 24V RGB or RGBW individually addressable LED strip 5m/16.4ft needs to be powered at both ends to prevent voltage drop.

Features:

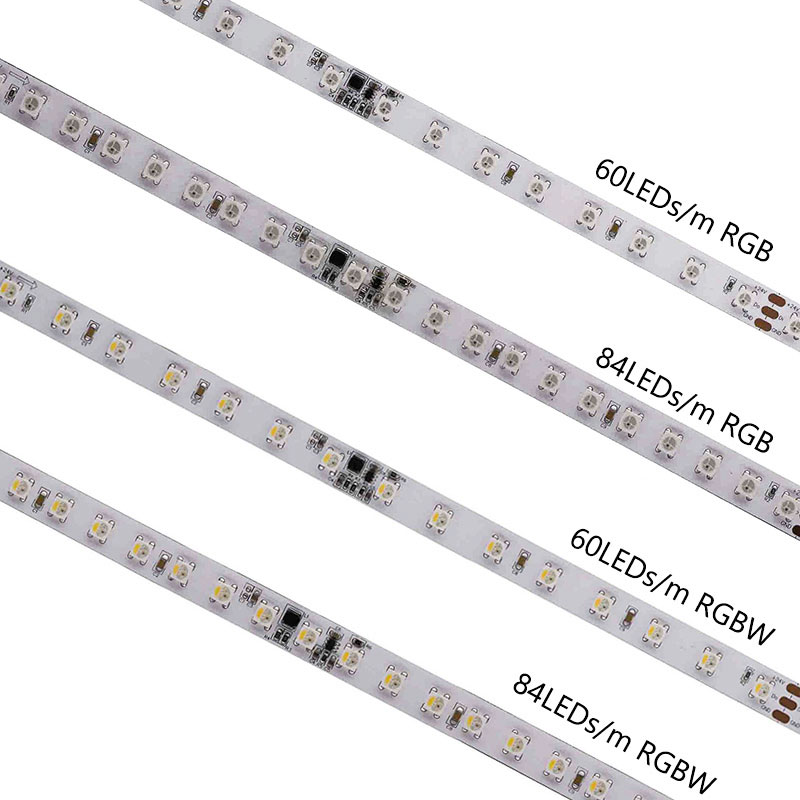

Individually addressable LED

60LEDs/m=60pixels/m

84LEDs/m=84pixels/m

Long cut segment

24VDC input voltage, connect to 24V power system

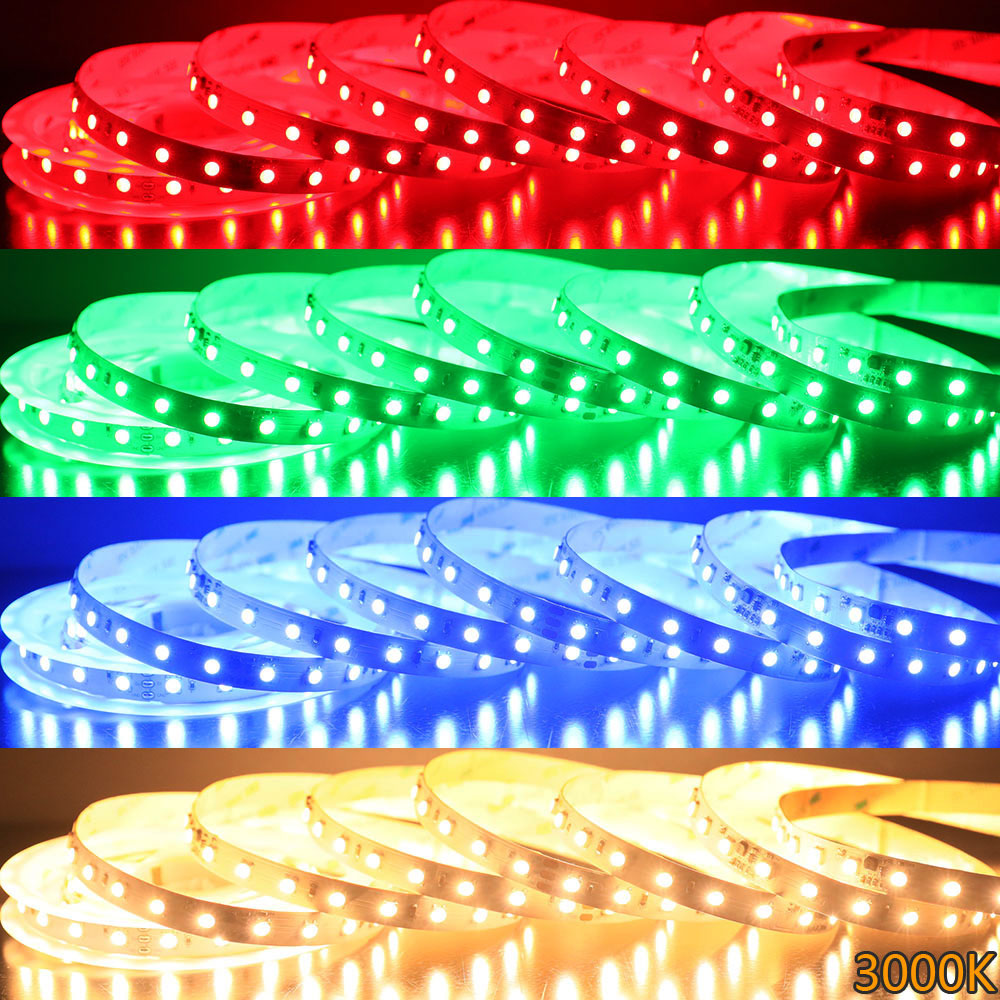

Compatible with RGB, RGB+3000K, and RGB+6000K colors

24v to 5v sk6812 addressable rgb rgbw led strips

SK6812 Datasheet Download

Specification

LED Strip Type:	24V to 5V Individually Addressable RGB/RGBW LED Strip
LED Chip:	SK6812
Input Voltage:	DC24V
Power:	16W/m 60LEDs/m RGB, 26W/m 84LEDs/m RGB, 17.5W/m 60LEDs/m RGBW, 30W/m 84LEDs/m RGBW
Working Temperature:	-20℃~+45℃
Storage Temperature:	-20℃~+60℃
LED Color Temperature:	Addressable RGB/ RGB + 6000K Daylight White / 3000K Warm White
PCB Width:	12mm/0.47"
LED Quantity:	60/84 LEDs/m, 300/420 LEDs 16.4ft
IC Quantity:	300/420 ICs/roll

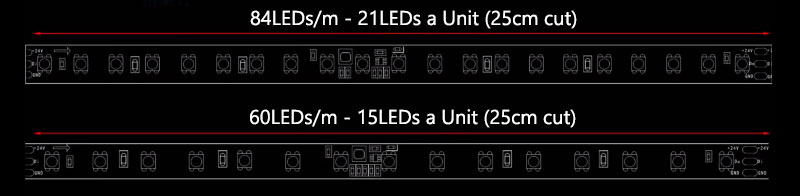

Cuttable:	15-LED/21-LED, 250mm/9.8"

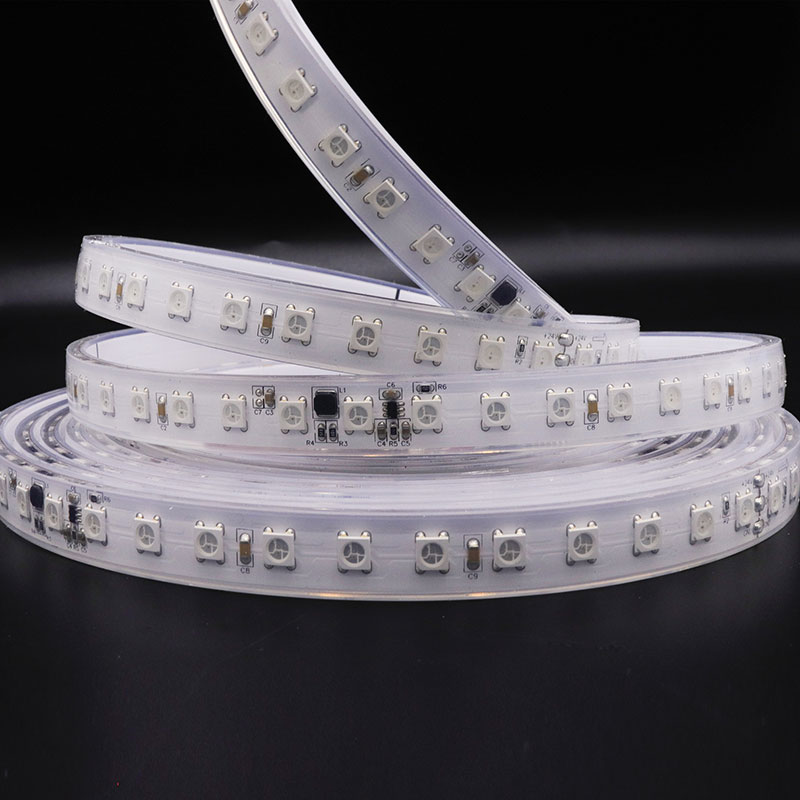

Waterproof Rating:	Indoor IP65, Outdoor Waterproof IP67 / IP68
Strip Length:	5m/16.4ft
Beam Angle:	120°
Lumen:	20-22 lm/LED

SK6812 RGB/RGBW LED Strip Lights Wiring Diagram:

addressable led strip wiring diagram

24v to 5v sk6812 addressable rgb rgbw led strips - photo 2

24v to 5v sk6812 addressable rgb rgbw led strips - photo 6

24v to 5v sk6812 addressable rgb rgbw led strips - photo 7

Reviews

Customer Experience

Your feedback is important to us! Share your thoughts and photos with other customers.

Write a Review & Upload Photos

Downloads

Files for SK6812-RGB/RGBW-24-5V

PDFSK6812-RGB/RGBW-24-5V product data sheetFull specifications, dimensions, cut points, wiring and IP options — the same details shown on this page, laid out for printing and engineering review.PDF · generated from the current product page · opens in a new tabOpen PDF

Need this page for a project file or an engineering check? Click Open PDF, then save or print it from your browser. For CAD drawings, IES files or a signed test report, contact our engineers and quote the model number.

Images

These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!

LED Strip Light Guide

Common questions about this type of product, answered against this model’s own options. For full figures see the specification above or the spec sheet for this model.

Which controller does this LED strip light need?

Addressable LED strip lights take a data signal, so they need an SPI (pixel) controller that supports this IC — an ordinary RGB controller will not drive them. Data flows one way: connect the controller to the input end marked with the arrow. Wiring addressable LED strip lights

Do I need power injection?

5 V addressable LED strip lights lose voltage fastest, so longer runs need power fed in at both ends and at intervals along the run; 12 V and 24 V versions carry further. Keep the data line short between controller and first pixel. Choosing an addressable LED strip light

Which waterproof rating should I choose?

Available on this model: Underwater IP68 - Adhesive Back · Outdoor Silicone Tube IP67 - With Brackets · Surface Glued IP65 - Adhesive Back. IP20 is for dry indoor use, IP65 handles splashes, IP67 suits outdoor and wet areas, IP68 is for continuous submersion. Choosing a waterproof rating

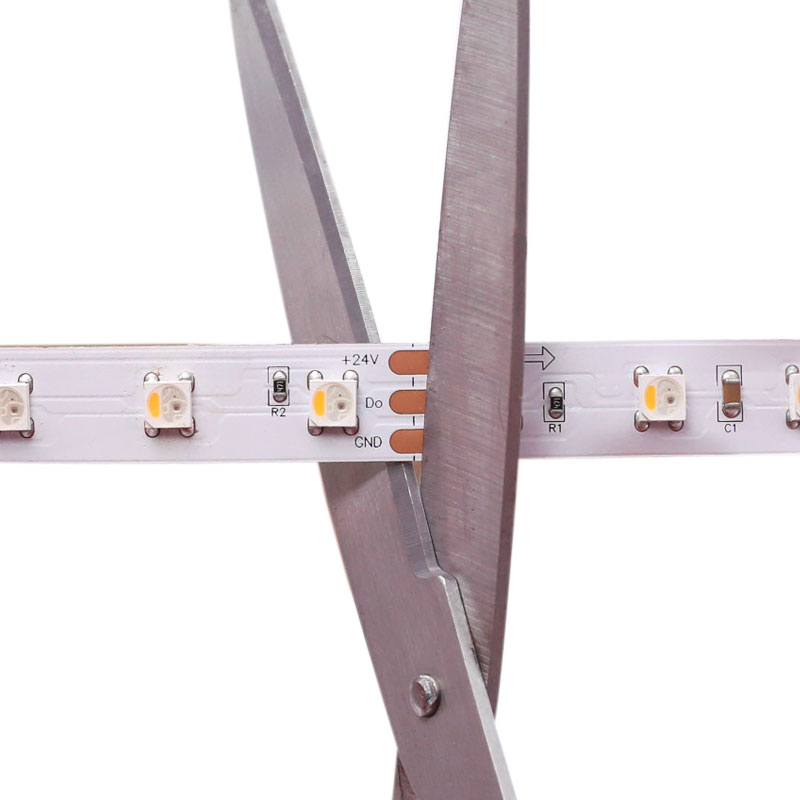

Can I cut it to length?

Yes. Cut only on the marked cut lines between the copper pads — the cut interval for this model is on its spec sheet. Rejoin with solder or a solderless connector. Cutting LED strip lights · we can also cut to length and fit your connector before shipping: custom LED strip light assembly.

What size power supply do I need?

Take the watts per metre from the specification above, multiply by the length you are running, then add about 25% headroom. Power calculation guide · Choosing a power supply

Will it fit an aluminium profile, and how dense are the LEDs?

LED density 84 LEDs/m · 60 LEDs/m. Choose a profile whose inner width is at least the PCB width; denser LEDs give a smoother line close to a diffuser. LED aluminium profiles
