Free Cutting SMD2835 CRI 95 LED Strip White Long Run
Related Products
Free Cutting SMD2835 CRI...
$20.98
Mean Well LRS-150-24 ...
$32.00 $29.986% off
12 to 24V Rotary Control...
$16.98
DC24V 150W 6.25A 0-10V...
$47.98
Sensor Control...
$6.99
Electrical Screw In...
$1.29
Waterproof Silicone LED...
$2.99- Special Price: $20.98

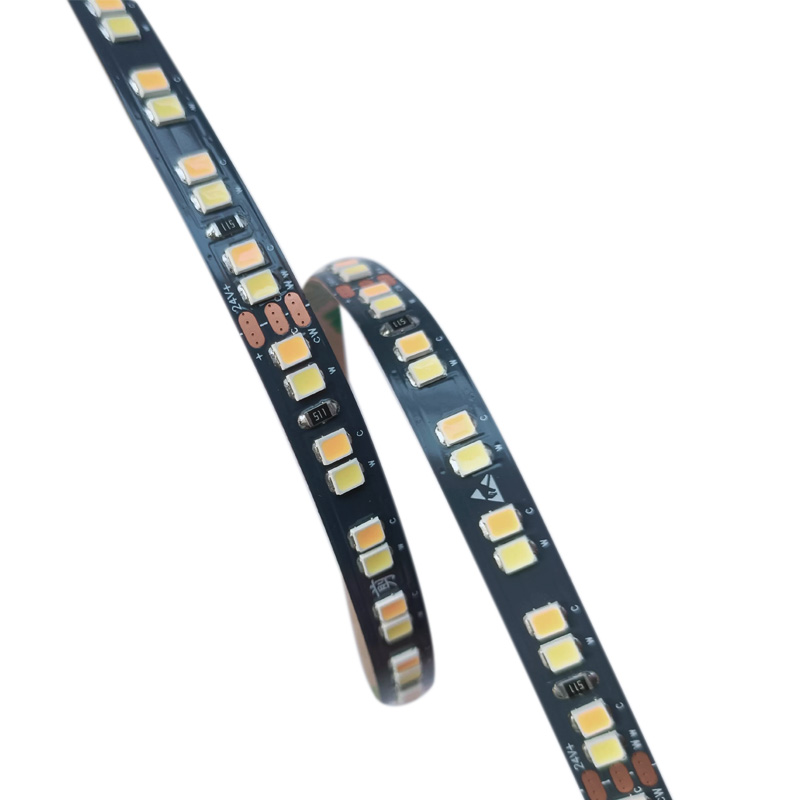

Tired of being limited by fixed cutting marks on your LED strips? The SuperLightingLED FC-CRI95-10M-2835X132 is engineered to solve that problem. Featuring a revolutionary circuit design, this high-performance strip can be cut at any point along its length, offering unparalleled precision for your custom lighting projects. This makes it the ultimate choice for intricate DIY linear lighting, whether installed directly, inside neon tube sleeves, or mounted in aluminum profile bars. With a stunningly high Color Rendering Index (CRI) of over 95, it reveals the true colors of your environment, making it perfect for display cases, art studios, and high-end residential applications. The 24V DC input allows for long, continuous runs with consistent brightness, all on a sleek 8mm black PCB for a modern, discreet finish.
Key Features
Ultimate Cutting Flexibility
Cut the strip at any point on the PCB for a perfect, custom-fit installation every time, eliminating waste and design constraints.
Exceptional Color Accuracy (CRI 95+)
Render colors with near-perfect accuracy, making it ideal for retail displays, art galleries, and under-cabinet kitchen lighting where true color is vital.
Long Run Stability
Operates on 24VDC for reduced voltage drop, ensuring consistent brightness across continuous runs of up to 10 meters (32.8ft).
High-Density, Smooth Illumination
Packed with 132 LEDs per meter, this strip delivers a bright, uniform line of light with minimal spotting for a professional look.
Versatile White Color Options
Available in Warm White (3000K), Natural White (4000K), and Daylight White (6000K) to create the perfect ambiance for any space.
Technical Highlights
- Specialized circuit design allows the strip to be cut at any point without damaging remaining LEDs.
- Operates on a stable 24VDC system, minimizing voltage drop over longer runs compared to 12V strips.
- Fully dimmable with compatible single-color PWM dimmers for precise brightness control.
- Available with IP20, IP67, and IP68 ratings for indoor, outdoor, and underwater applications.
Product Specifications
| Parameter | Details |
|---|---|
| Model | FC-CRI95-10M-2835X132 |
| LED Type | SMD2835 |
| Input Voltage | 24V DC |
| Power Consumption | 10W per meter |
| Color Rendering Index (CRI) | Ra > 95 |
| LED Quantity | 132 LEDs per meter |
| Available Colors | 3000K Warm White, 4000K Natural White, 6000K Daylight White |
| Cuttable Unit | Any position on the PCB |
| PCB Width | 8mm (0.31in) |
| PCB Color | Black |
| Strip Dimensions (IP20) | W8mm x H1.35mm |
| Strip Dimensions (IP67/IP68) | W10mm x H5mm |
| Beam Angle | 120° |
| Dimmable | Yes (with compatible dimmer) |
| Available Lengths | 5m (16.4ft) / 10m (32.8ft) per reel |
| Waterproof Ratings | IP20 (Non-waterproof), IP67 (Silicone Tube), IP68 (Underwater) |
Application Scenarios
How to Install & Use This LED Strip
- Ensure the installation surface is clean, dry, and free of dust or oils.
- Measure the required length for your project and carefully cut the strip at any point using sharp scissors.
- Connect the strip to a compatible 24VDC power supply. For connections after cutting, you can solder wires directly or use 2-pin 8mm quick connectors.
- If you require dimming, connect a single-color PWM dimmer between the power supply and the LED strip.
- Peel the adhesive backing and firmly press the strip onto the prepared surface.
- Connect the power supply to the main power source and test your new lighting setup.
- Always use a regulated 24VDC power supply with a wattage rating at least 20% higher than the strip's total power consumption.
- For runs longer than 10 meters, power may need to be injected from both ends to avoid voltage drop and ensure consistent brightness.
- The IP rating of the strip, power supply, and all connectors must be appropriate for the installation environment.
Power Consumption Reference
| Length | Power | Recommended Driver |
|---|---|---|
| 1 meter (3.3ft) | 10W | > 12W |
| 5 meters (16.4ft) | 50W | > 60W |
| 10 meters (32.8ft) | 100W | > 120W |
Frequently Asked Questions
Q: Can I really cut this LED strip anywhere I want?
A:Yes, absolutely. The unique circuit design allows you to cut the strip at any point along the PCB without damaging the remaining LEDs, giving you complete customization.
Q: What is the main advantage of this strip over a standard one?
A:Standard LED strips have designated cut marks every few centimeters. This 'Cut-Anywhere' strip can be trimmed to the exact millimeter, eliminating awkward gaps or excess length for a perfect fit.
Q: Why is a CRI of 95 important for lighting?
A:A high CRI of 95 means the light source renders colors almost perfectly, similar to natural daylight. This is crucial for applications like kitchens, retail stores, and art displays where color accuracy is essential.
Q: What kind of power supply do I need for this strip?
A:You will need a 24VDC power supply. Calculate the total wattage for your desired length (10W/meter) and choose a power supply with at least 20% higher capacity.
Q: Does the black PCB affect the light output?
A:No, the black PCB is purely for aesthetics. It provides a sleek, modern look and helps the strip blend into dark surfaces or channels without impacting the quality or brightness of the light.
