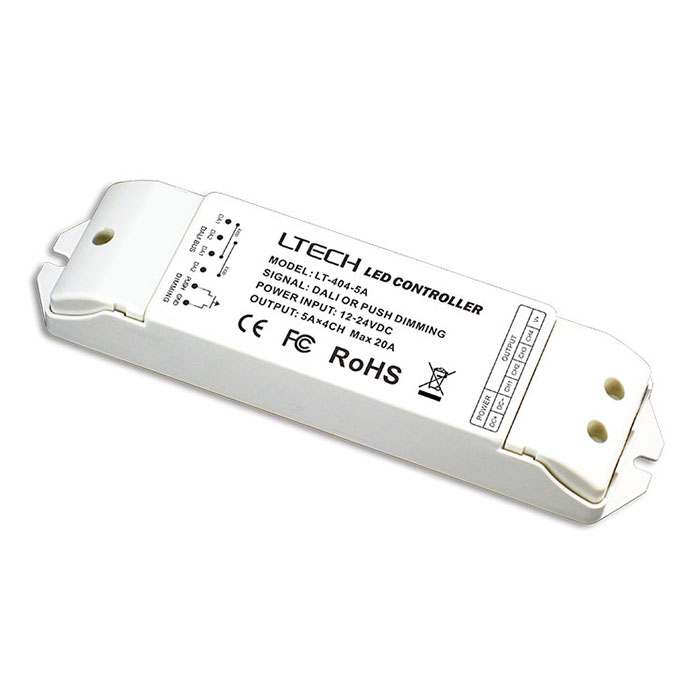

DC12V-24V DALI Dimming Driver LT-404-5A

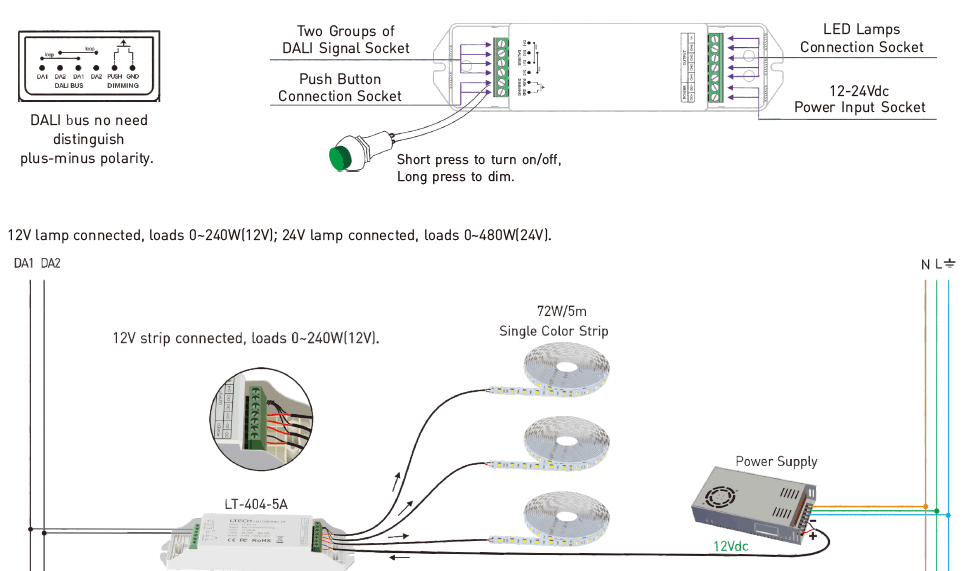

Dimming interface: DALI, Push Dim
PWM digital dimming, standard DALI logarithmic dimming curve.
Dimming range: 0~100%, LED start at 0.1% possible.
4CH isolated control output, Max. current output: 20A.
Full protective plastic housing.
DALI bus standard: IEC62386.
Suitable for indoor environments.
Dimming Interface: DALI, Push Dim
Input Voltage: 12~24Vdc
Output Voltage: 12~24Vdc
Output: 5A×4CH Max. 20A
Max. Output Power: (0~60W...120W)×4CH Max. 480W
Dimming Range: 0~100%
Working Temperature: -30℃~55℃
Product Size: L175×W44×H30(mm)
Package Size: L178×W48×H33(mm)
