Dimmable Long 48V COB LED Strip Tape Lights from 5m to 30m

Model: FSLCOB-48V-480W8 Review stars 0.0 (0 Reviews) Various options in stock
Starting at: Can.$25.39 Can.$22.5711% off
Qty Discounts Off Price
1-34
Can.$22.57
35-69
Can.$22.12
70-99
Can.$21.44
100+
Can.$20.31
* Discounts may vary based on options below
Select Specifications:
Qty: -+
Free shipping over $299Ships via DHL / UPSWarranty covered

Accept the project customization, please contact us for commercial offers and technical support.

  • Product Information
  • Reviews
  • Downloads
  • Images
  • LED Strip Light Guide

Product Information

This 48v cob led strip is capable of running up to 30 meters on a single-ended power supply, making it ideal for long distance or large-scale lighting projects. Long cob led tape alone can accomplish continuous illumination task without any voltage drop, ensuring consistent color and brightness from end to end, making the installation and maintenance process easier. We offer different lengths for you to choose, from 5 meters (the shortest) to 30 meters (the longest). With a high density of 480 LEDs per meter, cob led strip wire long provides excellent lighting effect without any dots or shadows, bright but not harsh on eyes.

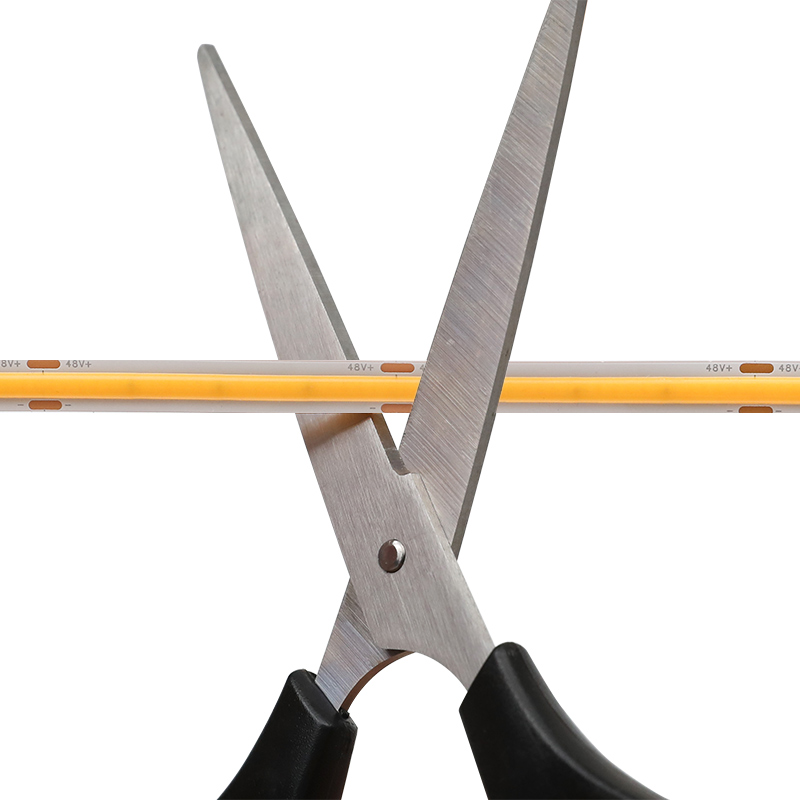

This cob flexible led strip light is very soft, easy to form into different shapes. Every 50mm is a cutting unit, you can cut and connect these strips in minutes with a small pair of scissors and COB connectors. The width of board is 8mm (both 20m no voltage version and 30m no voltage version), you can stick it in the suitable neon tube or aluminum channel to enhance visual effect. A variety of colors are available. Using a controller you can smoothly adjust the brightness of this dimmable cob led strip, bringing a comfortable lighting experience.



Features:

1. 48v led cob strip, can achieve a run length of 30 meters with a single-ended voltage supply.

2. Multiple single colors, including dimmable white, red, green and blue.

3. Whole roll of uncut strips, sold in lengths from 5 meters to 30 meters.

4. 480 LEDs per meter, 8mm wide PCB board, each 50 mm is an individual cutting segment.

5. Different IP ratings: IP20 non-waterproof, IP67 waterproof and IP68 underwater.



If you choose 20m no voltage version and select strip length over 20m, please connect power supplies at both ends of the strip to prevent any voltage drop.

If you choose 30m no voltage version, powering strip from single end with 48V power supply is sufficient.

Please note that if you choose 30m non-voltage drop green or red color, we need 14 days to produce.



Product Specification

LED Strip Type:
Dimmable Long 48V COB LED Strip Tape Lights
LED Chip:
COB
Input Voltage:
DC 48V
Power:
12W/m
PCB Width:
8mm/0.31"
LED Quantity:
480 LEDs per meter
Colors

Dimmable white 3000k/ 4000k/ 6000k

Red/ Green

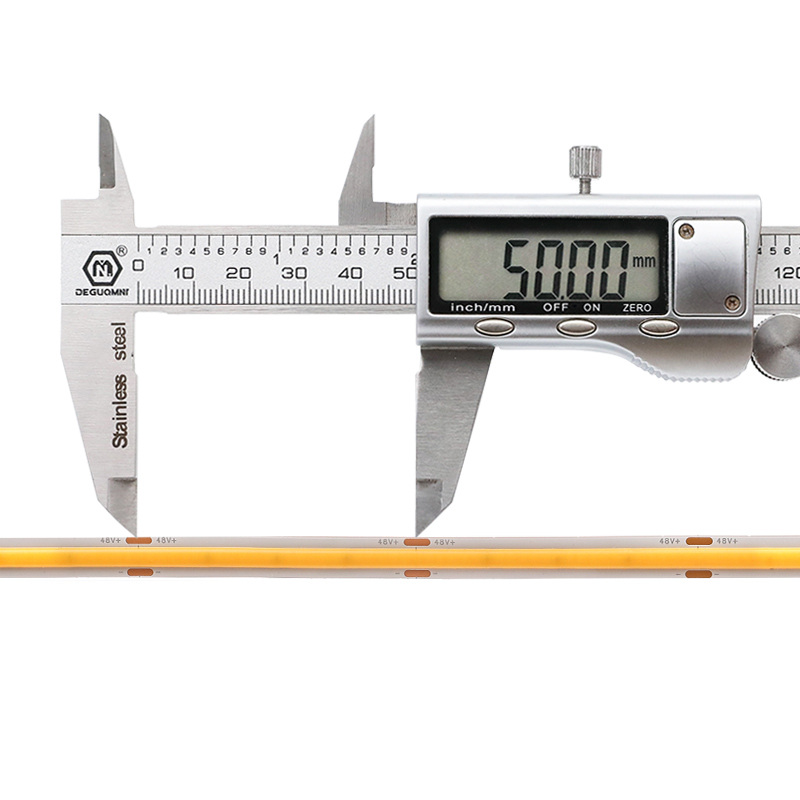

Cut Unit:  50mm/1.96"
Strip Length:  5m, 10m, 15m, 20m, 25m, 30m
Waterproof Rating:  Non-waterproof IP20 / Waterproof IP67/ Underwater IP68
Lumen:   720 lumens/m
Beam Angle:  180°
Working Temperature:  -20℃~+50℃
Lifespan:  50,000+ hours

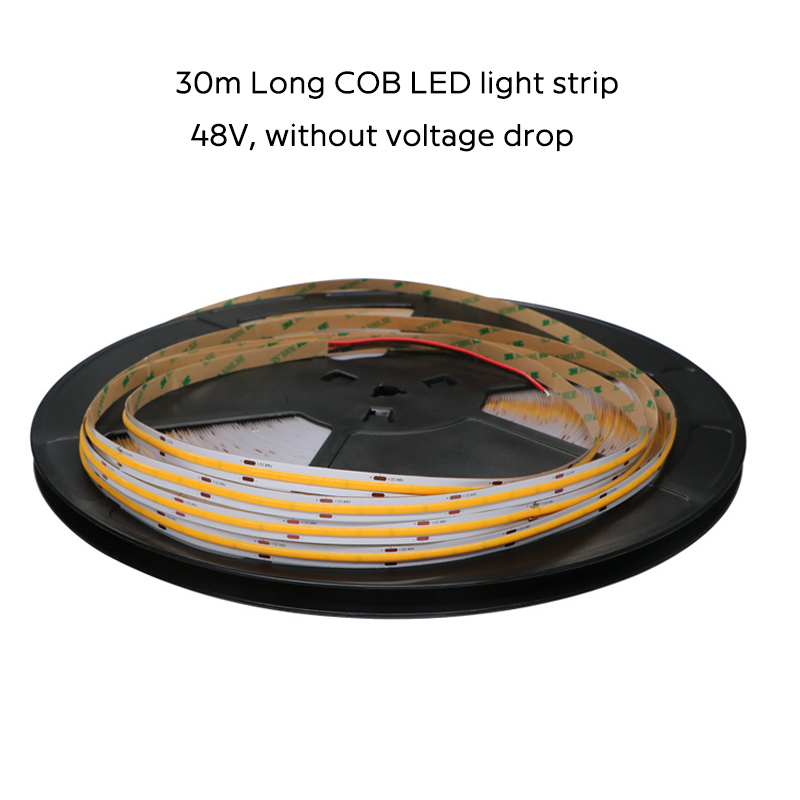

30m Longest 48V COB LED Strip Tape

3000k and 6000k comparison

Reviews

Customer Experience

Your feedback is important to us! Share your thoughts and photos with other customers.

Downloads

Files for FSLCOB-48V-480W8
Need this page for a project file or an engineering check? Click Open PDF, then save or print it from your browser. For CAD drawings, IES files or a signed test report, contact our engineers and quote the model number.

Images

These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!

Dimmable Long 48V COB LED Strip Tape Lights from 5m to 30mDimmable Long 48V COB LED Strip Tape Lights from 5m to 30mDimmable Long 48V COB LED Strip Tape Lights from 5m to 30mDimmable Long 48V COB LED Strip Tape Lights from 5m to 30mDimmable Long 48V COB LED Strip Tape Lights from 5m to 30mDimmable Long 48V COB LED Strip Tape Lights from 5m to 30mDimmable Long 48V COB LED Strip Tape Lights from 5m to 30mDimmable Long 48V COB LED Strip Tape Lights from 5m to 30mDimmable Long 48V COB LED Strip Tape Lights from 5m to 30m

LED Strip Light Guide

Common questions about this type of product, answered against this model’s own options. For full figures see the specification above or the spec sheet for this model.

Which waterproof rating should I choose?
Available on this model: Outdoor Silicone Tube IP67 - With Brackets · Outdoor Silicone Tube IP67 - Adhesive Back · Non-Waterproof IP20 - Adhesive Back. IP20 is for dry indoor use, IP65 handles splashes, IP67 suits outdoor and wet areas, IP68 is for continuous submersion. Choosing a waterproof rating
Can I cut it to length?
Yes. Cut only on the marked cut lines between the copper pads — the cut interval for this model is on its spec sheet. Rejoin with solder or a solderless connector. Cutting LED strip lights · we can also cut to length and fit your connector before shipping: custom LED strip light assembly.
What size power supply do I need?
Take the watts per metre from the specification above, multiply by the length you are running, then add about 25% headroom. Power calculation guide · Choosing a power supply
Which colour is right?
This model comes in Daylight White(6000K) · Natural White(4000K) · Warm White (3000K). Warmer whites suit living spaces, cooler whites suit task and display lighting. Screens do not show colour temperature accurately — order a sample if the room matters. Warm white vs cool white
