• HD107S( Update APA107) White 5050SMD Digital Intelligent Addressable LED Chip, DIY LED Chip, 1000PCS By Sale

HD107S( Update APA107) White 5050SMD Digital Intelligent Addressable LED Chip, DIY LED Chip, 1000PCS By Sale

Model: HD107S-5050-WW CHIP Review stars 0.0 (0 Reviews) Various options in stock
Price€161.57
Qty Discounts Off Price
1-9
€161.57		 10-19
€158.34		 20-49
€153.49		 50+
€147.03
* Discounts may vary based on options below
Select Specifications:
Select Quantity:
Select PCB Color :
Select Waterproof Rating:
Qty: -+
Free shipping over $299Ships via DHL / UPSWarranty covered

Accept the project customization, please contact us for commercial offers and technical support.

  • Product Information
  • Reviews
  • Downloads
  • Images
  • LED Strip Light Guide

Product Information

Product Description

HD107S provides a 5050LED package, and its operating temperature range is -40~70℃. HD107S contains series shift register, data latch, output register, bandgap reference voltage source, Internal oscillator and programmable constant current driver. The serial data input from the SDI data is read into the data shift register inside the chip on the rising edge of the CKI clock signal, and the input clock signal. And the LED grey control signal is reshaped by the clock data regeneration circuit inside the chip and then output at the CKO and SDO terminals so that the chip can be connected in series. When POL="0", the output polarity is reversed, HD107S works like a PWM controller and can drive external switches or circuits to drive high-brightness LED



Standards and Certifications

DC5V CE FCC RoHS ISA SGS ISO LIFETIME warranty led factory



Product Specifications

LED Type:   SMD LED 5050

LED Chip Type:   HD107S-5050

Emitting Color:   White

Working Voltage:   DC 5V

Power:   0.2W/pcs

Packing:    1000pcs

Material:    Copper

Beam Angle:   120degrees

Waterproof Rating:    non-waterproof



Product List

1* 1000pcs white HD107S-5050 LED chip

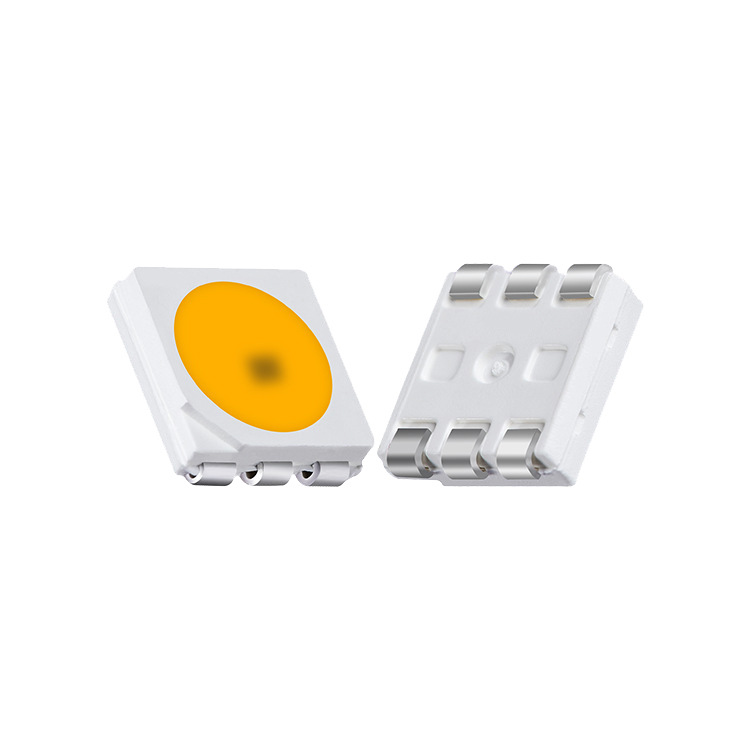

HD107S( Update APA107) White 5050SMD Digital Intelligent Addressable LED Chip, DIY LED Chip

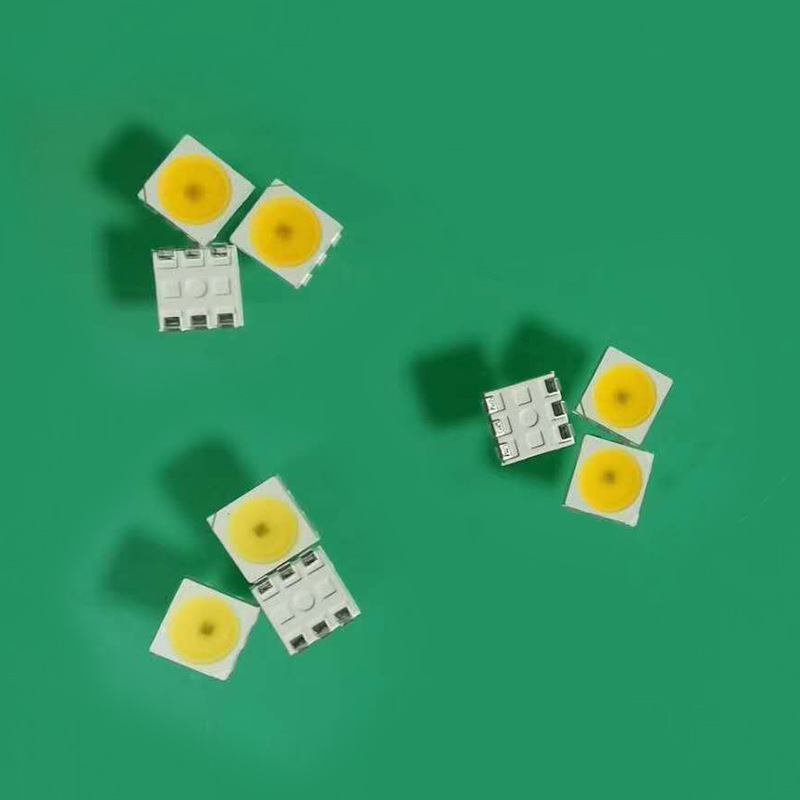

HD107S( Update APA107) White 5050SMD Digital Intelligent Addressable LED Chip, DIY LED Chip - photo 1

digital rgb addressable led strip applications



Reviews

Customer Experience

Your feedback is important to us! Share your thoughts and photos with other customers.

Write a Review & Upload Photos

Downloads

Files for HD107S-5050-WW CHIP
PDFHD107S-5050-WW CHIP product data sheetFull specifications, dimensions, cut points, wiring and IP options — the same details shown on this page, laid out for printing and engineering review.PDF · generated from the current product page · opens in a new tabOpen PDF
Need this page for a project file or an engineering check? Click Open PDF, then save or print it from your browser. For CAD drawings, IES files or a signed test report, contact our engineers and quote the model number.

Images

These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!

HD107S( Update APA107) White 5050SMD Digital Intelligent Addressable LED Chip, DIY LED Chip, 1000PCS By SaleHD107S( Update APA107) White 5050SMD Digital Intelligent Addressable LED Chip, DIY LED Chip, 1000PCS By Sale

LED Strip Light Guide

Common questions about this type of product, answered against this model’s own options. For full figures see the specification above or the spec sheet for this model.

Which controller does this LED strip light need?
Addressable LED strip lights take a data signal, so they need an SPI (pixel) controller that supports this IC — an ordinary RGB controller will not drive them. Data flows one way: connect the controller to the input end marked with the arrow. Wiring addressable LED strip lights
Do I need power injection?
5 V addressable LED strip lights lose voltage fastest, so longer runs need power fed in at both ends and at intervals along the run; 12 V and 24 V versions carry further. Keep the data line short between controller and first pixel. Choosing an addressable LED strip light
Which waterproof rating should I choose?
Available on this model: Non-Waterproof IP20 - Adhesive Back. IP20 is for dry indoor use, IP65 handles splashes, IP67 suits outdoor and wet areas, IP68 is for continuous submersion. Choosing a waterproof rating
Can I cut it to length?
Yes. Cut only on the marked cut lines between the copper pads — the cut interval for this model is on its spec sheet. Rejoin with solder or a solderless connector. Cutting LED strip lights · we can also cut to length and fit your connector before shipping: custom LED strip light assembly.
What size power supply do I need?
Take the watts per metre from the specification above, multiply by the length you are running, then add about 25% headroom. Power calculation guide · Choosing a power supply
