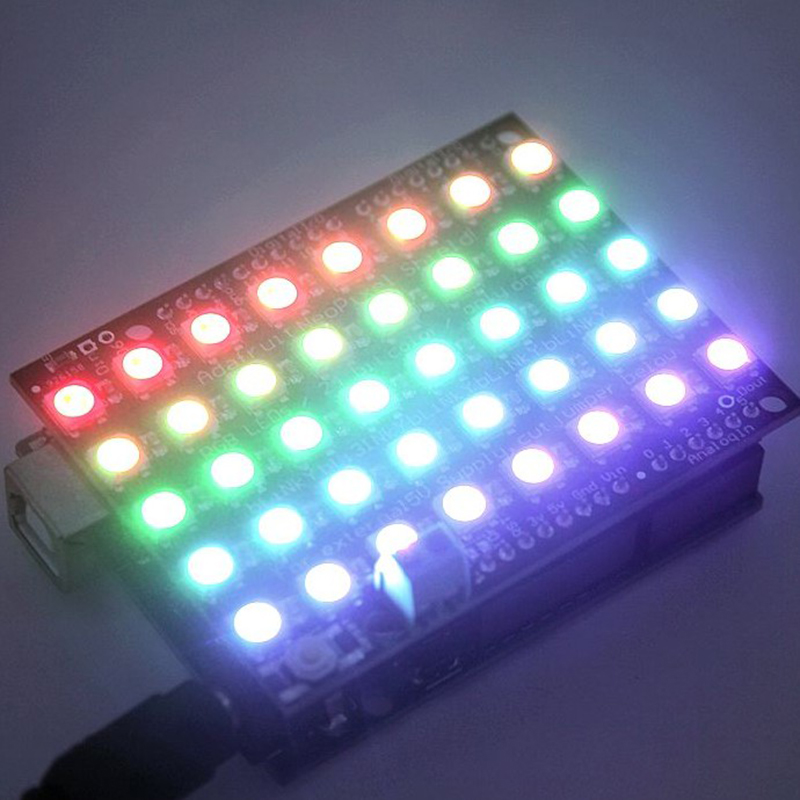

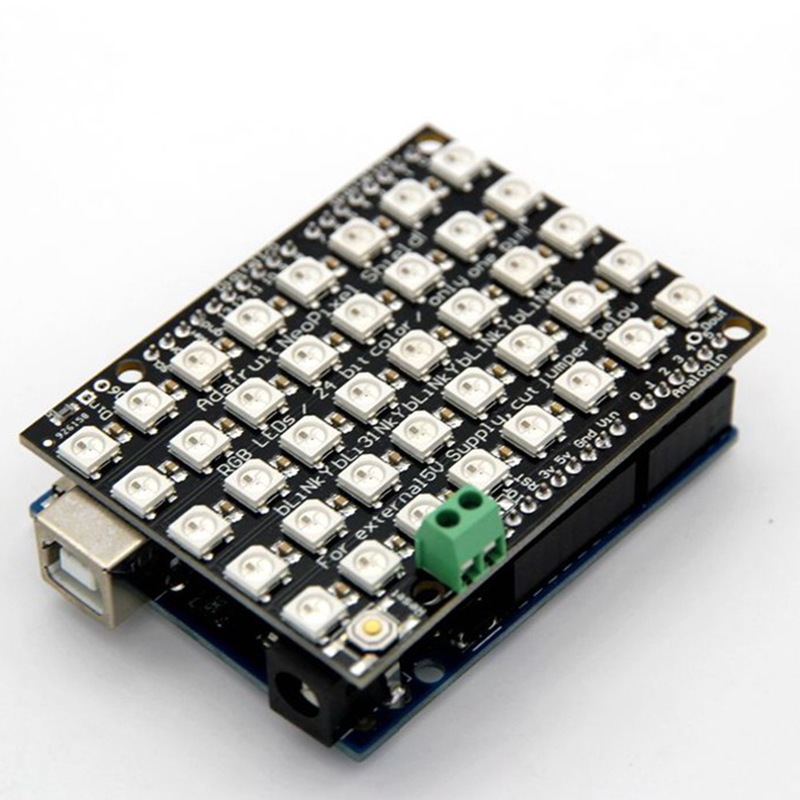

WS2812B 5 x 8 5050 RGB A ddressable LED Pixel Matrix With Integrated Drivers
The LED of Superlightingled Neopixel Shield has the advantages of low voltage drive, environmental protection and energy saving, high brightness, large scattering angle, good consistency, ultra-low power, and ultra-long life. Integrating the control circuit on the LED makes the circuit more concise, small in size and easier to install. Neopixels Matrix can display any text, picture, animation, dance, cool, fireworks and other effects you want by programming the controller. Neopixels can meet your massive needs.
The three primary colors of each pixel of Neopixel lightsaber can achieve 256 levels of brightness display, complete the full true color display of 16,777,216 colors, and the scanning frequency is not less than 400Hz/s.
The data protocol adopts a single-wire return-to-zero code communication method. After the pixel is powered on and reset, the DIN terminal accepts the data transmitted from the controller. The first 24bit data sent is extracted by the first pixel and sent to the pixel. After the remaining data is reshaped and amplified by the internal shaping processing circuit, the remaining data is forwarded and output to the next cascaded pixel through the DO port. After each pixel is transmitted, the signal is reduced by 24bit. Pixels adopt automatic shaping and forwarding technology, so that the number of cascaded pixels is not limited by signal transmission, only limited by signal transmission speed requirements.
Single-wire communication can minimize the pressure on the I/O port of the single-chip microcomputer. In addition, this neopixel lightsaber RGB lamp uses the WS2812 driver chip so that the peripheral circuit only needs a capacitor to meet the circuit requirements, and the circuit becomes simple as possible. Beautiful, giving people the enjoyment of beauty. This addressable RGB LED light can be cascaded with another RGB light using the same chip through a DOUT output port, regardless of the ring restriction.
Note: Flexible PCB is not suitable for repeated bending!
Standards and Certifications
Work Voltage: DC5V
LED Color: RGB
IC Chip: WS2812B
LED Quantity: 40leds
Beam Angle: 120°
Dimensions:53.36mm / 2.1" x 68.85mm / 2.7" x 3.22mm / 0.12"
