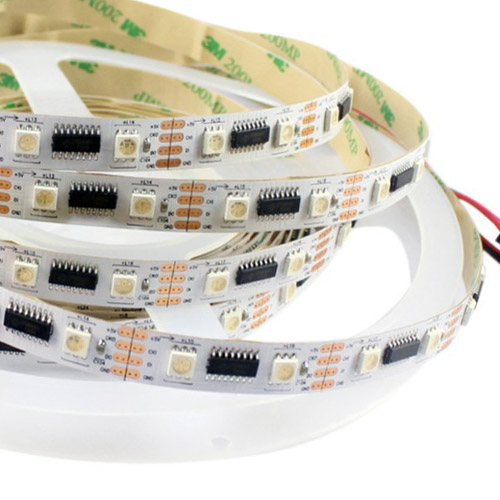

LPD8806 DC5V Series Flexible LED Strip Lights, Programmable Pixel Full Color Chasing, Indoor Use, 160LEDs 16.4ft Per Reel By Sale
LPD8806 DC5V Series... $49.98 $41.9816% off
Mean Well LRS-200-5 DC5V... $49.00 $39.9818% off
SP501E LED WiFi... $29.98 $12.9857% off
DC5-24V SP301E Syn Signal... $28.99
DC5-24V SC+R9 RF 2.4G... $20.98
Mean Well LRS-75-5 DC5V... $28.00
LC-2000B SPI LED WIFI... $80.00 $44.9844% off
$49.98 $41.9816% off
LPD8806 DC5V Series...
Mean Well LRS-200-5 DC5V...
SP501E LED WiFi...
DC5-24V SP301E Syn Signal...
DC5-24V SC+R9 RF 2.4G...
Mean Well LRS-75-5 DC5V...
LC-2000B SPI LED WIFI...
1. Universal LPD8806 160 dynamic color chasing, sequencing, changing, and also static color modes available on the Full-Color Controller and dream color Strip.
2. addressable LEDs allow for sequencing modes. Silicone Encased Non-waterproof flexible LED light strip with 160 LEDs high power 5050SMD(Surface Mounted Devices) RGB LEDs programmable for chasing patterns. LPD8806 IC chip control. 5meter(16.45ft) Per Reel By Sale.
3. This programmable led strip is an intelligent control LED light source that the control circuit and RGB chip are integrated into a package of 5050 components. It internal include intelligent digital port data latch and signal reshaping amplification drive circuit. Also include a precision internal oscillator and a DC5V voltage programmable constant current control part, effectively ensuring the pixel point light color height consistent.
4. The data transfer protocol uses a single NZR communication mode. After the pixel power-on reset, the DIN port receive data from controller, the first pixel collects initial 24bit data then sent to the internal data latch, the other data which reshaping by the internal signal reshaping amplification circuit sent to the next cascade pixel through the DO port. After transmission for each pixel，the signal to reduce 24bit. pixel adopt auto reshaping transmit technology, making the pixel cascade number is not limited the signal transmission, only depend on the speed of signal transmission. You can get the required program and colors use with LED Edit2014 software together. - Connect led DMX Digital Display Controllers
5. This strips soft and easy bent for installation. Available in 5 meters (197 in) Non-Waterproof flexible light strips with adhesive backing and can be stuck just about anywhere (except IP67 type which will come with mounting brackets). can be cut into 2-LED segments, so you could cut a different length for your project and request.
6. The led strip has low light decline and long lifespan，LED with low driving voltage, environmental protection and energy saving, high brightness,scattering angle is large, good consistency, low power, long life and other advantages. The control chip integrated into LED above becoming more simple circuit, small volume, convenient installation.
7. The 5VDC operation, Low carbon, no radiation, no flicker, and no pollution to human and environment, Safe and stable. Used in advertising signs, LED digital screen display, backlighting decoration. Color Program Controllable - Connect LED Smart Full Color Controllers.
LPD8806 Chips Specifications Download
Standards and Certifications
LED programmable digital display
Hotels decoration use
Concealed lighting, Cove decoration
Theaters, clubs, shopping malls lighting
Architectural decorative lighting
Boutique atmosphere lighting
Auditorium walk stairway lighting
Hidden groove, Wine cabinet decoration
Show exhibition decoration
Waterproof Level Description
IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);
IP65 Waterproof (Epoxy cover waterproof, Epoxy Resin, PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, For Outdoor & Indoor) ;
IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);
16.4ft(5 meter) led strip lights connection diagram
