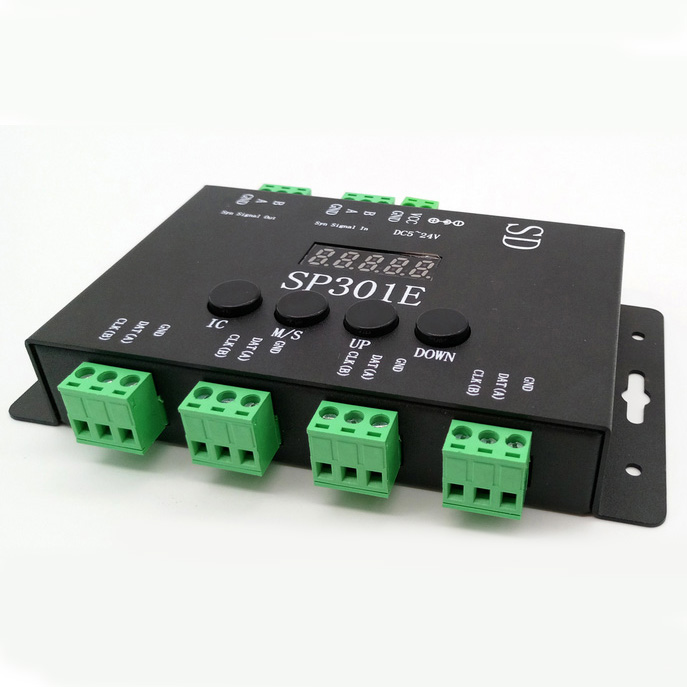

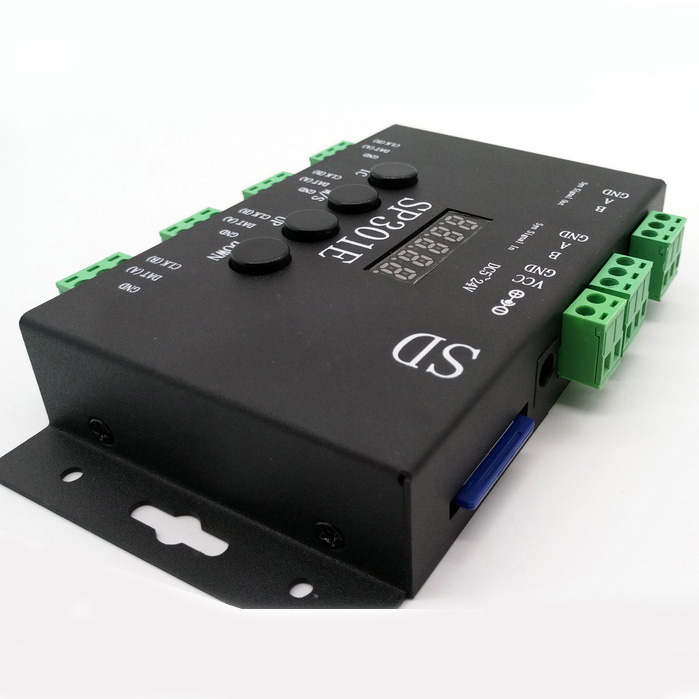

DC5-24V SP301E Syn Signal Programmable LED Controller For WS2811 WS2813 WS2812B SK6812 APA102 Addressable LED Strip Light
- $87.98 $64.9826% off
- $25.98 $15.9838% off
- $29.00 $25.9810% off
- $89.98 $84.986% off
1. Using a computer software to create vivid patterns, controller play pattern files in SD card;

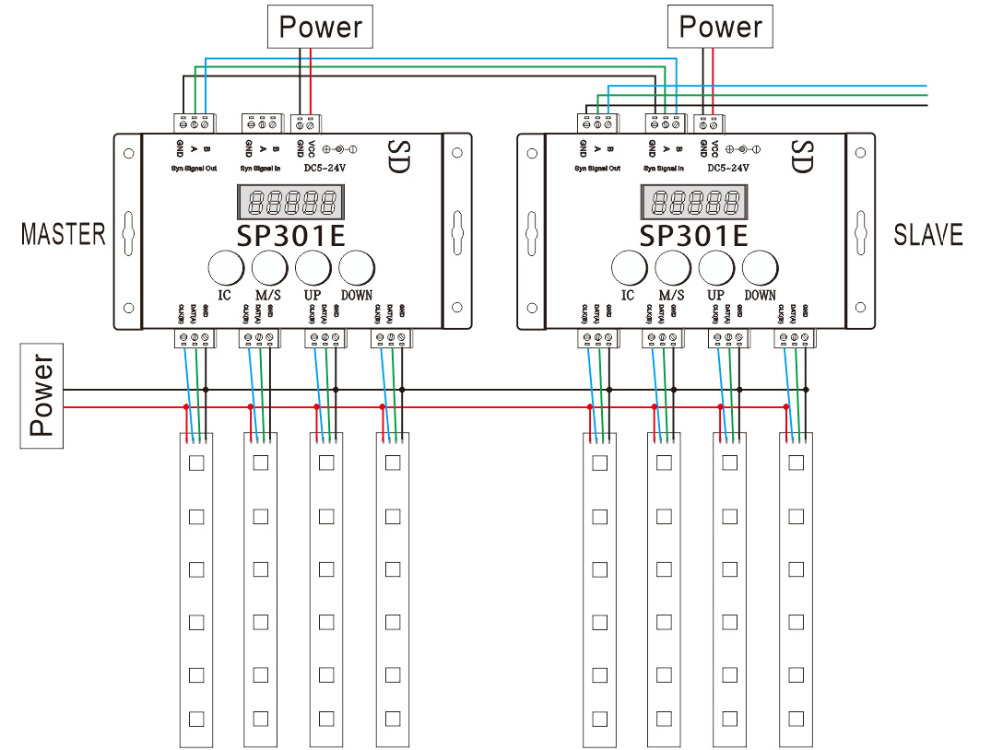

2. Multiple controllers work in RF wireless cascade synchronization mode;
3. Support almost every kind of one-wire or two-wire LED-DRIVER-IC in the market;
4. 99 kinds of internal built-in patterns ;
5. User setting saving function available;
6.Preventing reverse connection of power supply.
7. The TTL signals output by the four signal output ports are consistent;
8. Power down save user settings function
Working Current: 18MA-77MA
Control Capacity: 2048pixels
Output Signal: SPI signal
Built-in pattern: 99kind of + SD card DIY effect
Control Mode: Button Control
RGB Sequence: Upper Computer Adjustment
Working Temperature: -25-85 degree
