Product Information

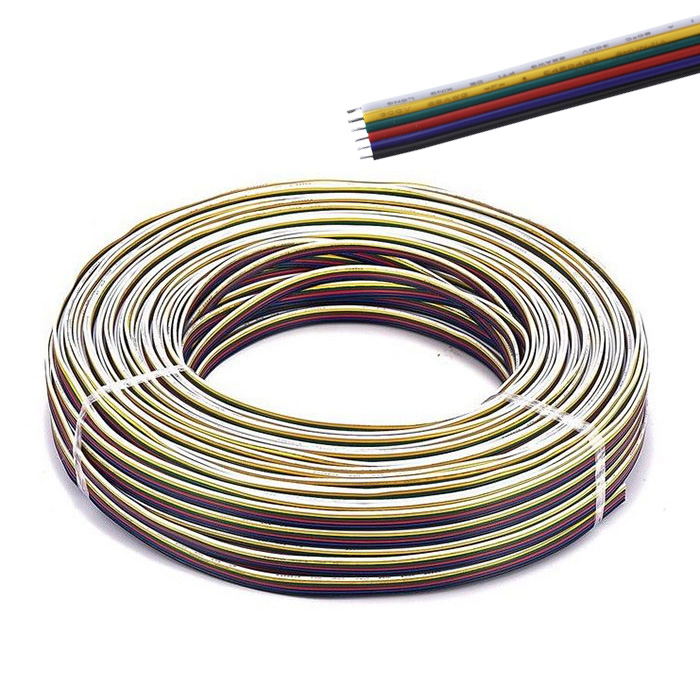

Bridge gaps and achieve a seamless, professional installation for your multi-color lighting with this 6-Pin Power Wire Extension Cable. Specifically designed for advanced RGB+CCT LED strips, this 3.28ft (1m) cable provides the six conductors necessary to carry signals for red, green, blue, warm white, and cool white channels.
This 6-pin extension cable ensures you retain full control over your strip's entire color and temperature spectrum. It's the perfect solution for navigating corners, running connections through cabinets, or placing your controller in a discrete location, giving you complete layout flexibility. Choose between two wire gauges to perfectly match your project's power requirements.
Key Features
Full RGB+CCT Compatibility
Features six internal conductors, essential for carrying the complex signals required by RGB+CCT (RGB+Tunable White) LED strips.
Selectable Wire Gauge
Available in standard 22AWG or thicker 20AWG to better manage current and minimize voltage drop on longer or higher-power runs.
High-Purity Copper Core
Constructed with tinned copper wires for superior electrical conductivity, oxidation resistance, and reliable, long-term performance.
Flexible PVC Jacket
A durable and pliable PVC outer jacket protects the inner wires while allowing for easy routing around corners and through tight spaces.
Technical Highlights
- This is a raw wire cable intended for custom, soldered connections, providing maximum reliability.
- Designed for indoor, dry-location use. For outdoor projects, please select from our waterproof connector series.
- Ordering multiple quantities may result in a single continuous roll for custom-length projects. (e.g., Qty 20 = 20m roll).
Product Specifications
| Parameter | Details |
|---|---|
| Product Name | 6-Pin Power Wire Extension Cable |
| Model | RGB/CCT-ACCESSORIE-3 |
| Length | 3.28ft / 1m |
| Conductor Count | 6 |
| Wire Gauge Options | 22AWG (0.34mm²), 20AWG (0.5mm²) |
| Conductor Material | Tinned Copper |
| Jacket Material | PVC |
| Jacket Color | Multi-color inner wires, White outer jacket |
| Compatibility | Specifically for 6-pin RGB+CCT LED strip lights |
| Connection Type | Requires soldering |
Application Scenarios
How to Use This Extension Cable
- Ensure the power supply is disconnected before you begin.
- Measure the required length and cut the cable if necessary.
- Strip a small amount (2-3 mm) of insulation from the end of each inner wire.
- Prepare the connection points on your LED strip or other cable by adding a small amount of solder (tinning).
- Solder each wire to its corresponding pad on the LED strip (e.g., V+ to V+, R to R, G to G, B to B, WW to WW, CW to CW). Double-check the order as it can vary between strip models.
- For a secure and insulated connection, slide a piece of heat-shrink tubing over each wire before soldering, then heat it to shrink it over the completed joint.
- Always confirm the pinout of your specific RGB+CCT LED strips before soldering to ensure correct wiring.
- This cable is for low-voltage DC applications only. Do not use with line-voltage AC power.
- For extensions longer than a few meters, be mindful of potential voltage drop, which can cause color shifts or dimming. Using the thicker 20AWG wire helps mitigate this effect.
What's in the Box
- ✓1 x 6-Pin Power Wire Extension Cable for RGB+CCT LED Strips
Frequently Asked Questions
Q: If I order 10 of these, will I get 10 separate 1m pieces?
A:Typically, when multiple units are ordered, we ship a single continuous roll equivalent to the total length (e.g., a 10-meter roll). If you require separate 1-meter pieces, please leave a note in your order during checkout.
Q: How far can I extend my LED strip with this cable?
A:The maximum extension length depends on your strip's voltage and power consumption. While this cable is efficient, very long runs can still experience voltage drop. For significant distances, you may need to use a power amplifier to maintain signal integrity.
