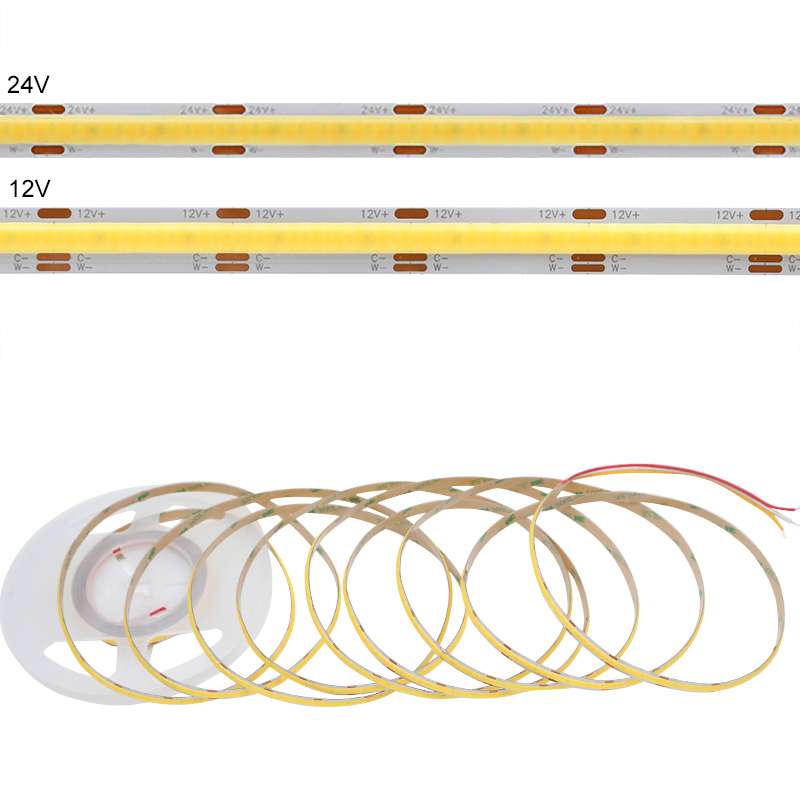

New DC12/24V Dual White Dimmable CCT FleXible COB LED Strip Light - High Density 576LEDs/m Warm White + Daylight White LED Lighting

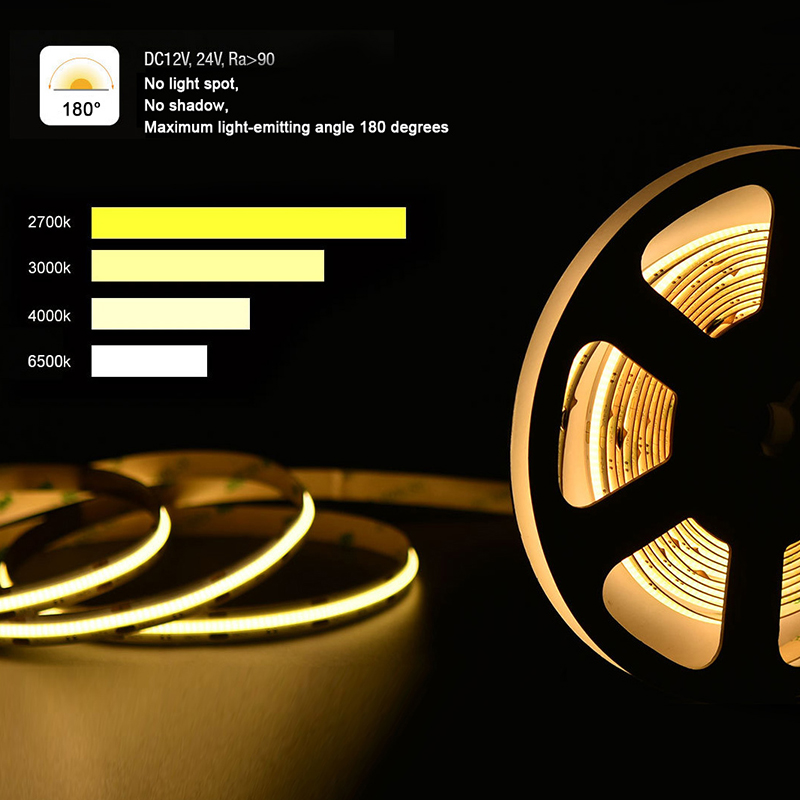

1. DC24V safe voltage, less voltage drop, no light spot, no shadow, the maximum light-emitting angle can be 180 degrees.

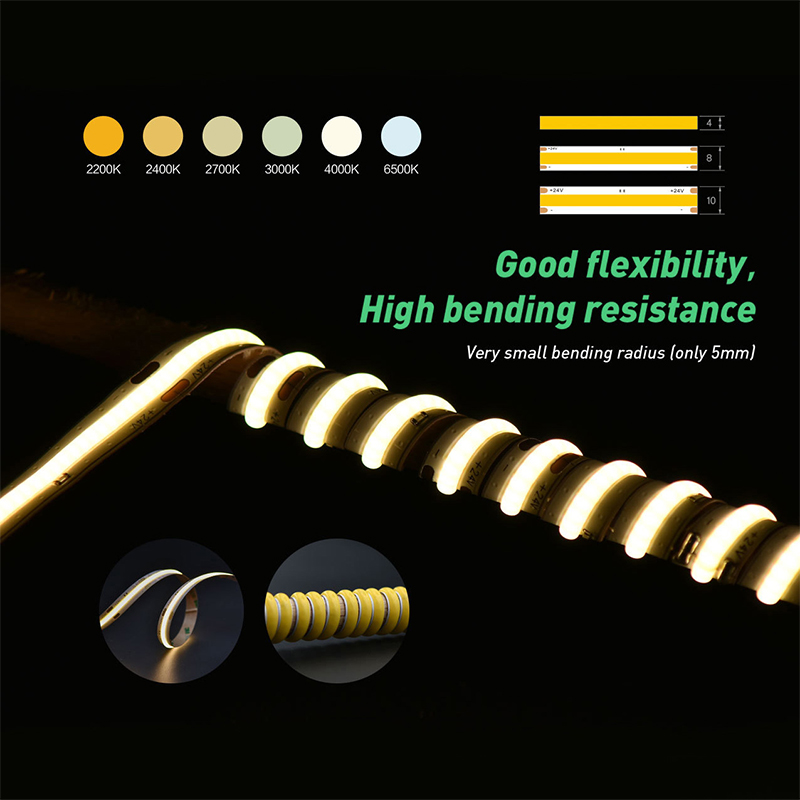

2. Adopts small size LED chips, making the high density 576LEDs/m flexible FCOB LED strips. High bending resistance, very small bending radius which only 5mm.

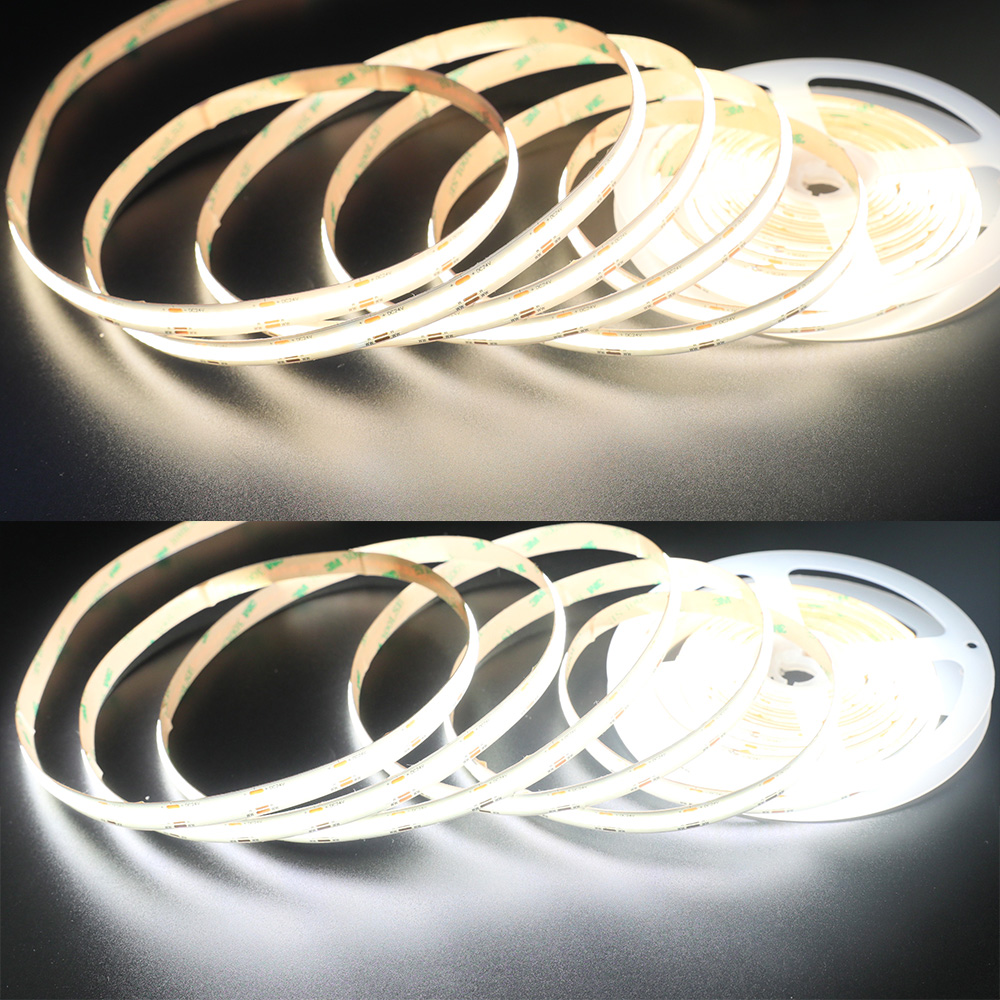

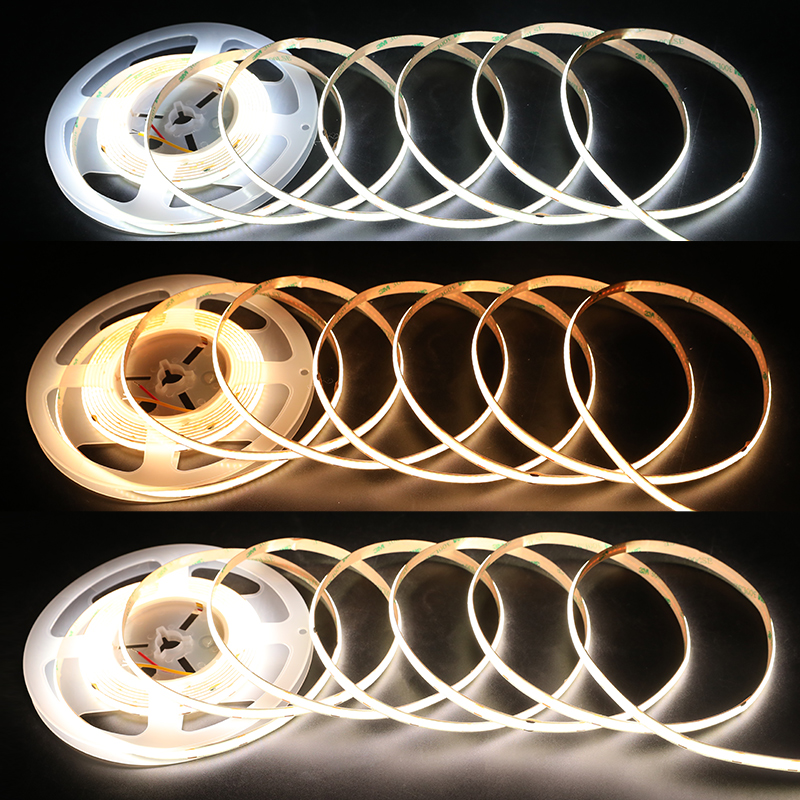

3. Dual white color design, provide you with the opportunity to adjust the Color Temperature from 2700K to 6500K. Suitable for various LED lighting projects.
4. Waterproof optional, we have IP20 for indoor lighting, and waterproof IP67 for outdoor LED lighting.
Standards and Certifications
|LED Strip Type||COB LED (COB Flexible led strip light specification )|
|LED Chip||Epistar Chip|
|Power||90W /16.4ft Max|
|Light Color||Warm White + Daylight White (2700K-6500K)|

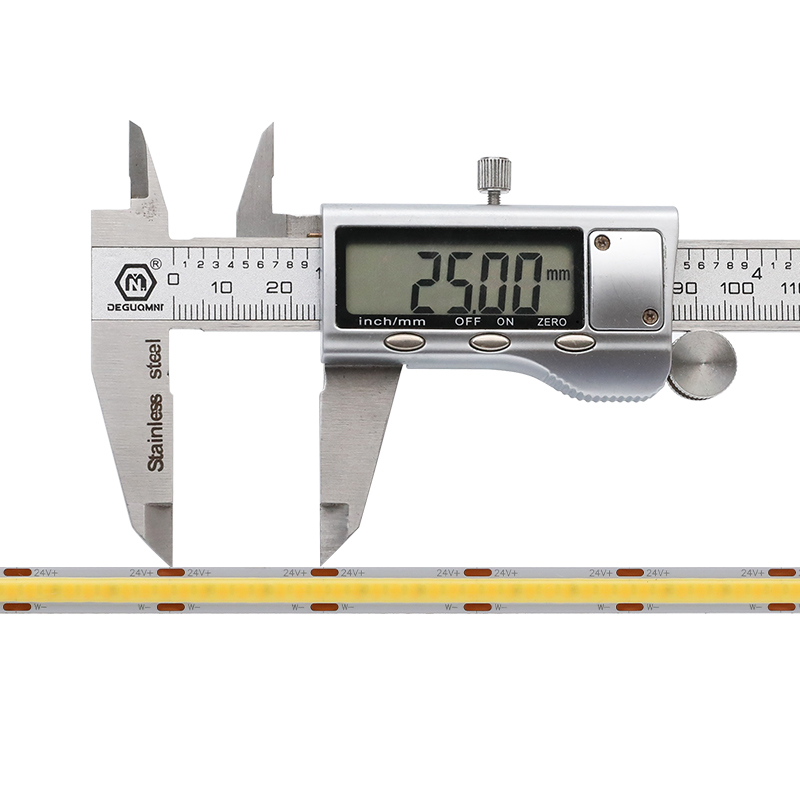

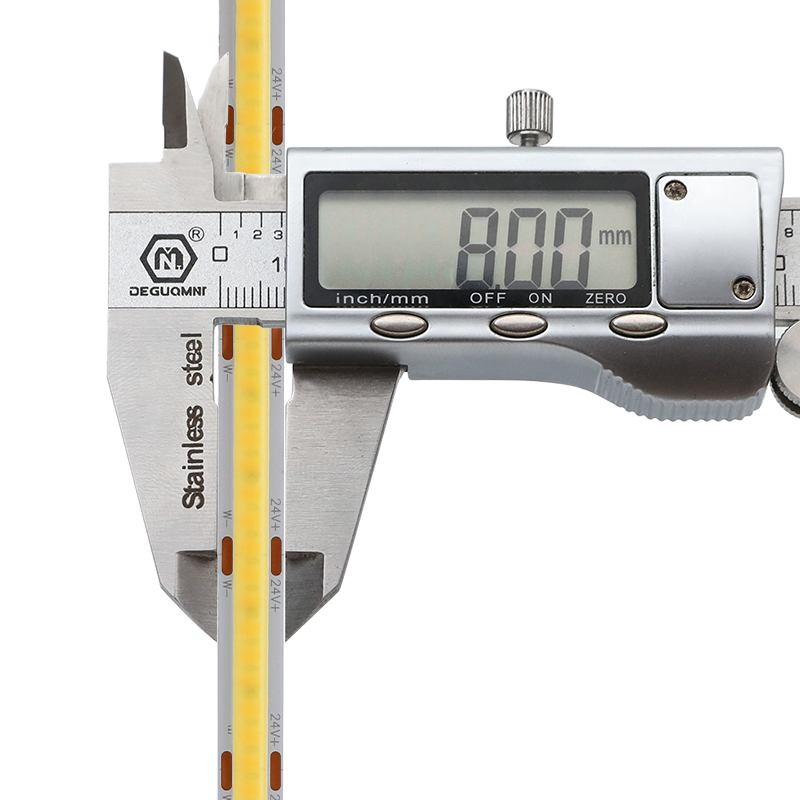

|Dimensions||L500cm(196.8 in ) x W1.0cm(0.39 in ) x H0.12cm(0.05 in)|
|LED Quantity||576 chips per 1meter (3.28 ft); 2880Chips/16.4ft|
|COB Dimension||L500cm(196.8 in ) x W0.4cm(0.16 in )|
|Color Rendering Index||Ra＞90|
|Lamp Luminous Flux(lm)||105-125 Lumens/W, 1300~2500LM/M|
IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);

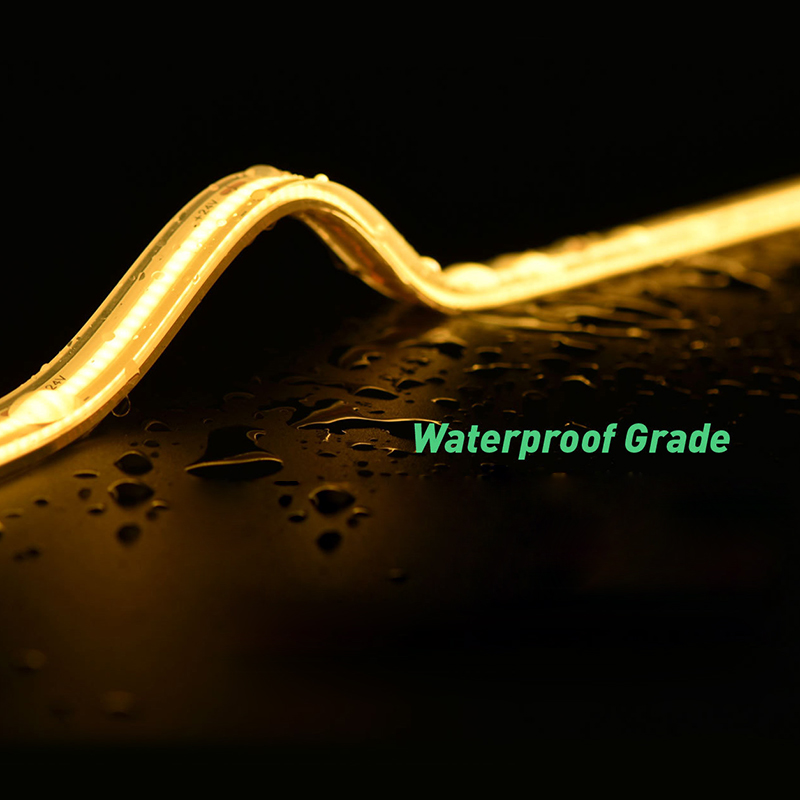

IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);
How to choose LED strip lights kit?
You can choose the controller or power supply or controller plus power option for this COB LED strip. Of course, only the COB LED light is also completely possible. The difference is whether you need to control the LED brightness change of the COB strip and whether you can supply power to the light strip.
In the following table, we list for you which products you will get if you choose the kit. If you have other needs, please check our product categories.
|5m/16.4Ft COB Strip||DC12V|

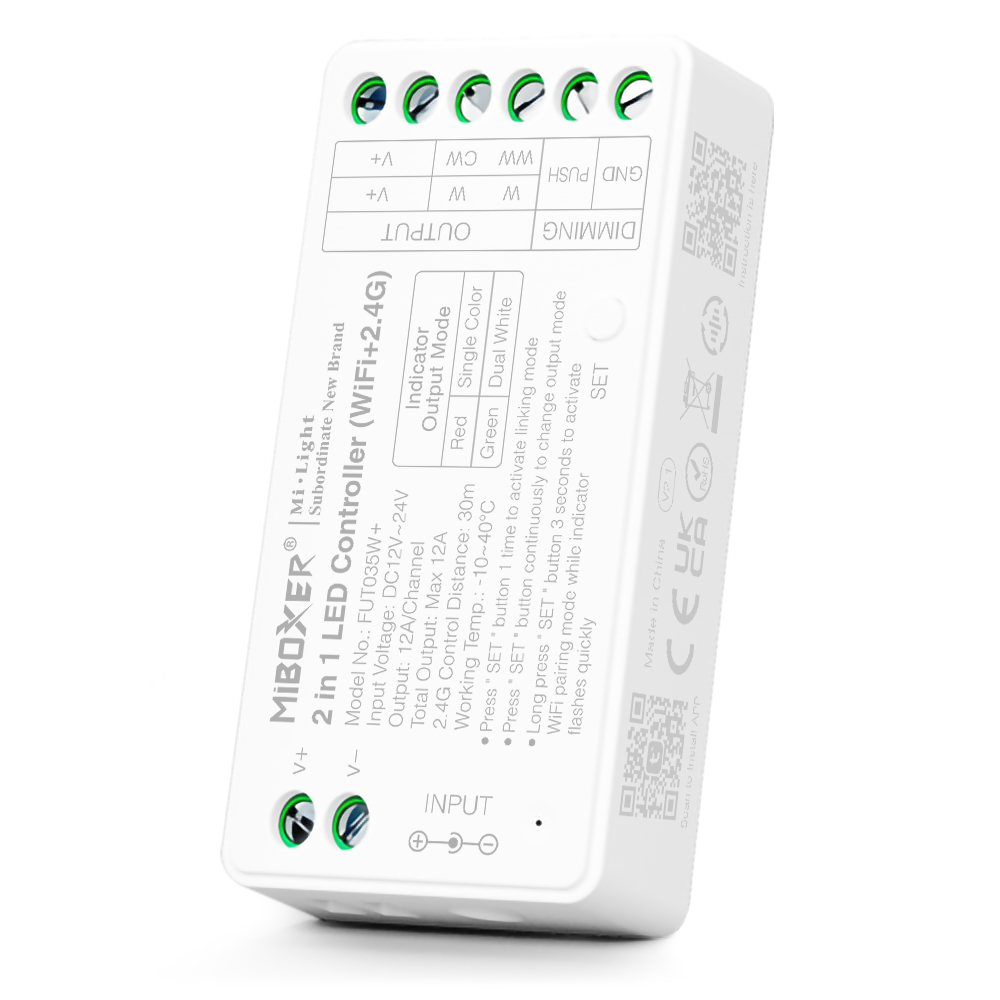

For the FUT035W LED controller, if you want to purchase an extra LED remote controller, you can visit our FUT007 LED remote controller
Don't know how to choose the correct LED power supply, please read the following article: How to calculate power for led strip lights?
When you purchase the LED power supply, please read the following article: How to choose led strip light power supply?

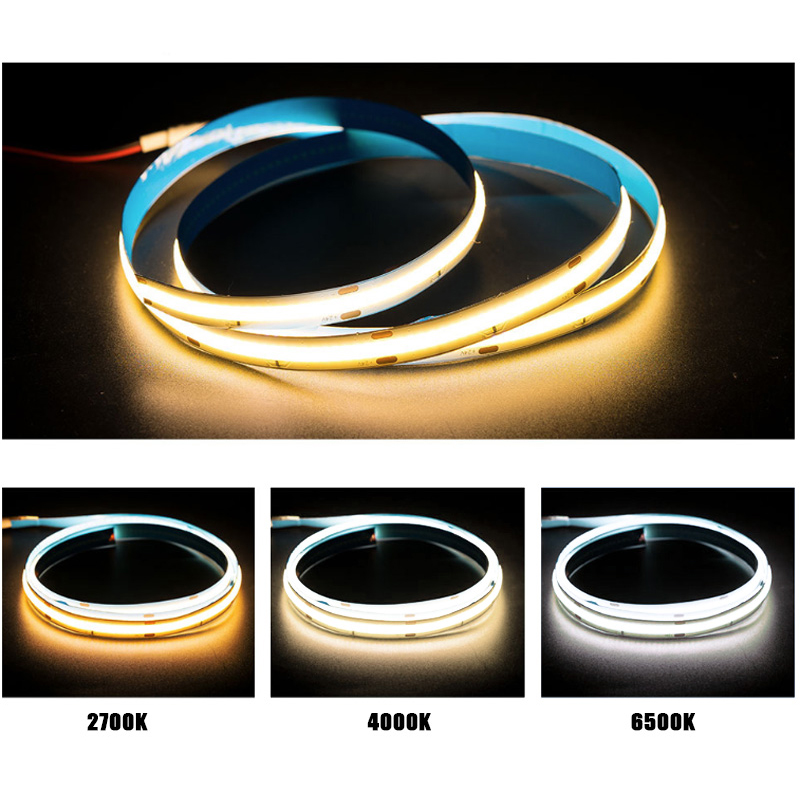

Color Temperature and CRI
Choosing the correct color temperature lights for your project is very important, and as important as the brightness you choose. Consider the look and feel you want your project to have.
►2000K-3000K: emits a soft white light (Warm white), often yellow in appearance, suitable for living rooms and other home lighting and outdoor environment lighting;
►3100K-4500K: emit bright white light (Netural white), suitable for working space and other office lighting, etc;
►4600K-6500K: emits bright white light, similar to daylight (Daylight white); suitable for indoor and outdoor lighting;
►6500K and above (Cool white): emits bright blue light, suitable for commercial lighting.
CRI (Color Rendering Index) is a measure of how well a particular light source renders vivid, natural color. Lamps, led tubes, or led bulbs with an index of greater than 90 are generally considered High CRI light sources, and will make food, jewels, or any other product come alive with bright, natural color.
More knowledge: What is color temperature?

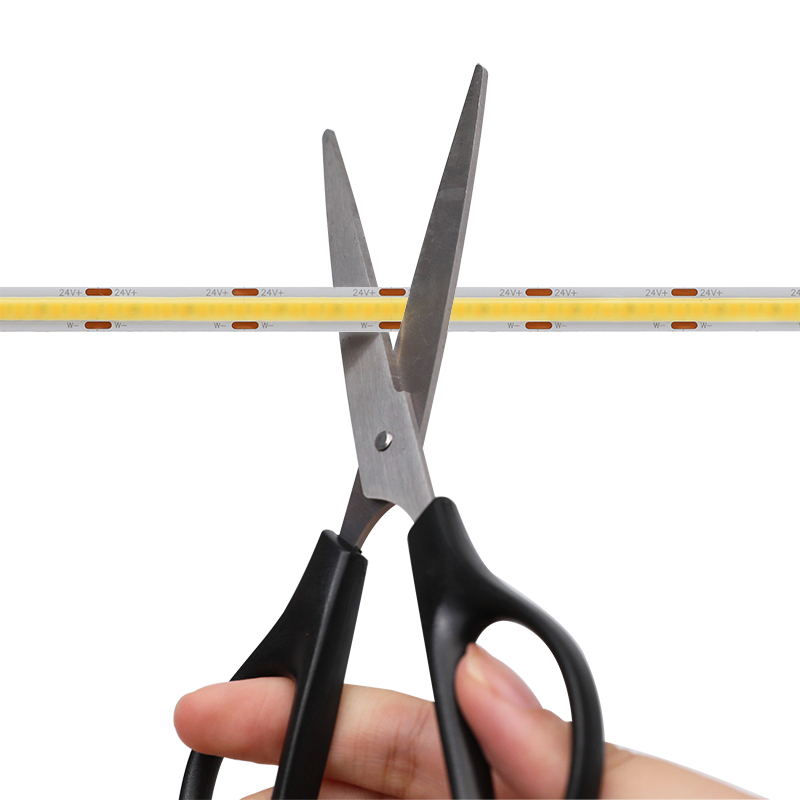

You can cut the strip every few inches, allowing you to freely design your project, without worrying about space requirements to many different surfaces.

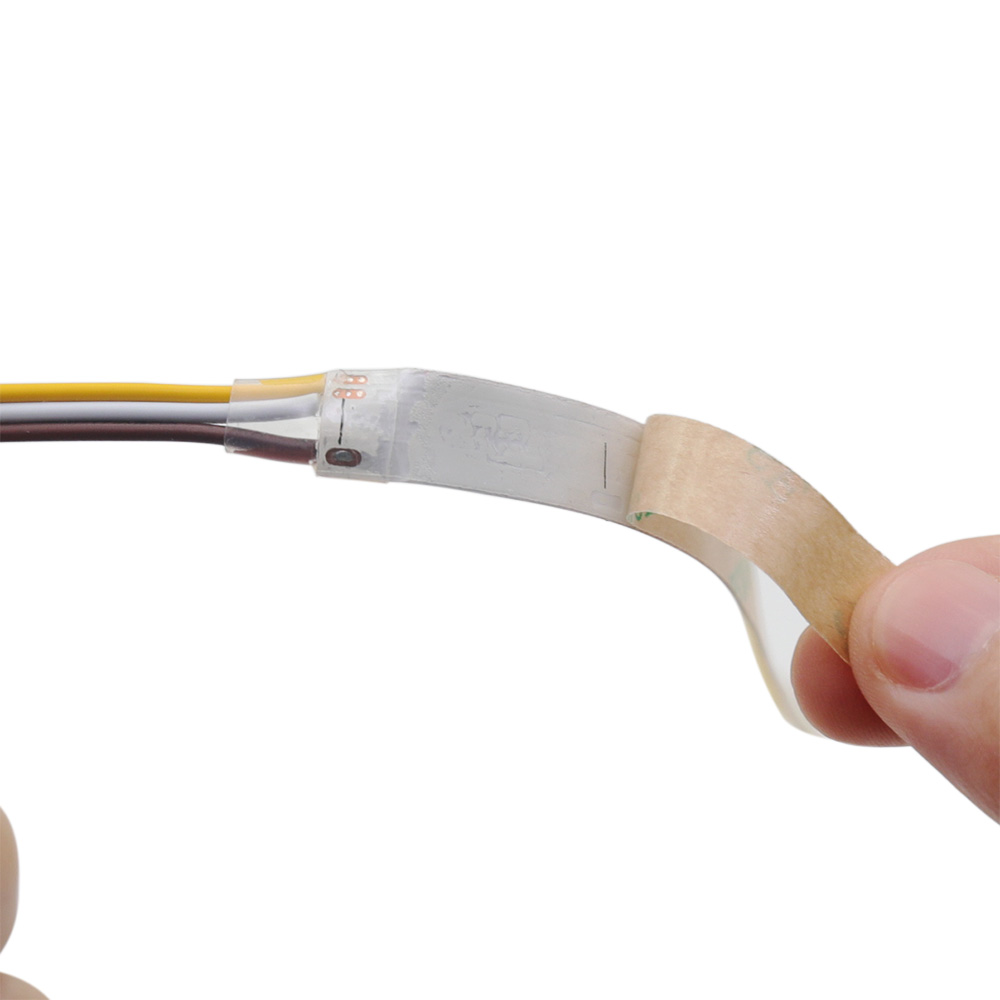

The back of the strip is fitted with a strong 3M tape, allowing you to peel and stick lights
IP67/IP68 waterproof type which will needs LED mounting brackets
Wiring Diagram: How to Wire Tunable White LED Strip Light?
|Trademark lighting||Logo lighting|
|Channel letters lighting||Lightboxes lighting|
|Sign cabinets||Channel lights|
|Cove LED lighting||Edge lit signs|
|Canopy illumination||Off-grid lighting|
|By : NAPHTALI DEUTSCH Date Added: 10/29/2021|
|Amazing! I used the V2+RT2 remote controller kit. Its color temperature is exactly what I want. Thanks Daisy for the recommendation!|
