CT3252 Motion Activated Stair Lighting Kit, Dotless COB LED Strip Lights For 1-4FT Stairway
Check our money-saving, fully functional, simple-use, and practical motion-activated stair lighting kit, which adapts flexible COB LED strip lights as light sources, the stair strip lights are easily hidden under the step treads (8mm/0.3in and 5mm/0.2in PCB width optional), and bring you a bright and even illumination. With the added convenience of motion sensor technology, the LED stairs lights turn on automatically when human motion is detected, providing safe passage up and down the stairs.

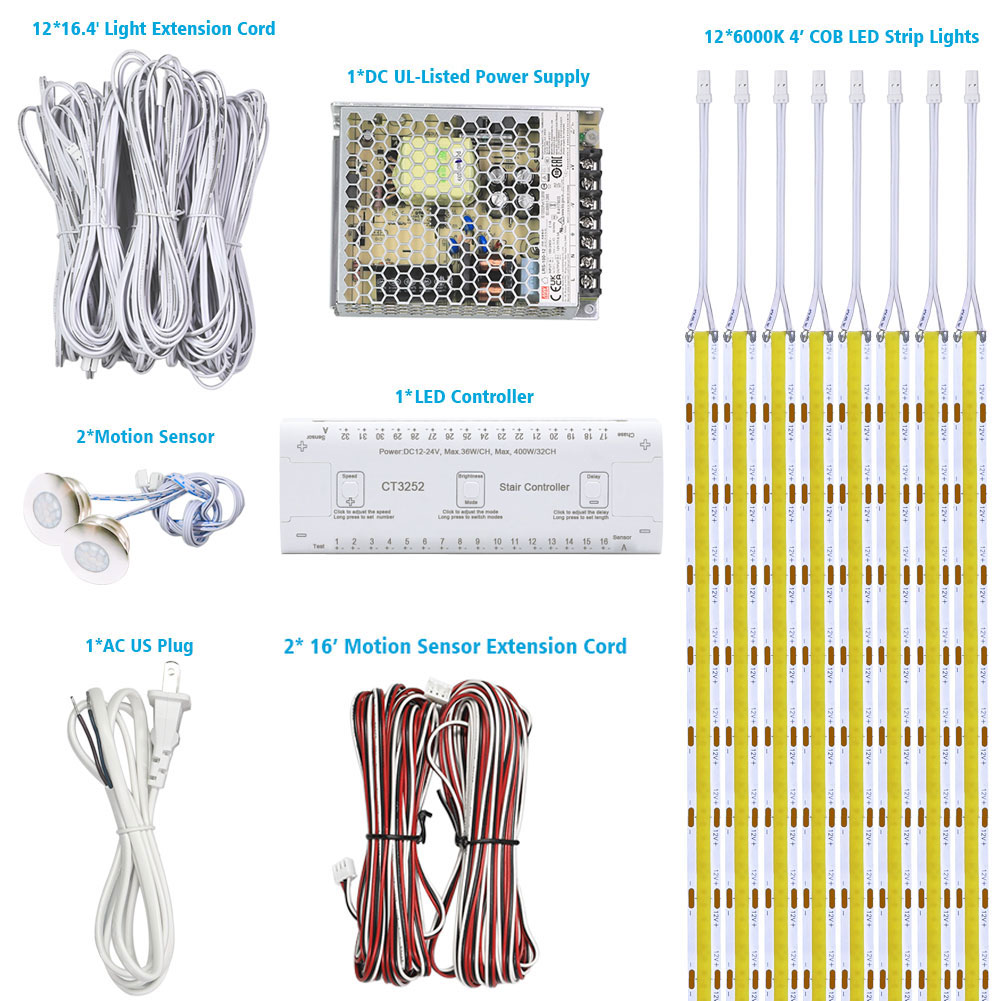

The LED stair lights motion sensor kit comes with everything you need for easy installation, including 1*CT3252 sensored stair lights controller, 2*PIR motion sensors, 2*5m/16.4ft sensor cables, 12*flexible COB strips with a 10cm DuPont connector at one end, 12*5m/16.4ft LED strip extension wires, 1*DC power supply, 1*AC plug. Waterproof electrical enclosure box is available for a neat installation.
The LED lights for the stairs gently fade in and fade out. The CT3252 stair controller has three modes to flexibly adapt to your needs: 1) step-by-step flowing, cascading stairlights; 2) full lights-on; 3) auto cycle.
DC12V flex dotless COB LED strip motion sensor stair lights
LED stairlights on/off triggered by human movement
Three LED stairway light modes: step-by-step, full step light, auto cycle (No sensing required)
Adjustable brightness, speed, and light delay
Customizable LED strip light length to fit your staircase needs

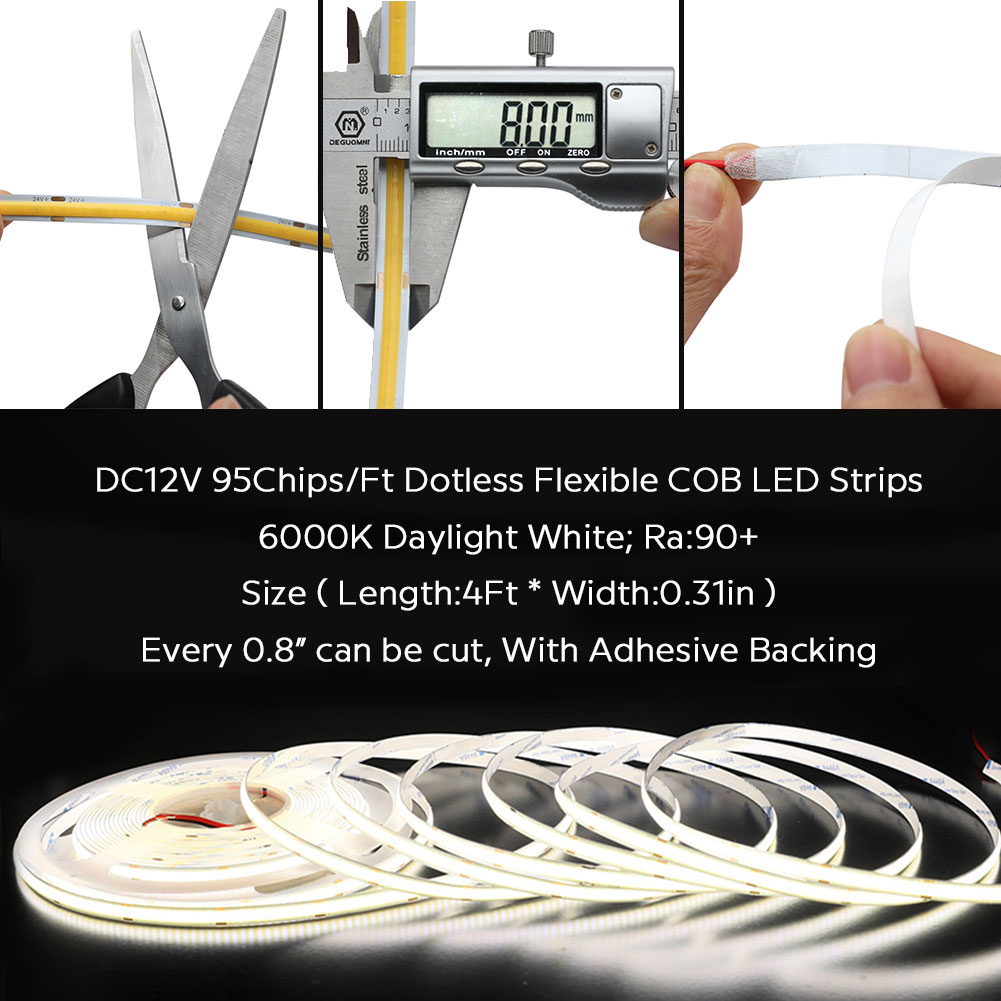

Every 20mm/0.8in a segment of the COB strip light can be cut
10cm/3.93in default strip connector length + 5m/16.4ft DuPont extension wires for convenient wiring
How it works

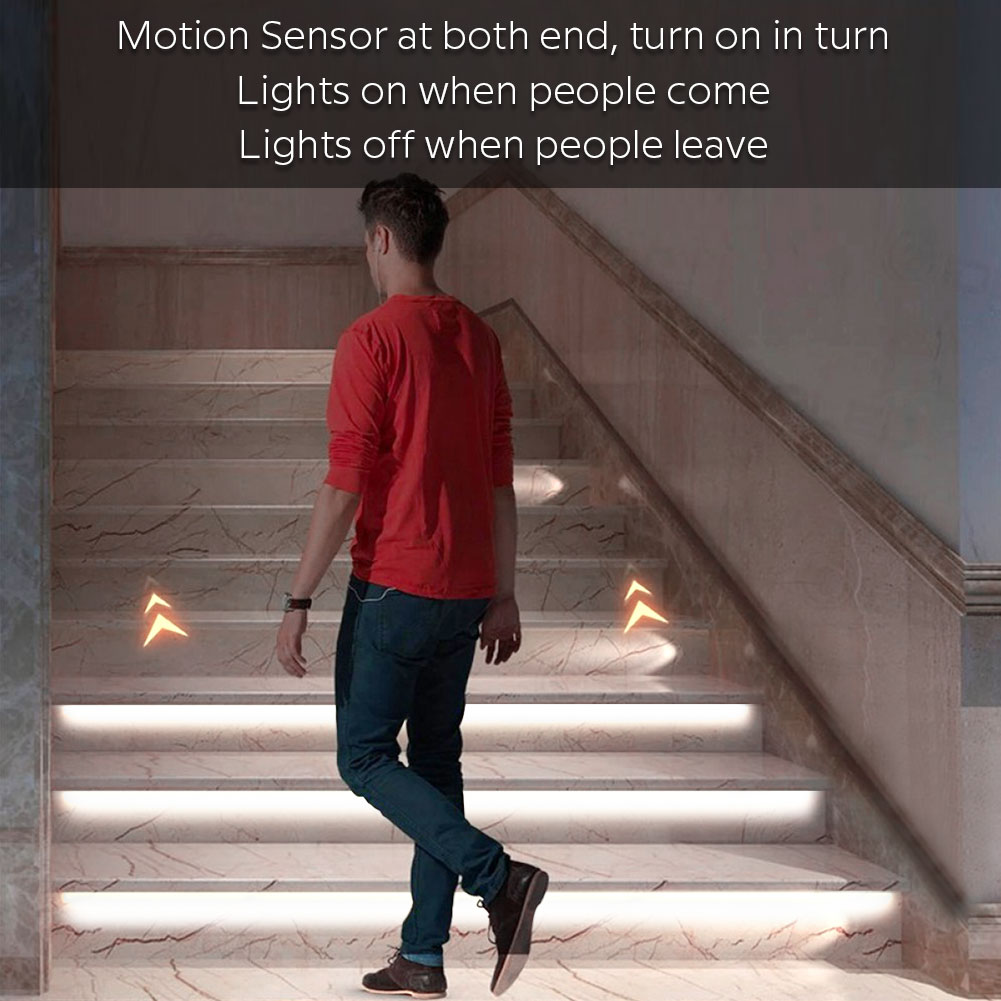

The stair controller with PIR sensors eliminates the need to manually turn the stair lights on and off, and the uniform LED strip lighting illuminates the entire stairwell.
Short press the "Speed" key to adjust the light speed (0.2s/0.4s/0.6s/0.8s/1s/1.2s/1.4s/1.6s), long press to set the number of stair steps.
Short press the "Brightness" key to dim the lights (10%-100%), long press to switch lighting modes.
Short press the "Delay Time" key to set the time that lighting is on (3s/10s/30s/1min/5min/10min/15min/20min), long press to set the length of running water led strips.
No key operation within 5 seconds, automatically save the current setting.
Long press the "Brightness" key to unlock the factory settings and then start operation.
Standards and Certifications
|Product Type:||CT3252 Motion Activated Stair Lighting Kit|
|Light Source:||COB LED Strip Lights|
|Controller Type:||CT3252 32CH Stair Controller|
|LED Color:||Daylight white(6000K-6500K) / Neutral white(4000K-4500K) / Warm white(2700K-3200K) / Red*Green*Blue*Yellow*White / Green / Red / Blue / Yellow / Pink / Ice Blue / Purple|
|Working Temperature:||-4°F (-20°C) ~ 122°F (50°C)|
|Storage Temperature:||-40°F (-40°C) ~ 176°F (80°C)|
|Strip Length (Stair Width):||0.5m /0.6m /0.8m /0.9m /1m /1.2m /Customizable|
|Strip Width:||8mm / 5mm|
|LED Quantity:||312 LEDs per meter/3.28ft|
|Strip Extension Wire:||5m/16.4ft|
|Strip Cut Length:||0.8" (20mm)|
|Beam Pattern:||180 degree|
|LED Strip Power:||8-10W/m|
|Power Supply Waterproof:||Non-waterproof (IP20)|
|Power Supply Input:||Wide-voltage|
1. Does this kit suit my stairs?
These LED strip lights for stairs and stair profiles can be hidden directly under the protruding stair treads. For stair steps without edges, you can choose the 90° light-emitting stair profile.
The dimensions of the stair profiles are as follows:
2. Why offer a stair profile option?
3. My staircase has almost no space reserved for installation. Can I use your kit?
Yes, no problem, we offer LED strips as low as 5mm in width without any light spots.
4. Is this stairway lighting LED kit suitable for novice users? Is it easy to install?
We will do all the wiring work for you, after you receive the product, you just need to simply connect the strip connectors. People who have no electrician experience can also complete this operation with ease.
5. About the two motion sensors
The two PIR sensors are made of metal (aluminum alloy), embedded in the top and bottom of the stairs, 120-degree sensing range, and 1-3 meters of detecting distance.
6. What is the maximum duration of stair LED lighting?
7. what is the electrical box used for?
The electrical enclosure box is used to store the stair controller and DC power supply to make your whole staircase installation look more simple and clean.
|By : NAPHTALI DEUTSCH Date Added: 03/17/2023|
|I preferred to postpone my evaluation until we had passed the sensors numerous times. Without reservation, I can confirm that the sensors have performed flawlessly, exactly as specified and anticipated. The sensors are so precise that we have even attempted, albeit unsuccessfully, to sneak past them in competitions. The installation process is relatively simple. I personally mounted my unit just below the stairs, but the wiring is lengthy enough to permit installation of the controller at either the top or bottom of the staircase, provided that you can conceal the wiring (for example, under a carpet or behind baseboards or trim). I hope that they remain functional for an extended period of time. I highly recommend them!|
|By : Tommy Carducci Date Added: 03/01/2023|
|From the photos, it is evident that we had to make a hole to install the setup perfectly. We had to place the motion sensor to the left of the staircase to allow for a slight delay on the right side, which was not a significant issue. We are thrilled with the result, but it consumed our entire day to accomplish. Fortunately, my husband possesses the necessary expertise. We appreciate the versatility of the light settings, such as the speed, timing, and so forth. Due to the design of our staircase, we desired to conceal everything, which is why it took so long and necessitated the hole in the wall. Assembling it is simple, and it lends a beautiful and elegant appearance to our older home. In general, we are extremely pleased with it.|
|By : Rick Carducci Date Added: 02/16/2023|
|This is an excellent product that instantly adds elegance to any space. We installed it on our floating stairs, which are made of a metal beam with 4-inch stair treads, with one sensor at the top and one at the bottom. The light cables are long enough for most applications. We strategically installed and concealed the controller below the mid-landing. It's important to plan the installation in advance, especially when routing wires to ensure they are hidden. Overall, it transformed our stairway into a stunning work of art.|
