Special Price: $26.98

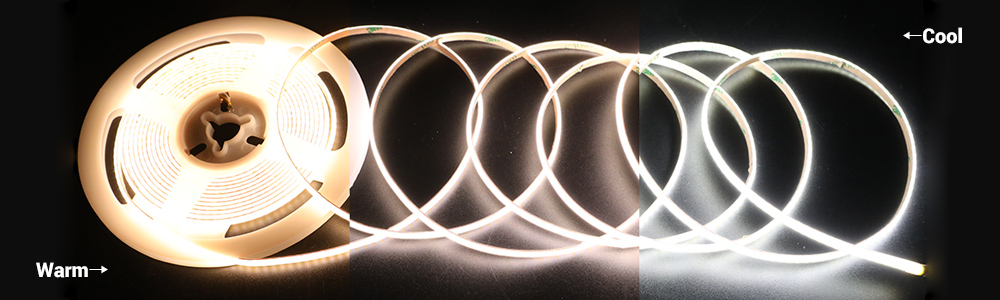

This tunable white cob led strip has a very slim body of just 4mm wide, allowing it to be installed in narrow corners. The color temperature of the 4mm cob led strip is adjustable between 2700k warm white and 6500k cool white, fully dimmable. Using cob led technology, this thin cob led strip minimizes the light spot, ensuring beautiful and continuous illumination with great flexibility.
Available in 5V and 12V versions, mini cob led tape light can adapt to various application scenarios, safe to operate. The density is 576 LEDs per meter and 2880 LEDs per roll (5m/16.4ft). The cob tunable white light strip is equipped with an adhesive backing and every 14mm/0.55in can be cut with scissors to customize lighting length.
To freely adjust this strip light, you will need a compatible controller. We offer 4mm cct cob led strip with both IP20 non-waterproof and IP67 waterproof ratings, which is perfect for furniture lighting, shopping mall decorative lighting and outdoor landscape lighting. If you want the light to be more smooth and soft, you can place this cob led strip cct into aluminum profiles to help disperse the light more evenly.
Features:
1. Dual white cob led strip, 2700K warm white to 6500K cool white adjustable, fully dimmable.
2. Ultra-slim design of just 4mm/0.15in wide, each reel is 5m/ 16.4ft long.
3. High density of 576 LEDs per meter, with a total of 2880 LEDs per reel.(5m/16.4ft)
4. Every 14mm/0.55in is a cutting segment for precise length control.
5. Flexible and bendable, allows you to explore various shapes.
6. Strong adhesive backing, quick and secure installation, not easy to fall off.
7. IP20 (non-waterproof) and IP67 (outdoor waterproof) for selection.
If select kit, you will receive SP530E controller (support APP control), and LRS-100-5/ LRS-100-12/ Meanwell power supply(with an AC plug). We will automatically include a compatible power supply based on the voltage of the LED strip light you purchase.
We would be delighted to customize a specific color temperature for you, such as 2200K-2400K, 2700K-5000K, or 2700K-4000K, among others. Please feel free to reach out to us if you have any specific requirements.
Standards and Certifications
Product Specification
LED Strip Type: | Super Thin 4mm Dotless Dimmable COB CCT LED Strip Light |
CRI: | 90+ (High) |
Input Voltage: | DC 5V/12V |
Power: | 14W/m, 70W/16.4ft |
Working Temperature: | -20℃~+45℃ |
Storage Temperature: | -20℃~+60℃ |
LED Color: | CCT Tunable White, 2700K-6500K color temp |
PCB Width: | 4mm/0.15" |
LED Quantity: | 576 Chips/m, 2880 Chips/16.4ft |
Waterproof Rating: | Non-waterproof IP20 / Waterproof IP67 |
Cuttable: | 14mm/0.55" |
Lumen: | 2 lm/LED, 1000lm/m |
Lifespan: | 750,000 hours + |
Beam Angle: | 180° |
Strip Length: | 5m/16.4ft |
How to Wire CCT COB LED Strip?
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
