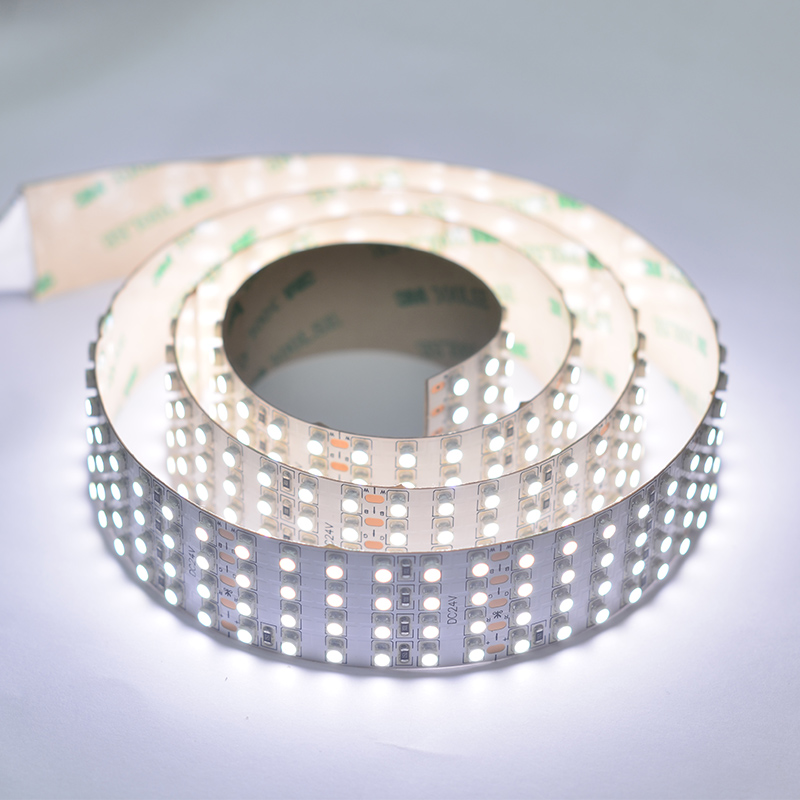

Quad Row Waterproof IP67 LED Tape Lights - 1,170LM/Ft - DC24V - CRI 95 - Outdoor Use Super Bright LEDs Daylight White LED Strip Lights.
Universal 4NFLS-x2160-24V Quad Row single color Brightest LED Strip high density 3528 SMD(SMD:Surface Mounted Devices) Waterproof IP67 Flexible LED light strips, Epistar chip, 2400LEDs/16.4ft, 16.4ft(1~5 meters) Per Reel By Sale.
Our brightest Flexible LED Solid Color light Strips soft and easy bended for installation. Available in 5 meter (197 in) Waterproof IP67 flexible light strips with adhesive backing and can be stuck just about anywhere (except IP67/IP68 type which will come with mounting brackets). can be cut into 24-LED segments, so you could cut a different length for your project and request. The LED strips Suitable for the average home lighting as well as lighting professionals. 24VDC operation. Dimmable - Connect LED Smart Dimmers.
Standards and Certifications

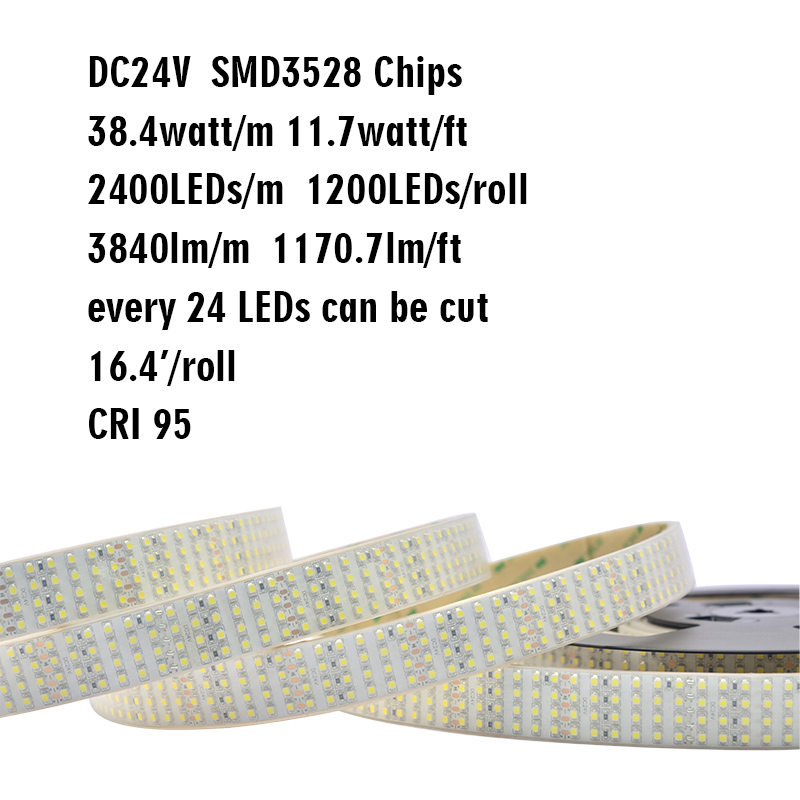

LED Strip Type: SMD 3528 2400PCS/16.4ft
LED Chip: Epistar Chip
Working Temperature: -4°F (-20°C) ~ 122°F (50°C)
Storage Temperature: -40°F (-40°C) ~ 176°F (80°C)
Light Color: Warm White, Daylight White,Cool White, Red, Green, Blue, Amber (optional)

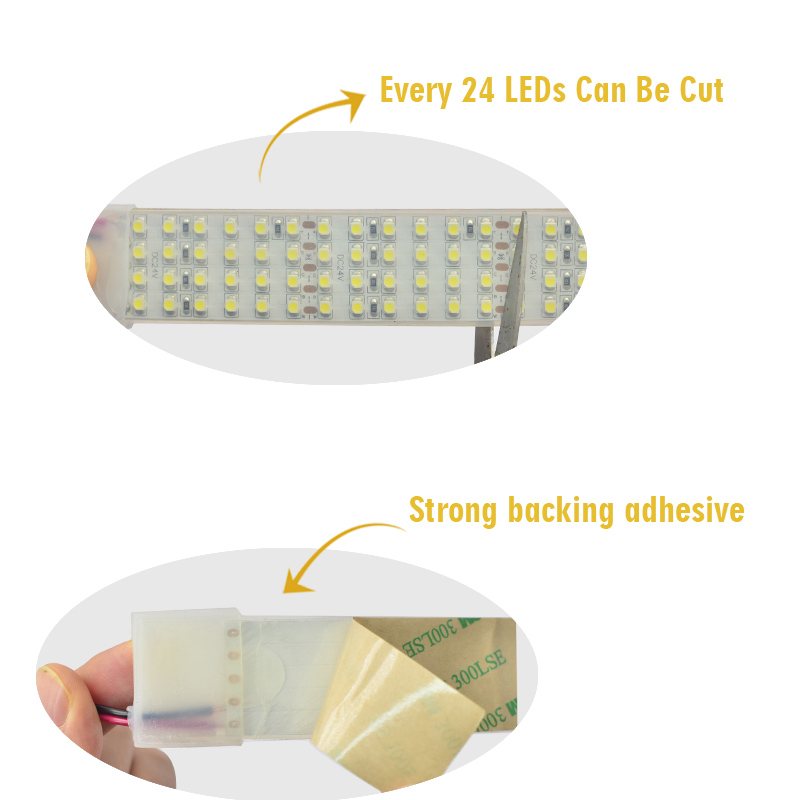

Dimension: 16.4ft/roll, every 24 PCS LED can be cut
LED Quantity: 480 LEDs per meter (39.4 in)
Warantty: 3 years

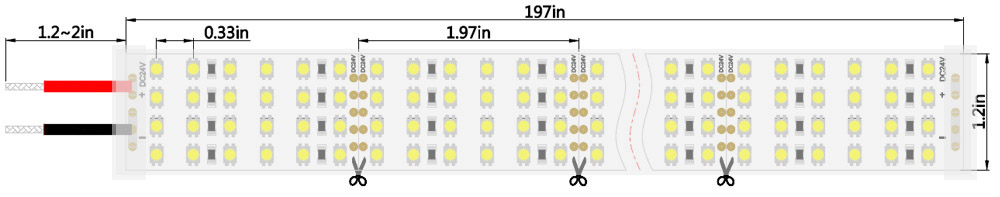

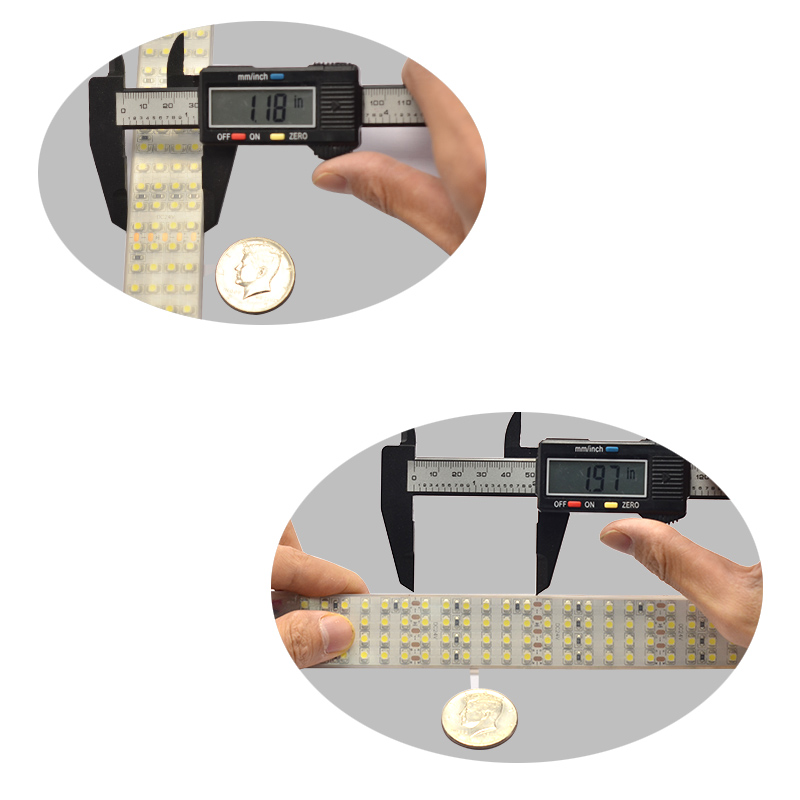

Dimensions: L500cm(196.8 in ) x W3.0cm(1.20 in ) x H0.20cm(0.08 in )
Input Voltage(V): 24VDC
Working Power: 7A 194W /16.4ft Max
Lamp Luminous Flux(lm): 7~8lm/LEDs 19200lm/16.4ft
Color Temperature CCT(White): Warm White(2700-3200k), Daylight White(4500-7000k), Cool White(8500-12000k)
Wavelength NM(RGBY): Red(620-630nm), Green(515-525nm), Blue(465-475nm), Yellow(585-595nm)
Beam Pattern: 120 degree
Water Proof: Waterproof IP67
CRI (Ra>): 95
To help you choose the LED controller and LED power supply fastly, we provide the kit option for you, if you purchase the kit, we will send you the following LED products:
Waterproof IP67 LED Power supply: 24V 10.4A 250W waterproof LED power supply
Color Temperature And CRI
Choosing the correct color temperature lights for your project is very important, and as important as the brightness you choose.
Consider the look and feel you want your project to have.
What other color lights will be present? What material and color are the materials you wish to light?
CRI (Color Rendering Index) is a measure of how well a particular light source renders vivid, natural color. Lamps, led tubes, or led bulbs with an index of greater than 90 are generally considered High CRI light sources, and will make food, jewels, or any other product come alive with bright, natural color.
Waterproof Level Description
IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);
IP65 Waterproof (Epoxy cover waterproof, Epoxy Resin, PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, For Outdoor & Indoor) ;
IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);
IP68 Waterproof (Fully waterproof plastic irrigation, PCB both surface and back are encapsulated with plastic Gel, with a plastic fastener, the top level of waterproof, For Outdoor);
The waterproof grade of IP65, IP67, and IP68 will affect the color temperature due to the material problem, resulting in an increase of about 1000K. If you want to purchase the waterproof LED strips and have requirements on the color temperature, please note when placing the order.
You can cut the strip every few inches, The back of the strip is fitted with a strong IP67/IP68 type which will need
allowing you to freely design your project 3M tape, allowing you to peel and stick lights mounting brackets
without worrying about space requirements to many different surfaces.
Trademark lighting Logo lighting
|By : Roy Elghanayan Date Added: 01/23/2019|
|Bright and reliable!! These are simple to wire in to a converter(make sure you have one with sufficient wattage!) and are very bright! Good value!|
