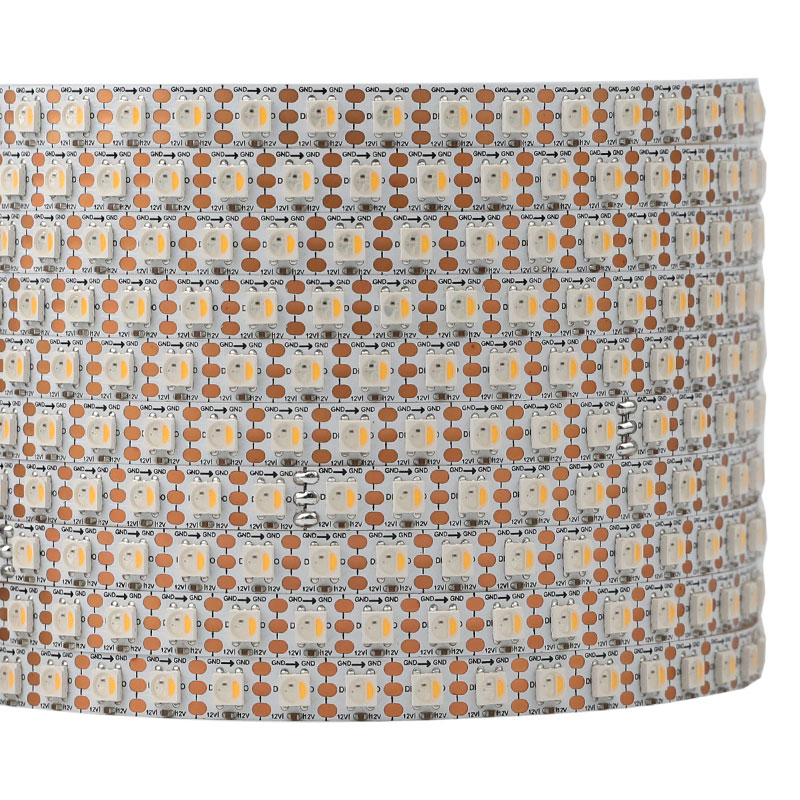

DC12V SK6812 Smart RGBW LED Strip per LED Addressable 144 LEDs / m

Model: SK6812-12VRGBW-W12D144 Review stars 0.0 (0 Reviews) Various options in stock
Starting at: A$153.73
Qty Discounts Off Price
1-19
A$153.73
20-49
A$150.66
50-99
A$147.58
100+
A$144.51
* Discounts may vary based on options below
Select Specifications:
Select Power:
Select Length:
Qty: -+
Free shipping over $299Ships via DHL / UPSWarranty covered

Accept the project customization, please contact us for commercial offers and technical support.

  • Product Information
  • Reviews
  • Downloads
  • Images
  • LED Strip Light Guide

Product Information

Digitally addressable LED strip with each LED equipped with an in-built SK6812 IC to achieve independent control of each lamp bead. The individually addressable RGBW LED strip is a 4-in-1 RGBW design, offering color temperatures of 3000K, 4000K, or 6000K. While an addressable RGB strip can also emit white light, it is a mixture of the three RGB colors, which appears bluish to the naked eye. And this LED RGBW tape can overcome that limitation, delivering a cleaner white light.

This 12V LED ribbon lights feature a high density of 144 lamp beads across each meter to provide bright illumination. To ensure the RGBW smart LED strip works properly, you will need to purchase an additional 12V power supply and an addressable controller. We offer kit options that include LRS-450-12 with an AC plug and a SP530E that work perfectly with this RGBW IC LED strip.

Each LED bead of the RGBW addressable LED strip 12V can be cut. Adhesive backing makes it easy to install. Despite the high density of the light tape, it still has light spots visible to the naked eye. For a smooth and dotless lighting effect, check out the addressable COB strips or consider using aluminum channels.



Please note: If you choose high-power 0.5W/LED SK6812 RGBW strips, the power consumption reaches 72W per meter. These light strips run hot during operation, so adequate heat dissipation is essential. Need large quantities to produce.

Standard-power 0.2W/LED strips have a maximum power consumption of 30W per meter.



Features:

1. DC12V input voltage, per LED addressable.

2. Built-in SK6812 IC, RGBW color.

3. High density of 144 LEDs per meter.

4. Flexible, bendable and per LED cuttable.

5. Sticky back for quick installation.

6. Available in different waterproof ratings.

7. 5m/16.4ft per roll.



Standards and Certifications

DC12VCEFCCRoHSISASGSISOLIFETIMEwarrantywaterproof

Specifications

LED Strip Type High-Density High-Power SK6812 RGBW LED Strip
LED Chip SMD5050
IC Type SK6812
Input Voltage DC12V
Working Temperature -4°F (-20°C) ~ 122°F (50°C)
Storage Temperature -40°F (-40°C) ~ 176°F (80°C)
LED Color Addressable RGBW (3000K/4000K/6000K)
PCB Width 12mm/ 0.47in
LED Quantity 144 LEDs/m (720 LEDs/roll 16.4ft)
Pixel Quantity 144 pixels/m (720 pixels/roll 16.4ft)
PCB Color White, Black
Waterproof Rating IP20 / IP65 / IP67 / IP68
Cuttable 6.9mm / 0.27in
Power

30W/m 150W/16.4ft max for 0.2W/LED;

72W/m 360W/16.4ft for 0.5W/LED

Beam Angle 120°
Length 5m/ 16.4ft
Lumen 20-22 lm/LED
Lead Time (excluding shipping):  7 days



How to wire SK6812 RGBW LED lights?

The following is this LED light strip wiring diagram. 12V transformwer powers the SPI controller and this SK6812 addressable pixel LED light. The LED strip changes different LED lighting effects through the control signal of the SPI controller.

addressable led strip wiring diagram

12V SK6812 144 RGBW Light12V SK6812 144 RGBW Light



Reviews

Customer Experience

Your feedback is important to us! Share your thoughts and photos with other customers.

Downloads

Files for SK6812-12VRGBW-W12D144
Need this page for a project file or an engineering check? Click Open PDF, then save or print it from your browser. For CAD drawings, IES files or a signed test report, contact our engineers and quote the model number.

Images

These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!

DC12V SK6812 Smart RGBW LED Strip per LED Addressable 144 LEDs / mDC12V SK6812 Smart RGBW LED Strip per LED Addressable 144 LEDs / mDC12V SK6812 Smart RGBW LED Strip per LED Addressable 144 LEDs / mDC12V SK6812 Smart RGBW LED Strip per LED Addressable 144 LEDs / mDC12V SK6812 Smart RGBW LED Strip per LED Addressable 144 LEDs / mDC12V SK6812 Smart RGBW LED Strip per LED Addressable 144 LEDs / mDC12V SK6812 Smart RGBW LED Strip per LED Addressable 144 LEDs / mDC12V SK6812 Smart RGBW LED Strip per LED Addressable 144 LEDs / mDC12V SK6812 Smart RGBW LED Strip per LED Addressable 144 LEDs / mDC12V SK6812 Smart RGBW LED Strip per LED Addressable 144 LEDs / m

LED Strip Light Guide

Common questions about this type of product, answered against this model’s own options. For full figures see the specification above or the spec sheet for this model.

Which controller does this LED strip light need?
Addressable LED strip lights take a data signal, so they need an SPI (pixel) controller that supports this IC — an ordinary RGB controller will not drive them. Data flows one way: connect the controller to the input end marked with the arrow. Wiring addressable LED strip lights
Do I need power injection?
5 V addressable LED strip lights lose voltage fastest, so longer runs need power fed in at both ends and at intervals along the run; 12 V and 24 V versions carry further. Keep the data line short between controller and first pixel. Choosing an addressable LED strip light
Which waterproof rating should I choose?
Available on this model: Underwater IP68 - Adhesive Back · Outdoor Silicone Tube IP67 - Adhesive Back · Surface Glued IP65 - Adhesive Back · Non-Waterproof IP20 - Adhesive Back. IP20 is for dry indoor use, IP65 handles splashes, IP67 suits outdoor and wet areas, IP68 is for continuous submersion. Choosing a waterproof rating
Can I cut it to length?
Yes. Cut only on the marked cut lines between the copper pads — the cut interval for this model is on its spec sheet. Rejoin with solder or a solderless connector. Cutting LED strip lights · we can also cut to length and fit your connector before shipping: custom LED strip light assembly.
What size power supply do I need?
Take the watts per metre from the specification above, multiply by the length you are running, then add about 25% headroom. Power calculation guide · Choosing a power supply
