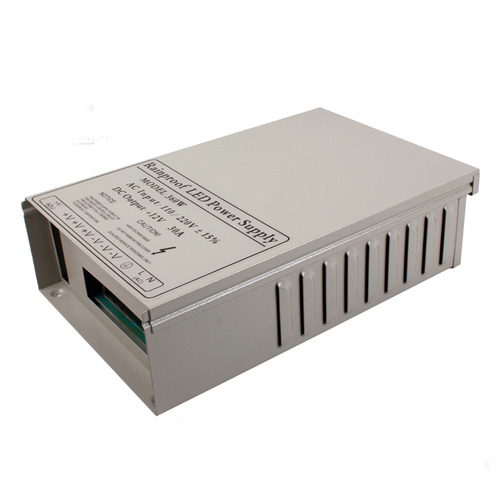

360W DC5/12/24V Rainproof Switching Enclosed LED Driver Transformer Power Supply Fan Cooling For LED Lighting
At Superlightingled Lighting, we stand behind all our products 100%. Our LED rainproof power supply carries 36 months warranty. 100% OEM Compatible!!
Any reason you are not satisfied, please contact us via email and we will make things right!
Low price and high reliability, Compact size, light weight, Universal AC input, Soft-start current can reduce the AC input impact effectively, Automatic Overload cut-off, Over Voltage cut-off, Automatic Thermal cut-off, Short circuit protection. built-in EMI filter, 100% full-load burn-in test ,Full range of input voltage, output voltage accurate and stable, Output over-voltage, over-current and short-circuit protection, Output low ripple and noise
This item is power adapter (transformer) of Low Voltage for 5/12/24V Parapet lights, Spot Light, Wall Washer, Grow Light, Single colour RGB or dream color LED strip lights and led module string.
Please be kindly informed that the total wattage of LED strip lights should not exceed the max wattage of this adaptor.
Standards and Certifications
Power Supply Type: LED Hulled Enclosed Rainproof Power Supplies
Input Voltage AC: 100~240V
Output Voltage DC: 5/12/24 VDC
Output Power : 5V/72A 12V/25A 24V/12.5A 300Watts
Warranty: 3 years
Average working no trouble: ＞50, 000 hours
Working temperature: - 20 ° ~ 60 ° c / 20% ~ 90% RH (no frost)
Storage temperature: - 40 ° ~ 85 ° c / 10% ~ 95% RH (no frost)
Height above sea level: ≦2000M
Connection Type: Screw Terminals
Dim Control: None
Input Frequency Range: 47 ~ 63 Hz
IP Rating: Rainproof
Output Channels: 3 channel
Built-in PFC Function: Yes PF>0.93
Fixed switching frequency at PFC:67KHz PWM: 134KHz
Cooling method: Natural cooling air convection
Overload protection: 115% - 135% rated power, automatic recovery
Over-voltage protection: 105% - 150% of the rated voltage
Over load protection: ≥85°C cut off the output, auto-recovery
Protection type: Shut off o/p voltage, clamping by zaner diode
Over Temperature: U1 Tj 140℃ typically (U1) detect on main control IC
Protection type: shut down o/p voltage, recovers automatically after temperature goes down.
How to use
1 x LED Light Strips 100V-240V to 5/12/24V LED Rainproof Hulled Enclosed Power Supply
