Product Information
Please note that the 100 LEDs/m (3 pins on the front of the PCB) version shown in the image is currently out of stock. Only the 100 LEDs/m (1 pin on the front and 2 pins back) version is available for purchase at this time.

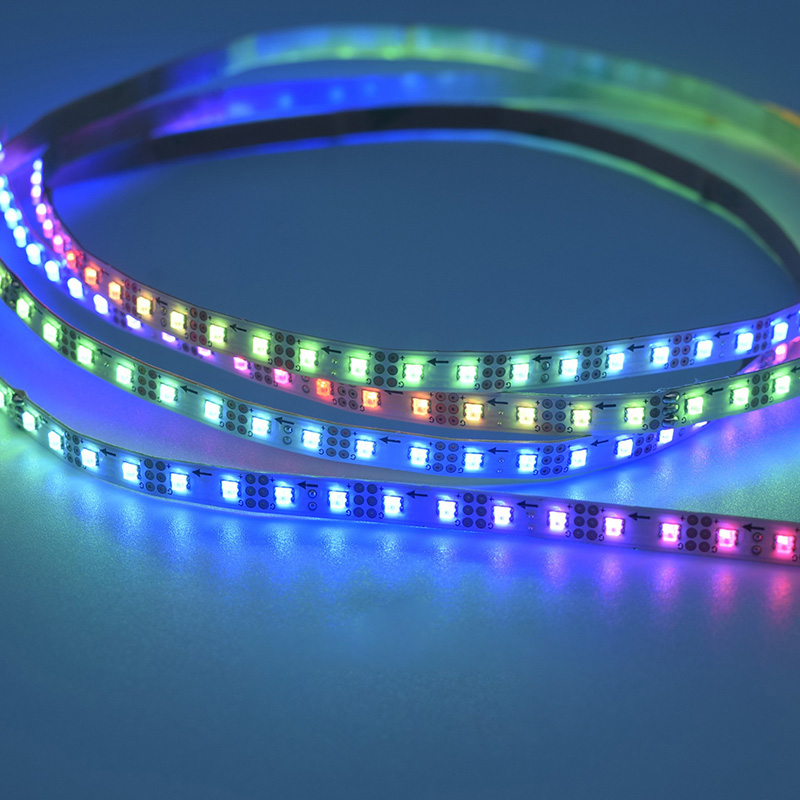

This upgraded 2.7mm ultra-narrow programmable RGB digital LED strip WS2812 features built-in WS2812 ICs for individual control of each LED bead. This WS2812 pixel LED strip features 100 miniature 1010 LEDs per meter, each equipped with a built-in WS2812 IC. With an addressable RGB controller, you can program each LED individually to achieve effects such as single-point color mixing, music-synchronized gradients, breathing, and flowing patterns. Therefore, this SMD 1010 WS2812 LED strip is suitable for advertising digital wall, light box, DIY creative lighting and other scenes.
Compared with regular WS2812 RGB strips, this strip adopts 2.7mm super narrow PCB board width design, which further widens the application scope, including cabinet, window frame, car decoration, etc. The high-density LED arrangement brings high brightness and uniform light effect. Meanwhile, the high-speed signal transmission of WS2812 IC eliminates the lag of dynamic light effect, making the ws2812 individual light strip suitable for commercial, car decoration and many other fields. The WS2812 LED tape supports single light single cut with 10mm/0.39'' cutting spacing, effectively meeting the needs of irregular shape installation. The working voltage of the strip is 5v, which is safe for operation.
We also have 5V 2.7mm WS2812 RGB LED strips 60LEDs/m version.
Features
1. WS2812 IC individually control 1010 LED chips, 100 pixels per meter.
2. only 2.7mm (0.19in) wide, making it ideal for corners, cabinet, window frame, car decoration.
3. Addressable RGB color dream color.
4. 100 LEDs per meter, 500 LEDs per roll (5m/16.4ft).
5. Every 10mm/0.39in can be cut, single light single cut.
6. Available in IP20 non-waterproof and IP67 outdoor waterproof version.
Product Specification
|
LED Strip Type:
|
RGB Independently Addressable LED Strip Tape Light
|
| IC Chip: | WS2812 |
| Input Voltage: | DC 5V |
| PCB Width: | 2.7mm / 0.19in |
| Power: 8 | 8W/m/3.28ft, 40W/Roll/16.4ft |
| LED Color: | RGB Addressable |
| LED Quantity: | 100 LEDs/m, 500 LEDs per roll |
| LED Chip: | 1010 |
| Cut Length: | 10mm / 0.39in |
| Beam Angle: | 120° |
| Waterproof Rating: | IP20 Non-waterproof/ IP67 Outdoor Waterproof |
| Length: | 5m/16.4ft |
