SP611E DC5~24V Music Bluetooth Dual Signal Output LED Controller With 38 Keys RF Remote and Button Control For Dream Color LED Strip Light
Supports both APP control and IR remote control;
Support automatic device connection and automatic re-connection when the APP turns on
Support multiple ddevices grouping control
Multiple sound collection methods: phone mic ,player streaming, on-board mic;
Support modifying the device name, calibrate the RGB channel aequence, and timer function;
Compatible with the common single-line LED driver IC on the market, can drive up to 600pixels;
Built-in 142 dynamic effects, effect length adjustable,w ith favour effects collecting function;
Built-in 18 music effects, effect length adjustable, sensitivity adjustable
DC5~24V wide voltage input, with power supply anti-reverse connection function;
Automatic saving function for setting parameters
Control pixel QTY:Single port control 600 IC
Product Name: SP611E LED controller
Input Voltage: DC5-24V
Support IC: WS2811/WS2812B/SK6812 etc
Remote Distance: 30meters/98.4ft
Control Mode: APP (iOS or Android)
Working Temperature: -20~60°C
Operating Current: 5~18mA
APP Name: SceneX
Music Control: Built-in MIC
Memory: Automatic memory function
Speed Control: Adjustable

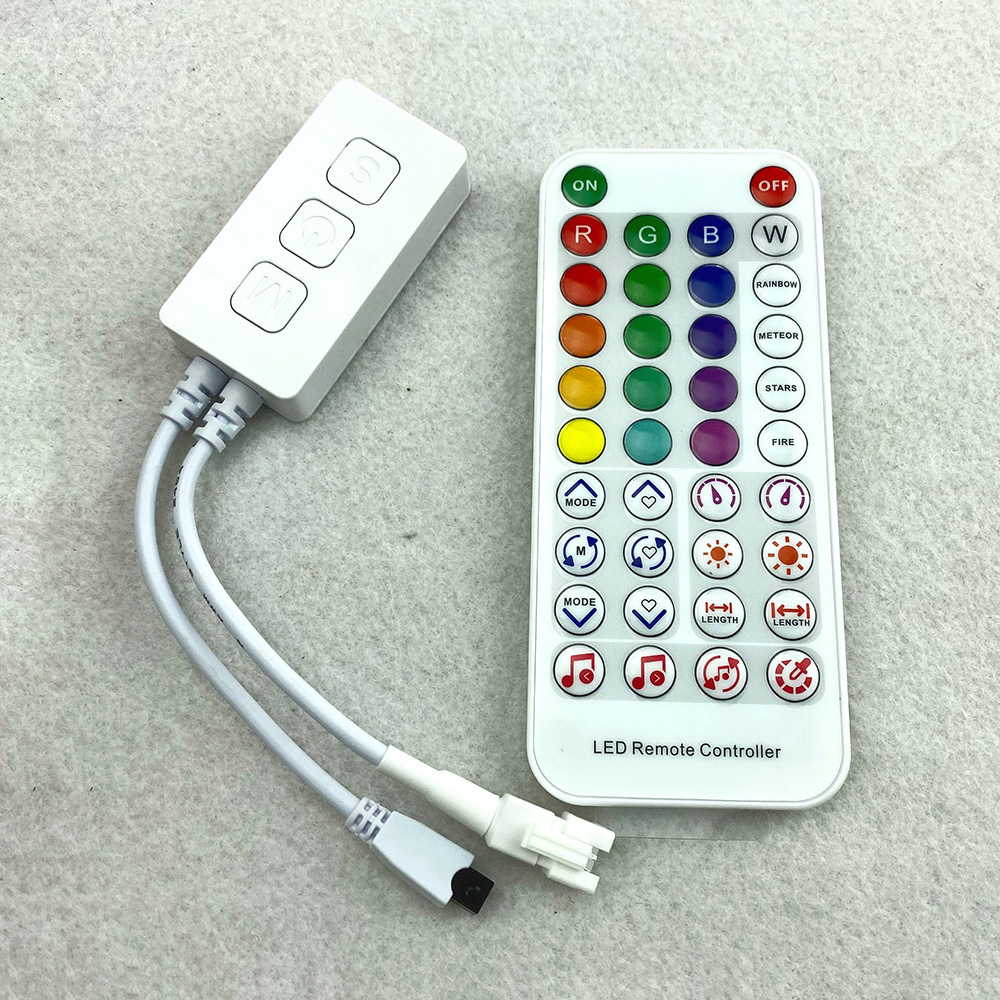

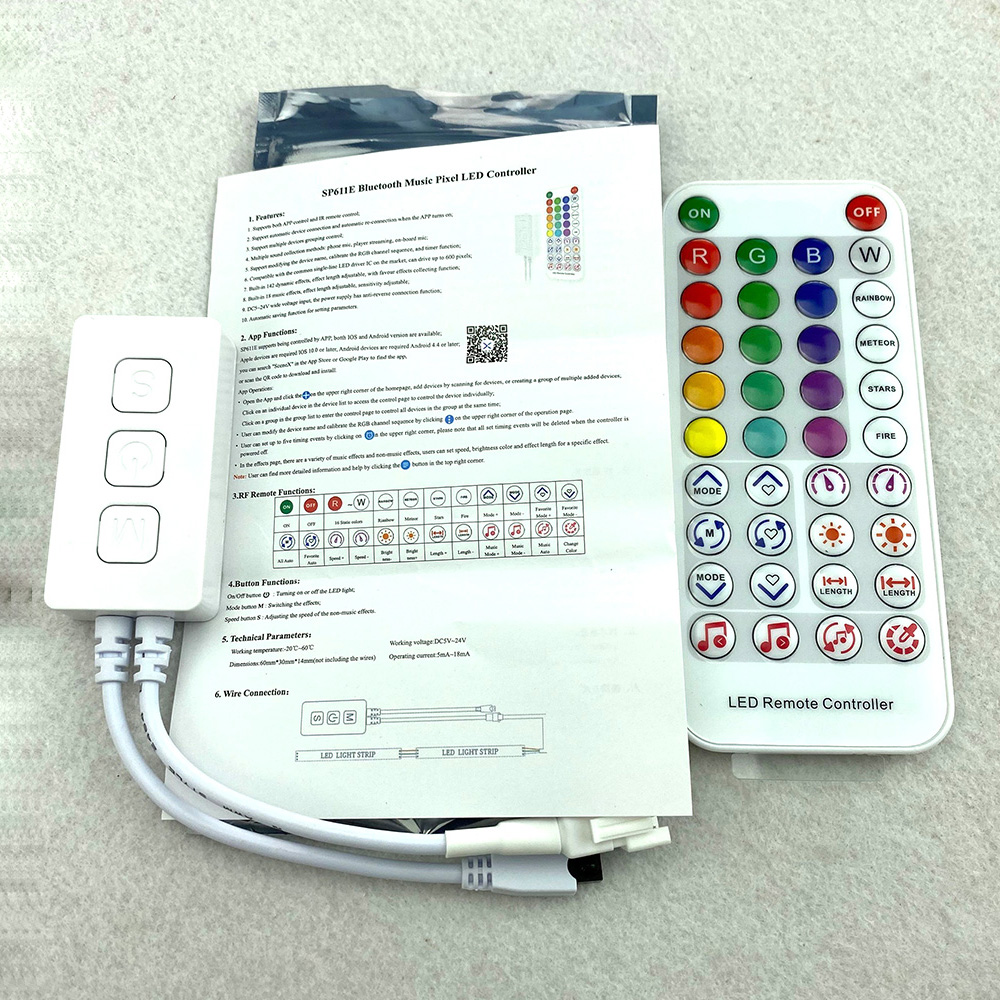

1 * SP611E led controller
1 * 38 Keys led remote controller

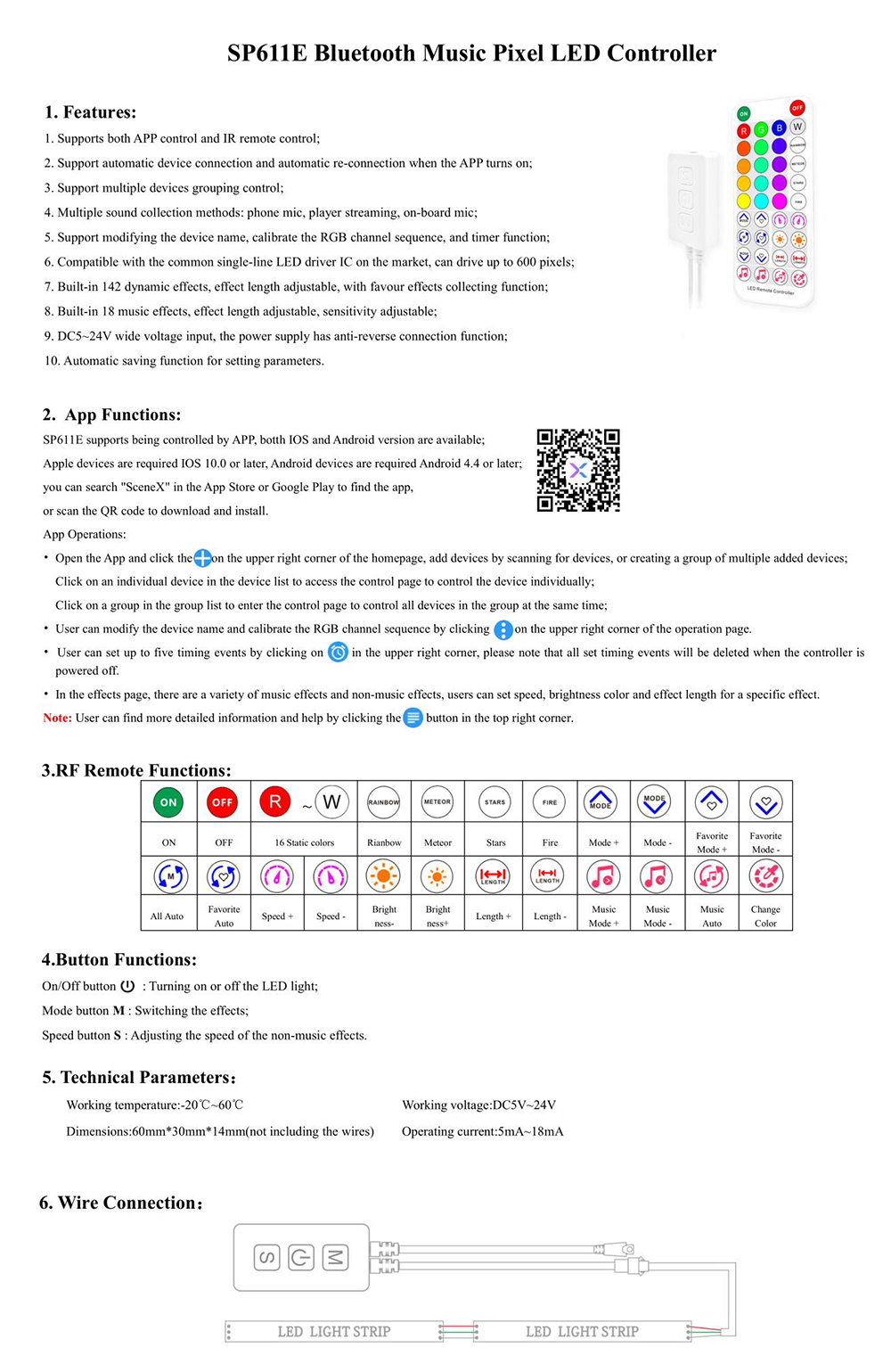

1 * User manual
SP611E supports control by APP, supports IOS and Android system.
Apple devices are required IOS 10.0 or later, Android devices are required Android 4.4 or later,
you can search “SceneX” in the App Store or Google Play to find the app,
or scan the QR code to download and install:
1. Power supply/phone/controller/led strip not include.
2. This phone only support 2.4G WiFi network.Can't support 5.0G WiFi network.
3. This app support Android 4.4 or above, IOS 10.0 or above.
4. Supply voltage of this product is 5~24 Volts DC, do not exceed.
5. Shorting output wires my cause damage to dimmer.
6. Always observe proper polarity when connecting power and load.
7. For indoor use only - this product is not waterproof or weatherproof.
1.Interior Decoration: Club, bar, corridor, room, hotel, led aquarium lighting, museum, christmas, holiday, Retail LED lighting etc.
2.Exterior Decoration: Plaza, commercial buildings, parks, scenic spot, evening location, Sign illumination LEDs etc
