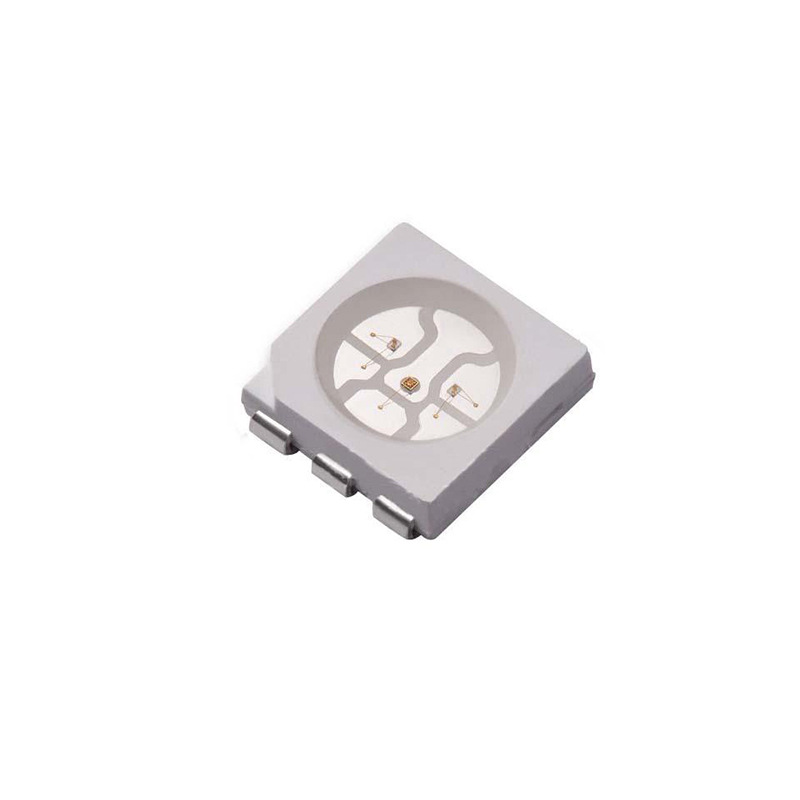

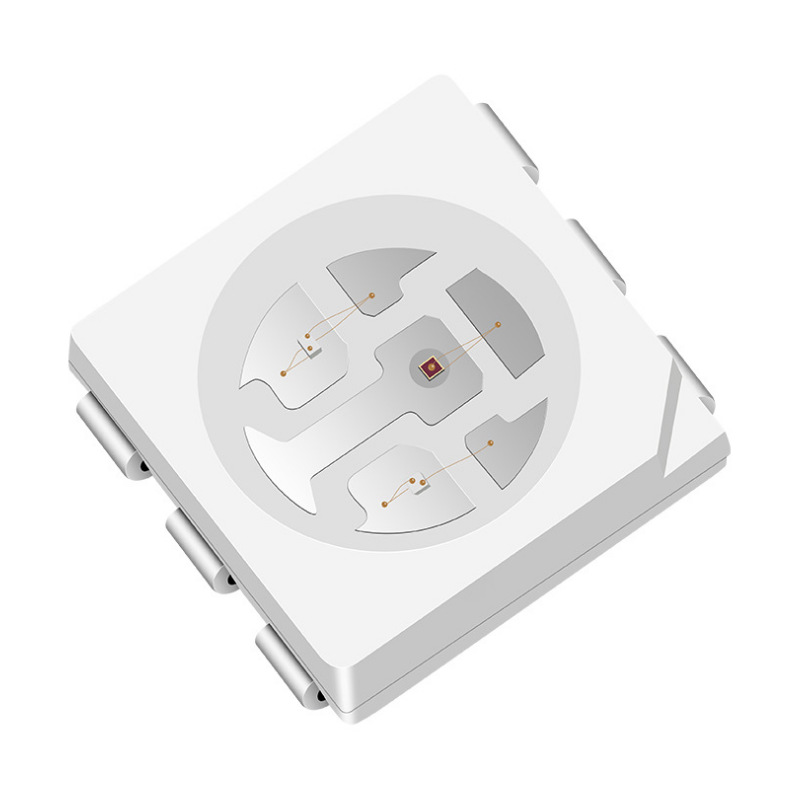

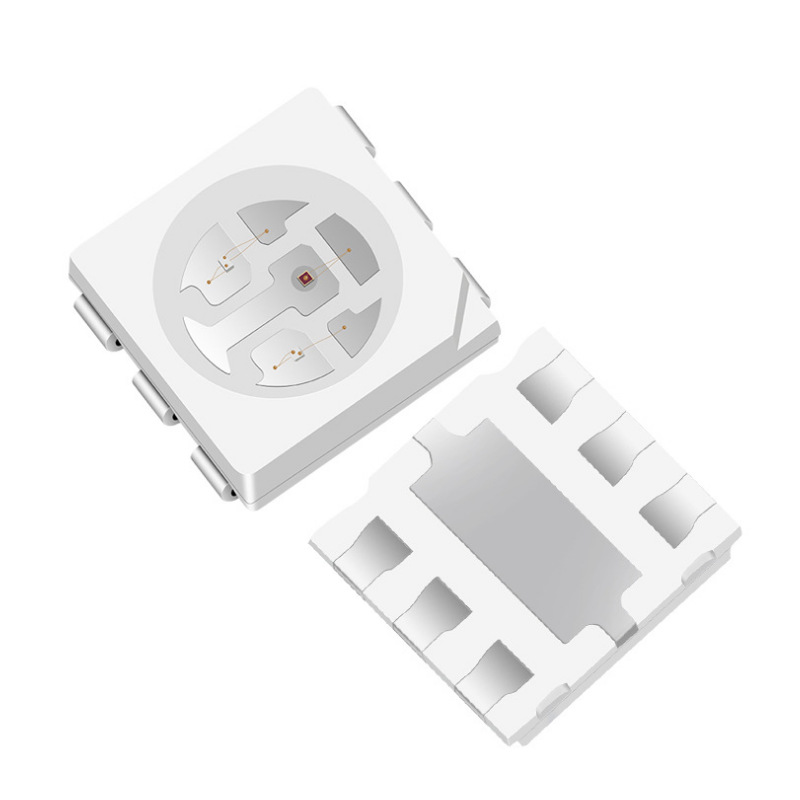

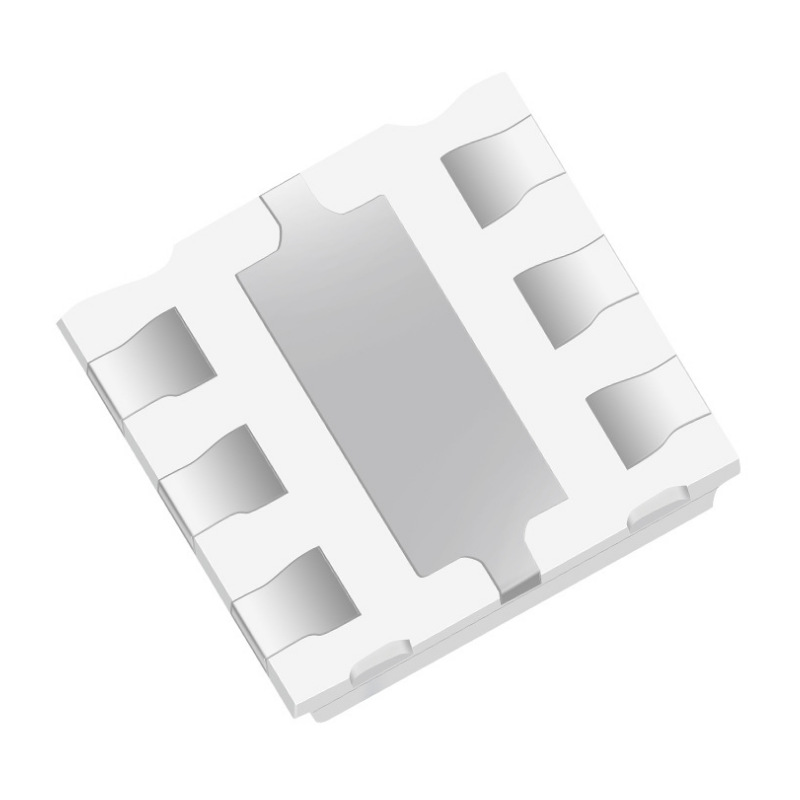

Super Bright White Shell Epistar 5050SMD Color Changing RGB LED Chip, DIY LED Chip, 500PCS By Sale

Product Description

5050SMD LED integrates a high-quality epistar LED chip into 5050 LED components, internal use of pure gold wires has good electrical conductivity, which can reduce current loss, ensure the consistency of LED lighting color, and avoid LED flicker due to unstable current.

Top uses high-quality phosphors, anti-sulfurization and anti-collision; a high refractive index improves the brightness of the LED, and two ends use red copper as the base material, which has a good heat dissipation effect. At the same time, it can be well integrated with tin, easy to solder, and anti-oxidation.

Product Feature

• High brightness 5050SMD LED

• Good electrical conductivity

• Good lighting consistency

• High-quality phosphors

• Anti-sulfurization and anti-collision

• Red copper material LED bracket

• Good heat dissipation effect

Standards and Certifications

Specifications

LED Chips:   Epistar

Power:   0.2W/pcs

Lifespan:   50000hours

Application:   Advertising sign

Dimension:    5.0*5.0mm/0.20*0.20in

Lumen:    High lumens

Wavelength:    R(620-630nm); G(520-530nm); B(465-470nm)

Voltage:    R:2.0-2.4V G/B:3.0-3.4V

Material:   Copper bracket

PCB Color:   White Available

Current:   60MA

Beam Angle:   120degrees

Waterproof Rating:   NO

Color Temperature:   RGB

LED Quantity:   500pcs

Luminous Flux(lm):   10-12lm

Operating Temperature(℃):   -40 - 85°C

Product List

1* 500pcs Epistar super bright white shell 5050 RGB LED chip
