Product Information

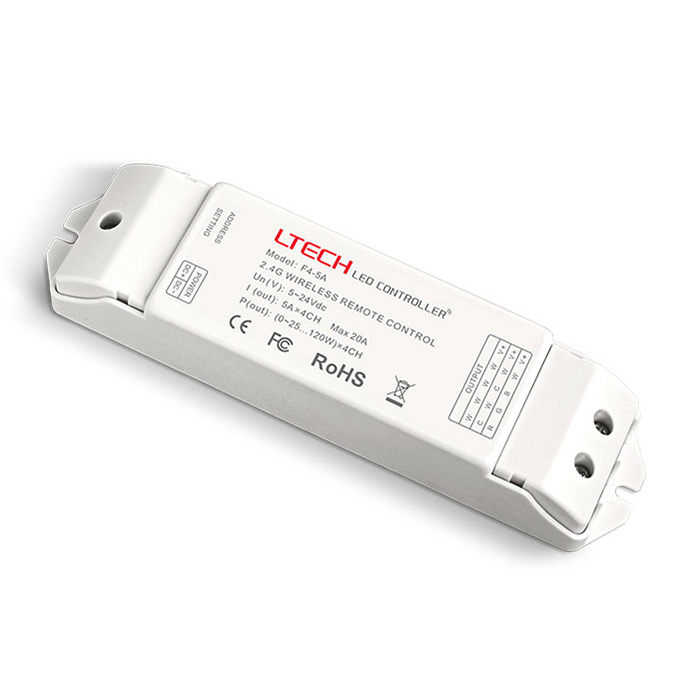

The Ltech F4-5A is a high-capacity, 4-channel wireless receiver designed to be the central hub of your constant voltage LED lighting system. It acts as a versatile wireless light switch and receiver, capable of controlling everything from single color and CCT tunable white to dynamic RGB and RGBW LED strips. With a robust 5A per channel output, it provides ample power for both residential and commercial projects. As a core component of the Ltech LT-BUS system, the F4-5A pairs seamlessly with F-series remotes, EX series wall panels, and the WiFi-106 gateway, allowing for flexible control from a simple remote, an elegant wall switch, or a full-featured smartphone app. Its wide DC5-24V input range ensures compatibility with the most common LED strip lights on the market.
Key Features
Universal 4-in-1 Control
One receiver for all your needs: single color dimming, CCT color temperature tuning, RGB color changing, and 4-channel RGBW.
High-Capacity Power Output
Delivers a strong 5A per channel (20A total), ideal for powering longer runs or high-density LED strips without voltage drop issues.
Seamless Ltech Ecosystem Integration
Pairs effortlessly with Ltech F-series RF remotes, EX series touch panels, and the WiFi-106 gateway for smart app control.
Wide Voltage Compatibility
Operates on any DC voltage from 5V to 24V, making it a flexible choice for various LED lighting projects.
Reliable RF 2.4GHz Signal
Utilizes a stable RF 2.4GHz wireless signal for responsive, cable-free control from up to 30 meters away.
Technical Highlights
- 4-Channel PWM Constant Voltage output for smooth, flicker-free dimming.
- Built-in protection for over-current, over-heat, short circuit, and reverse connection.
- Simple one-key pairing with remotes and touch panels.
- Higher 5A/channel output provides a significant power advantage over the F4-3A model.
Product Specifications
| Parameter | Details |
|---|---|
| Model | F4-5A |
| Input Voltage | DC5V ~ 24V |
| Output Type | Constant Voltage (PWM) |
| Output Channels | 4 |
| Output Current | 5A × 4CH, 20A Max Total |
| Output Power (Max) | 100W (5V) / 240W (12V) / 480W (24V) |
| Control Signal | RF 2.4GHz |
| Remote Distance | 30m (line of sight) |
| Working Temperature | -30℃ ~ 55℃ |
| Dimensions (L×W×H) | 175 × 44 × 30 mm |
| Certifications | CE, FCC, RoHS |
Application Scenarios
How to Control & Use This Wireless Receiver
- Ensure power is off before wiring.
- Connect your DC5-24V power supply to the 'INPUT' V- and V+ terminals on the F4-5A.
- Connect your LED strip lights to the 'OUTPUT' terminals. The common anode (V+) connects to the V+ terminal, and the negative wires connect to CH1, CH2, CH3, and CH4.
- Press the 'Learning key' button on the F4-5A receiver. The indicator light will turn on.
- Immediately press the desired zone button on your compatible F-series remote or EX series touch panel. The receiver's indicator light will flash to confirm successful pairing.
- To add app control, pair the F4-5A with a WiFi-106 gateway by following the gateway's user manual.
- Power on the system and test your lighting control.
- Always use a power supply with a voltage that matches your LED strips (e.g., a 24V power supply for 24V strips).
- Do not exceed the maximum load of 5A per channel or 20A total for the receiver.
- Ensure proper ventilation around the receiver to prevent overheating.
- This is a constant voltage receiver. Do not use it with constant current LED fixtures.
What's in the Box
- ✓1x F4-5A Wireless Receiver
- ✓1x User Manual
⇩ Downloads & Documents
PDFF4-3A
Frequently Asked Questions
Q: What types of LED lights can the F4-5A control?
A:The F4-5A is a 4-in-1 controller for constant voltage LED lights, including single color, CCT (tunable white), RGB, and RGBW strips.
Q: What is the main difference between the F4-5A and the F4-3A model?
A:The F4-5A has a higher current capacity of 5 Amps per channel, compared to the F4-3A's 3 Amps per channel. This makes the F4-5A suitable for more powerful or longer LED strip installations.
Q: Do I need a remote control to use this receiver?
A:Yes, this is a receiver only. You need a compatible Ltech F-series remote or EX-series touch panel to send it a control signal.
Q: Can I control this receiver with my smartphone?
A:Yes, you can control the F4-5A with a smartphone app by pairing it with an Ltech WiFi-106 gateway (sold separately).
Q: What kind of power supply is required?
A:You need a constant voltage DC power supply with an output voltage that matches your LED strips (e.g., DC 12V or DC 24V). The power supply's wattage must be sufficient to handle the total load of your strips.
Q: How many F4-5A receivers can I pair to a single remote zone?
A:You can pair multiple F4-5A receivers to the same zone on a remote to synchronize control over a large area.
