Super narrow 4mm/0.15'' 2110 Tunable White CCT LED Strip Lighting - DC24V 280 LEDs/m Flex LED Lighting
1. Our super-narrow 4mm LED strips are popular in under cabinet led lighting, high density of 280LEDs per meter, can also offer you a bright lighting environment.
2. DC24V safe voltage, every 14 LEDs can be cut, easy for you to get the length you need and with the 3M adhesive backing tape, you can install the lights anywhere you want.
3. Tunable White CCT LED strips, you can adjust the color temperature of the LED light strips, then get the atmosphere you like.
Standards and Certifications
LED Strip Type: SMD 2110 1400PCS/16.4ft
LED Chip: Epistar Chip

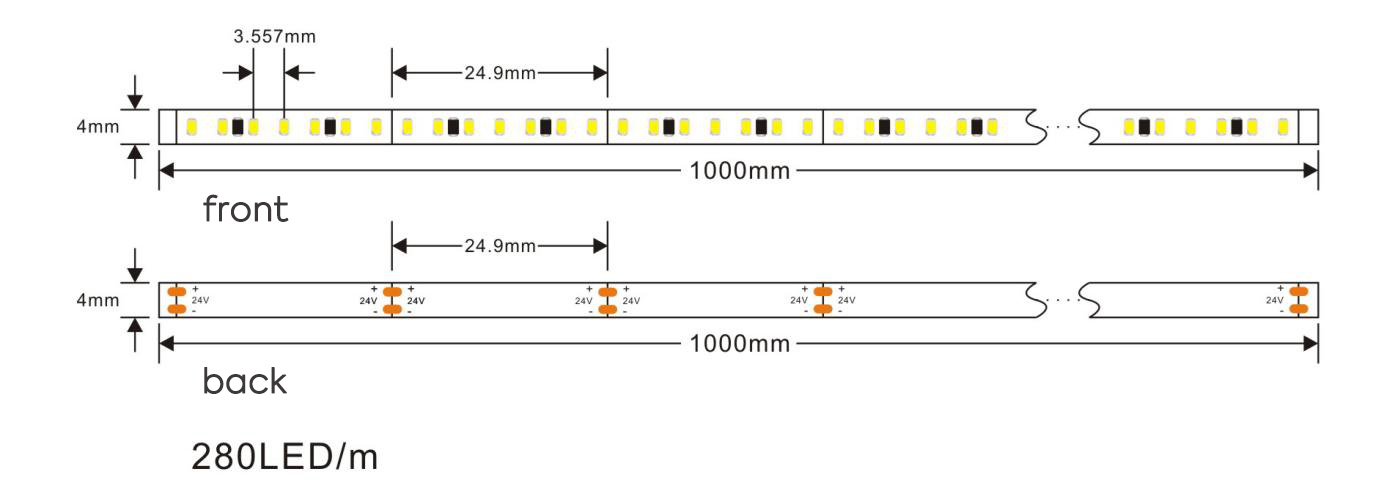

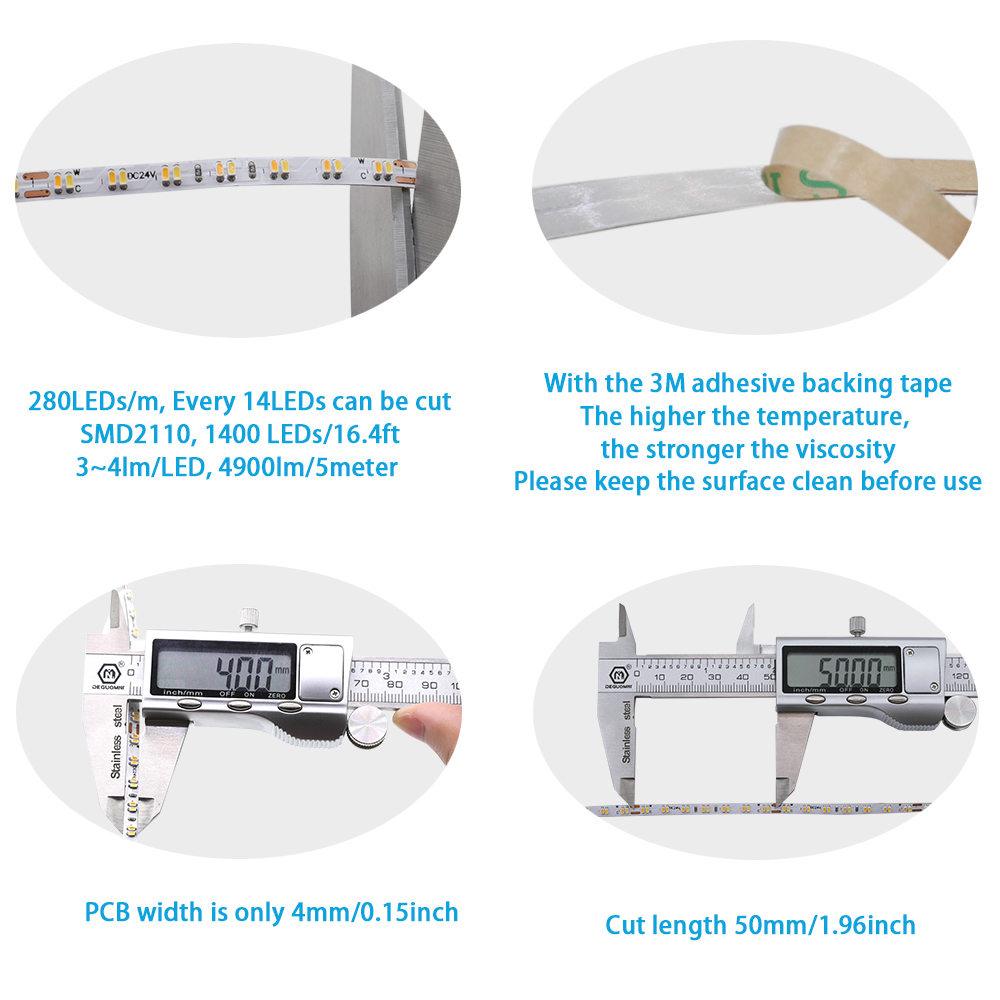

Dimension: 16.4ft/roll, 14 PCS LED can be cut ( cut length: 25mm/0.98" )
LED Quantity: 280 LEDs per 1meter (3.28 ft)
Warantty: 3 years
Dimensions: L500cm(196.8 in ) x W0.4cm(0.16 in ) x H0.20cm(0.08 in )
Input Voltage(V): 24VDC
Working Power: 2A 48W /16.4ft Max
Lamp Luminous Flux(lm): 3~4lm/LEDs 4900Lumens/16.4ft, 299Lumens/Ft, 102Lumens/watt

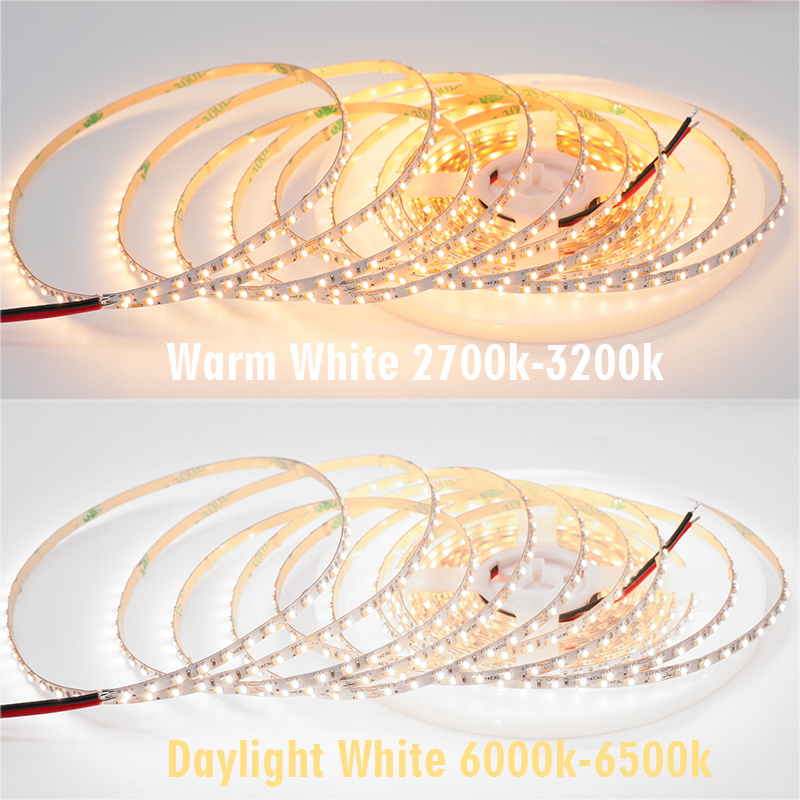

Color Temperature CCT(White): Warm White(2700-3200k) + Daylight White(6000-6500k)
Beam Pattern: 120 degree
Water Proof: Non-Waterproof , Waterproof IP67
CRI (Ra>): 95
Color Temperature And CRI
Choosing the correct color temperature lights for your project is very important, and as important as the brightness you choose.
Consider the look and feel you want your project to have.
What other color lights will be present? What material and color are the materials you wish to light?
CRI (Color Rendering Index) is a measure of how well a particular light source renders vivid, natural color. Lamps, led tubes, or led bulbs with an index of greater than 90 are generally considered High CRI light sources, and will make food, jewels, or any other product come alive with bright, natural color.
Waterproof Level Description
IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);
IP65 Waterproof (Epoxy cover waterproof, Epoxy Resin, PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, For Outdoor & Indoor) ;
IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);
IP68 Waterproof (Fully waterproof plastic irrigation, PCB both surface and back are encapsulated with plastic Gel, with a plastic fastener, the top level of waterproof, For Outdoor);
The waterproof grade of IP65, IP67, and IP68 will affect the color temperature due to the material problem, resulting in an increase of about 1000K. If you want to purchase the waterproof LED strips and have requirements on the color temperature, please note when placing the order.
You can cut the strip every few inches, The back of the strip is fitted with a strong IP67/IP68 type which will come with
allowing you to freely design your project 3M tape, allowing you to peel and stick lights mounting brackets
without worrying about space requirements to many different surfaces.
1. LED Strips with a direct connecting diagram
2. Multiple Strips connecting diagram
3. Strips with a two-way connecting diagram
4. You can also use our wireless controller, Multiple controller wireless matching synchronizations within 30 meters, can replace the traditional amplifier wiring
5. How does it work
Trademark lighting Logo lighting
How to choose led strip lights
Step1: Get a clear vision! Because each project is unique, there is no all-in-one solution.
Different projects require different types of LED strips. When place order, please clear the following answers :
This tape light can replace normal T8 tube or blub.
Where will it be installed (Indoor or outdoor)?
Indoor or outdoor? This may be related to waterproof grade choose.
Do you want to dim your lights or control them with a remote or wall switch?
If you have dimmer, then you can use a remote controller or mobile APP to control and adjust your lighting.
What overall look do you want to achieve?
What color do I need?
This led tape light has warm white, daylight white, and nature white 3 colors, each color temperature is different, please choose the color you need.
What materials am I looking?
The material of this lighting is using recycled material, friendly to the environment, our product has a certificate of CE, RoHS, ETL, and TUV.
Are there other lights in the area and if so, what color are they?
