4mm Wide High CRI 95 SMD2110 280LEDs/M LED Strip Lights -DC24V 16.4ft/5m per Roll Flexible LED Tape Light
DC24V 2110 SMD ultra narrrow Flexible white LED Strip Lights is the newest production in 2019. This versatile white LED Strip Light is in 22.4W/M (6.8Watts foot), has very High-Density Lighting with 280 diodes per meter or (85/ft).

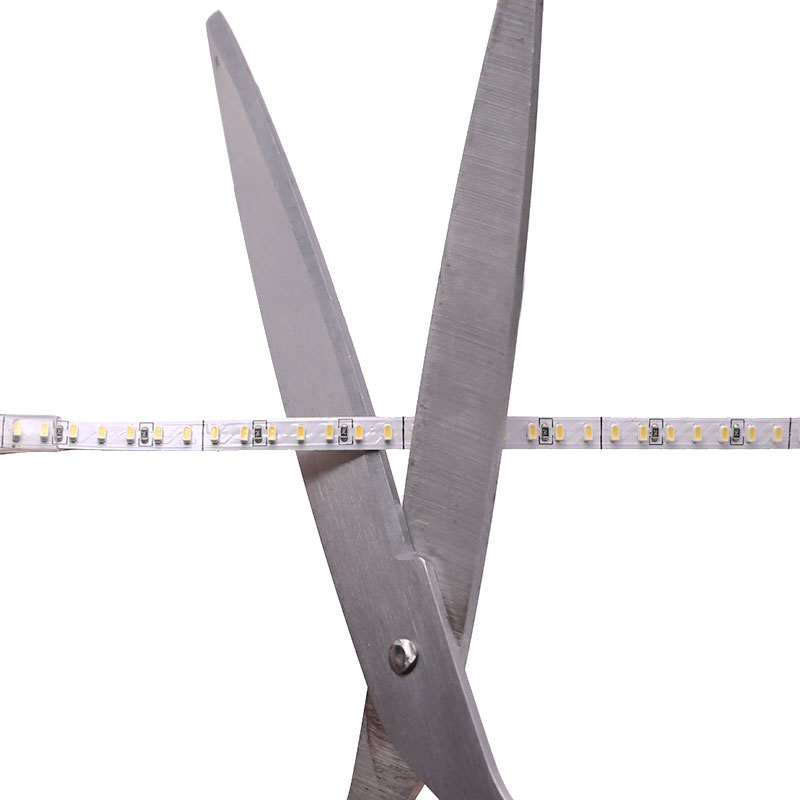

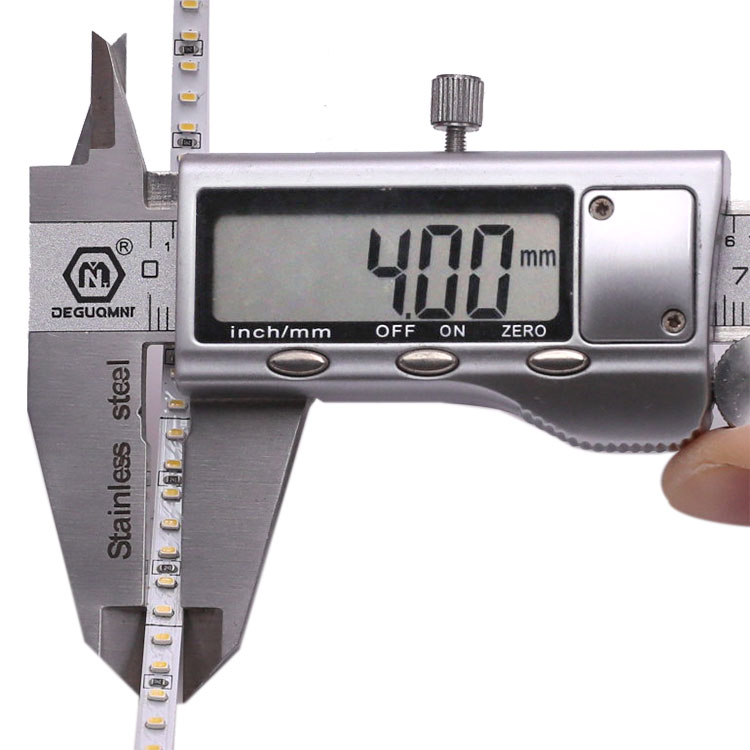

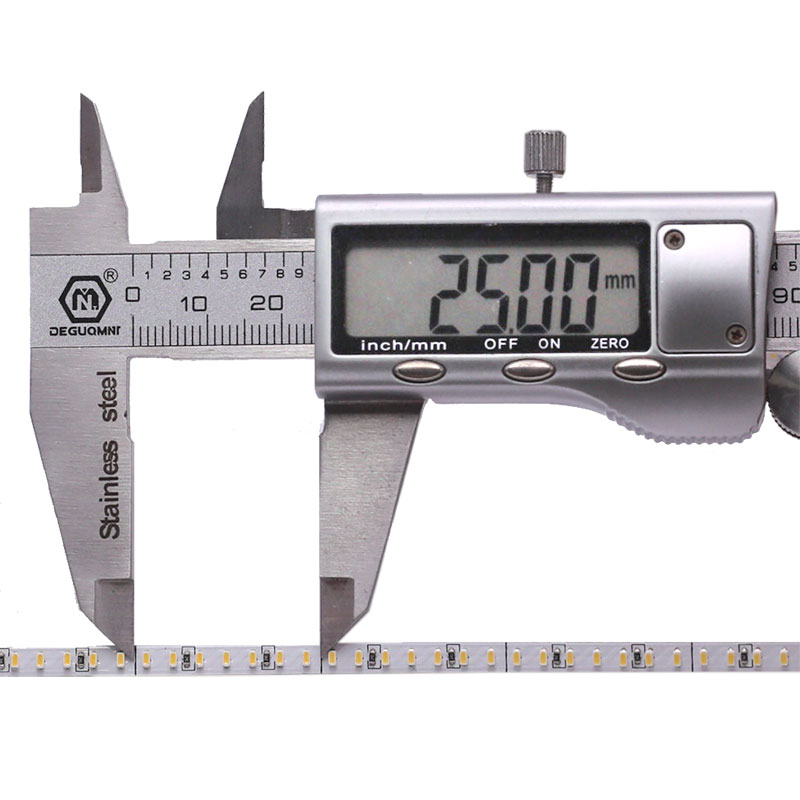

The white led light strip is cuttable every 7 white LED chips or 0.98"(25mm) for 24VDC. The PCB width of this white light led strip is ultra narrow 4mm. It is very suitable for aluminum profiles in a smaller size. Because of LED high density, the LED light through PC cover is fairly uniform without spot. If you seek a higher density, we can customize for you. We PCB factory will make a quick response.
►Everything you need to know before buying led strip lights:
Standards and Certifications
LED Strip Type: SMD 2110 1400PCS/16.4ft
LED Chip: Epistar Chip
Working Temperature: -4°F (-20°C) ~ 122°F (50°C)
Storage Temperature: -40°F (-40°C) ~ 176°F (80°C)

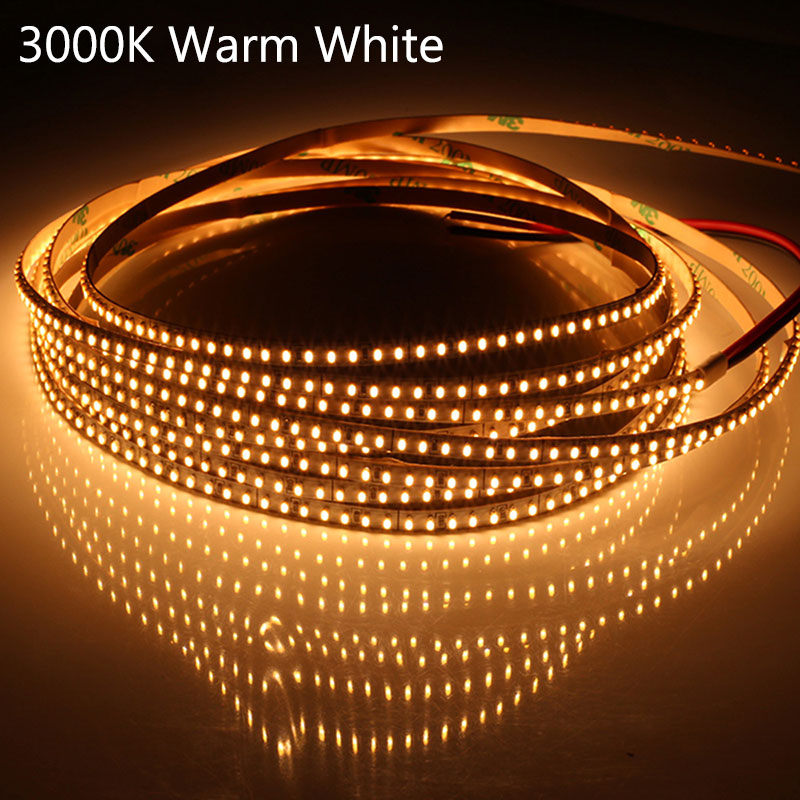

Light Color: Warm White, Daylight White,Cool White(optional)
Dimension: 16.4ft/roll, 7 PCS LED can be cut ( cut length: 25mm/0.98" )
LED Quantity: 280 LEDs per 1meter (3.28 ft)
Warantty: 3 years
Dimensions: L500cm(196.8 in ) x W0.4cm(0.16 in ) x H0.20cm(0.08 in )
Input Voltage(V): 24VDC
Working Power: 2A 48W /16.4ft Max
Lamp Luminous Flux(lm): 3~4lm/LEDs 4900Lumens/16.4ft, 299Lumens/Ft, 102Lumens/watt
Color Temperature CCT(White): Warm White(2700-3200k), Daylight White(4000-5000k), Daylight White(5500-6500k)
Wavelength NM(RGBY): Red(620-630nm), Green(515-525nm), Blue(465-475nm), Yellow(585-595nm)
Beam Pattern: 120 degree
Water Proof: Non-Waterproof , Waterproof IP67
CRI (Ra>): 95
Color Temperature And CRI
Choosing the correct color temperature lights for your project is very important, and as important as the brightness you choose. Consider the look and feel you want your project to have.
Waterproof Level Description
IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);
IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);
IP67 waterproof narrow led strip will affect the color temperature due to the material problem, resulting in an increase of about 1000K. If you want to purchase the waterproof LED strips and have requirements on the color temperature, please note when placing the order.
You will need a led strip light, a power supply(Please use a DC24V 75Watt power supply), and a way to attach the two to make your lights turn on. The size and type of power supply unit will depend on the type of LED strip light, the length required, and dimming option required. We are always here to assist in your selection.
►Detail knowledge about choosing a suitable LED strip light power supply:
►White led strip wiring diagram:
