Ultra narrow 3.3mm/0.13'' 2110SMD White LED Strip - 300LEDs/m DC24V High CRI 95 Flexible LED Lights
1. New ultra narrow white led strip products in 2020, DC24V 3.3mm/0.13in super thin LED strip lights, adopt small size 2110SMD LED chips, with the high density of 300LEDs per meter, super bright, available for under cabinet led lighting, fully adapt to various design needs.

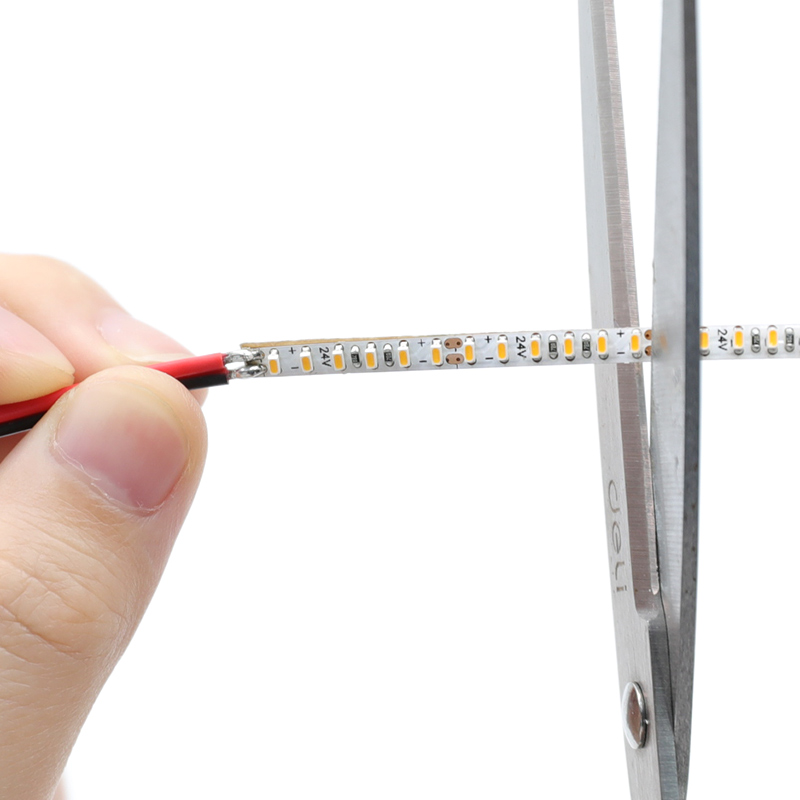

2. Low voltage DC24V, less voltage drop than 5V/12V LED strips, every 6 LEDs can be cut, convenient to get the lighting strip length you need.
3. Multi white led light color optional, 3000K soft white, 4000K natural white, and 6000K daylight white. Outdoot waterproof narrow led strips are also available.
►Everything you need to know before buying led strip lights:
Standards and Certifications
LED Strip Type: SMD 2110 1500PCS/16.4ft
LED Chip: Epistar Chip
Working Temperature: -4°F (-20°C) ~ 122°F (50°C)
Storage Temperature: -40°F (-40°C) ~ 176°F (80°C)
Light Color: Warm White, Daylight White,Cool White

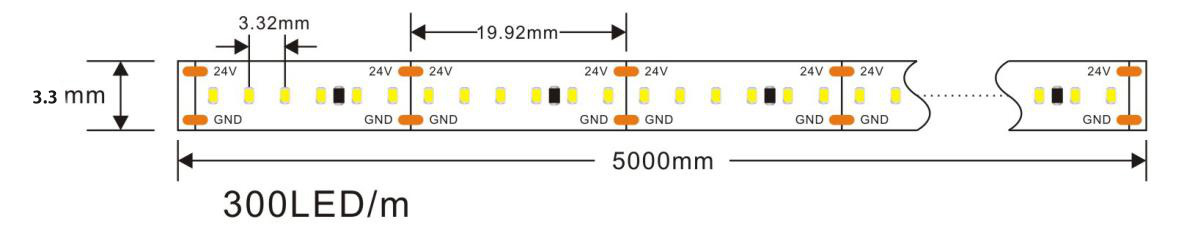

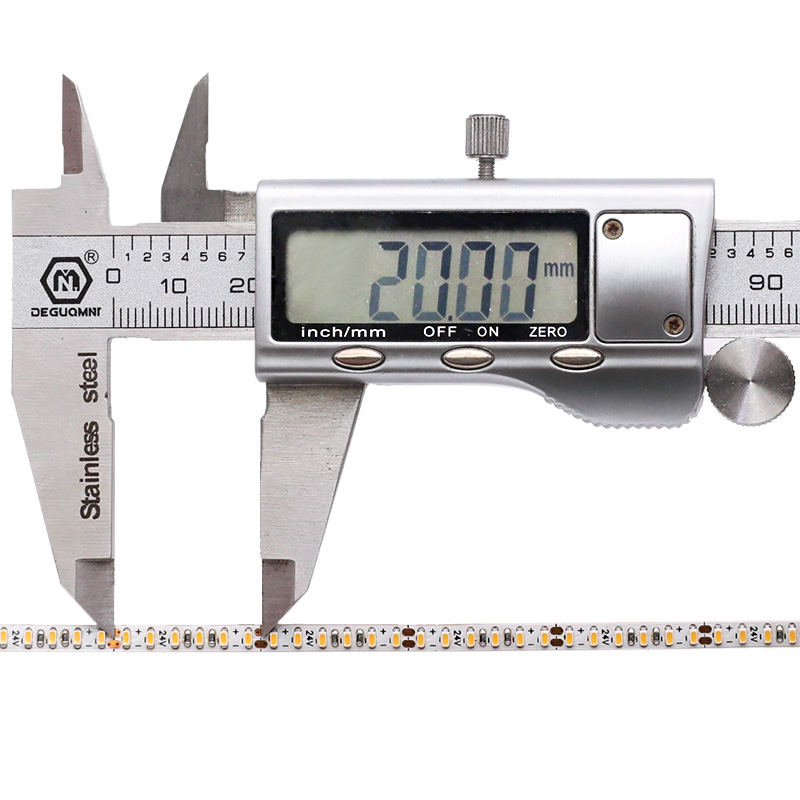

Dimension: 16.4ft/roll, 6 PCS LED can be cut ( cut length: 20mm/0.79" )
LED Quantity: 300 LEDs per 1meter (3.28 ft)
Warantty: 3 years

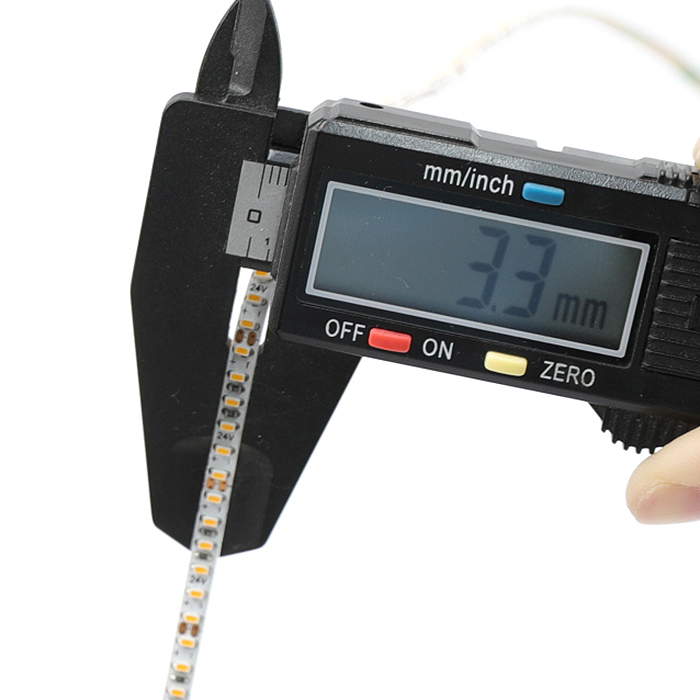

Dimensions: L500cm(196.8 in ) x W0.33cm(0.13 in ) x H0.20cm(0.08 in )
Input Voltage(V): 24VDC
Working Power: 38W /16.4ft Max
Lamp Luminous Flux(lm): 3~4lm/LEDs 5250Lumens/16.4ft, 320Lumens/Ft, 87.5Lumens/watt
Color Temperature CCT(White): Warm White(2700-3200k), Daylight White(4000-5000k), Daylight White(5500-6500k)
Beam Pattern: 120 degree
Water Proof: Non-Waterproof , Waterproof IP67
CRI (Ra>): 95
Color Temperature And CRI
Choosing the correct color temperature lights for your project is very important, and as important as the brightness you choose.
Consider the look and feel you want your project to have.
What other color lights will be present? What material and color are the materials you wish to light?
Waterproof Level Description
IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);
IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);
The waterproof grade of IP67 will affect the color temperature due to the material problem, resulting in an increase of about 1000K. If you want to purchase the waterproof LED strips and have requirements on the color temperature, please note when placing the order.
You will need a led strip light, a power supply(Please use a DC24V 75Watt power supply), and a way to attach the two to make your lights turn on. The size and type of power supply unit will depend on the type of LED strip light, the length required, and dimming option required. We are always here to assist in your selection.
►Detail knowledge about choosing a suitable LED strip light power supply:
►White led strip wiring diagram:
