Product Information

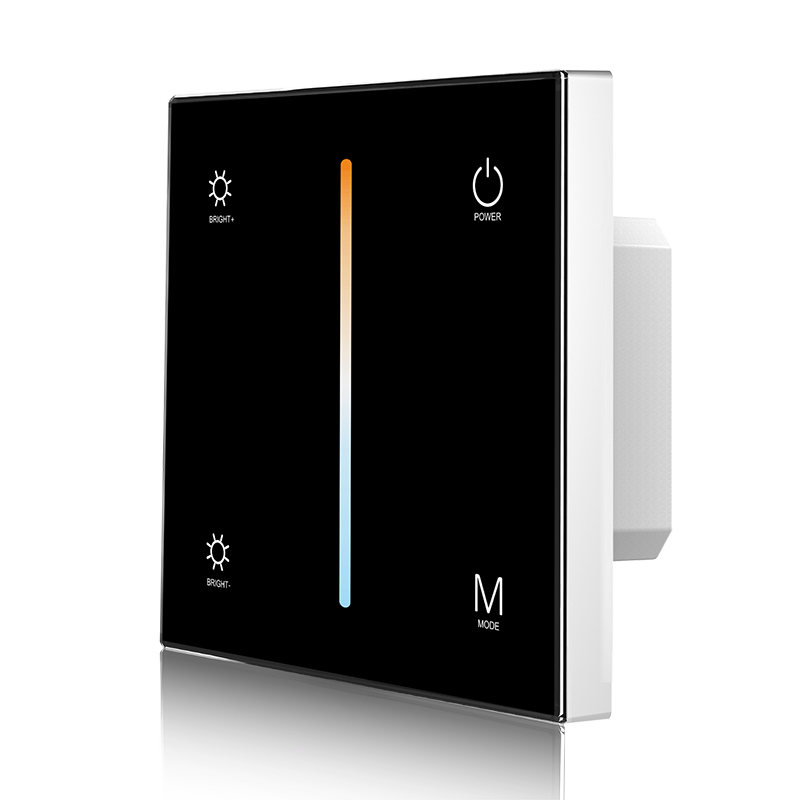

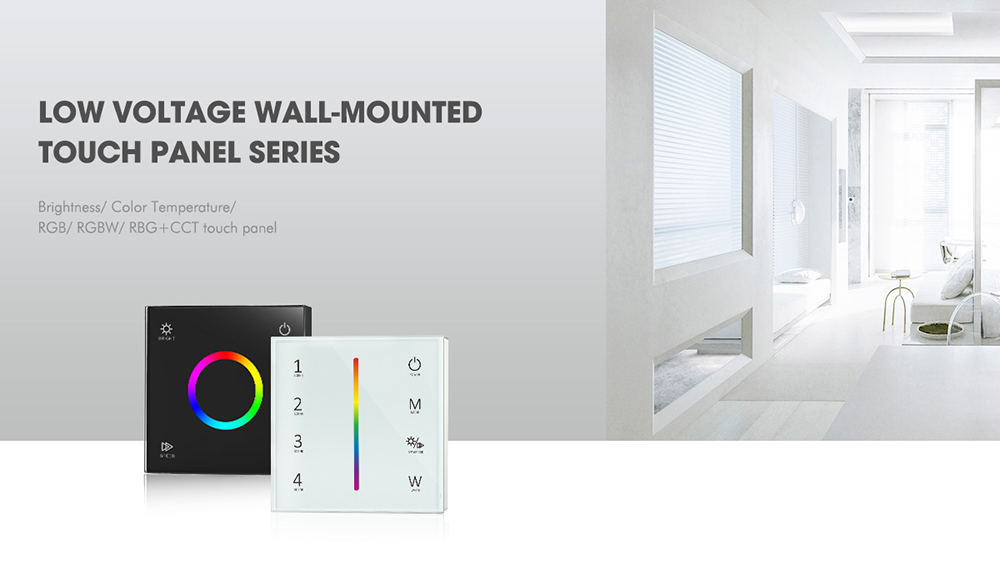

The Skydance T2-1 operates as a 2-in-1 dual color LED controller and wireless 2.4GHz RF wall transmitter for tunable white lighting installations. Engineered with a scratch-resistant tempered glass faceplate and capacitive touch color slide, this unit delivers 256-level PWM dimming across two channels at 12V to 24V DC. Users can configure the unit directly as an in-line constant voltage driver with 4A per channel output (8A total, 96W at 12V or 192W at 24V), or set it as a wireless remote capable of commanding multiple RF receivers up to 30 meters away.



Key Features
Dual-Function 2-in-1 Architecture
Operates either as a hardwired constant voltage CCT controller wired to LED tape or as a wireless 2.4GHz RF master transmitter.

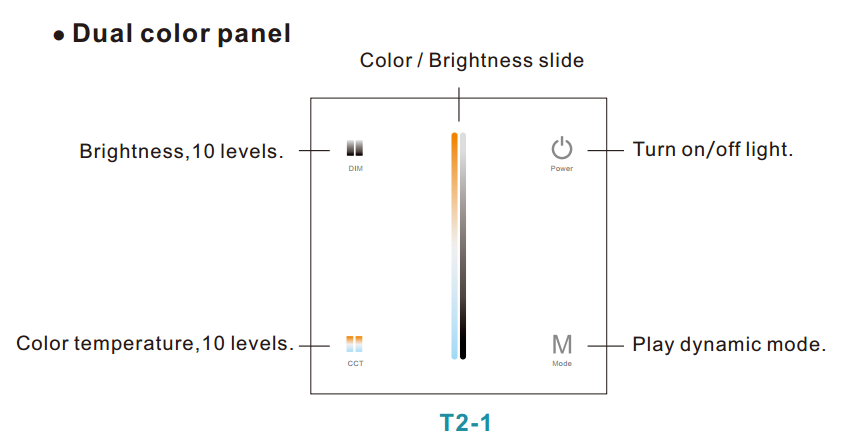

Capacitive Glass Touch Slide
Tempered glass touch screen includes a central slide for 0% to 100% color temperature shifting between warm white and cool white.
2-Channel 8A Total Output
Delivers up to 4A per channel across 2 channels, handling 96W of dual color LED lights on 12V systems or 192W on 24V circuits.
30-Meter 2.4G RF Range
Connects wirelessly with up to 10 matched handheld remotes when in controller mode, or syncs multiple receivers when used as a remote.
Smooth Logarithmic Dimming Curve
Implements 256 levels of smooth PWM adjustment without optical flicker, stepped jumping, or buzzing noise.
Available in 2 Choices
Comes in standard White or Black gloss finish to match standard interior architectural switch faceplates.
Technical Highlights
- 2-in-1 operating mode selectable via rear setting: direct constant voltage output or 2.4GHz RF wireless signal transmitter.
- Wide DC input spectrum accepting 12V DC to 24V DC from constant voltage drivers.
- Bi-directional pairing capacity: links with up to 10 handheld RF remote controls while acting as a master controller.
- Low standby power consumption below 0.5W with subtle backlighting for nighttime location.

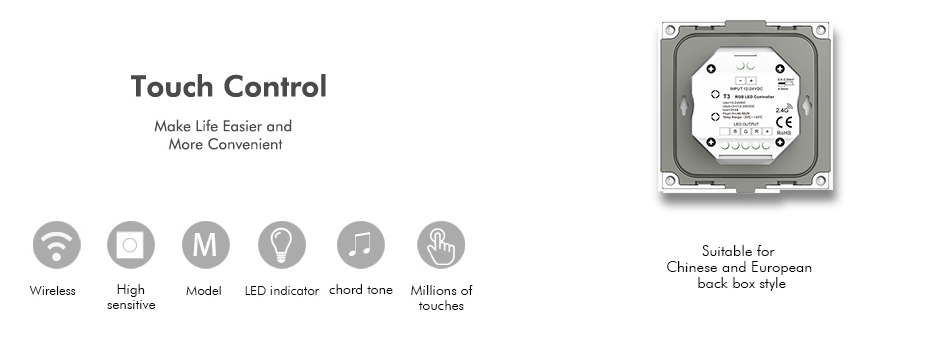

- Fits standard 86 x 86 mm square electrical junction wall boxes with 60 mm screw spacing.
- Full protection suite including reverse polarity protection and output short-circuit safeguards.

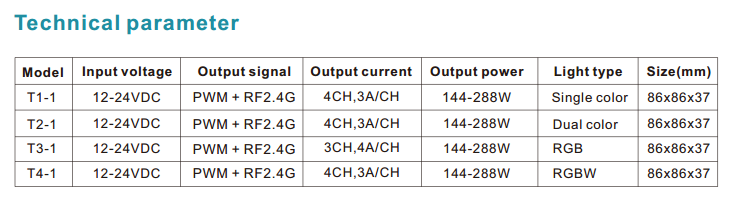

Product Specifications
| Parameter | Details |
|---|---|
| Model Number | T2-1 |
| Input Voltage | 12-24V DC |
| Output Voltage | 2 x (12-24)V DC |
| Output Type | PWM Constant Voltage |
| Output Current | 4A / Channel (Max 8A Total) |
| Output Power | Max 96W @ 12VDC, Max 192W @ 24VDC |
| Control Channels | 2 Channels (Warm White + Cool White) |
| Dimming Gray Levels | 256 Levels (0.1% to 100%) |
| Wireless Frequency | 2.4GHz RF |
| RF Control Distance | 30m (barrier-free space) |
| Panel Material | Toughened Ultra-Clear Glass |
| Base Material | Flame-Retardant Polycarbonate (PC) |
| Static Power Consumption | <0.5W |
| Operating Temperature | -30 deg C to +55 deg C |
| Panel Color Finish | White or Black |
| Outer Dimensions | 86 x 86 x 33 mm |
| Net Weight | 150 g |
| Mounting Standard | Standard 86 Type Wall Box |

Application Scenarios
How to Control & Use This Controller
- Select the power source: Use a regulated 12V or 24V power supply that matches the working voltage of your dual color LED strip lights.

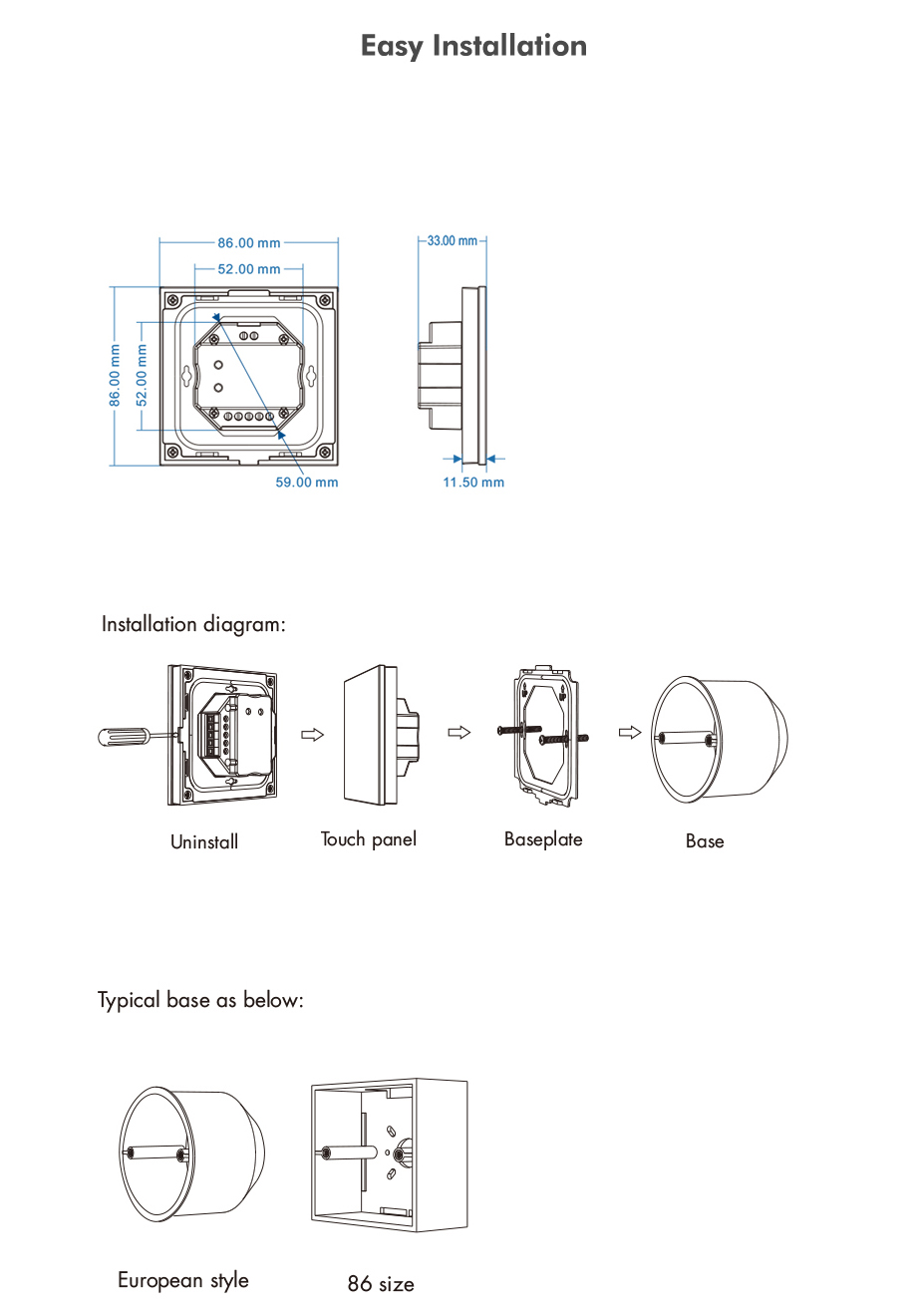

- Mount the junction box: Secure an 86-type wall mounting box into the wall cutout with 60 mm center-to-center screw spacing.
- Wire the direct load (Controller Mode): Connect DC+ and DC- from the power driver to the input terminals. Connect the common anode (V+) and two negative channels (WW- and CW-) of the 3-wire tunable white LED strip to the output terminals.
- Pair handheld remotes (if using extra wireless controllers): Power on the T2-1, touch the Match key on the back of the panel, then immediately press the On/Off button on your handheld RF remote controls. The LED indicator blinks 5 times when paired.
- Switch to RF Remote mode (optional): If using the T2-1 strictly as a wireless sender to drive external receivers, configure the DIP switch according to the manual diagram, power the unit, and match it to any compatible RF CCT CV Controller.
- Test operation: Touch the power symbol to turn lights on or off, slide your finger along the central color spectrum bar to tune color temperature, and hold the brightness keys to dim from 1% to 100%.
- Never connect AC line voltage (110V/220V) directly to this unit; it requires a 12V-24V DC constant voltage transformer.
- Verify load limits before power-up: maximum total current is 8A (4A per channel). For longer runs, install a PWM data repeater.
- Confirm whether your luminaire requires 3 wires in light fixture (common V+, WW-, CW-) or 4 wires in light fixture configurations before connecting terminals.
- Disconnect the main electrical breaker during installation and do not press the glass panel with sharp metal tools.
What's in the Box
- ✓1 x T2-1 Touch Panel Dual Color LED Controller
- ✓1 x User Instruction Manual
Frequently Asked Questions
Q: What is the difference between T2-1 and sibling model T2-K or SK-T2?
A:The T2-1 features a clean glass touch slider interface and 2-in-1 controller/remote capability, whereas the T2-K uses a physical rotary knob dial. Compared to the basic SK-T2, the T2-1 adds selectable mode switching allowing it to function both as an in-line 8A wired dimmer and as a 2.4GHz RF wireless transmitter.
Q: What is cct in lighting and how does this dual dimmer operate it?
A:CCT stands for Correlated Color Temperature, measured in Kelvin (K). The T2-1 dual dimmer dynamically proportions output across warm white (typically 2700K-3000K) and cool white (typically 6000K-6500K) channels to generate any shade of white light in between.
Q: Can I use the T2-1 with 3 wires in light fixture setups?
A:Yes. Most tunable white tape fixtures use a 3-wire layout with one common positive wire and two separate negative channel wires (one for warm white, one for cool white), which match the T2-1 terminal blocks.
Q: Can I connect 4 wires in light fixture arrangements to the T2-1?
A:The T2-1 is a 2-channel CCT unit. If your light fixture has 4 wires, it is usually an RGB fixture (common positive plus R, G, B) or an addressable strip, which requires an RGB controller rather than a dual color CCT dimmer.
Q: How to change xbox controller led color using this product?
A:The T2-1 is an architectural wall controller designed for 12V-24V low-voltage LED strip lights, so it cannot be used to modify internal gaming hardware or change Xbox controller LED colors.
Q: What is dmx controller for led lights compared to this RF touch dimmer?
A:A DMX controller communicates using the DMX512 serial digital protocol over XLR or RJ45 lines for stage and complex architectural consoles. The T2-1 uses standard analog PWM output and wireless 2.4GHz RF, making it simpler to wire without programming consoles.

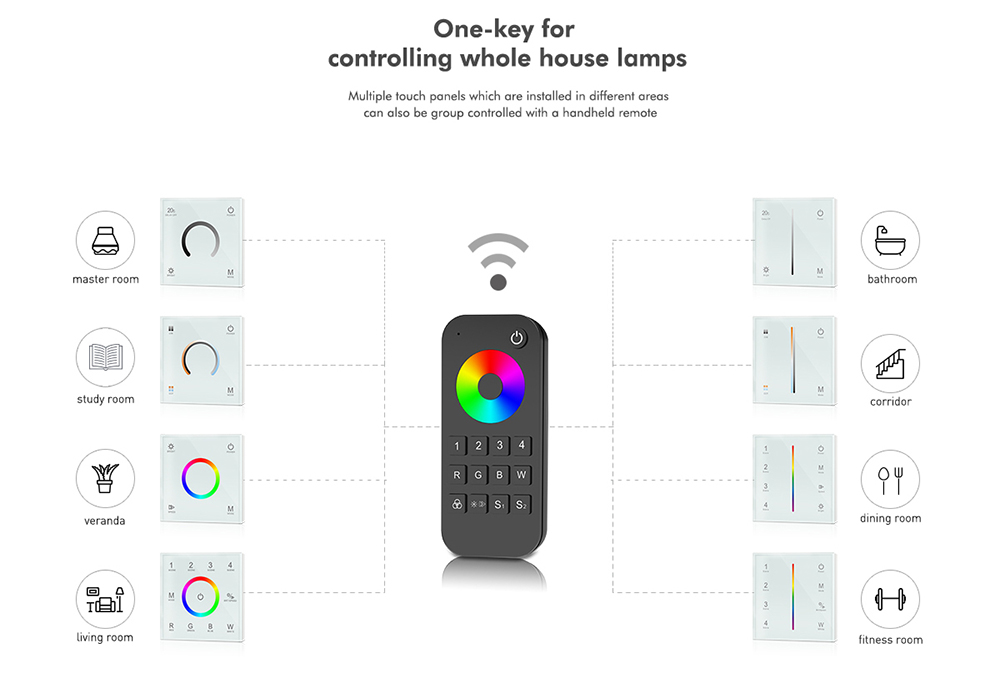

Q: Can one T2-1 touch panel control multiple wireless receivers simultaneously?
A:Yes. When set to RF transmitter mode, one T2-1 panel can transmit 2.4GHz commands to an unlimited number of paired Skydance wireless receivers within its 30-meter operational range.
Q: Does the touch panel remember my last color setting after power loss?
A:Yes. The unit features non-volatile power-off memory that automatically restores the previous color temperature and brightness settings when main power is restored.
