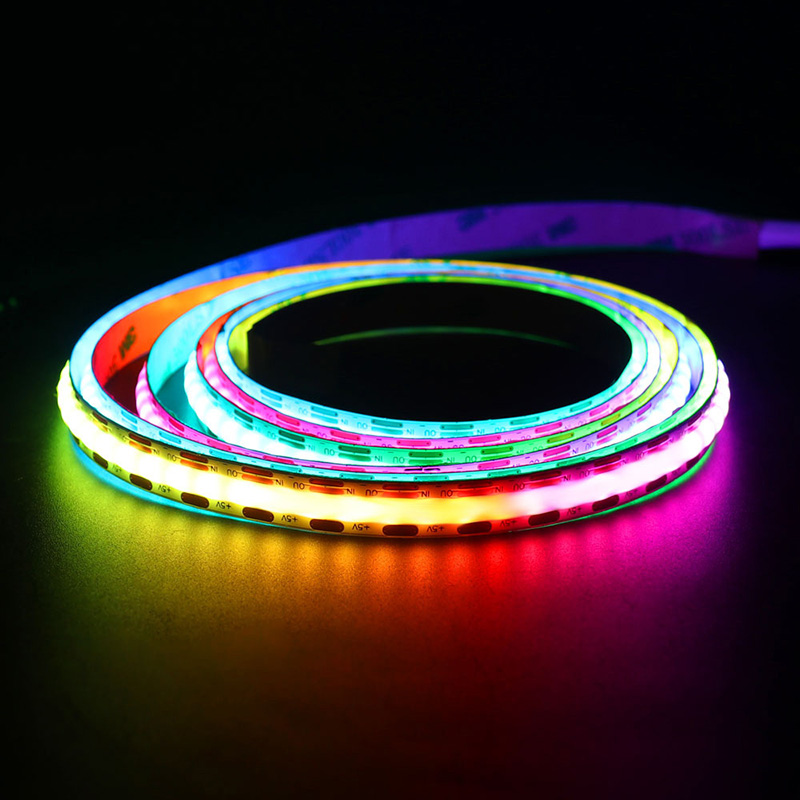

Arduino UNO Controllable Individually Addressable WS2812B COB LED Strips - DC5V Super Density 160Chips/m
Product Description: What is cob led strip light?
WS2812B addressable COB LED strip light can be purchased in 1m/3.28ft or 5m/16.4Ft reel. COB LED strips are also called chip-on-board LED strips, COB LEDs combined with COB chips and fluorescent film LED chips are directly packaged on the PCB.
LED density can reach 160 chips per meter, every chip is controlled by a WS2812B IC, compatible with SPI LED controller to output 16 million color changes, dynamic color tracking and static arbitrary adjustment to control the color change speed and brightness of the LED light strip, to meet your most extreme demands
Addressable COB LED strip supports DC5V low voltage input, safe and efficient; every 1m/3.28Ft color chasing LED strip reel 320 chips/m is twice as bright as the 160 chips/m per reel, but the maximum running length of 160 chips/m increase, the voltage drop of 2m/16.4Ft drops significantly, with good color rendering.
This addressable LED light strip uses high-quality double-sided PCB, high oxidation resistance and high temperature resistance. For outdoor environmental lighting, we have developed an IP67 waterproof LED light strip that can withstand sprays and splashes from all directions. It cannot be immersed in water, but it can withstand various factors.
This COB dream color LED strip light has high density, resistance to bending, works with the LED aluminum channel or LED neon tube, the whole roll achieve no light spot, with a better lighting effect, which is suitable for task lighting, indoor & outdoor atmosphere lighting.
Compared with ordinary COB LED strip light, it can control LED brightness and color chasing speed to produce dynamic effects such as running water, and the entire roll can almost achieve no light spot. It is suitable for channel lights and landscape layout lighting.
Compared with DC12V addressable COB, the width is narrower, the voltage drop is smaller than 320Chips/m addressable COB LED strip, and the maximum operating length is longer.
• 160 chips/m high density
• 10mm/0.39in wide
• WS2812B IC control
• DC5V low input voltage.
• 16 million color changes
• The whole roll without light spot
• IP67 waterproof available
• 3.28/16.4Ft per roll by sales
• Full color addressable RGB
• Compatiable with most of SPI LED controllers
Standards and Certifications
LED Strip Type: WS2812B DreamColor
LED Chip: Epistar Chip
Working Temperature: -4°F (-20°C) ~ 122°F (50°C)
Storage Temperature: -40°F (-40°C) ~ 176°F (80°C)
Chips Quantity: 160 Chips per 1meter (3.28 ft)
Warantty: 3 years
Input Voltage: DC5V
Dimensions: L100cm(39.4 in ) x W1.0cm(0.39 in ) x H0.12cm(0.05 in )
COB Dimension: L100cm(39.4 in ) x W0.5cm(0.20 in )
Cutting Length: 10mm(0.39in)
Working Power: 16W/m Max
Lamp Luminous Flux(lm): 1000 lumens/m
Wavelength NM(RGBY): Red(620-630nm), Green(515-525nm), Blue(465-475nm), Yellow(585-595nm)
Beam Pattern: 180 degree
Water Proof: Non-Waterproof IP20, Waterproof IP67
CRI (Ra>): 90
1* 1m/3.28Ft LED strip light (by default), you can customize the length.
To avoid the power load, the power of LED power supply is 1.2 times of the power of LED strip light
Otherwise it will affect the brightness of the LEDs and the service life of the power supply.
When the length of LED strip light over 5m/16.4Ft, you need to supply power at two ends
How to choose the suitable LED power supply?
2pcs * PSPS-5V-10A
2pcs * LPV-60-5
If you purchase the MW UL-Listed LED power supply, we will send you an AC plug.
How to choose the LED controller?
|SP107E LED controller||Bluetooth smartphone APP control.|
|SP108E||WIFI APP control, 4 output channel support 2048pixels|
|SP602E||max output 4 channels, can connect to 4pcs LED strip light|
|Magic Home&RF Alexa LED controller||APP/RF/Amazon Alexa/Google Assistant control|
If you want to use the LED controller in the outdoor environment, you can purchase an extra waterproof box
Waterproof Level Description
IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);
IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);
Color Temperature And CRI
Choosing the correct color temperature lights for your project is very important, and as important as the brightness you choose.
Consider the look and feel you want your project to have.
What other color lights will be present? What material and color are the materials you wish to light?
How to wire this addressable COB LED strip light?
LED Task Lighting
Retail LED lighting
Sign illumination LEDs
Automotive accent lighting
Display case and accent lighting
