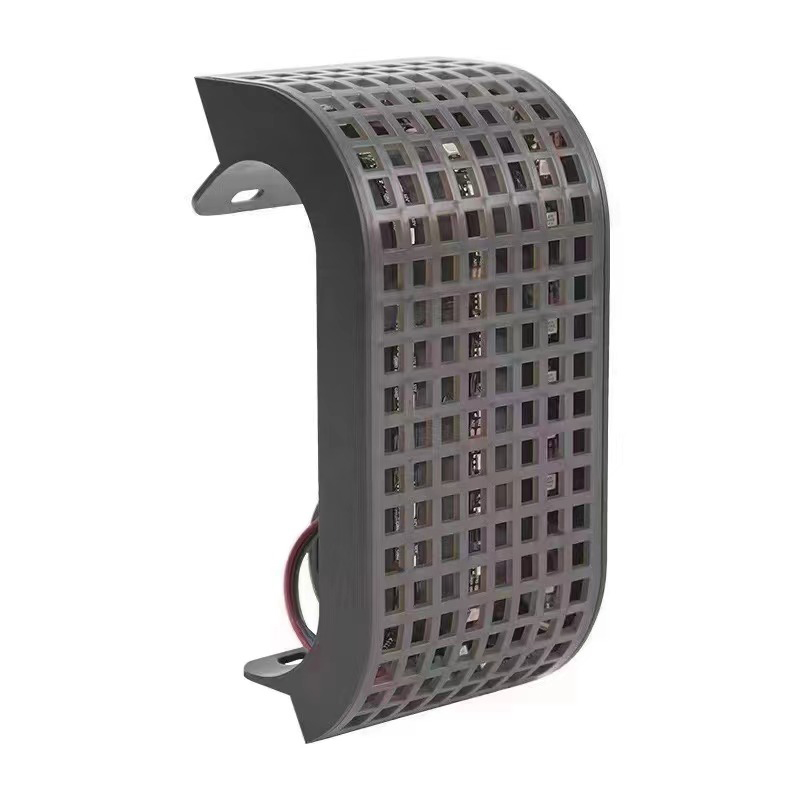

Turtle Shell Digital Colored LED Stage Lights, 5PCS

Model: TS-STAGE Review stars 0.0 (0 Reviews) Various options in stock
Price$78.98
Qty Discounts Off Price
1-19
$78.98
20-49
$75.03
50-99
$73.45
100+
$71.08
* Discounts may vary based on options below
Select Specifications:
Select Control Mode:
Select Input Voltage:
Qty: -+
Free shipping over $299Ships via DHL / UPSWarranty covered

Accept the project customization, please contact us for commercial offers and technical support.

  • Product Information
  • Reviews
  • Downloads
  • Images
  • LED Strip Light Guide

Product Information

Addressable LED tortoise shell lights for stage lighting design. These LED stage lights are designed to resemble the shape of tortoise shell, with built-in addressable RGB LEDs, can display various colored light effects to add appeal to the stage lighting. The effect is better when used with moving stage lights and stage wall lighting. Comes with 4pin JST connector, easy to connect and install.

These digital stage lights are compatible with TTL control signal, you can use K-1000C programmable controller, DMX512 to SPI decoder to program your desired results.



Specifications

Item: Turtle Shell Digital Colored LED Stage Lights

Input Voltage: DC12V

Power: 8W/pcs

Material: ABS

LED Color: Digital RGB

Size: 180*100*70m

Pixels: 12/pcs

Sold: 5pcs/pack





Reviews

Customer Experience

Your feedback is important to us! Share your thoughts and photos with other customers.

Downloads

Files for TS-STAGE
Need this page for a project file or an engineering check? Click Open PDF, then save or print it from your browser. For CAD drawings, IES files or a signed test report, contact our engineers and quote the model number.

Images

These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!

Turtle Shell Digital Colored LED Stage Lights, 5PCSTurtle Shell Digital Colored LED Stage Lights, 5PCSTurtle Shell Digital Colored LED Stage Lights, 5PCSTurtle Shell Digital Colored LED Stage Lights, 5PCSTurtle Shell Digital Colored LED Stage Lights, 5PCSTurtle Shell Digital Colored LED Stage Lights, 5PCSTurtle Shell Digital Colored LED Stage Lights, 5PCS

LED Strip Light Guide

Common questions about this type of product, answered against this model’s own options. For full figures see the specification above or the spec sheet for this model.

Which controller does this LED strip light need?
Addressable LED strip lights take a data signal, so they need an SPI (pixel) controller that supports this IC — an ordinary RGB controller will not drive them. Data flows one way: connect the controller to the input end marked with the arrow. Wiring addressable LED strip lights
Do I need power injection?
This model runs on 12VDC. 5 V addressable LED strip lights lose voltage fastest, so longer runs need power fed in at both ends and at intervals along the run; 12 V and 24 V versions carry further. Keep the data line short between controller and first pixel. Choosing an addressable LED strip light
Can I cut it to length?
Yes. Cut only on the marked cut lines between the copper pads — the cut interval for this model is on its spec sheet. Rejoin with solder or a solderless connector. Cutting LED strip lights · we can also cut to length and fit your connector before shipping: custom LED strip light assembly.
What size power supply do I need?
Take the watts per metre from the specification above, multiply by the length you are running, then add about 25% headroom. Power calculation guide · Choosing a power supply
