Special Price: $6.98 $4.9829% off

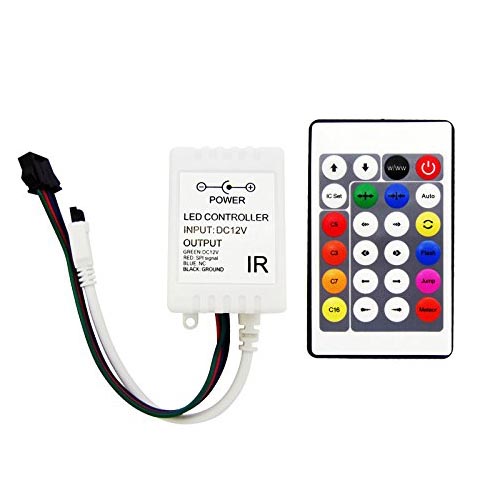

This Mini IR Wireless 24Key LED dream color controller is following the traditional with infrared, IR technology controller foundation, it is birth of market and customer's demand, RF Remote control,long distance,mini size,wire connection is simple and very easy to use, It makes the LED control more convenience, more Substantial. With 300 kinds of patterns,which are vivid and beautiful, Each controller can control up to 2048 pixels. Effect: 300 kinds of variations, covering the effects of the market for all Symphony controller mode, you can program any combination of 16 and automatically play. With user setting saving functionality. Brightness adjustable. Preventing reverse connection of power supply. use for DC12V WS2812B , WS2811 module or strip lights.
Standards and Certifications
Product Specification
Working temperature:-20-60℃
Input voltage: DC12V/WS2812B , WS2811
IC Control Quantity: 512
Built-in program: 300kinds
Remote control distance:< 30m

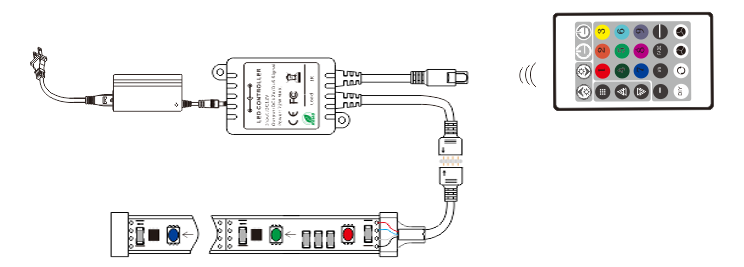

Connection Diagram
Applications
Interior Decoration: Club, bar, corridor, room, hotel, led aquarium lighting, museum, christmas, holiday, Retail LED lighting etc.
Exterior Decoration: Plaza, commercial buildings, parks, scenic spot, evening location, Sign illumination LEDs etc
Safety
Supply voltage of this product is 5/12 Volts DC, do not exceed.
Shorting output wires my cause damage to dimmer.
Always observe proper polarity when connecting power and load.
For indoor use only - this product is not waterproof or weatherproof.
Note
QUICK and SLOW speed buttons will only work when unit is in one of the color changing (dynamic) modes.
Connect according to the Wiring Schematic drawing.
Do not exceed 80% of Power Supply capacity when calculating Power Supply size to use in your system.
Package including
1x SP101 remote(including the battery)
1x remote controller
