New DC40V WS2811 32LEDs/m Addressable RGB LED Strip - 20m/65.6ft Without Voltage Drop Dream Color Flexible LED Lights

Model: WS2811-40V-5050X160
New DC40V WS2811 32LEDs/m Addressable RGB LED Strip - 20m/65.6ft Without Voltage Drop Dream Color Flexible LED Lights
  • New DC40V WS2811 32LEDs/m Addressable RGB LED Strip - 20m/65.6ft Without Voltage Drop Dream Color Flexible LED Lights
  • New DC40V WS2811 32LEDs/m Addressable RGB LED Strip - 20m/65.6ft Without Voltage Drop Dream Color Flexible LED Lights
  • New DC40V WS2811 32LEDs/m Addressable RGB LED Strip - 20m/65.6ft Without Voltage Drop Dream Color Flexible LED Lights

Select Specifications:

Select Length:

Starting at: $249.98 $232.987% off

Free worldwide shipping on orders over $199

Various options in stock
Qty Discounts Off Price
1-4
$232.98
5-14
$225.99
15-49
$214.34
50+
$198.03
* Discounts may vary based on options above
Qty: -+

DHL, UPS and USPS are delivered to your door, any needs please note at checkout.

Accept the project customization, please contact us for commercial offers and technical support.

Related Products

  • Product Information
  • Reviews
  • Accessories
  • Images
  • LED Strip Lights Guide

    Feature

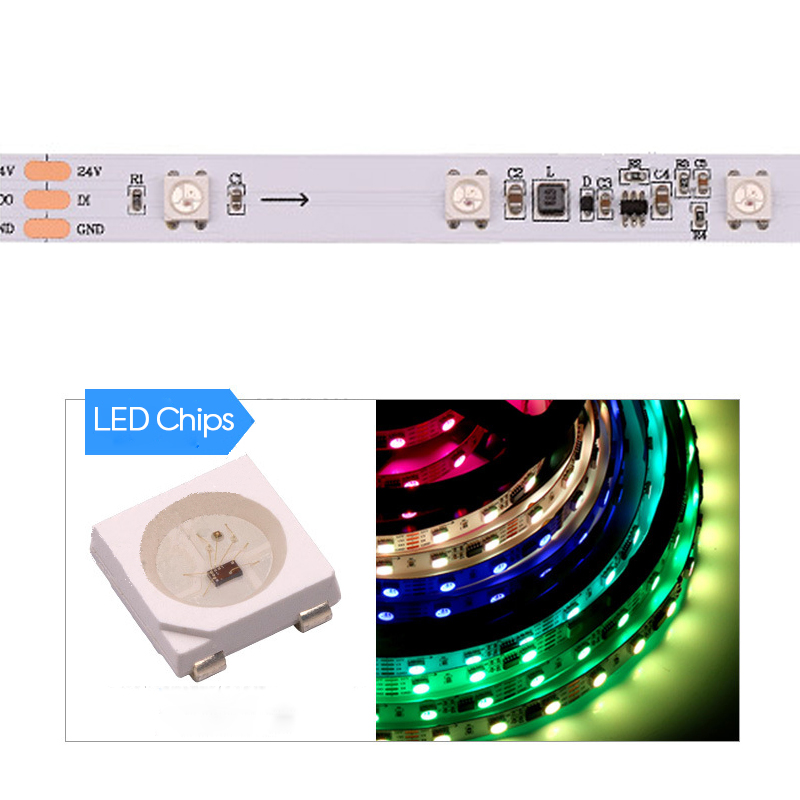

    1. New WS2811 Addressable RGB Full color LED strip lights design, adopt 40 voltage, less voltage than 12V and 24V common RGB lights. 20m/65.6ft without voltage drop, just need to power at one end of the strips. For 40m strips, just need to power at both ends, very suitable for larger and long-distance LED lighting projects.

    2. Every 4 LEDs be controlled by one digital WS2811 IC, and with the Constant current regulator components, so even running 20m LED lights, the brightness of start will be the same as the end.

    3. Low light decline and long lifespan, environmental protection, and energy-saving, high brightness, large scattering angle, good consistency, low power.

    4. Flexible and soft, using good quality FPC materials, easy to bend, convenient to get the length you need, also be better at heat dissipation.

    5. Non-waterproof IP20 and IP67 waterproof optional, apply for indoor ceiling LED lighting or outdoor cove LED lighting. IP20 version with adhesive backing tape, IP67 version need mounting brackets



    WS2811 Chips Specifications Download   PDF



    Standards and Certifications

     CE FCC UL RoHS ISA SGS ISO LIFETIME warranty



    Product Specification

    LED Strip Type:   SMD 5050   DreamColor

    LED Chip:   WS2811 IC super brights Chip

    Working Temperature:   -4°F (-20°C) ~ 122°F (50°C)

    Storage Temperature:   -40°F (-40°C) ~ 176°F (80°C)

    Dimension:   65.6ft(20m)/roll, every 4 PCS LED can be cut

    LED Quantity:   32 LEDs per 1meter (3.28 ft)

    IC Quantity:   8 LEDs per 1meter (3.28 ft)

    Dimensions:     L2000cm(787.4 in ) x W1.0cm(0.39 in ) x H0.25cm(0.10 in )

    Input Voltage(V):   40VDC

    Working Power:   192W/65.6ft  Max  9.6W/m

    Lumen Per LED:   20~22Lumen   14080lm Max /65.6ft

    Wavelength NM(RGBY):   2000-2500mcd

    Beam Pattern:   120 degree

    WaterProof:   Non-waterproof  IP20, waterproof IP67

    Lifespan:   50,000+hours



    Waterproof Level Description

    IP20 IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);

    IP65 IP65 Waterproof (Epoxy cover waterproof, PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, For Outdoor & Indoor);

    IP67 IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);

    IP68 IP68 Waterproof (Fully waterproof plastic irrigation, PCB both surface and back are encapsulated with plastic Gel, with a plastic fastener, the top level of waterproof, For Outdoor);

    led strip waterproof level



    Installation Instruction

    how to cut led strip                       led strip adhesive tape                       led strip light mounting brackets

    arrow You can cut the strip every few inches,                     arrow The back of the strip is fitted with a strong                   arrow IP67/IP68 type which will needs

    allowing you to freely design your project                    3M tape, allowing you to peel and stick lights                 mounting brackets

    without worrying about space requirements

    to many different surfaces.



    Applications

    1. LED programmable digital display

    2. Hotels decoration use

    3. Backlighting decoration

    4. Concealed lighting, Cove decoration

    5. Theaters, clubs, shopping malls lighting

    6. Architectural decorative lighting

    7. Boutique atmosphere lighting

    8. Auditorium walk stairway lighting

    9. Hidden groove, Wine cabinet decoration

    10. Show exhibition decoration

    digital rgb addressable led strip applications

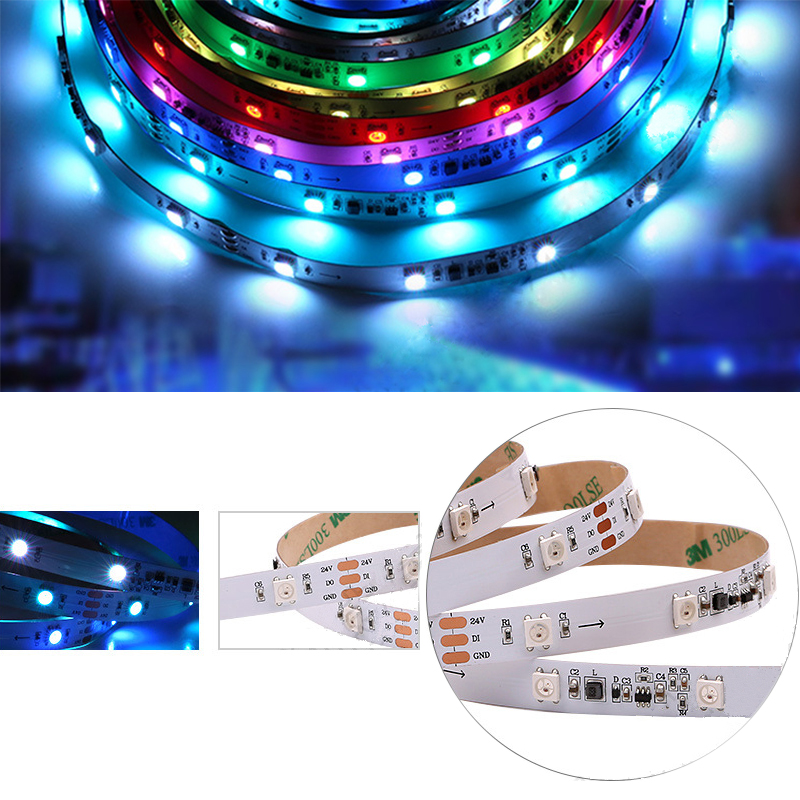

    New DC40V WS2811 32LEDs/m Addressable RGB LED Strip - 20m/65.6ft Without Voltage Drop Dream Color Flexible LED Lights
