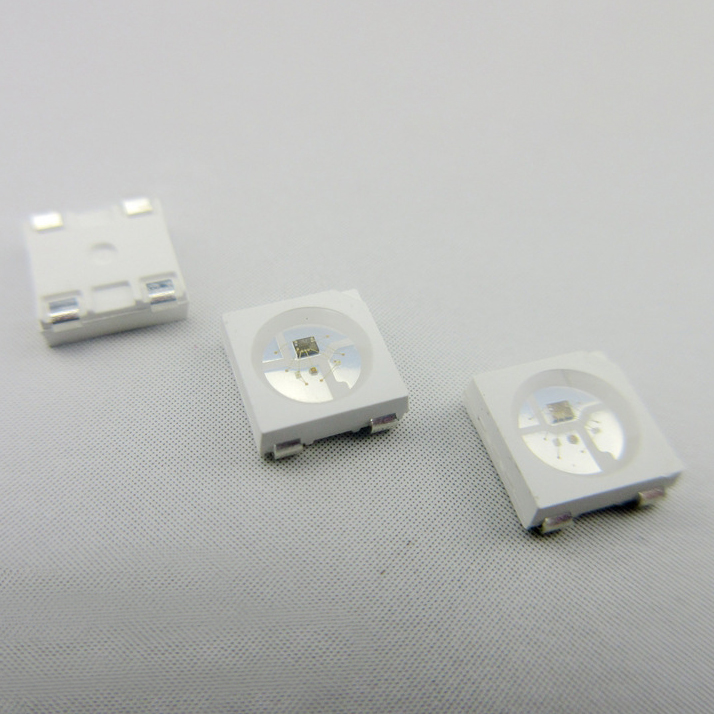

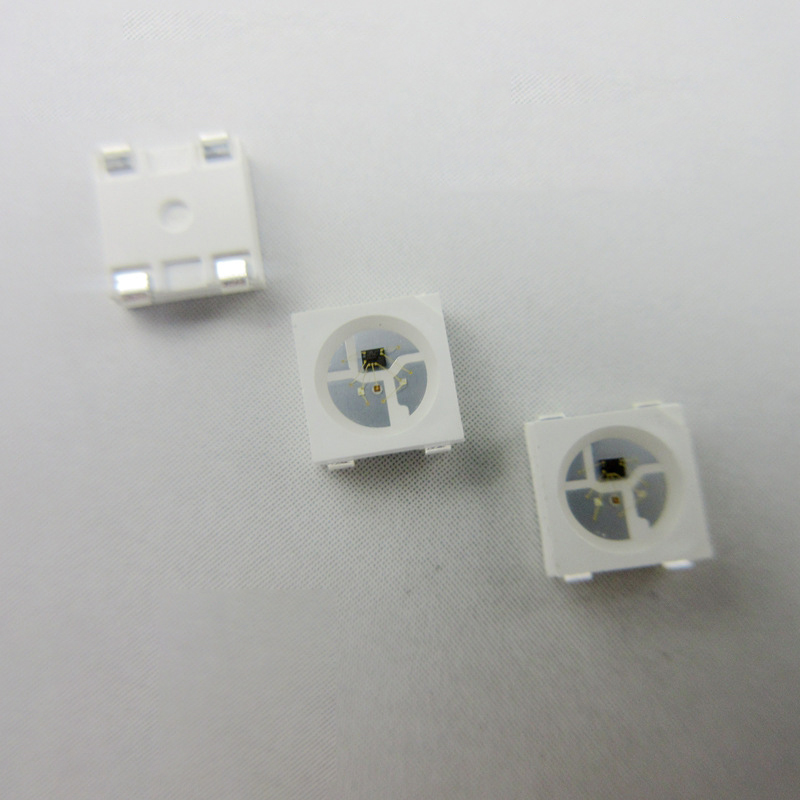

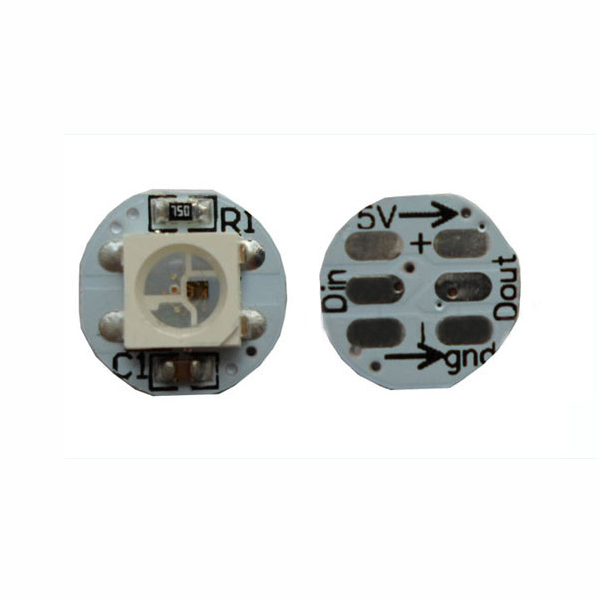

APA104 RGB 5050SMD Built-in Digital Intelligent Addressable LED Chip, DIY LED Chip, 500PCS By Sale
Product description
APA104 is a intelligent controlled light source that the control circuit and RGB chip are integrated into a package of 5050 components. It internal include an intelligent digital port data latch and signal reshaping amplification drive circuit. Also include a precision internal oscillator and a 12V voltage programmable constant current control part, effectively ensuring the pixel point light color height is consistent. The data transfer protocol uses a single NZR communication mode. After the pixel power-on reset, the DIN port receive data from the controller, the first pixel collects the initial 24bit data then sent to the internal data latch, the other data which reshaping by the internal signal reshaping amplification circuit is sent to the next cascade pixel through the DO port. After transmission for each pixel, the signal to reduce by 24bit. pixel adopt auto reshaping transmit technology, making the pixel cascade number is not limited to the signal transmission, only depend on the speed of signal transmission. LED with low driving voltage, environmental protection and energy-saving, high brightness, scattering angle are large, good consistency, low power, long life and other advantages. The control chip integrated into LED above becoming a more simple circuit, small volume, convenient installation.
Product Features
1. Intelligent reverse connects protection, the power supply reverse connection does not damage the IC.
2. The control circuit and the LED share the only power source.
3. Control circuit and white chip are integrated into a package of 5050 components, form a complete control of pixel point
4. Built-in signal reshaping circuit, after wave reshaping to the next driver, ensure wave-form distortion does not accumulate.
5. Built-in electric reset circuit and power lost reset circuit.
6. Each pixel of the three primary color can achieve a 256 brightness display, full-color display, and scan frequency not less than 400Hz/s.
7. Cascading port transmission signal by a single line.
8. Any two points the distance more than 5m transmission signal without any increase circuit.
9. When the refresh rate is 30fps, cascade numbers are not less than1024 points.
10. Send data at speeds of 800Kbps.
11. The color of the light were highly consistent, cost-effective..
12. White module, White color soft lights a lamp strip.
13. LED decorative lighting, Indoor/outdoor LED video irregular screen.
14. Superbright 5050 SMD top LED, high intensity and reliability.
15. Long life span 50,000+ hours
16. Flexible ribbon for curving around bends
17. Low power consumption
Standards and Certifications
Specifications
LED Chip: APA104
LED Model: 5050 RGB LED
Voltage: 5V
Power: 0.3w/pcs
Current: 20mA per color , 60mA total at full brigtness
Color: RGB full color ,24 bit ,256 gray scale
PCB Dimension: 10mm*3mm/0.39*0.12in
Viewing Angle: 120 degrees
Lifespan: 50000 hours
LED Quantity: 500pcs
Protection Rate: Non-waterproof
