WS2812B 8x16 Neopixel Matrix 5050 RGB Individually Addressable LED Light

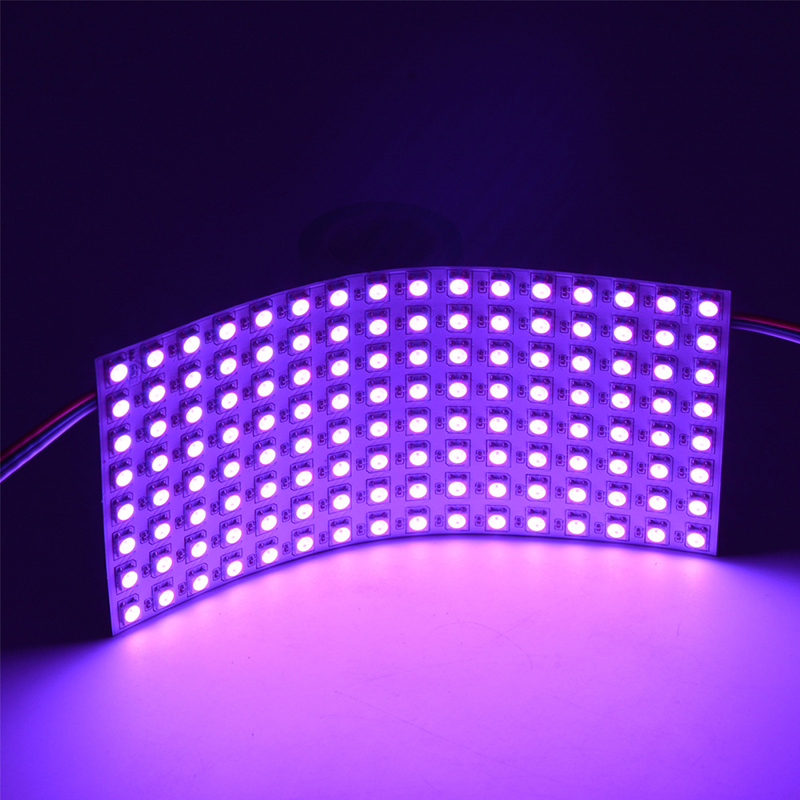

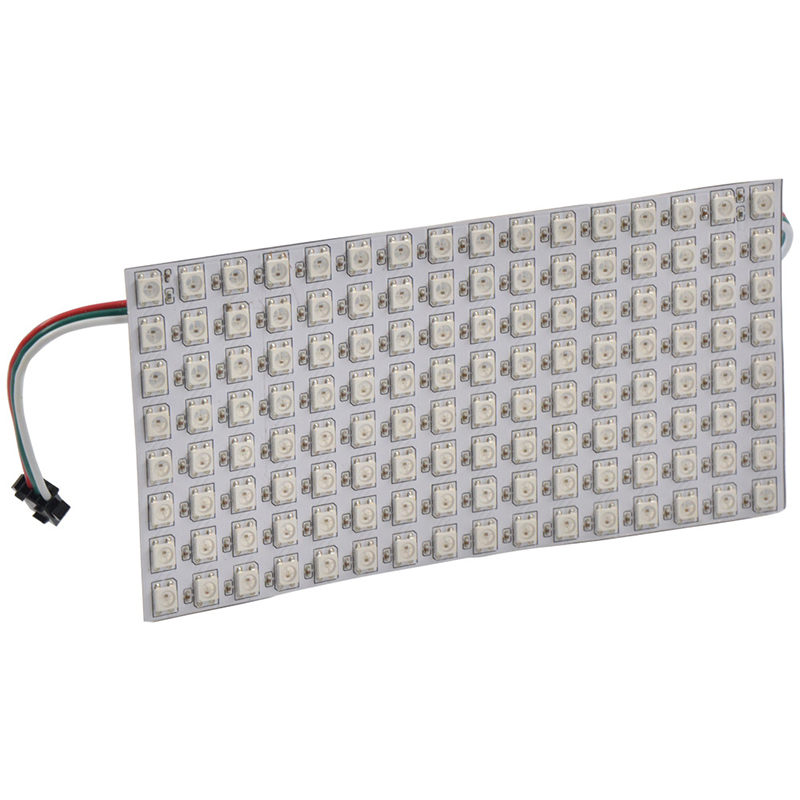

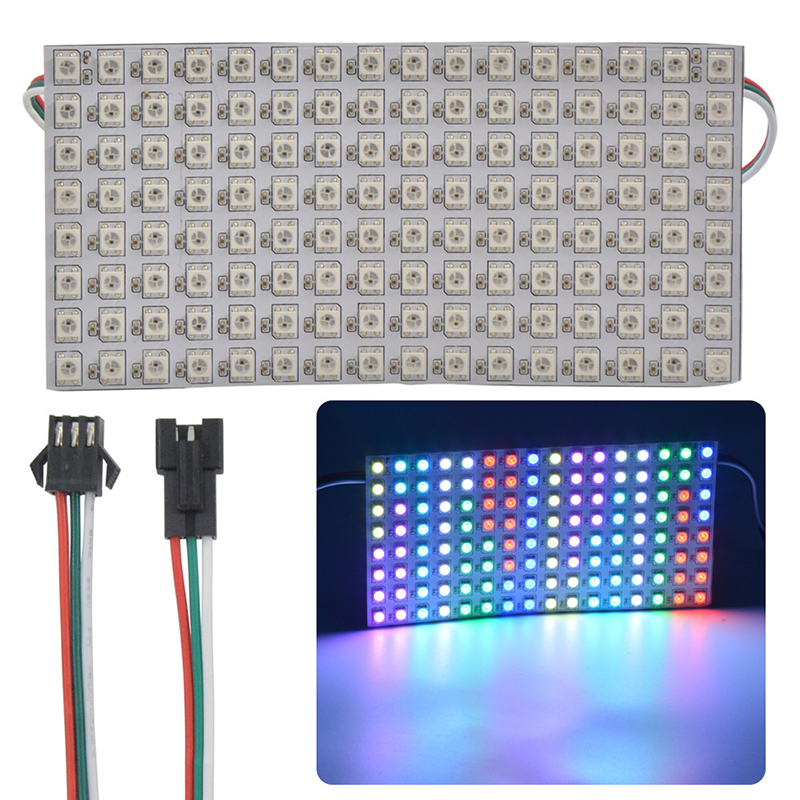

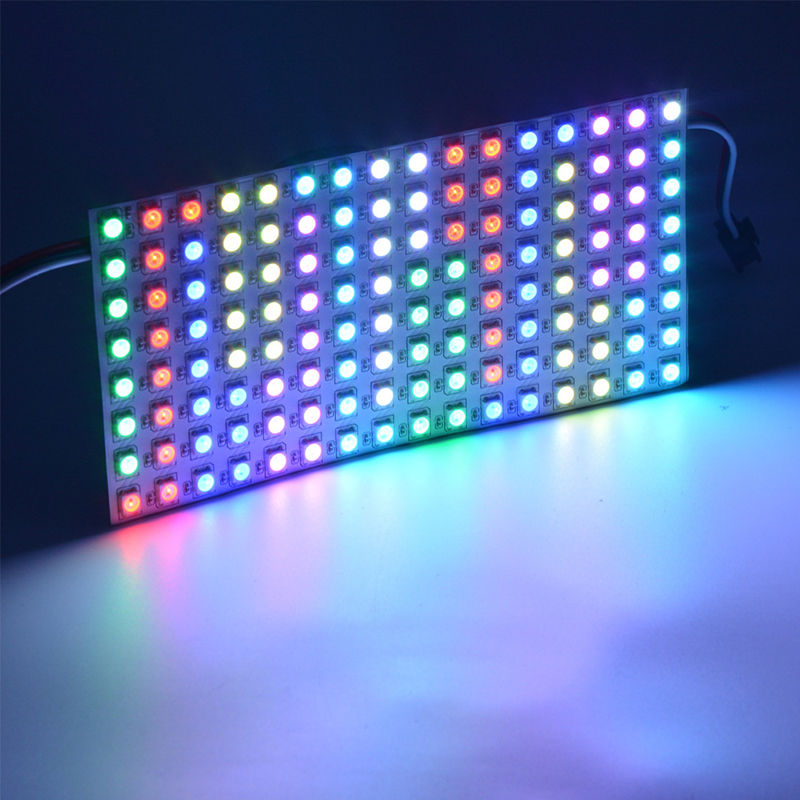

Superlightingled's 8*16 flexible board pixel screen has the advantages of small size, lightweight, arbitrary bending and convenient carrying. The pixel screen uses WS2812B as the basic unit, 8 pixels and 16 pixels are arranged horizontally and vertically, and the distance between pixels is 1cm. Neopixel lightsaber can meet the requirements of displaying complete Chinese characters. At the same time, with the help of an external controller, it can display animation, numbers, English, video and other styles. It has the advantages of low voltage drive, environmental protection and energy saving, high brightness, ultra-low power consumption and long life. A simple, powerful and perfect built-in IC series flexible pixel screen can not only display characters, run animations and run effects, such as a traditional LED pixel screen, but you can also display any effect you want anytime, anywhere.
WS2812B is an intelligent externally controlled addressable RGB LED light source integrating control circuit and light-emitting circuit. Its appearance is the same as a 5050LED lamp bead, and each element is a pixel. The pixel point contains an intelligent digital interface data latch signal shaping amplification drive circuit, a high-precision internal oscillator and a 5V high-voltage programmable constant current control part, which effectively ensures the colour height of the pixel point light is consistent.
The data protocol adopts a single-wire return-to-zero code communication method. After the pixel is powered on and reset, the DIN terminal accepts the data transmitted from the controller. The first 24bit data sent is extracted by the first pixel and sent to the pixel. After the remaining data is reshaped and amplified by the internal shaping processing circuit, the remaining data is forwarded and output to the next cascade pixel through the DO port. After each pixel is transmitted, the signal is reduced by 24bit. Neopixels adopt automatic shaping and forwarding technology so that the number of cascaded pixels is not limited by signal transmission, only limited by signal transmission speed requirements.
Neopixel matrix LED has the advantages of low voltage drive, environmental protection and energy saving, high brightness, large scattering angle, good consistency, low power and long life. Integrating the control circuit on the LED makes the circuit simpler, smaller in size, and easier to install.
Note: Flexible PCB is not suitable for repeated bending!
Standards and Certifications
Work Voltage: DC5V
LED Quantity: 128leds
LED Color: RGB
IC Chip: WS2812B
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
