ECO RGB WS2812B LED Strip Individual Addressable 300LEDs

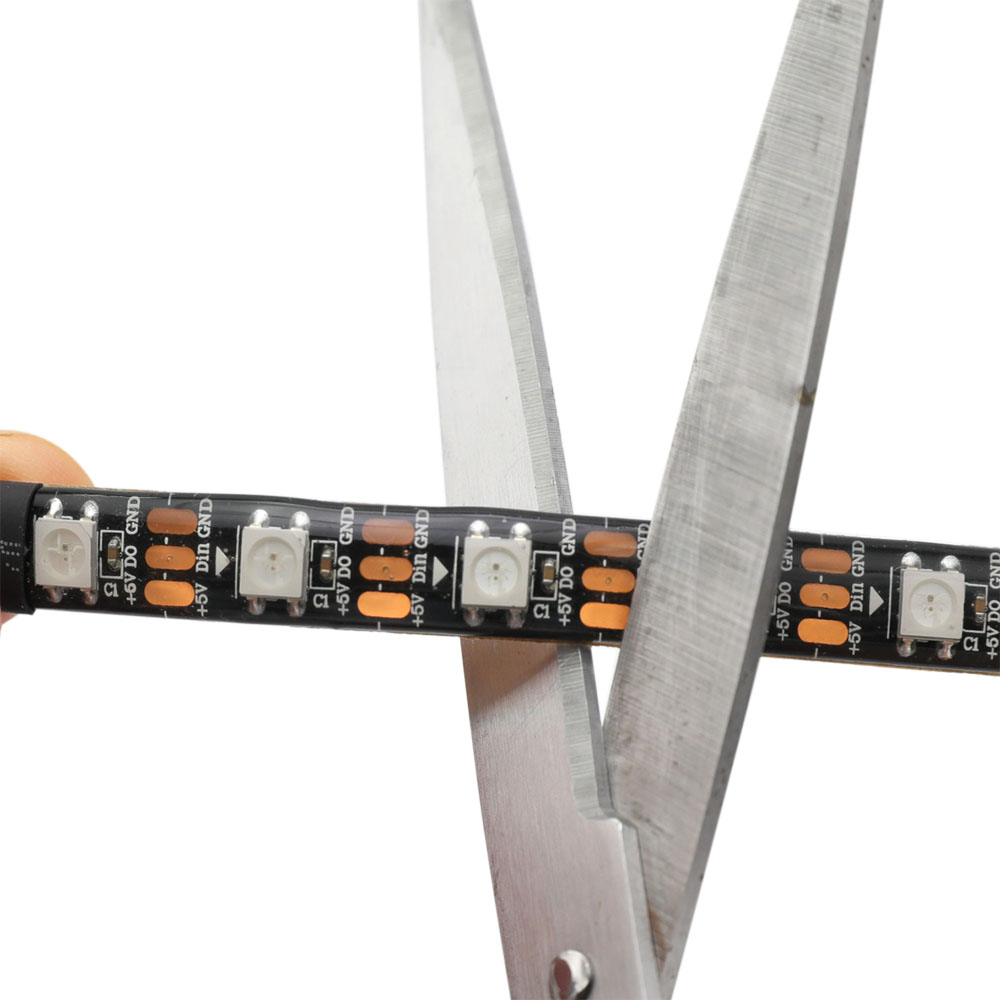

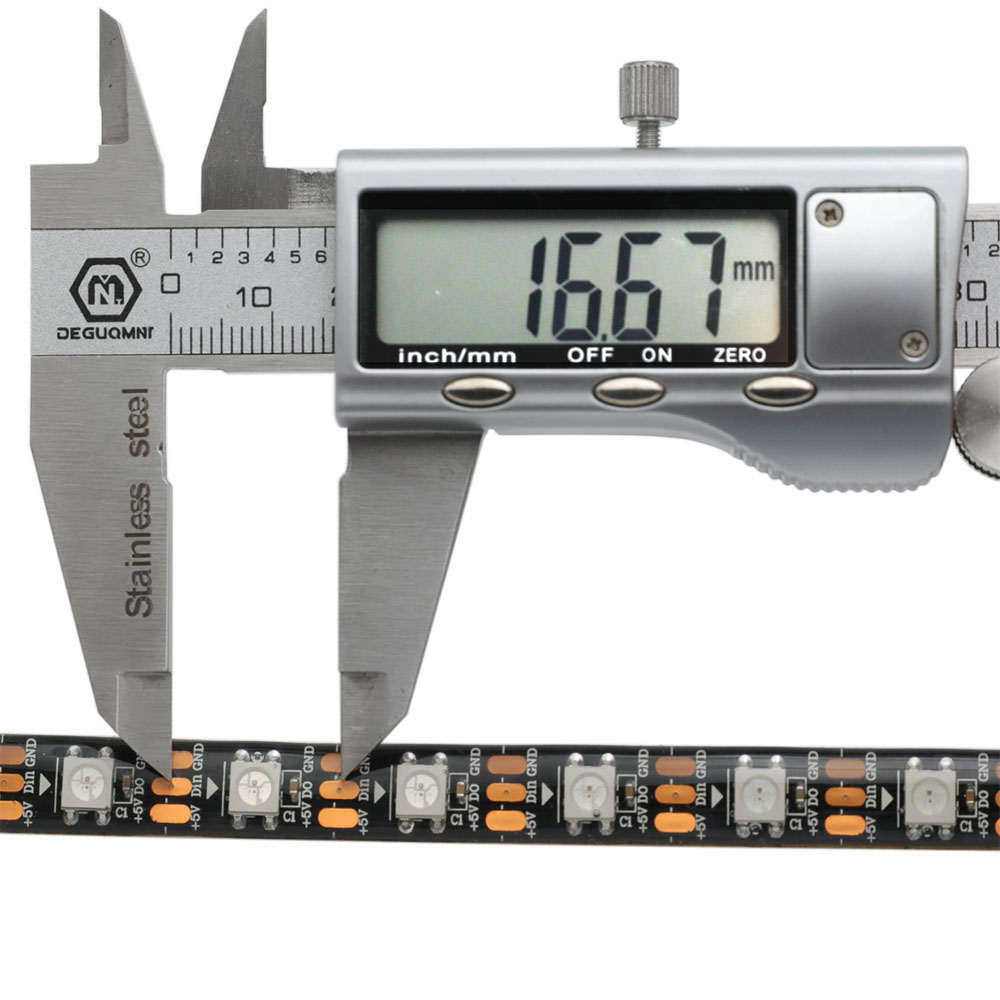

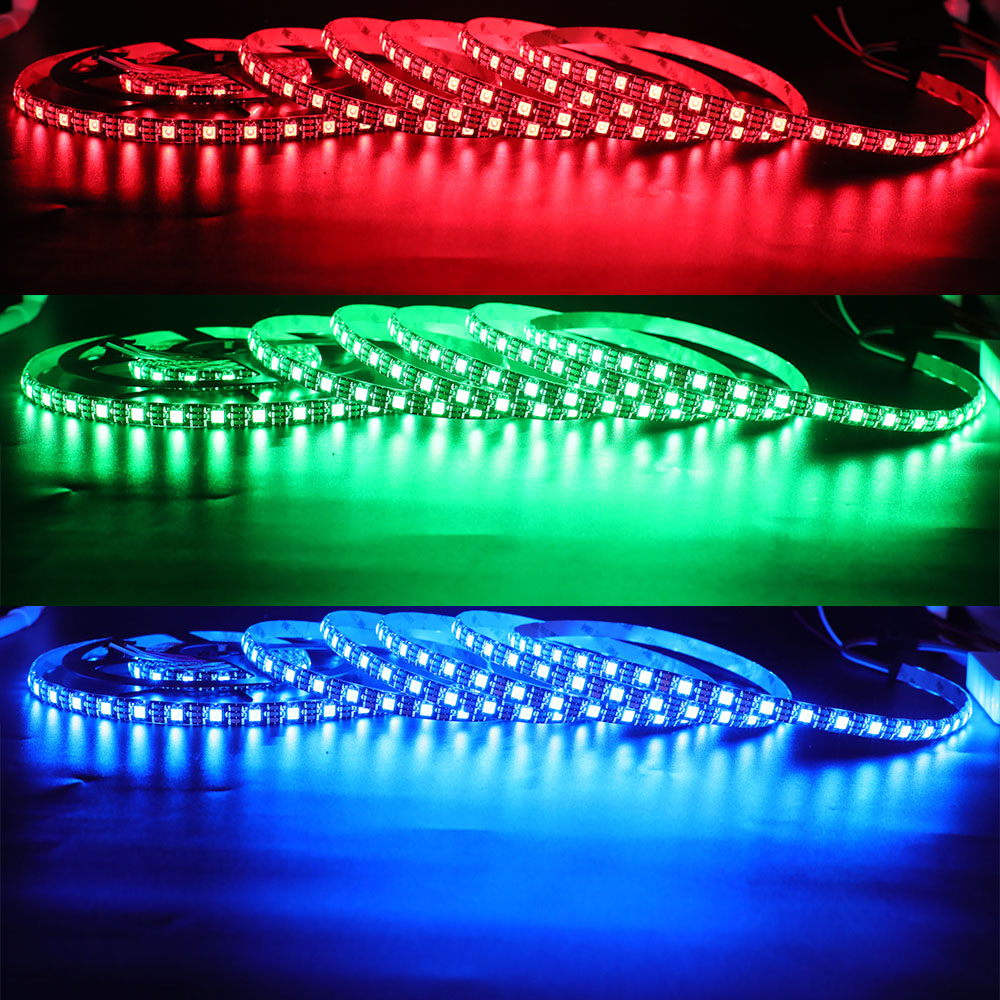

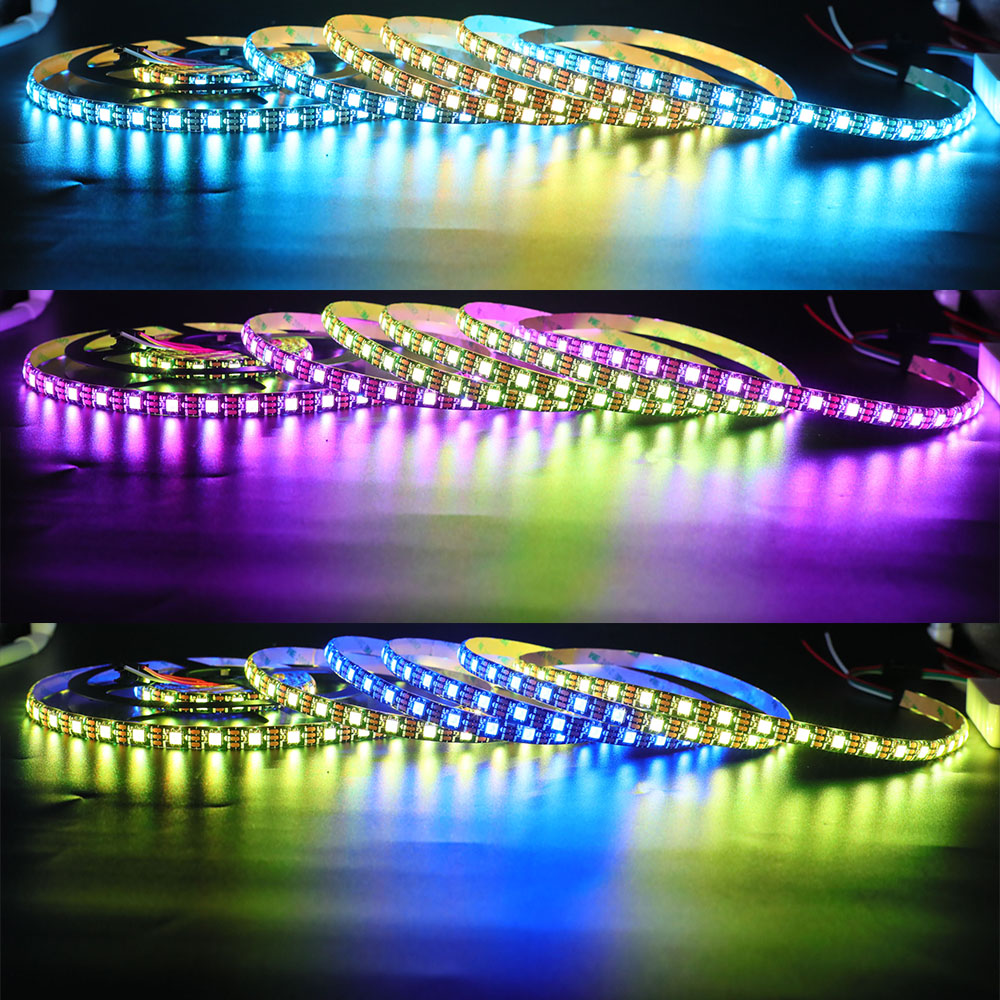

16.4ft individually addressable WS2812B led strip for sale. 60 lights per meter, each LED is a pixel. 16.67mm/0.65" segment can be cut. The WS2812B ICs are built inside 5050 RGB LEDs, and each RGB light is allowed to produce a different color via the SPI controller.
This WS2812B light strip is cost effective for project source lighting. It requires a 5V 20A 100W switching power supply to drive.

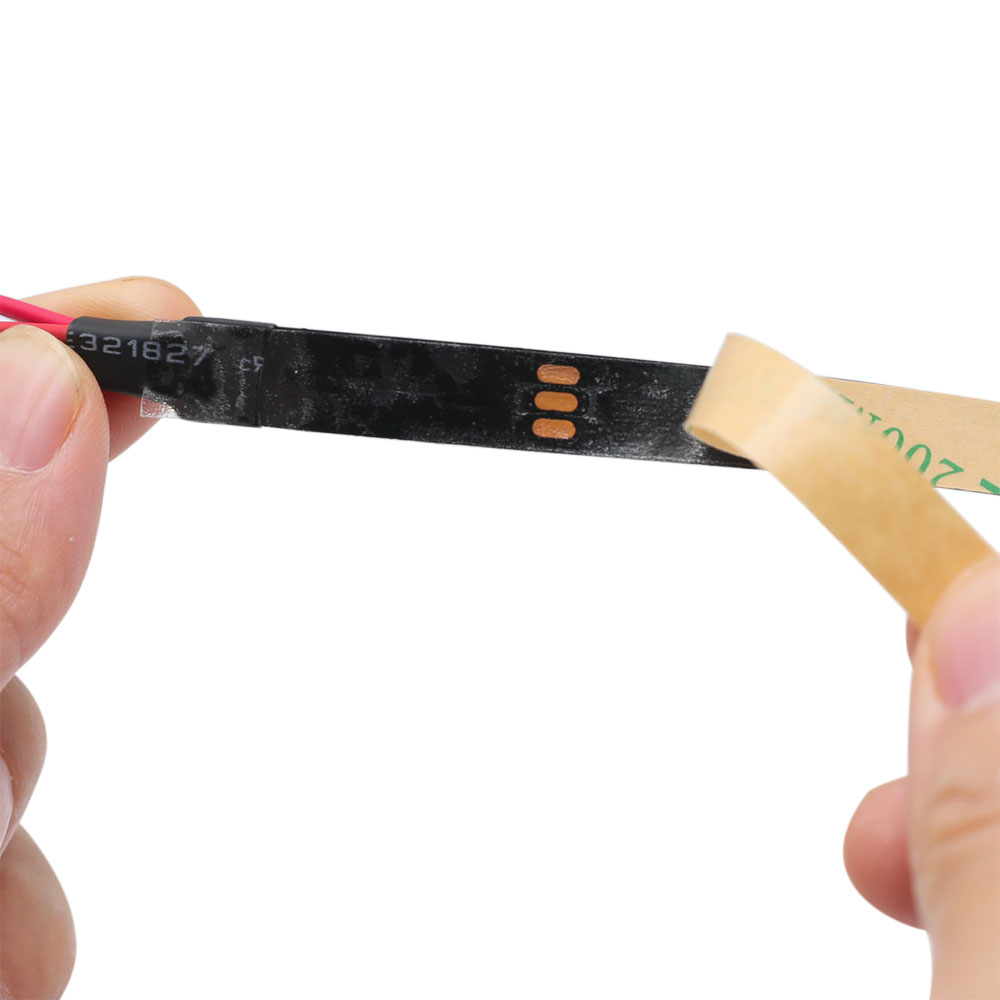

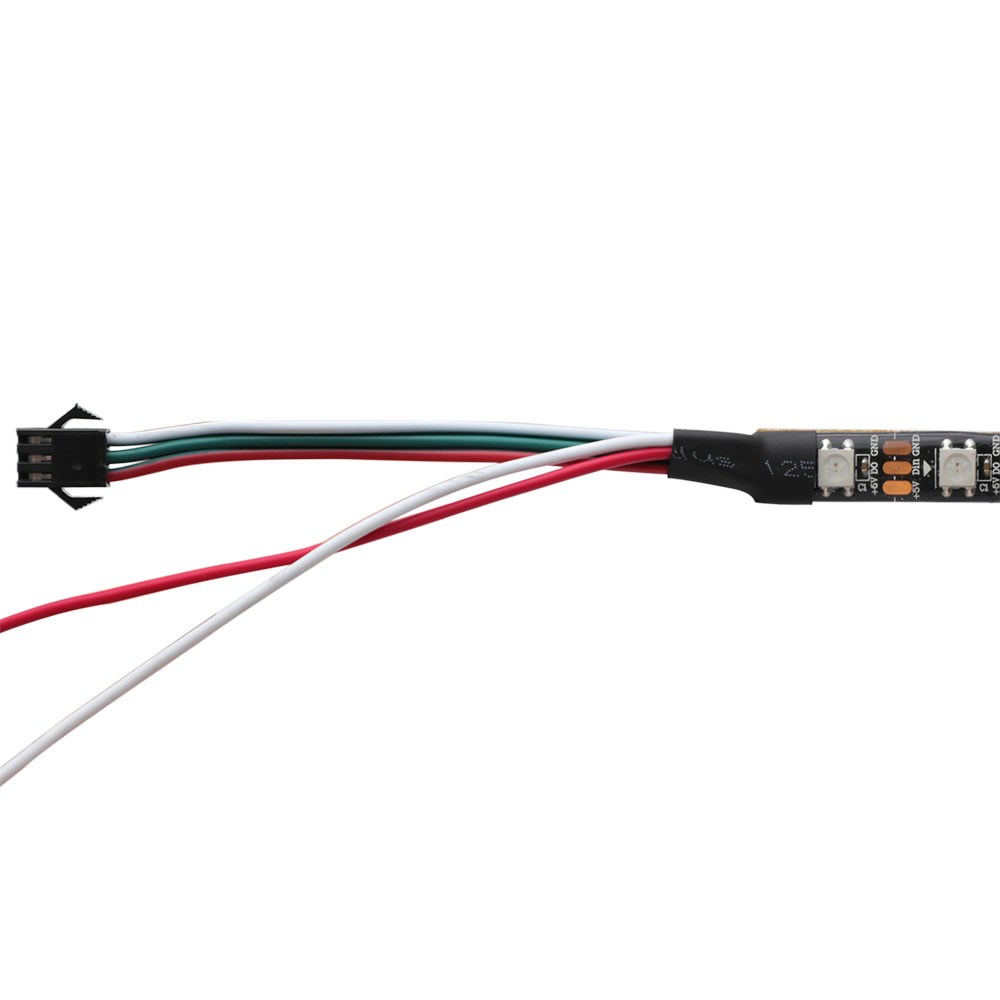

The 3M back tape, JST connector and power wire at both ends make the installation and connection very convenient. You can also use aluminum profiles (sold separately) to even the light.
Standards and Certifications
|LED Strip Type:||SMD 5050 WS2812B Dream Color 300LEDs/16.4ft|
|LED Chip:||WS2812B IC Chip (Built-in)|
|Working Temperature:||-4°F (-20°C) ~ 122°F (50°C)|
|Storage Temperature:||-40°F (-40°C) ~ 176°F (80°C)|
|Dimension:||L500cm(196.8 in ) x W1.0cm(0.39 in ) x H0.25cm(0.10 in )|
|LED Quantity:||60 LEDs per 1meter (3.28 ft)|
|Cut Segment:||Every LED|
|Input Voltage(V):||5 VDC|
|Working Power:||90W /16.4ft Max|
|Lamp Luminous Flux(lm):||20~22Lumen|
|Beam Pattern:||120 degree|
|Waterproof:||Non-waterproof IP20, waterproof IP65 IP67 IP68|
WS2812B Wiring Diagram:
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
