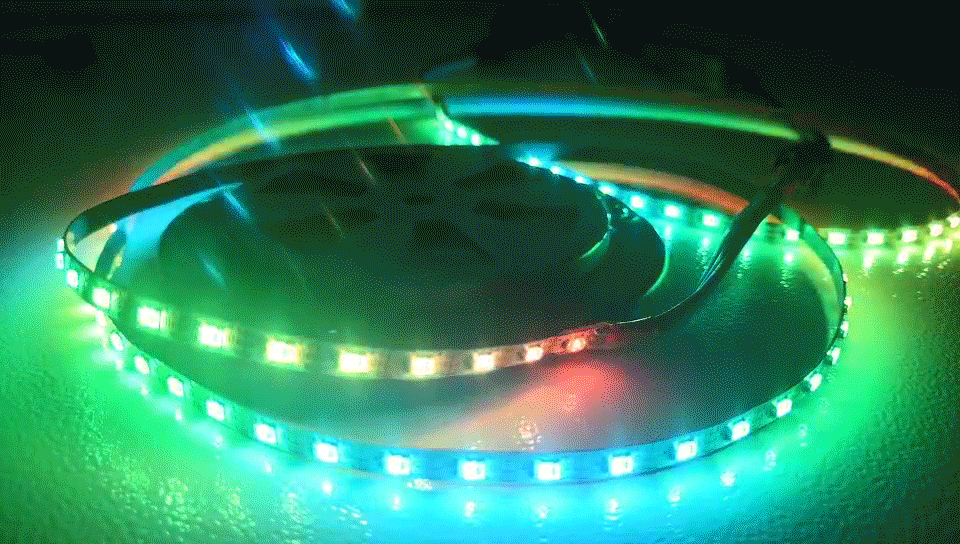

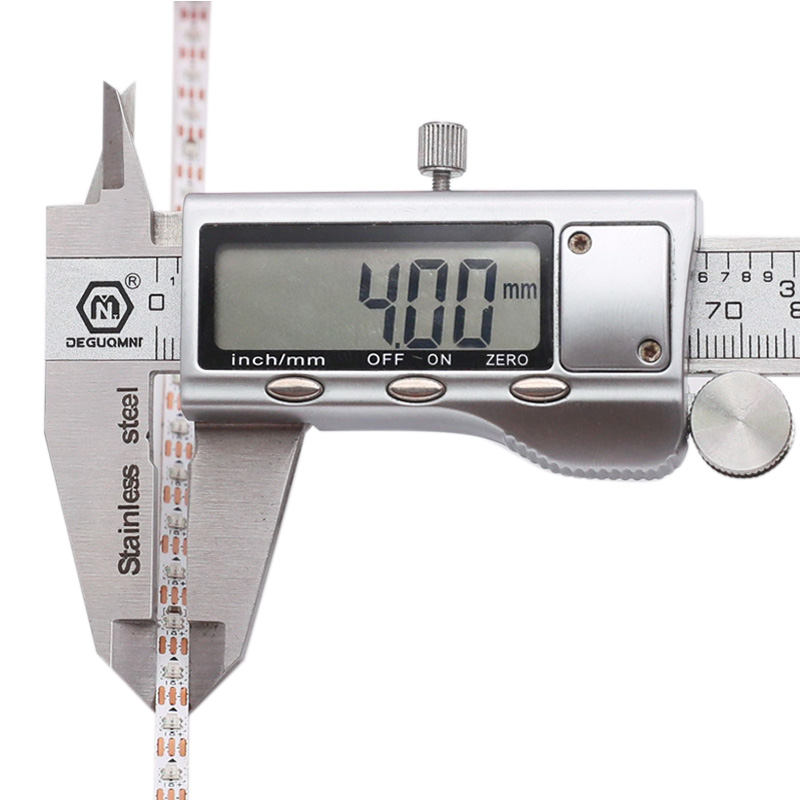

4MM WS2812C Individually Addressable RGB LED Strip Light 120LEDs/m, 3.28ft/1m
The WS2812 addressable LED light strip uses DC5V power supply with a high safety factor. The light source uses imported chips, high brightness, low light decay, maintenance-free, energy saving, environmental protection, and long life. Therefore, more and more people choose LED light strips as decoration and lighting.
This WS2812C led stirp has 256 grey levels, fast data transmission, fast screen refresh, and use with the led controller to achieve monochrome, gradual change, running water, horse racing, chasing, dream, right Bump, text, numbers, English, pictures, animation, video and other effects.

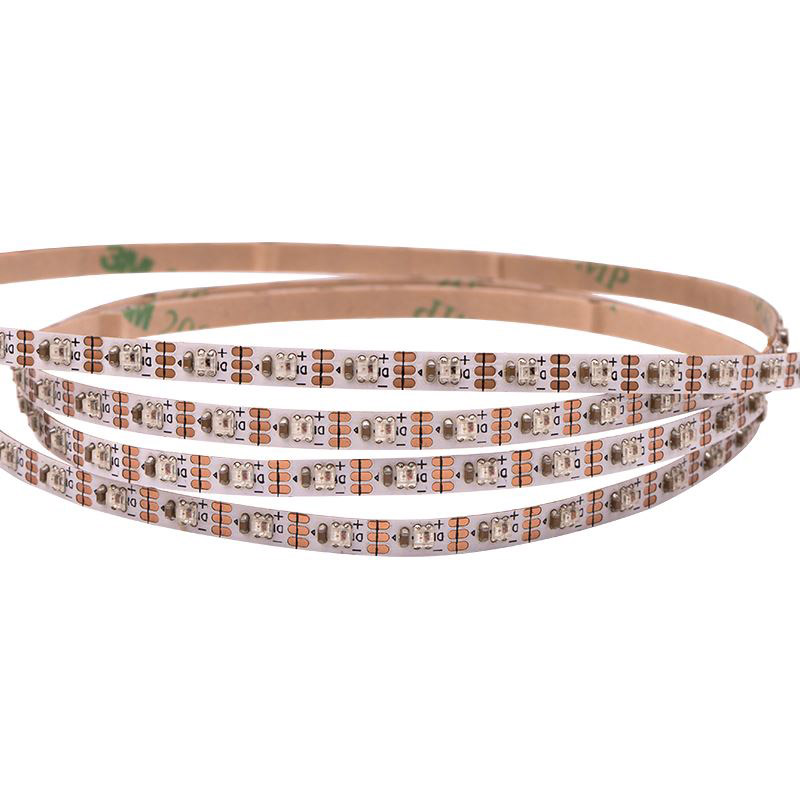

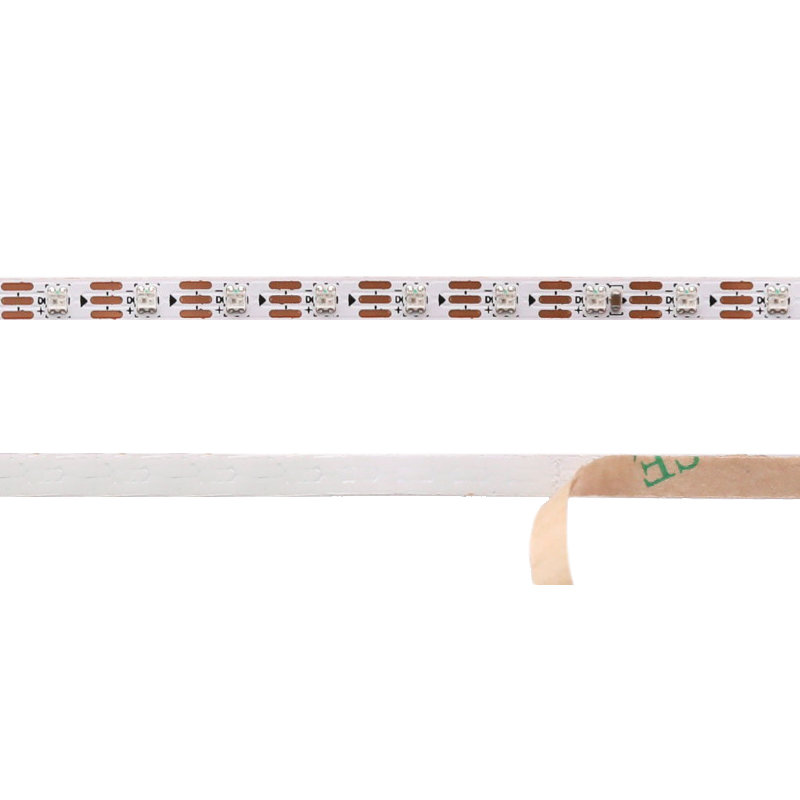

The WS2812B led light strip uses FPC as the assembly circuit board and uses SMD LEDs and original parts to assemble, so that the thickness of the product is only the thickness of a coin, with a small volume and a small space occupation. Flexible FPC material can be cut and wound at will, not easy to break, suitable for use in irregular places and places with small spaces. The LED lamp bead is designed with built-in IC, with few originals, high pixels, neat and beautiful appearance, suitable for advertising, lighting and decoration.

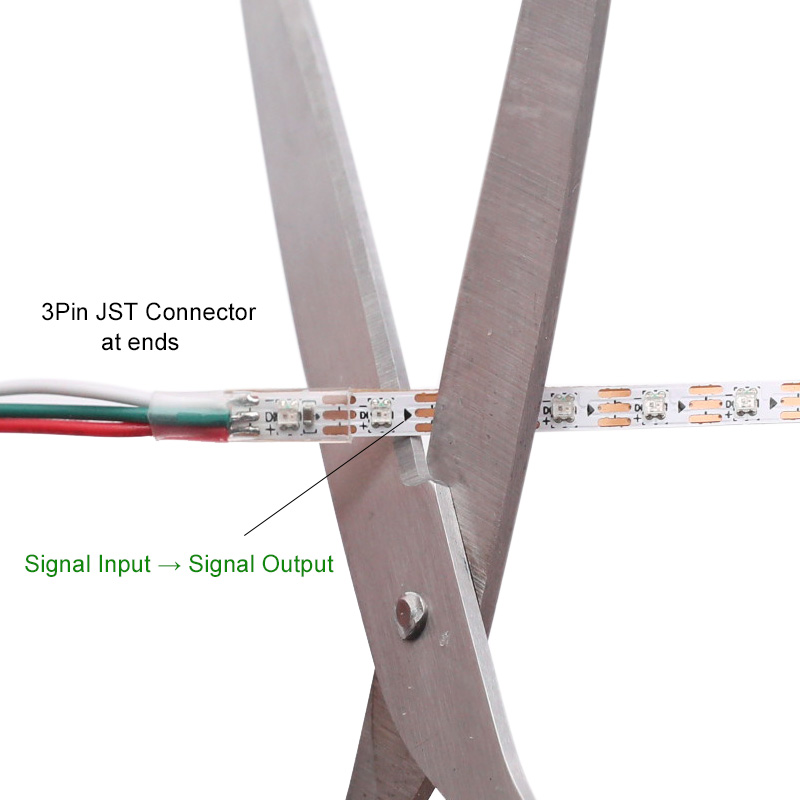

Each LED light forms a loop, which can be cut at the loop according to the required length without damaging other parts;
Easy to install and fix, flexible and convenient to cut to make the construction operation simple;
Waterproof grade is optional: non-waterproof (IP20), silicone casing (IP67).
►Everything you need to know before you buying led strip lights
►What you need to know about addressable led strips knowledge
Standards and Certifications
|LED Strip Type:||SMD 2020 LED|
|LED Chip:||WS2812B (built-in IC)|

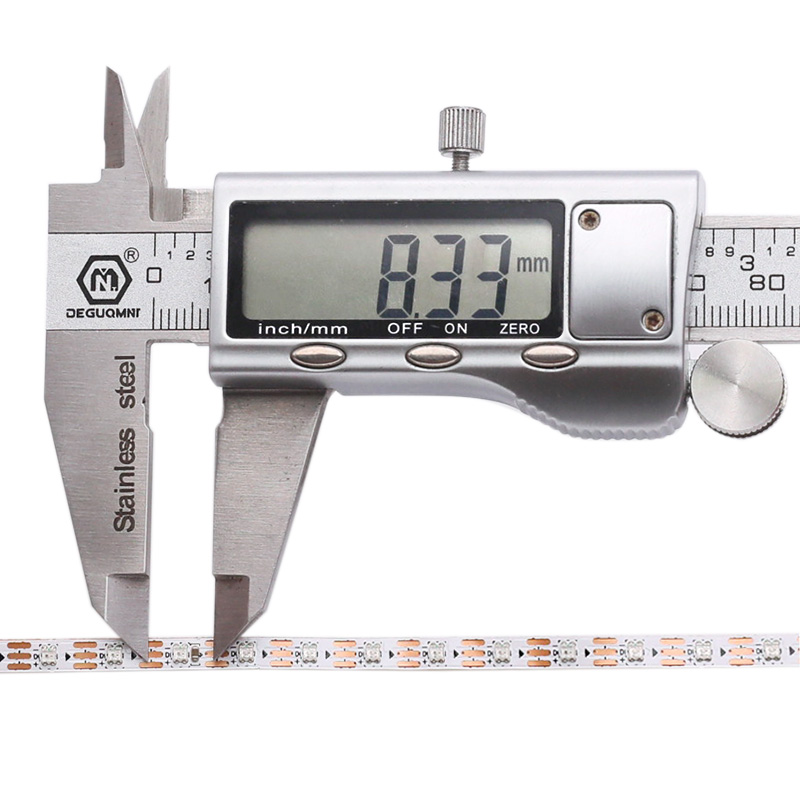

|LED Quantity:||120 PCS/M|
|LED Color:||Full color RGB, dream color changing|
|Working Power:||30W ±10% / M|
|Beam Pattern:||120 degrees|
|Waterproof Rating:||Non-waterproof IP20 (Bare strip for indoor), IP67 waterproof (Sealed in silicone tube, for outdoor)|
|Working Temperature:||-4°F (-20°C) ~ 122°F (50°C)|
|Storage Temperature:||-40°F (-40°C) ~ 176°F (80°C)|
Addressable LED Strip Lights Wiring Diagram
|►Connection method one:|
*SPI LED Strip lights wiring diagram with 5m*
|►Connection method two:|
*SPI LED Strip lights wiring diagram with 10m*
|►How to connect the 3-pin JST connector to the Breakpoint Resume LED strips?|
|►How to power addressable LED strip and SPI controller using different voltage power supply?|
|►How to wire a ultra long addressable led strip lighting?|
*SPI LED Strip lights wiring diagram with 20m+*
1) Do not use any acidic, alkaline adhesive fixing Product;
2) It is prohibited to make products with a hard object collision, friction;
3) Do not use your fingers to press LED;
4) Don’t make positive and negative reversed;
5) Don’t install when the product is working;
6) Installation, repair, and maintenance must be made by a professional Person;
7) Before you use them make sure the power supply voltage meetss the requirements and wire connection correctly.
Urban outline lighting, such as villas, advertising walls, signboards, Christmas landscape decoration;
Irregular design decoration, such as multi-deformable walls in shopping malls, hotels, nightclubs, KTV places, and ceiling groove design lights;
Public lighting, such as hospitals, villas, bridges, parks, stadiums, swimming pools, airports, subway stations, stations, etc.;
Furnishing concealed grooves, such as door frames, bar counters, wine cabinets, wardrobes, TV cabinets, etc.;
Car beauty, such as car body, car bottom, unicycle, balance car, etc.;
