Super Thin 4mm WS2812C 2020 Pixel RGB LED Strip 1m 200 LEDs

Name: Super Thin 4mm WS2812C 2020 Pixel RGB LED Strip 1m 200 LEDs
Brand: SuperLightingLED
SKU: WS2812C-2020-200W4
Price: 12.98 EUR
Availability: InStock

Model: WS2812C-2020-200W4 Review stars

0.0 (0 Reviews) Various options in stock

Starting at: €18.53 €11.4638% off

Qty Discounts Off Price
1-19 €11.46	20-49 €11.29	50-99 €11.00	100+ €10.77
* Discounts may vary based on options below

Select Specifications:

Select Input Voltage:

Select Length:

3.28ft (1 meter)

Select Waterproof Rating:

Qty: -+

Free shipping over $299Ships via DHL / UPSWarranty covered

Accept the project customization, please contact us for commercial offers and technical support.

Product Information

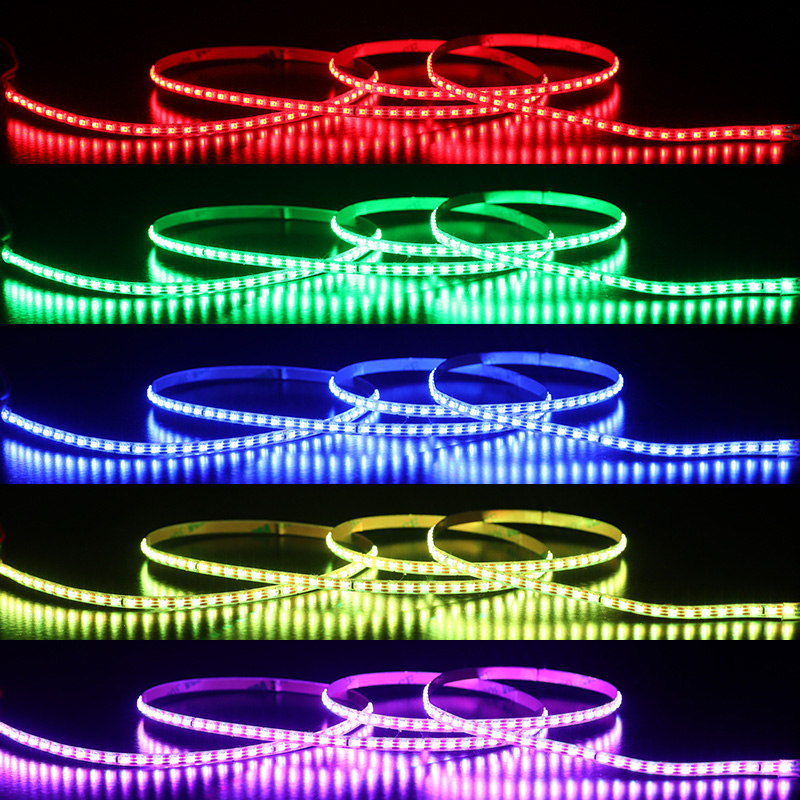

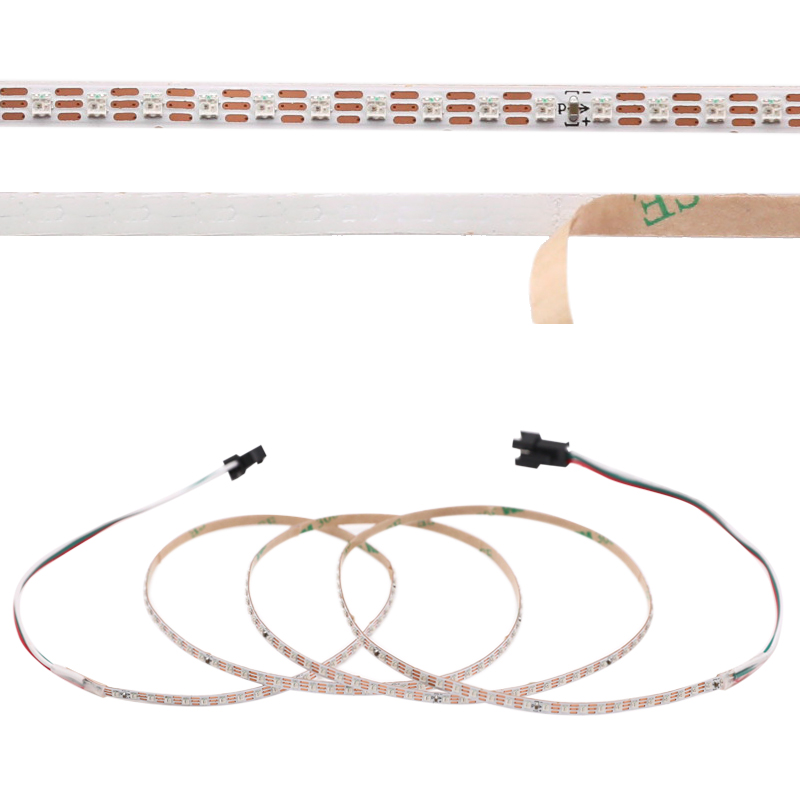

Check our highest density 200LEDs/m WS2812C 2020 4mm wide super slim led strip light. This extremely thin led strip features individually addressable WS2812C 2020 (2.0mm x 2.0mm) RGB LEDs, intelligent control, allowing for various LED colorful effects and animations to be displayed.

The compact size of the WS2812C 2020 digital rgb led strip is suitable for applications where a slim design is required. It operates on a 5V voltage and is supplied in 1-meter/3.3ft reels. 4KHZ/s IC refresh rate.

If you are looking for more WS2812C 2020 led strips, view these models: 90LEDs/m 4mm WS2812C-RGB-2020X450 and 120LEDs/m 4mm WS2812B-RGB-2020X600, and car light strip DCFLS-WS2812C-5V-92 and DCFLS-WS2812C-5V-135.

WS2812C 2020 Datasheet Download

Product Specification

Light Strip Type:	4mm 200LEDs/m WS2812C 2020 LED Strip
LED Chip:	SMD2020 + Built-in WS2812C IC
Input Voltage:	DC5V
Power:	20W/m
Working Temperature:	-20℃~+45℃
Storage Temperature:	-20℃~+60℃
LED Color:	RGB Dream Color

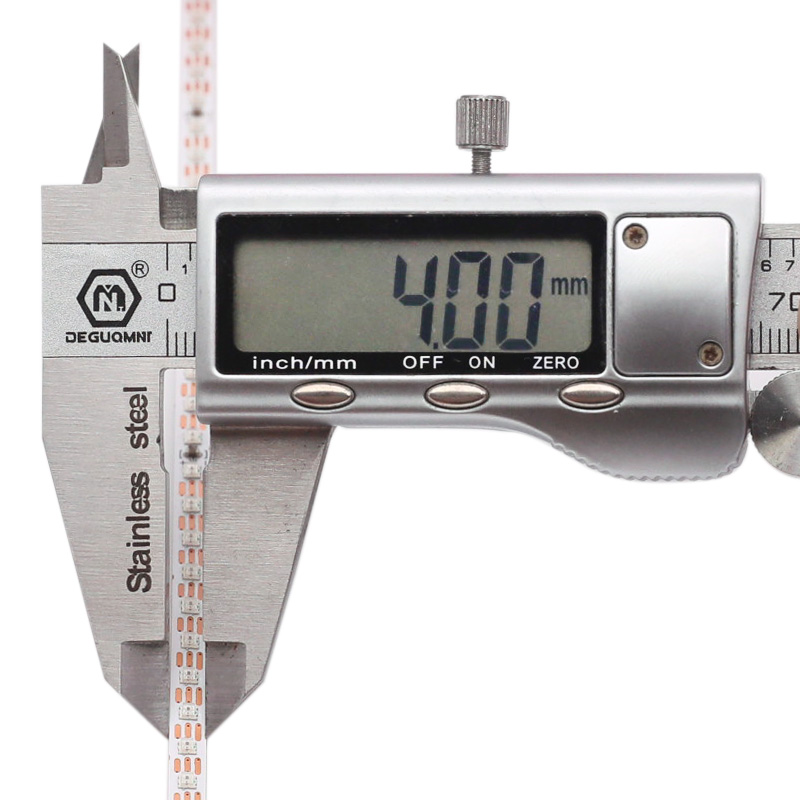

PCB Width:	4mm/3mm
LED Quantity:	200 LEDs/m
IC Quantity:	200 ICs/m

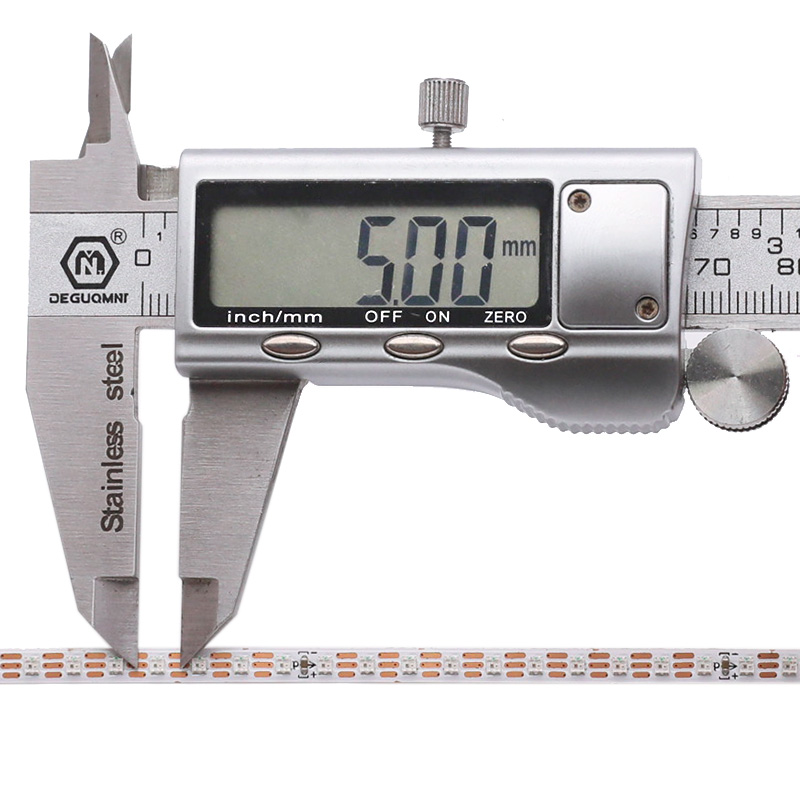

Cut Unit:	1 LED can be cut (5mm)
Waterproof Rating:	Non-waterproof IP20, Outdoor Waterproof IP67
Strip Length:	1m/3.3ft

How To Wire WS2812C 2020 LED Strip?

3-wire WS2812C 2020 pixel RGB led strip requires a digital led controller and DC5V power supply to work properly.

addressable led strip wiring diagram

Reviews

Customer Experience

Your feedback is important to us! Share your thoughts and photos with other customers.

Write a Review & Upload Photos

Downloads

Files for WS2812C-2020-200W4

PDFWS2812C-2020-200W4 product data sheetFull specifications, dimensions, cut points, wiring and IP options — the same details shown on this page, laid out for printing and engineering review.PDF · generated from the current product page · opens in a new tabOpen PDF

Need this page for a project file or an engineering check? Click Open PDF, then save or print it from your browser. For CAD drawings, IES files or a signed test report, contact our engineers and quote the model number.

Images

These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!

LED Strip Light Guide

Common questions about this type of product, answered against this model’s own options. For full figures see the specification above or the spec sheet for this model.

Which controller does this LED strip light need?

Addressable LED strip lights take a data signal, so they need an SPI (pixel) controller that supports this IC — an ordinary RGB controller will not drive them. Data flows one way: connect the controller to the input end marked with the arrow. Wiring addressable LED strip lights

Do I need power injection?

This model runs on DC12V · DC5V. 5 V addressable LED strip lights lose voltage fastest, so longer runs need power fed in at both ends and at intervals along the run; 12 V and 24 V versions carry further. Keep the data line short between controller and first pixel. Choosing an addressable LED strip light

Which waterproof rating should I choose?

Available on this model: Outdoor Silicone Tube IP67 - Adhesive Back · Transparent Heat Shrink Tube IP67 · Non-Waterproof IP20 - Adhesive Back. IP20 is for dry indoor use, IP65 handles splashes, IP67 suits outdoor and wet areas, IP68 is for continuous submersion. Choosing a waterproof rating

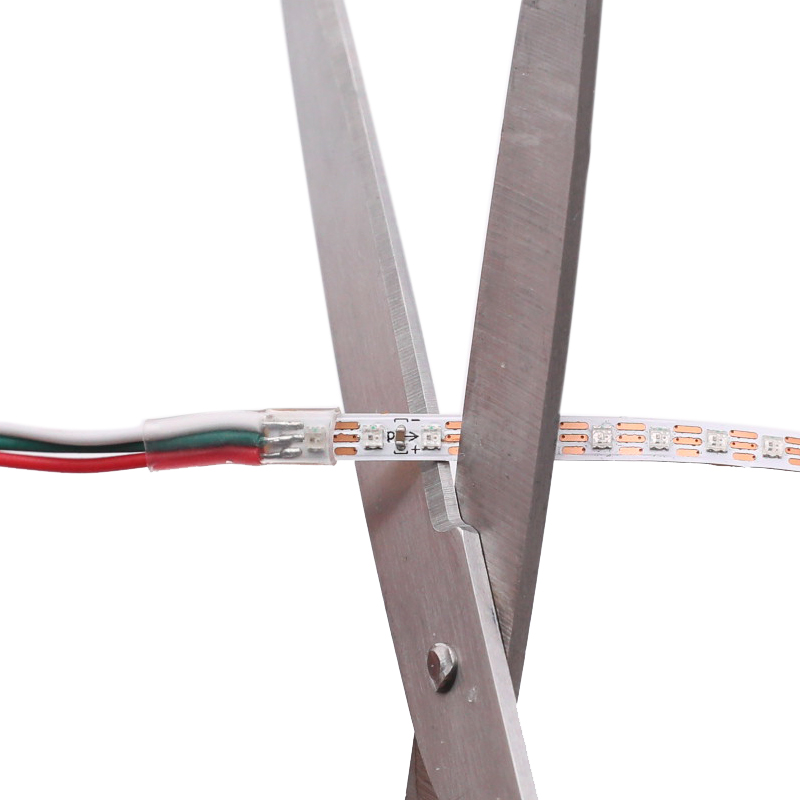

Can I cut it to length?

Yes. Cut only on the marked cut lines between the copper pads — the cut interval for this model is on its spec sheet. Rejoin with solder or a solderless connector. Cutting LED strip lights · we can also cut to length and fit your connector before shipping: custom LED strip light assembly.

What size power supply do I need?

Take the watts per metre from the specification above, multiply by the length you are running, then add about 25% headroom. Power calculation guide · Choosing a power supply
