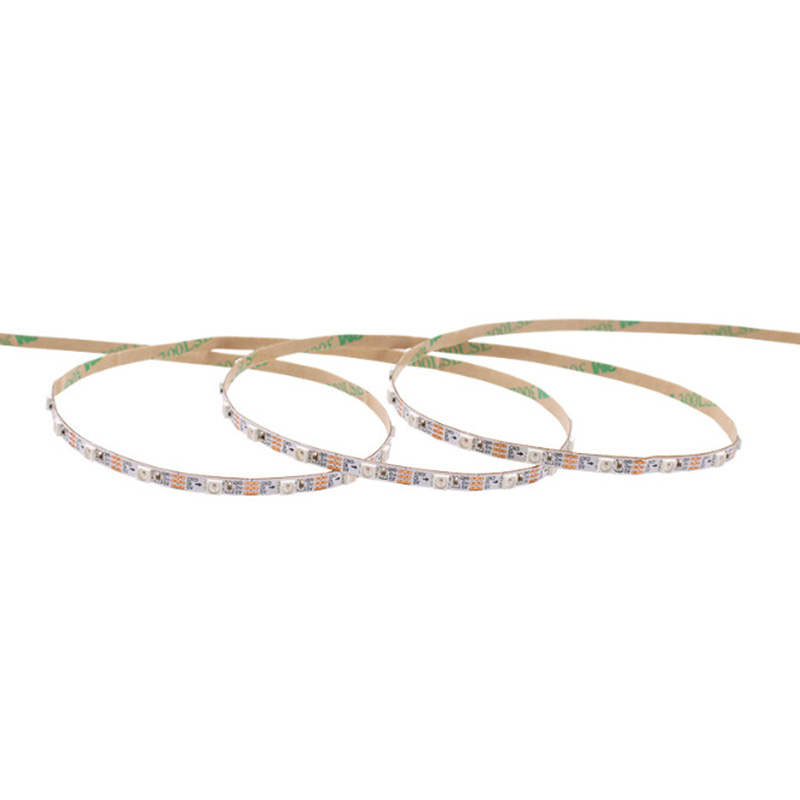

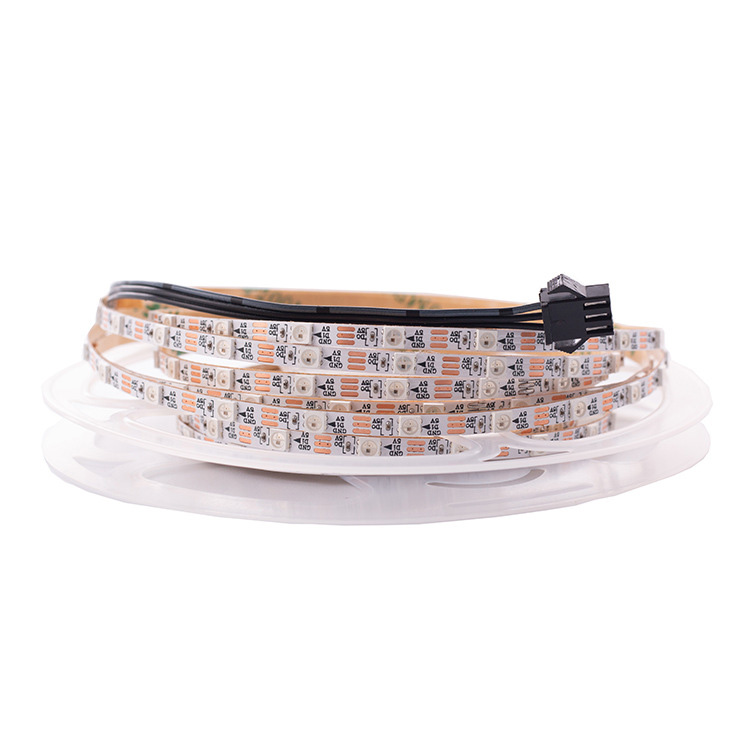

4mm WS2812B LED Strip Lights, 1m/3.28ft, IP20/IP67 Waterproof
Individually addressable Narrow LEDs allow for sequencing modes. Non-waterproof flexible LED light strip with 60 LEDs high-quality 3535SMD(Surface Mounted Devices) RGB LEDs programmable for chasing patterns. WS2812C IC chip control. 1meter(3.28ft) for sale.
This programmable led strip is an intelligent control LED light source that the control circuit and RGB chip are integrated into a package of 3535 components. It internal includes intelligent digital port data latch and signal reshaping amplification drive circuit. Also include a precision internal oscillator and a DC5V voltage programmable constant current control part, effectively ensuring the pixel point light color height consistent. The data transfer protocol uses a single NZR communication mode. After the pixel power-on reset, the DIN port receives data from the controller, the first pixel collects initial 24bit data then sent to the internal data latch, the other data which reshaping by the internal signal reshaping amplification circuit sent to the next cascade pixel through the DO port. After transmission for each pixel，the signal to reduce 24bit. pixel adopts auto reshaping transmit technology, making the pixel cascade number is not limited to the signal transmission, only depend on the speed of signal transmission.
Can be cut into 1-LED segments
Low light decline and long lifespan.
The control chip integrated into LED above becoming more simple circuit, small volume, convenient installation.
5VDC operation, used in advertising signs, LED digital screen display, backlighting decoration.
Soft and easy bent for installation, with adhesive backing and can be stuck just about anywhere (IP67 waterproof type will come with mounting brackets).
Standards and Certifications
LED Strip Type: SMD 3535 DreamColor 60 LEDs/3.28ft
LED Chip: WS2812C IC super brights Chip
Working Temperature: -4°F (-20°C) ~ 122°F (50°C)
Storage Temperature: -40°F (-40°C) ~ 176°F (80°C)
Dimension: 3.28ft/roll, every 1 PCS LED can be cut
LED Quantity: 60 LEDs per 1meter (3.28 ft)
IC Quantity: 60 Pixels per 1meter (3.28 ft)
Dimensions: L100cm(37.37 in ) x W0.4cm(0.16 in ) x H0.1cm(0.04 in )
Input Voltage(V): 5VDC
Working Power: 30W/3.28ft Max
Lumen Per LED: 20~22Lumen 2640 lm Max /3.28ft
PCB Color: White
Wavelength NM(RGBY): 2000-2500mcd
Beam Pattern: 120 degree
Water Proof: Non-waterproof
Warantty: 3 years
LED programmable digital display
Hotels decoration use
Concealed lighting, Cove decoration
Theaters, clubs, shopping malls lighting
Architectural decorative lighting
Boutique atmosphere lighting
Auditorium walk stairway lighting
Hidden groove, Wine cabinet decoration
Show exhibition decoration
