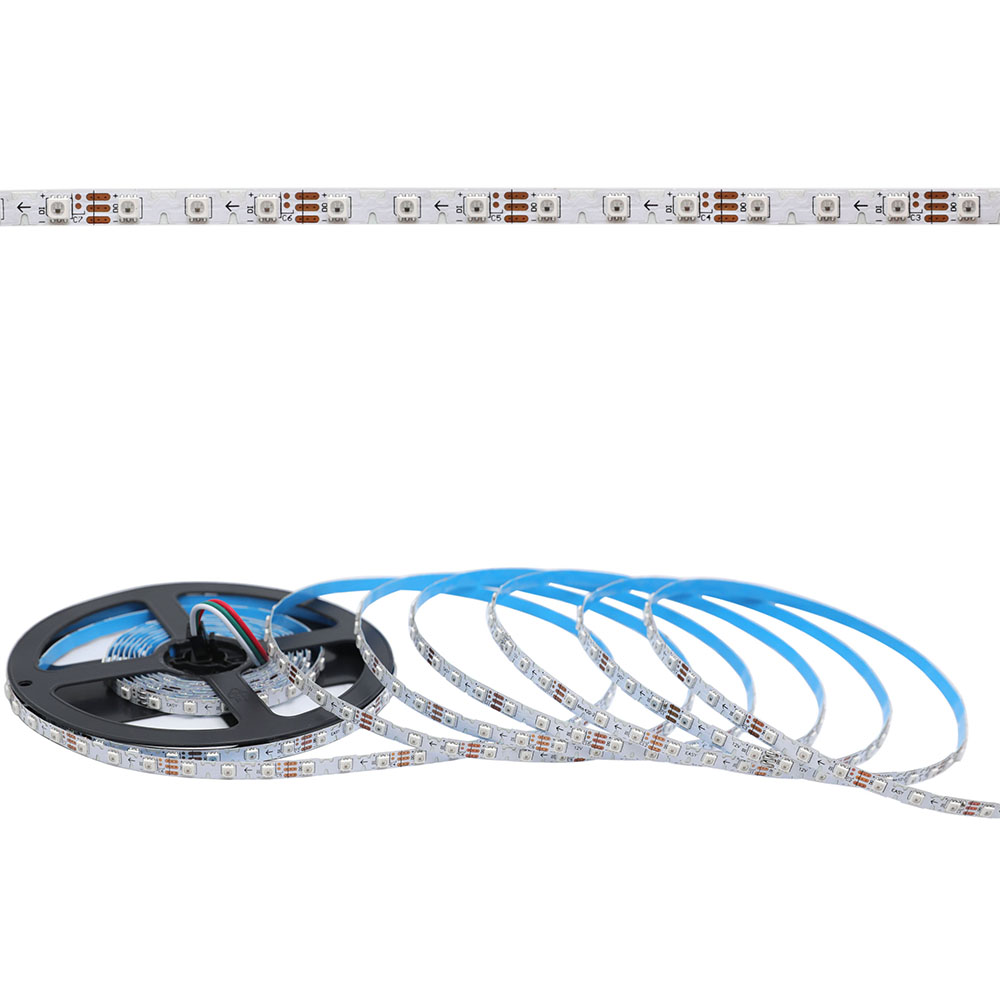

DC12V TM1809 SMD3838 Super Narrow 6mm 420LEDs Flexible Individually Addressable LED Strip
TM1809 is 3 channels individually addressable LED light strip with a single data line. Adopt a new SMD3838 chip, which is different from the ordinary SMD5050 chip.
Currently, we provide two TM1809 individually addressable light strips. The difference between the two LED strips is:
1. LED quantity is different: FSLRGBS-WS2812-3838X300 is 60LEDs/m. This product is 84LEDs/m, which has a higher brightness than 60LEDs.
2. Different appearance: FSLRGBS-WS2812-3838X300 has an S-shaped appearance, This product is dentate shape.
►Everything you need to know before you buying led strip lights
►What you need to know about addressable led strips knowledge
What is the difference between TM1809 led strip light（our products) and WS2812B led strip light?
1. Different package components: TM1809 uses an SMD3838 LED, while WS2812B uses an SMD5050 LED.
2. Input voltage is different: the input voltage of TM1809 is DC12V, the input voltage of WS2812B is DC5V.
3. Different shapes: Does TM1809 adopt S-shaped or dentate-shaped, while WS2812B is an ordinary one.
4. Different flexibility: TM1809 can be bent at will or even folded in half, but WS2812B can only be bent in fix range.
5. Different widths: TM1809 is 6mm ultra-narrow, while WS2812B has a wider range of optional widths.
DC12V safe voltage, harmless to human body
3838SMD new package components
TM1809 professional addressable led chip

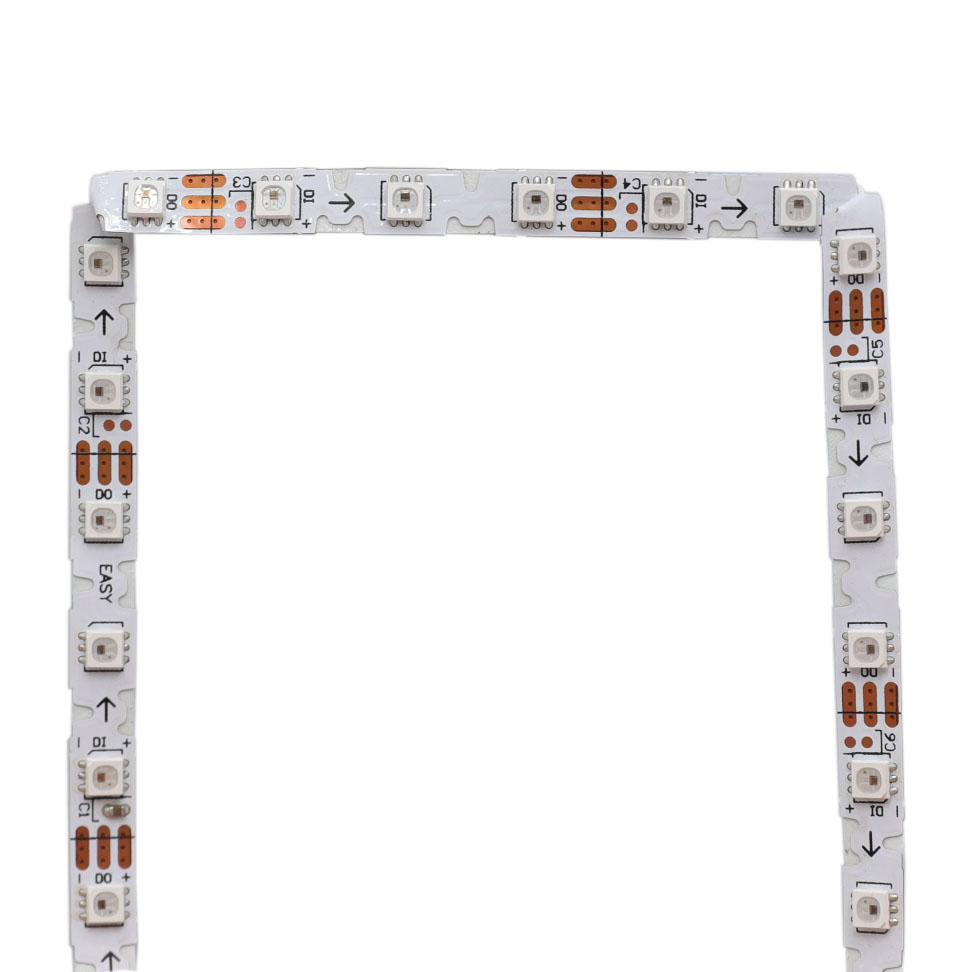

Dentate shape, can bend arbitrarily or even fold in half

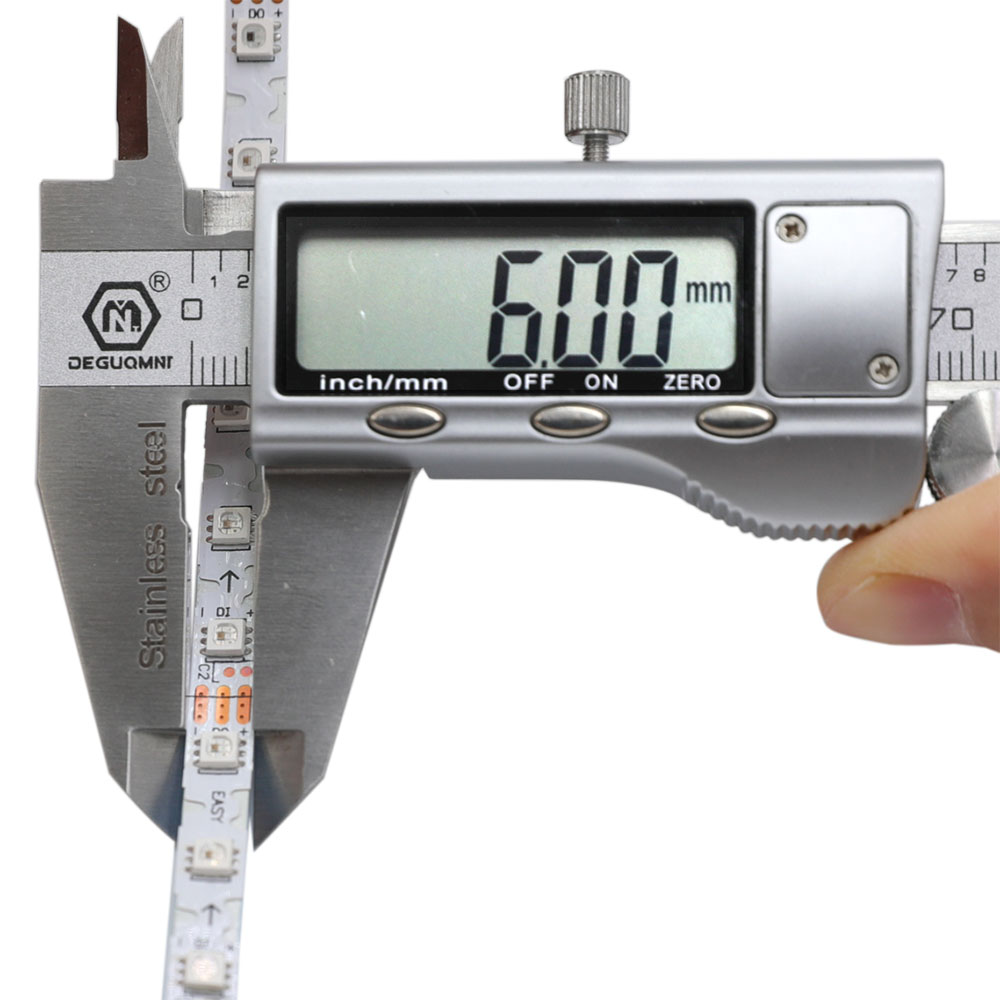

6mm super narrow meets the needs of narrow spaces
84LEDs high-density design, higher brightness

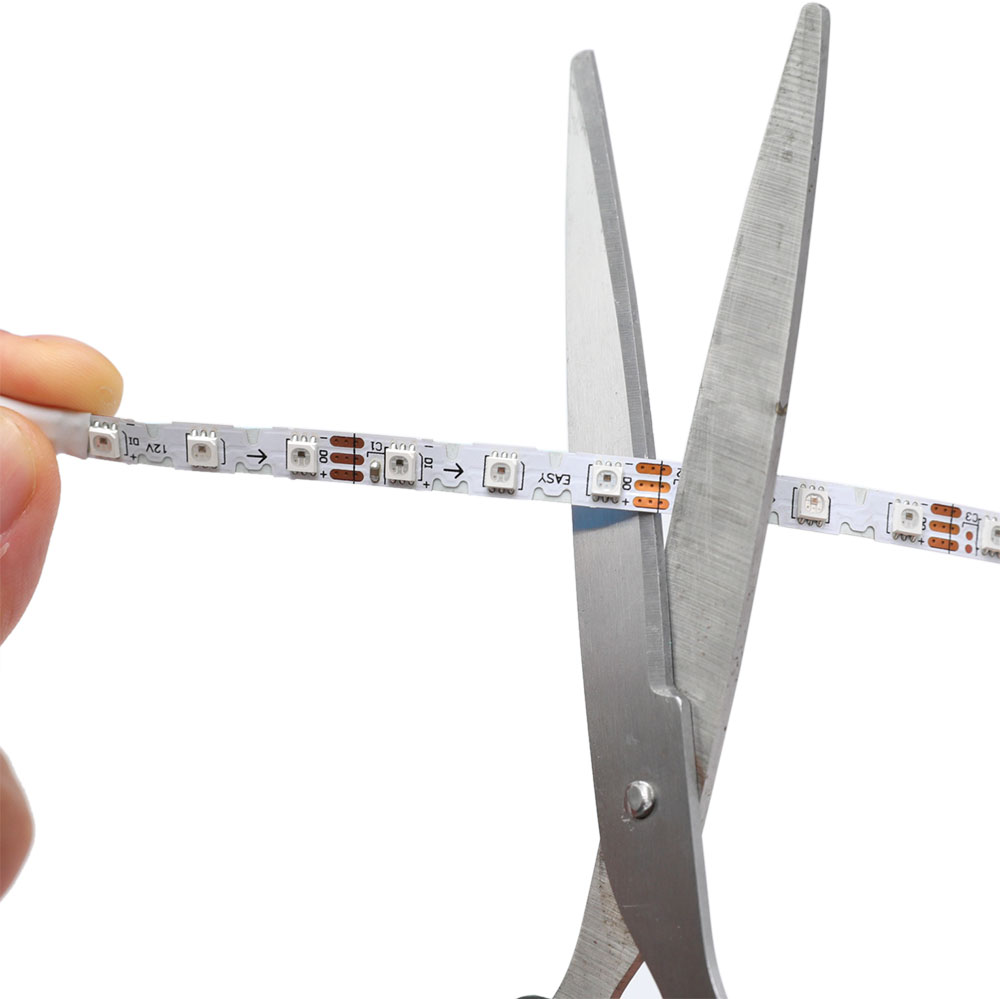

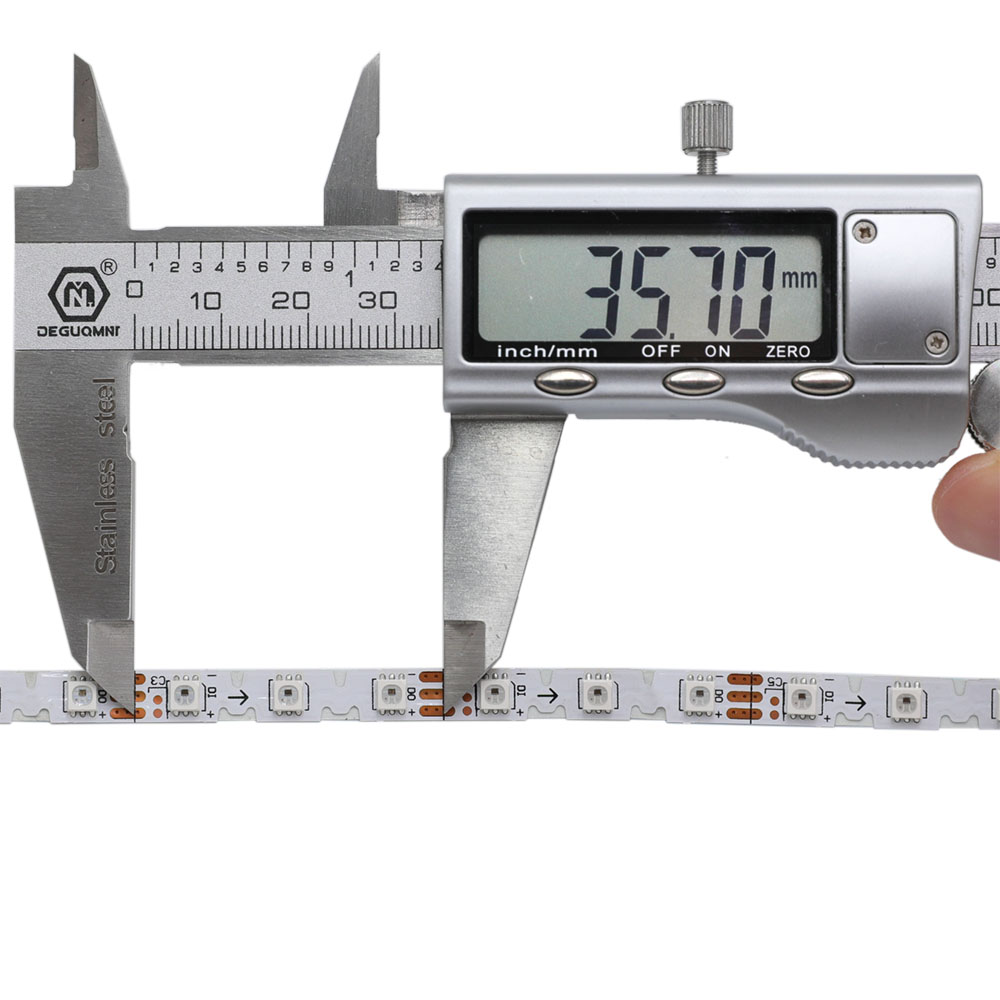

3LEDs cuttable and the length can be customized
Single LED can be controlled, individually addressable

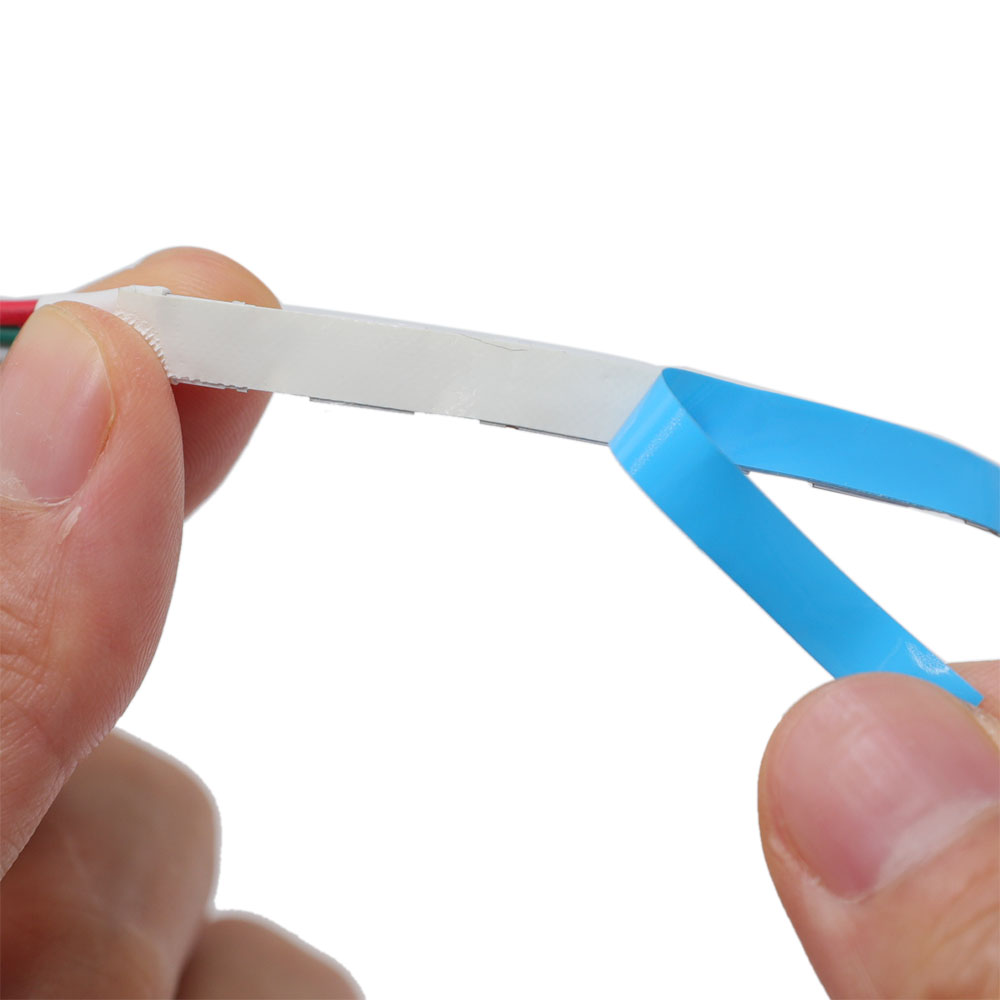

3M tape attached, easy installation
Standards and Certifications
LED Strip Type: SMD 3838 Dream RGB
LED Chip: Epistar super brights Chip
LED Resource: 3838 SMD RGB
IC Type: TM1809 IC
Beam Angle: 120 degrees
Working Temperature: -4°F (-20°C) ~ 122°F (50°C)
Storage Temperature: -40°F (-40°C) ~ 176°F (80°C)
Color Rendering Index: 80
Power: 16.8W/m, 84W//Roll
Input Voltage: DC12V
PCB Width: 6mm/0.24in
LED Quantity: 84LED/m, 420LEDs/Roll
IC Quantity: 84IC/m, 420IC/Roll (individual addressable)
Waterproof Rating: IP20(non-waterproof)
Color Temperature: RGB
Circuit Board: double-sided FPC electrolytic copper circuit board
Warantty: 3 years
Dimensions: L500cm(196.8 in ) x W0.6cm(0.24 in ) x H0.25cm(0.10 in )
1*5M SMD 3838 Dream RGB 420LEDs/Roll LED strip light
If you choose the led controller in the kit, we will send you CONFULL-SP107E
If you choose the led power supply in the kit, we will send you PSPS-12V-96W
LED task Lighting
Retail LED lighting
Sign illumination LEDs
Automotive accent lighting
Display case and accent lighting
Addressable LED Strip Lights Wiring Diagram
|►Connection method one:|
*SPI LED Strip lights wiring diagram with 5m*
|►Connection method two:|
*SPI LED Strip lights wiring diagram with 10m*
|►How to connect the 3-pin JST connector to the Breakpoint Resume LED strips?|
|►How to power addressable LED strip and SPI controller using different voltage power supply?|
|►How to wire a ultra long addressable led strip lighting?|
*SPI LED Strip lights wiring diagram with 20m+*
