Product Information

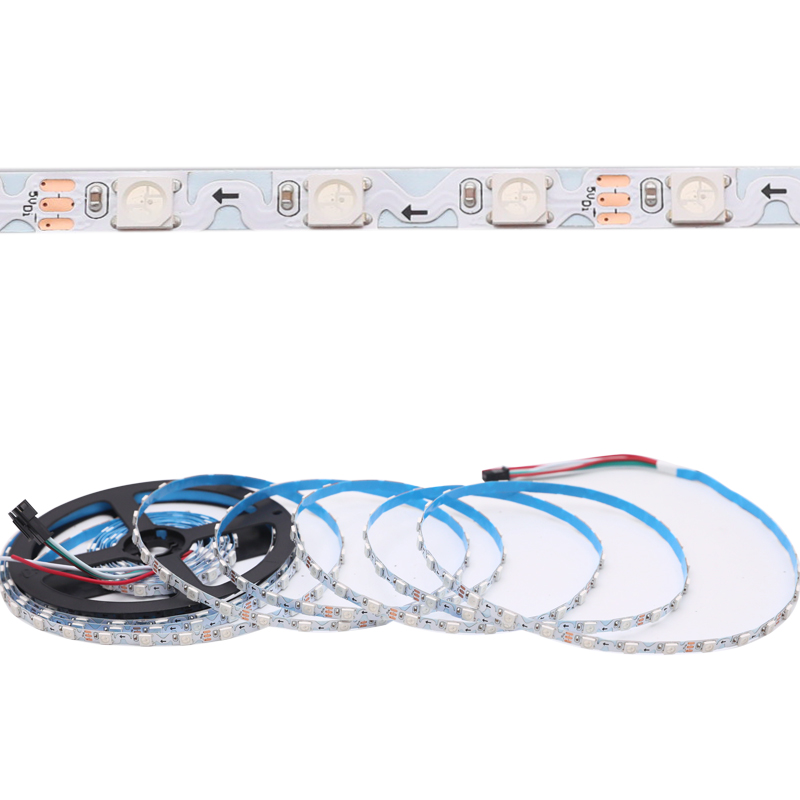

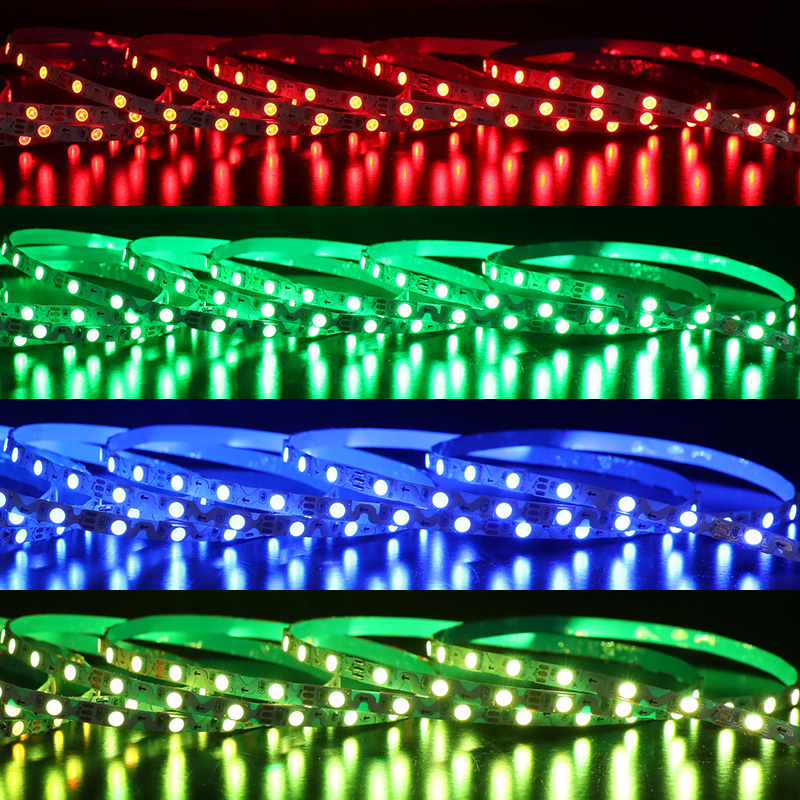

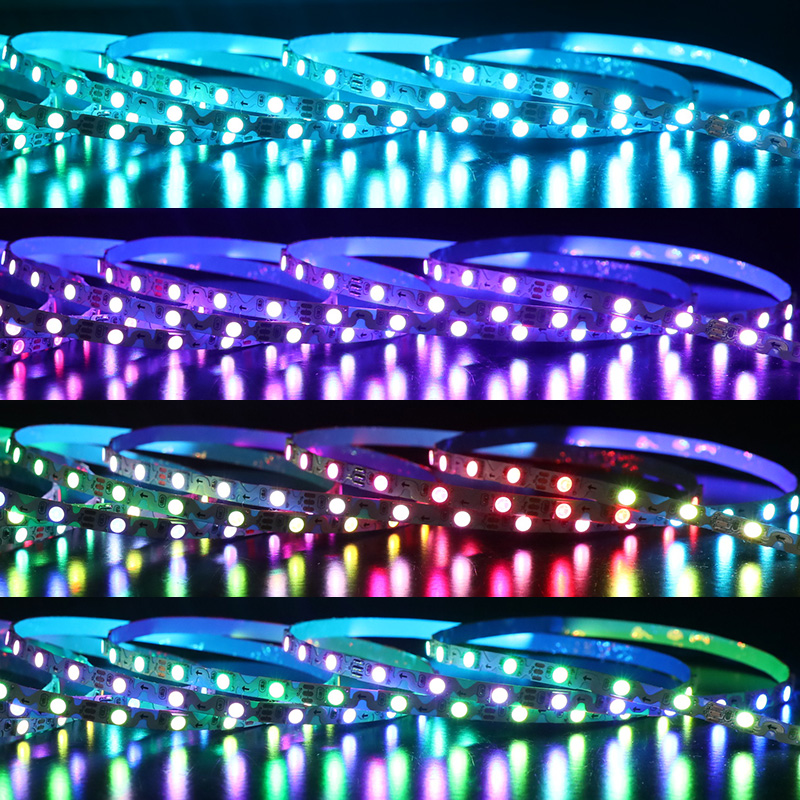

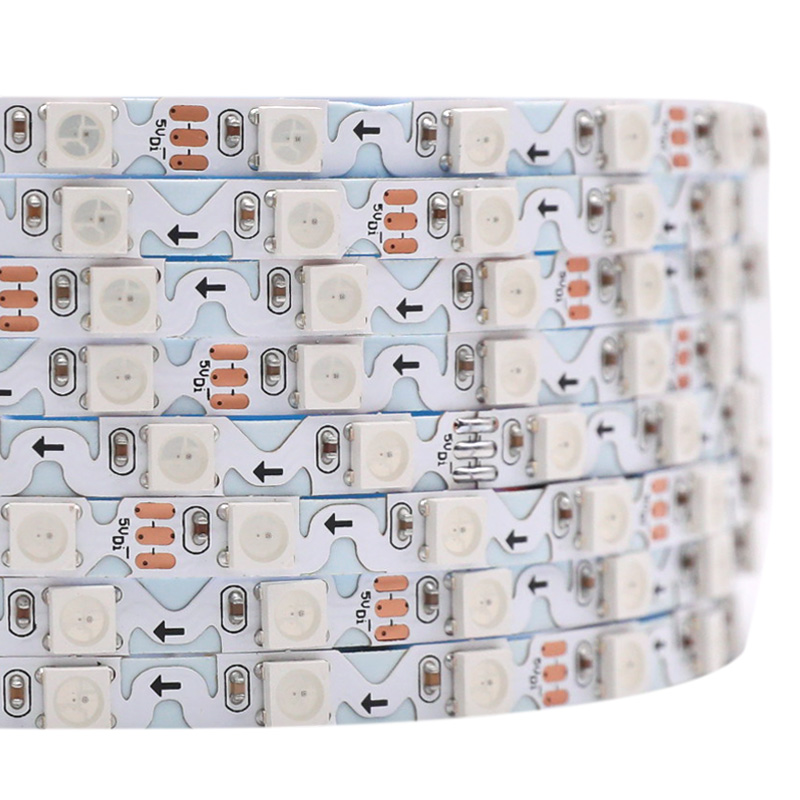

The zig zag PCB design of this TX1812/WS2812 s type led strip (available TX1812 5V type, SK6812 5V type, and SK6813 12V, SK6812 12V breakpoint resume type) allows for flexible and creative lighting arrangements, giving you the freedom to illuminate spaces in a dynamic and eye-catching way. Addressable digital RGB led strip offers a wide spectrum of colors and dynamic lighting effects that can be easily controlled and programmed by an SPI controller to suit your preferences.

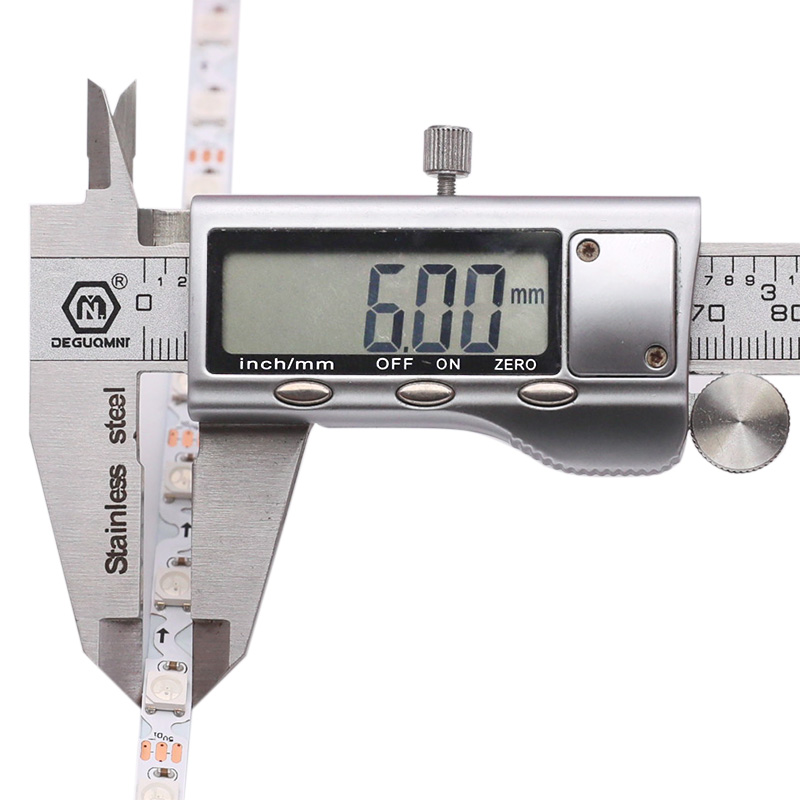

With a narrow width of just 6mm, this bendable s shape led strip is perfect for installations with limited space or intricate designs. DC 5 volt input, ideal for projects that require low-voltage channel letter and neon sign lighting solutions. The zig zag led strip can flexibly adapt to different shapes and curves of channel letter and neon tube designs. It can smoothly bend along the curves and fit the contours to achieve a perfect lighting effect. Notice the voltage drops at your installation.
-

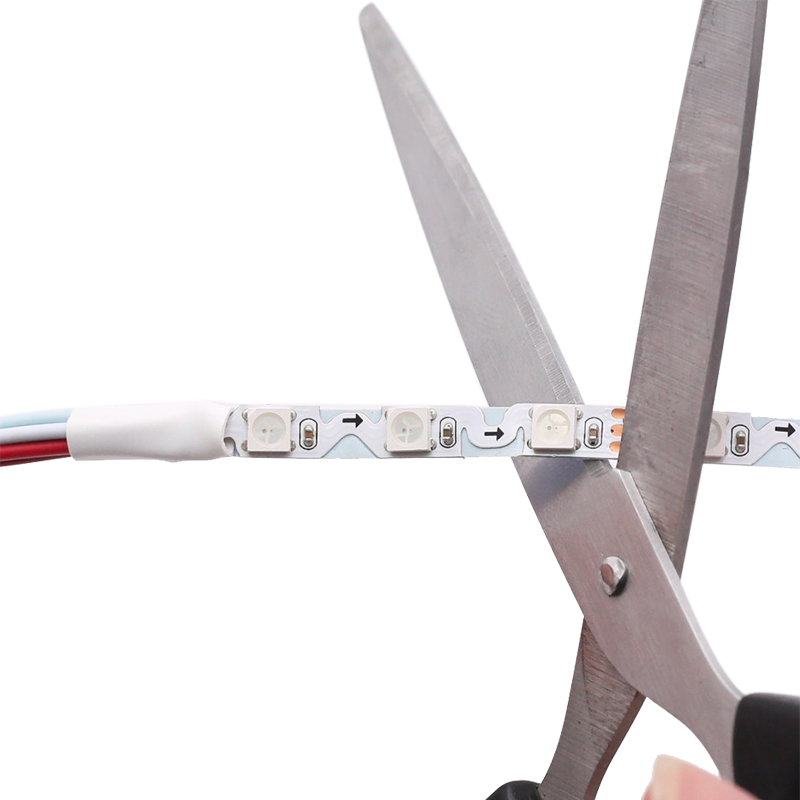

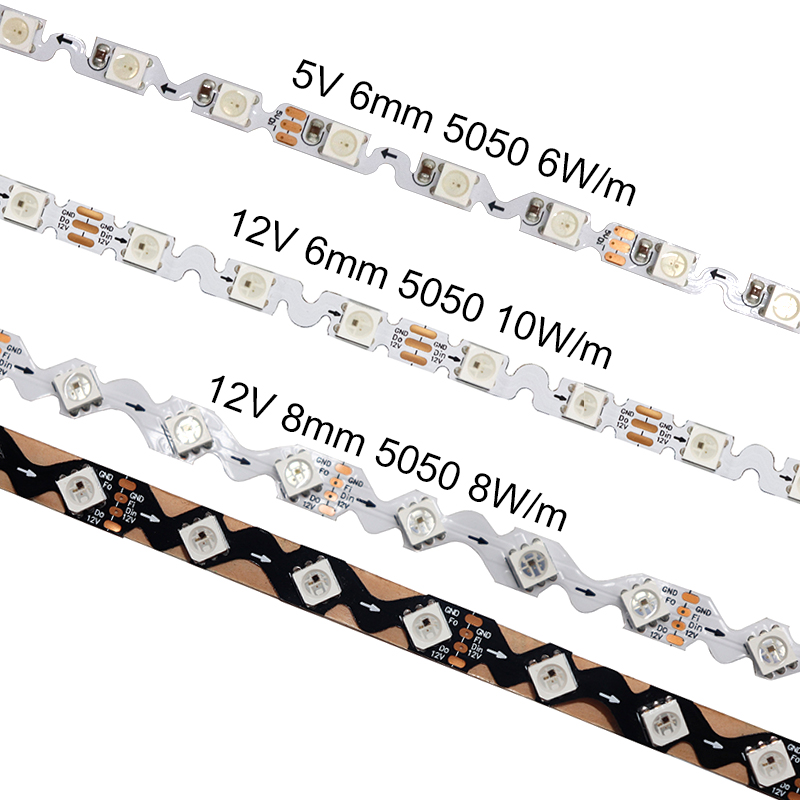

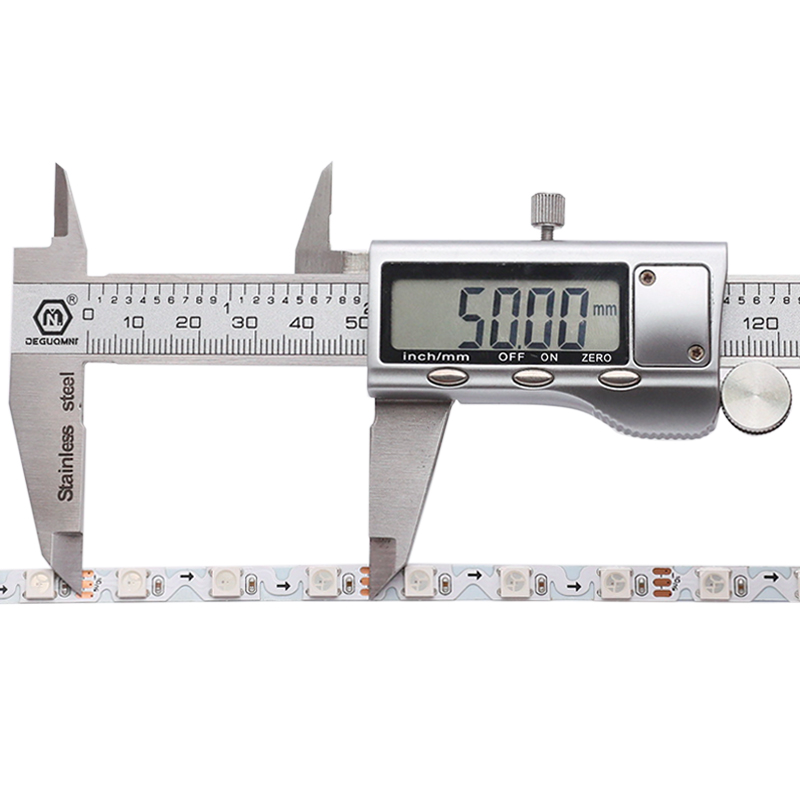

TX1812 - 5V type (this item): 6mm, 60LEDs/m, 3-LED cuttable, 60 pixels per meter
-
SK6812 - DC5V type (Model DCFLS-SK6812-5V-60S): 6mm, 60LEDs/m, 3-LED cuttable, 60 pixels per meter
-
SK6813 - DC12V type (Model DCFLS-SK6813-12V-60S): 6mm, 60LEDs/m, 3-LED cuttable, 60 pixels per meter, white and black PCB
-
SK6813 12V 8mm breakpoint resume type (Model DCFLS-SK6813-12V-60S-4P): 8mm, 60LEDs/m, 3-LED cuttable, 60 pixels per meter, white and black PCB
-
48LEDs/m type (please contact us if you need): only 12V, 10mm, dual data signal, breakpoint resume, FW1935 IC chip (similar to SK6812), 3-LED cuttable, 16 pixels per meter
Product Specifications
| Item: | Zig Zag S Type TX1812 WS2812 led strip |
| LED Type: | SMD5050 |
| Light Color: | Addressable RGB Dream Color |
| IC Type: | TX1812 (similar to WS2812 ) |
| Working Temperature: | -4°F (-20°C) ~ 122°F (50°C) |
| Storage Temperature: | -40°F (-40°C) ~ 176°F (80°C) |
| Dimensions: | L5000mm*W6mm*H0.25mm |
| Waterproof Rating: | IP20 |
| LED Quantity: | 60LEDs/m, 300LEDs/roll |
| IC Quantity: | 300ICs/roll, 1 IC drives 1 LED |
| Input Voltage(V): | 5VDC |
| Power: | 12W/m, 60W/roll |
| Beam Pattern: | 120 degree |
| Lumen: | 20-22lm/LED |
| Lifespan: | 30,000+hours |
TX1812 WS2812 digital led strip wiring diagram:
