ECO 5m WS2812B 5050 RGB LED Strip Individually Addressable 150LEDs

Name: ECO 5m WS2812B 5050 RGB LED Strip Individually Addressable 150LEDs
Brand: SuperLightingLED
SKU: DCFLS-WS2812B-30
Price: 27.98 CAD
Availability: InStock

Model: DCFLS-WS2812B-30 Review stars

0.0 (0 Reviews) Various options in stock

Starting at: Can.$39.51

Qty Discounts Off Price
1-49 Can.$39.51	50-99 Can.$38.72	100-199 Can.$37.54	200+ Can.$35.96
* Discounts may vary based on options below

Select Specifications:

Select PCB Color :

Select Length:

16.4ft (5 meters)

Select Waterproof Rating:

Qty: -+

Free shipping over $299Ships via DHL / UPSWarranty covered

Accept the project customization, please contact us for commercial offers and technical support.

Product Information

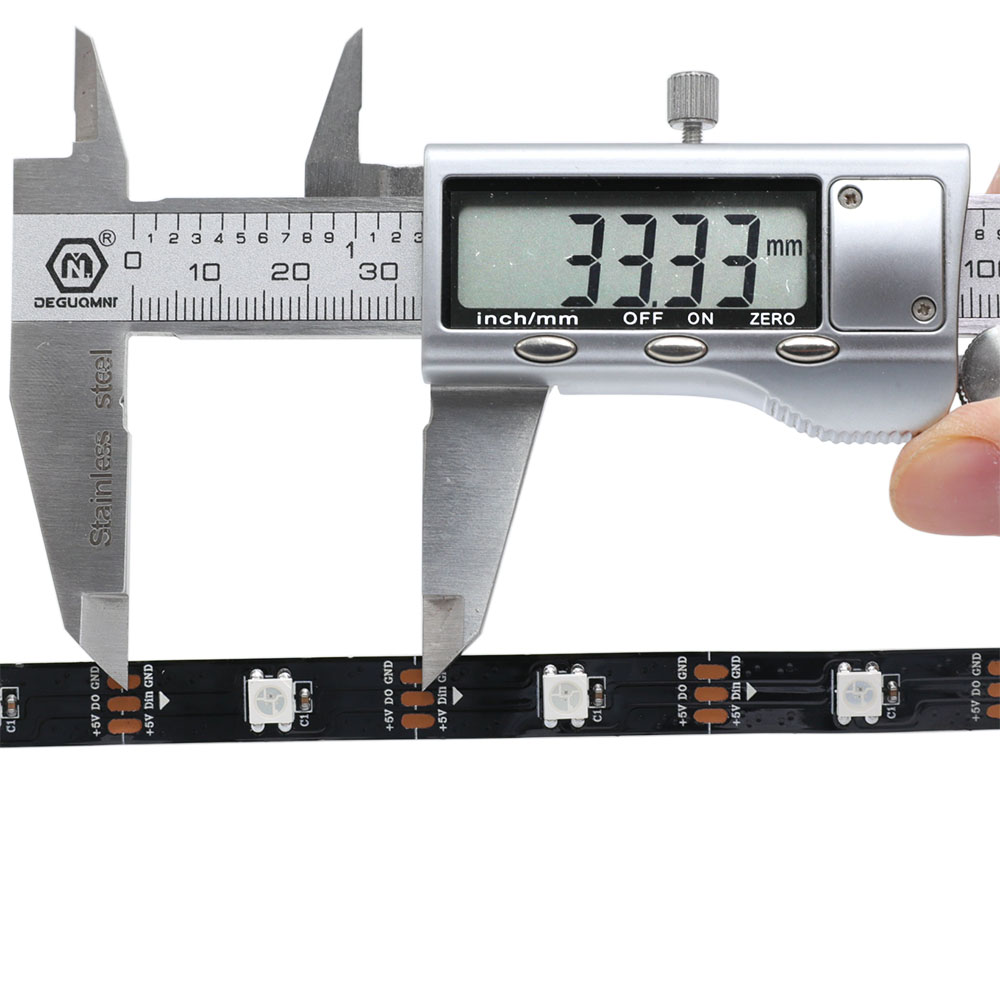

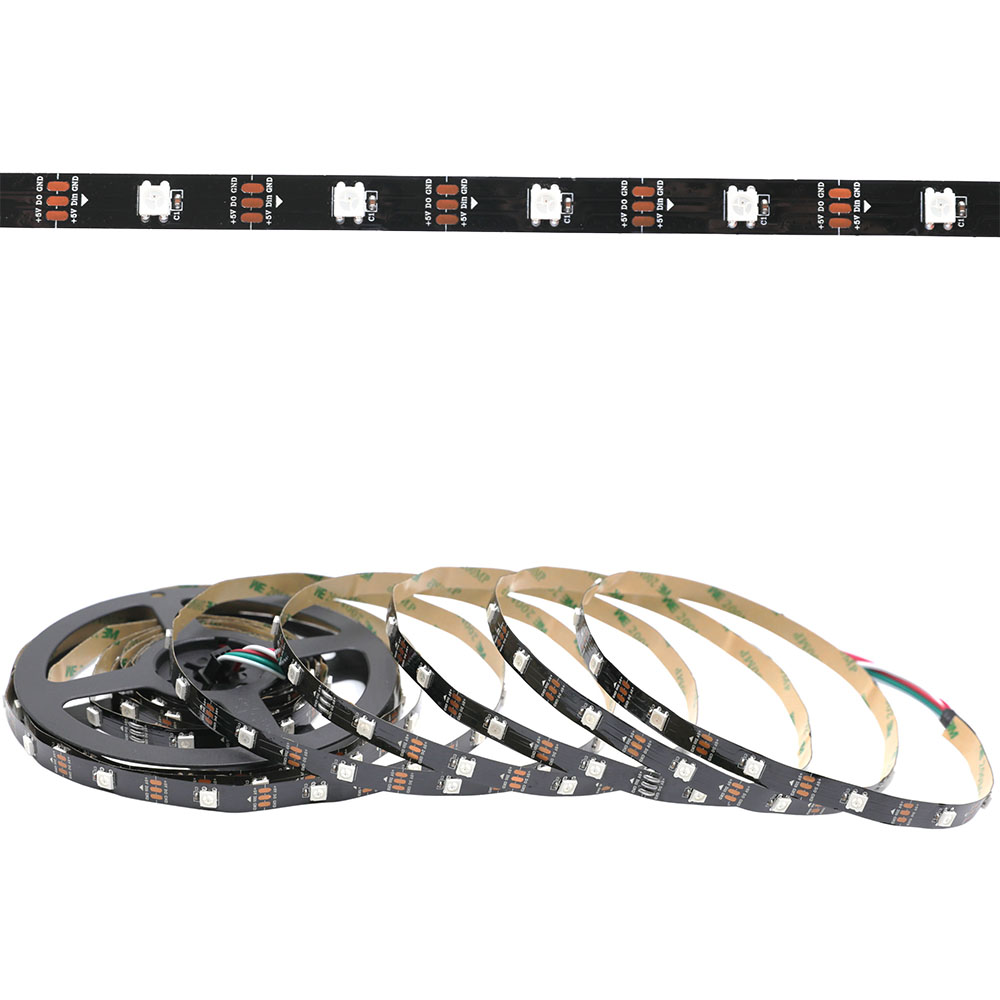

16.4ft ECO WS2812B led strip for sale, cost effective in LED lighting projects. Each LED is individual addressable, and every diode is a single pixel. Every 33.3mm/1.3" segment can be cut.

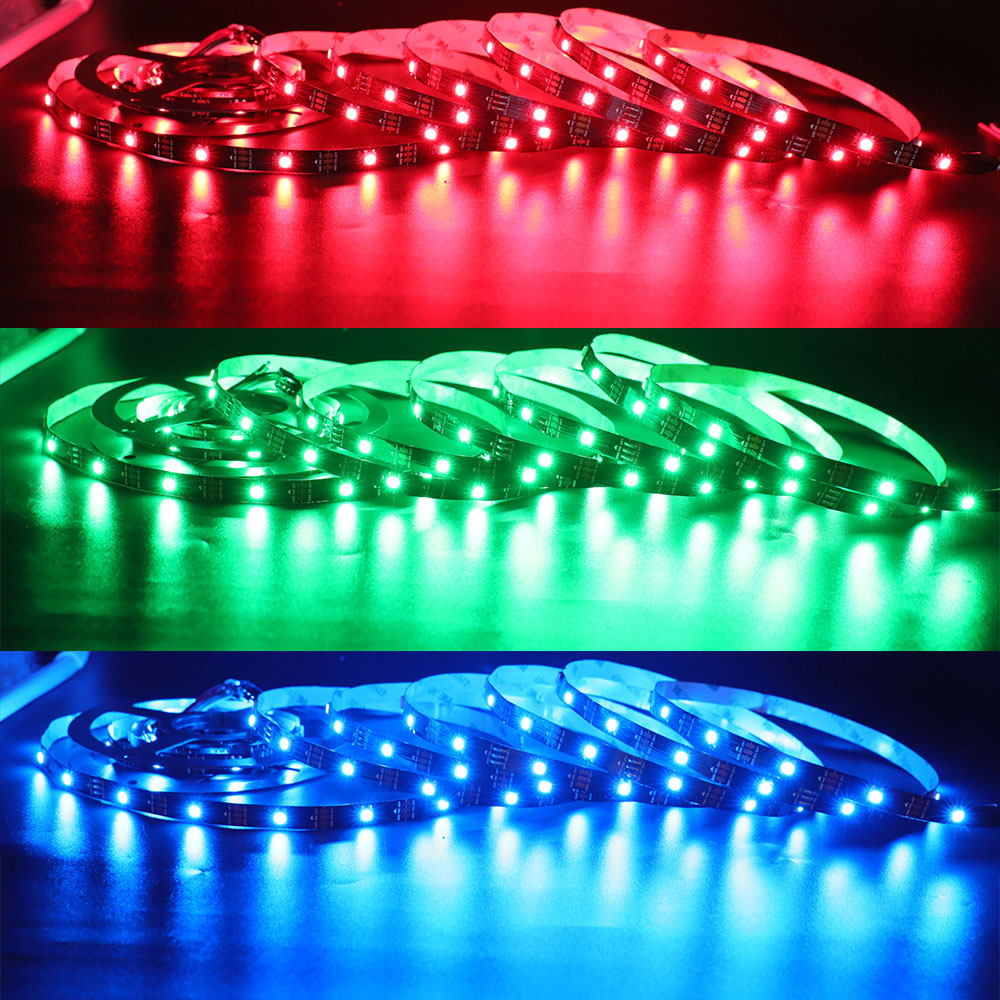

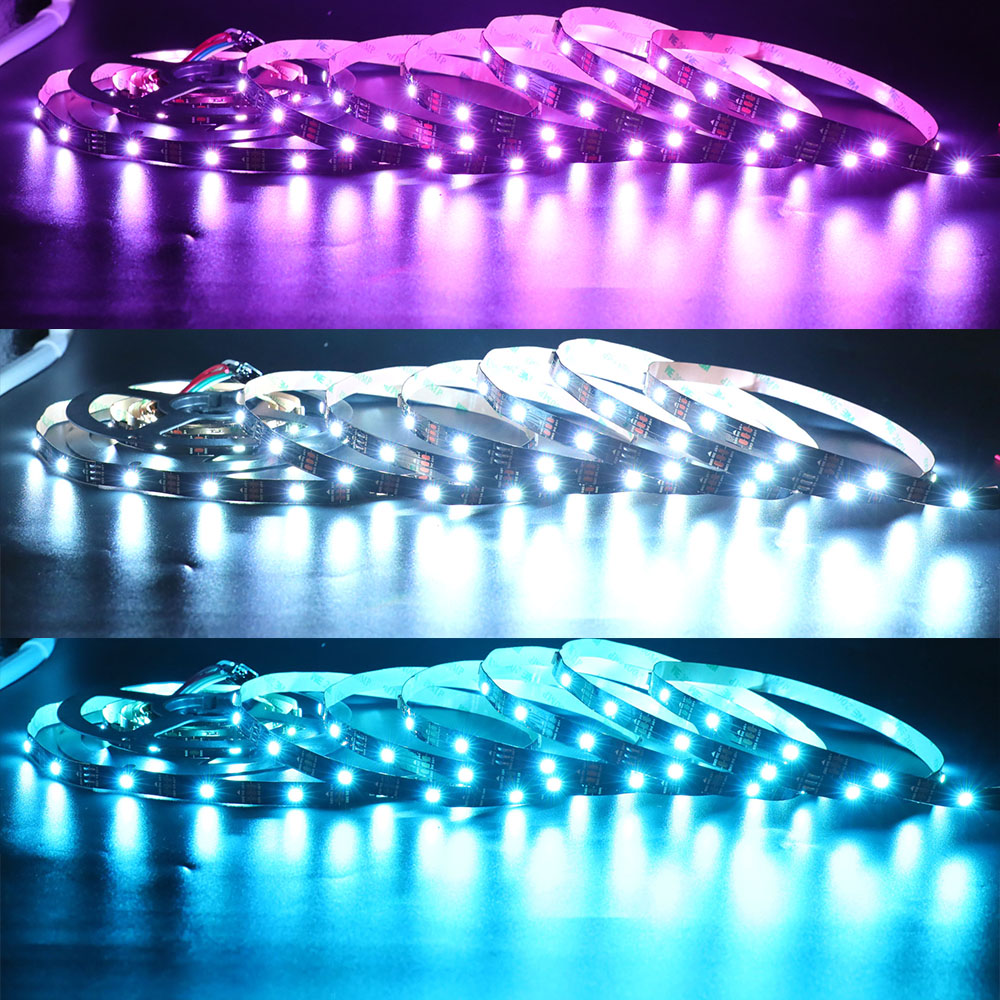

The RGB LED can be a different color through the control of an addressable SPI WS2812 controller, allowing various dynamic light efects to dispaly, such as color chasing, sequencing, changing, etc.

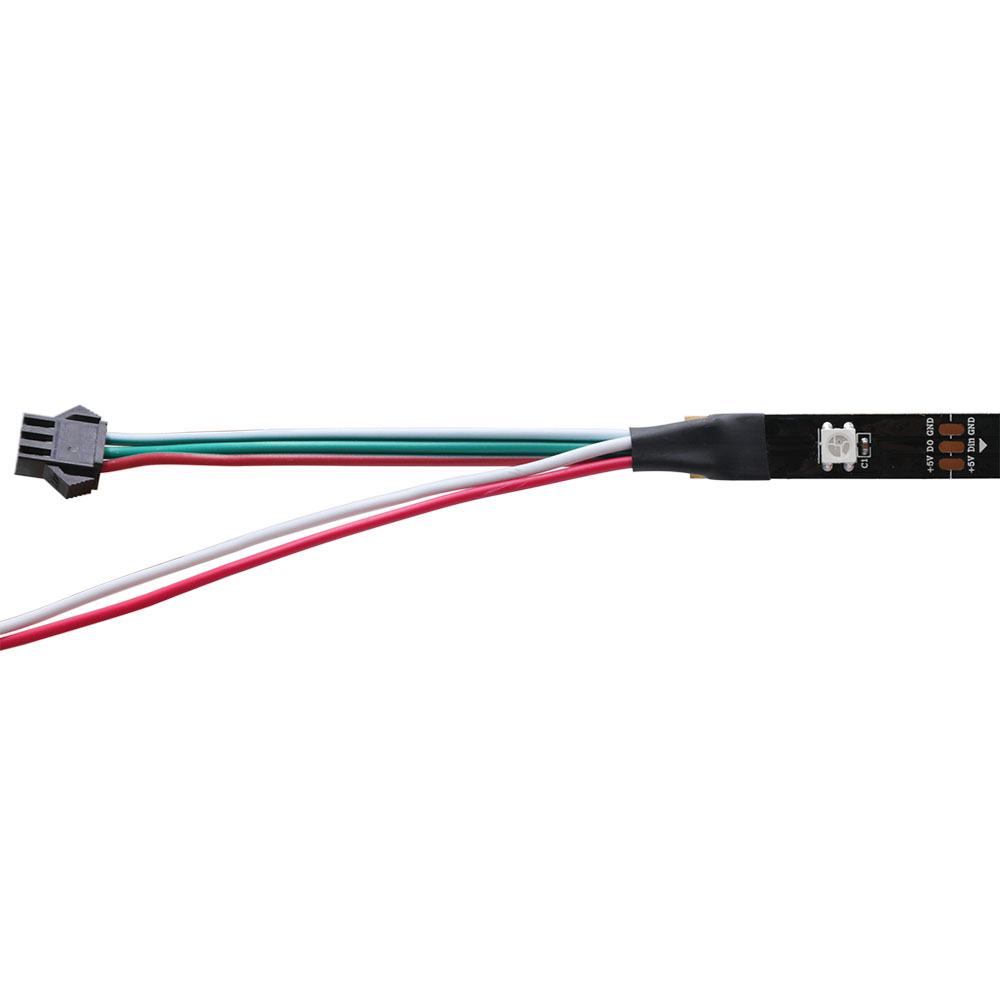

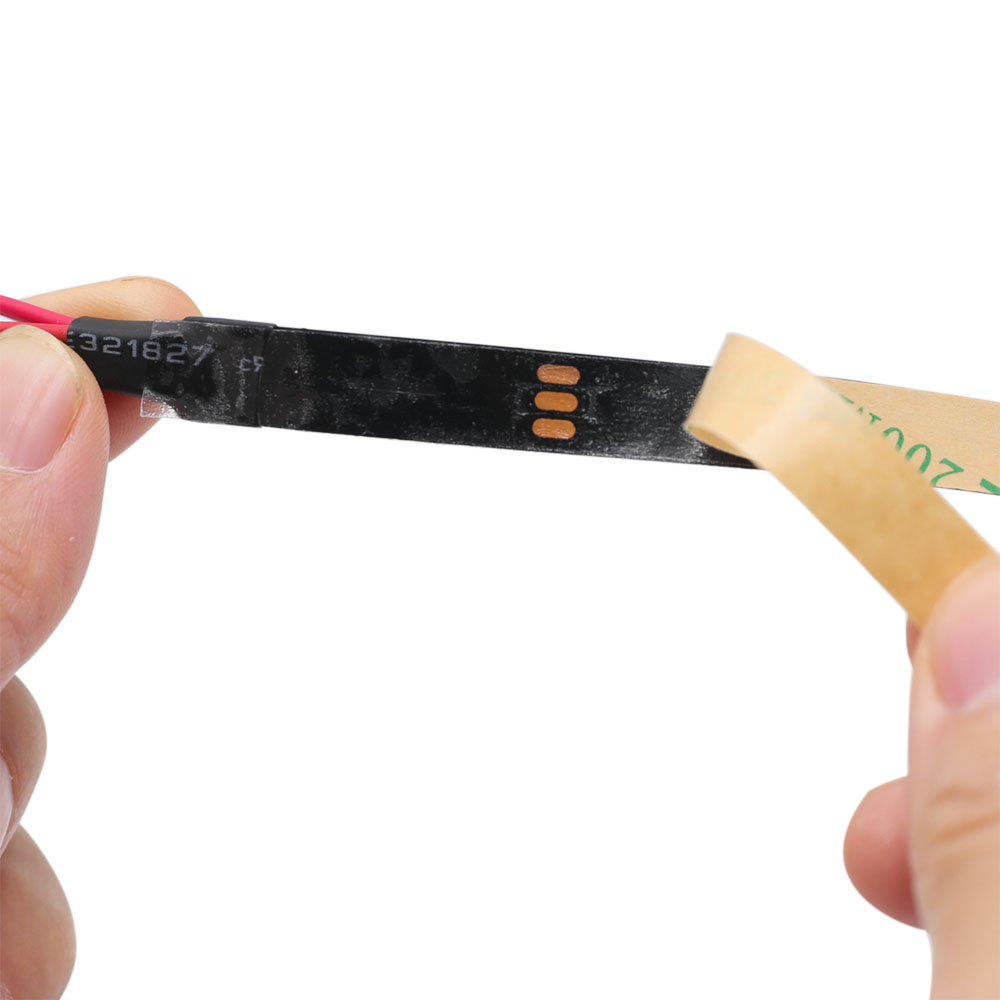

You need a 5V power supply to drive this 5m WS2812 strip, 50W 10A DC power adapter or switching power supply. With adhesive tape backing, easy installation. It comes with a JST connector and a power wire cable at both ends, convenient connection.

WS2812B Chips Specifications Download

WS2812B VS WS2811 Specifications Download

Standards and Certifications

DC5V

Product Specification

LED Strip Type:	SMD 5050 WS2812B Dream Color 150LEDs/16.4ft
LED Chip:	WS2812B IC Chip (Built-in)
Working Temperature:	-4°F (-20°C) ~ 122°F (50°C)
Storage Temperature:	-40°F (-40°C) ~ 176°F (80°C)
Light Color:	RGB

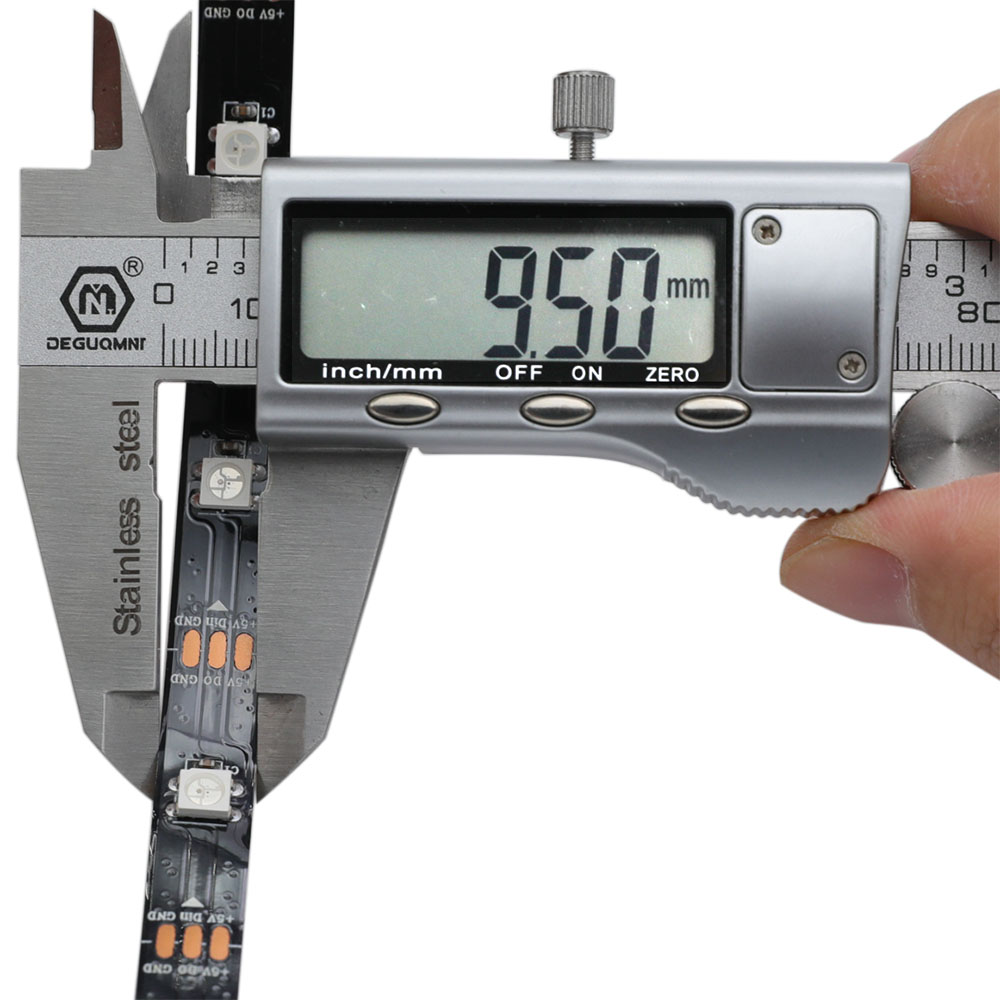

Dimension:	L500cm(196.8 in) x W1.0cm(0.39 in) x H0.25cm(0.10 in)
LED Quantity:	30 LEDs per 1meter (3.28 ft)
Lifespan:	50,000+hours
Cut Segment:	Every LED
Input Voltage(V):	5 VDC
Working Power:	45W /16.4ft Max
Lamp Luminous Flux(lm):	20~22Lumen
Wavelength NM(RGBY):	2000-2500mcd
Beam Pattern:	120 degree
Waterproof:	Non-waterproof IP20, waterproof IP65 IP67 IP68

How to connect WS2812B led strip?

WS2812B Wiring Diagram:

addressable led strip wiring diagram

Ws2812b rgb led strip individually addressable engineering lighting - photo 8

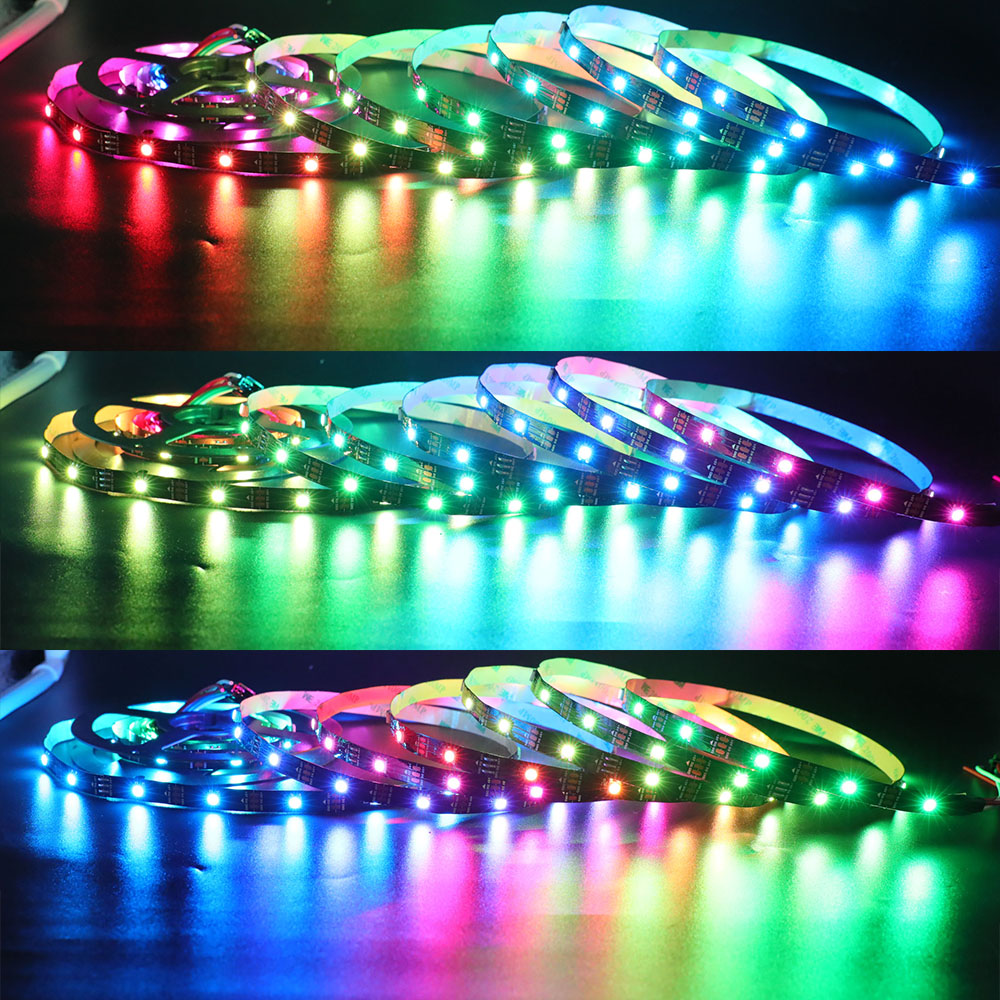

Ws2812b rgb led strip individually addressable engineering lighting - photo 9

Reviews

Customer Experience

Your feedback is important to us! Share your thoughts and photos with other customers.

Write a Review & Upload Photos

Downloads

Files for DCFLS-WS2812B-30

PDFDCFLS-WS2812B-30 product data sheetFull specifications, dimensions, cut points, wiring and IP options — the same details shown on this page, laid out for printing and engineering review.PDF · generated from the current product page · opens in a new tabOpen PDF

Need this page for a project file or an engineering check? Click Open PDF, then save or print it from your browser. For CAD drawings, IES files or a signed test report, contact our engineers and quote the model number.

Images

These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!

LED Strip Light Guide

Common questions about this type of product, answered against this model’s own options. For full figures see the specification above or the spec sheet for this model.

Which controller does this LED strip light need?

Addressable LED strip lights take a data signal, so they need an SPI (pixel) controller that supports this IC — an ordinary RGB controller will not drive them. Data flows one way: connect the controller to the input end marked with the arrow. Wiring addressable LED strip lights

Do I need power injection?

5 V addressable LED strip lights lose voltage fastest, so longer runs need power fed in at both ends and at intervals along the run; 12 V and 24 V versions carry further. Keep the data line short between controller and first pixel. Choosing an addressable LED strip light

Which waterproof rating should I choose?

Available on this model: Underwater IP68 - Adhesive Back · Outdoor Silicone Tube IP67 - With Brackets · Surface Glued IP65 - Adhesive Back · Non-Waterproof IP20 - Adhesive Back. IP20 is for dry indoor use, IP65 handles splashes, IP67 suits outdoor and wet areas, IP68 is for continuous submersion. Choosing a waterproof rating

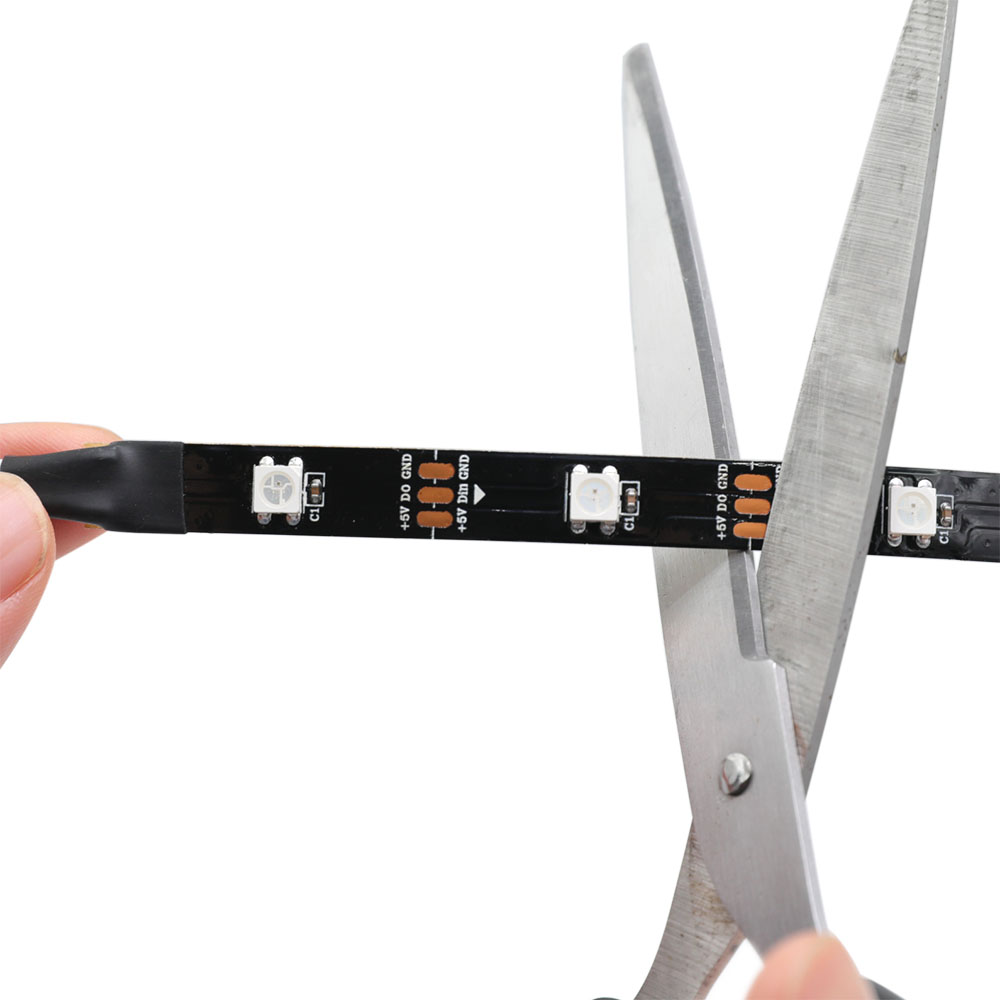

Can I cut it to length?

Yes. Cut only on the marked cut lines between the copper pads — the cut interval for this model is on its spec sheet. Rejoin with solder or a solderless connector. Cutting LED strip lights · we can also cut to length and fit your connector before shipping: custom LED strip light assembly.

What size power supply do I need?

Take the watts per metre from the specification above, multiply by the length you are running, then add about 25% headroom. Power calculation guide · Choosing a power supply
